APEX
GA-01B-TG-OP

  • A-RGB control hub with M/B sync and fan speed control

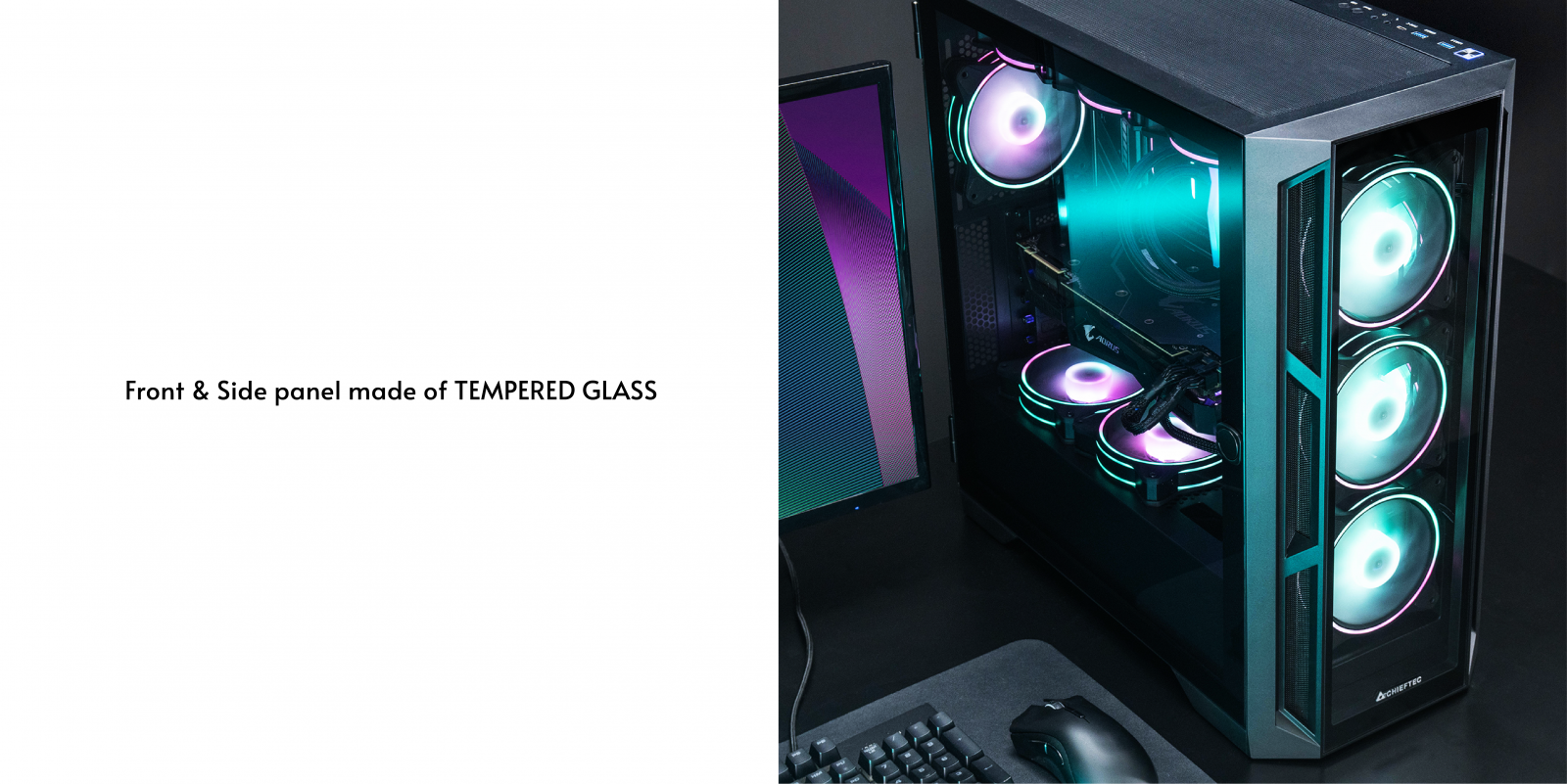

  • Front & Side panel made of TEMPERED GLASS

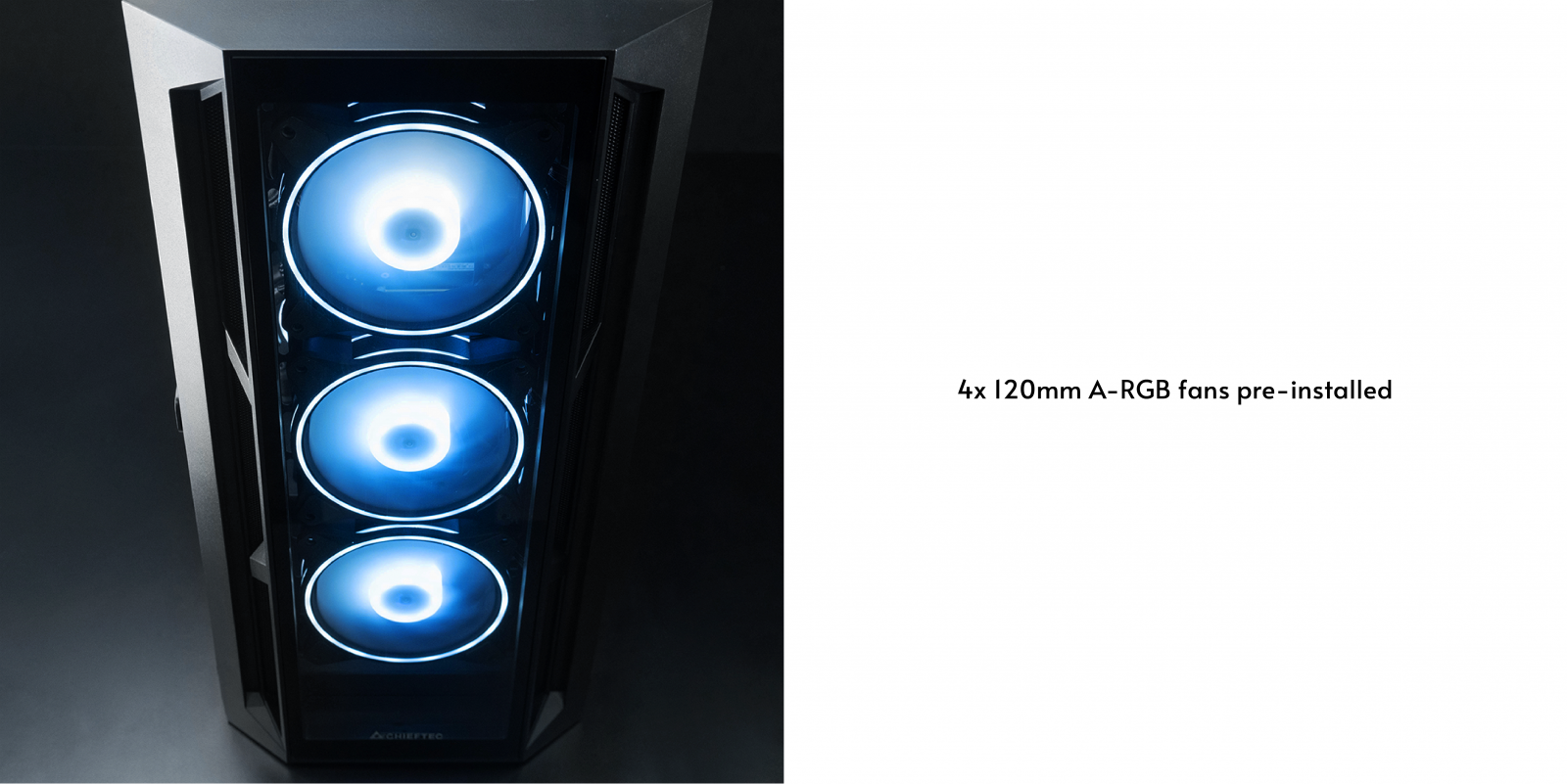

  • 4x 120mm A-RGB fans pre-installed
RGB-CHIEFTEC
ASUS-RGB
GIGABYTE-RGB
MSI-RGB
AsRock-RGB

OVERVIEW

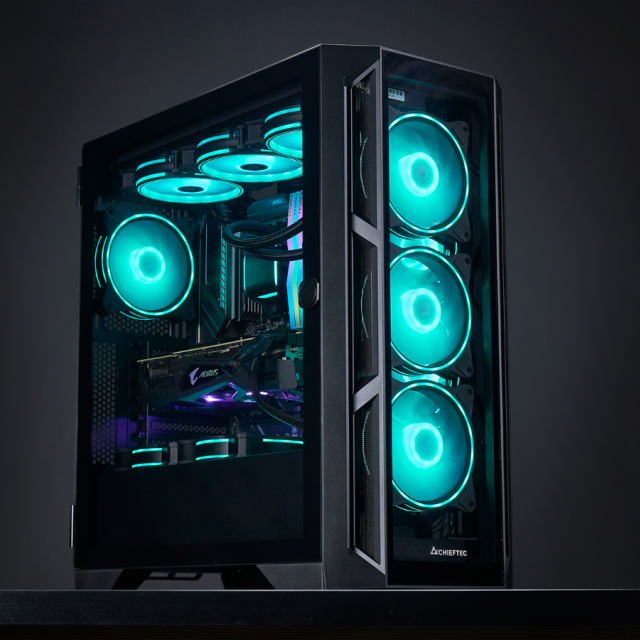

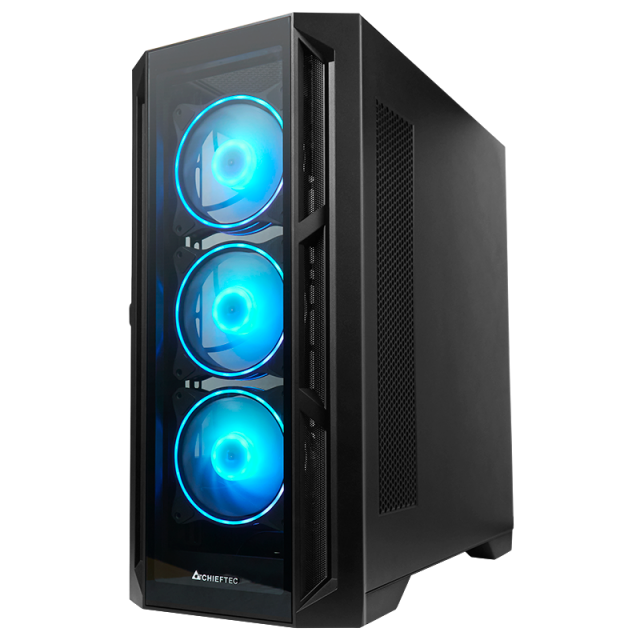

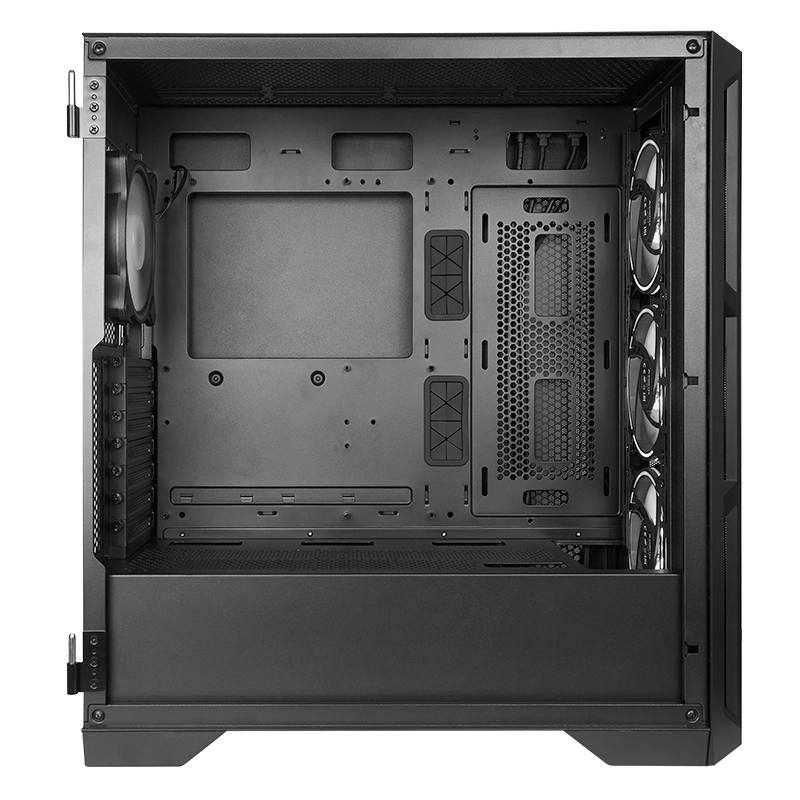

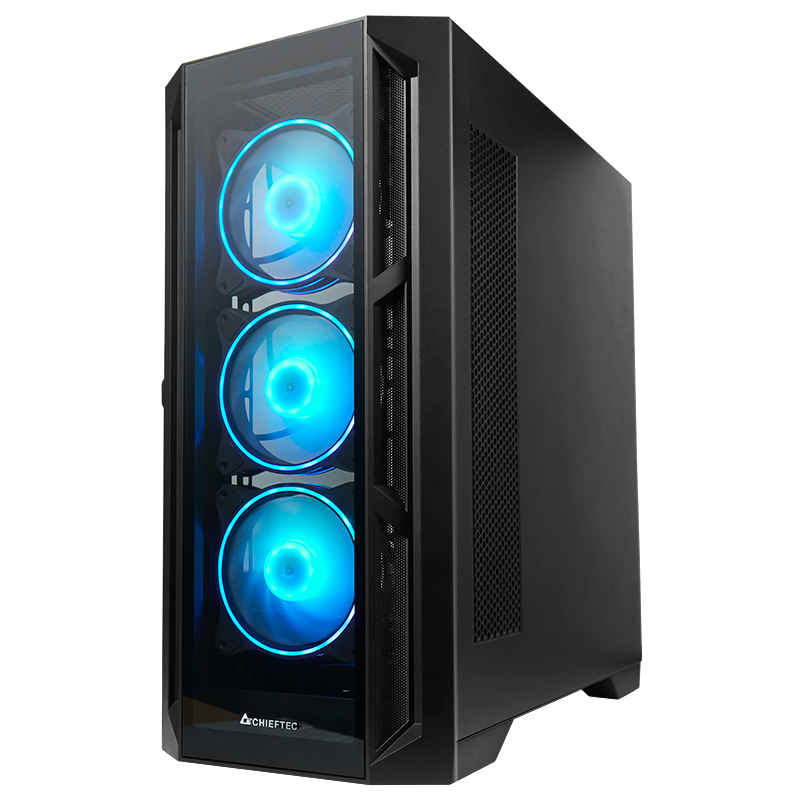

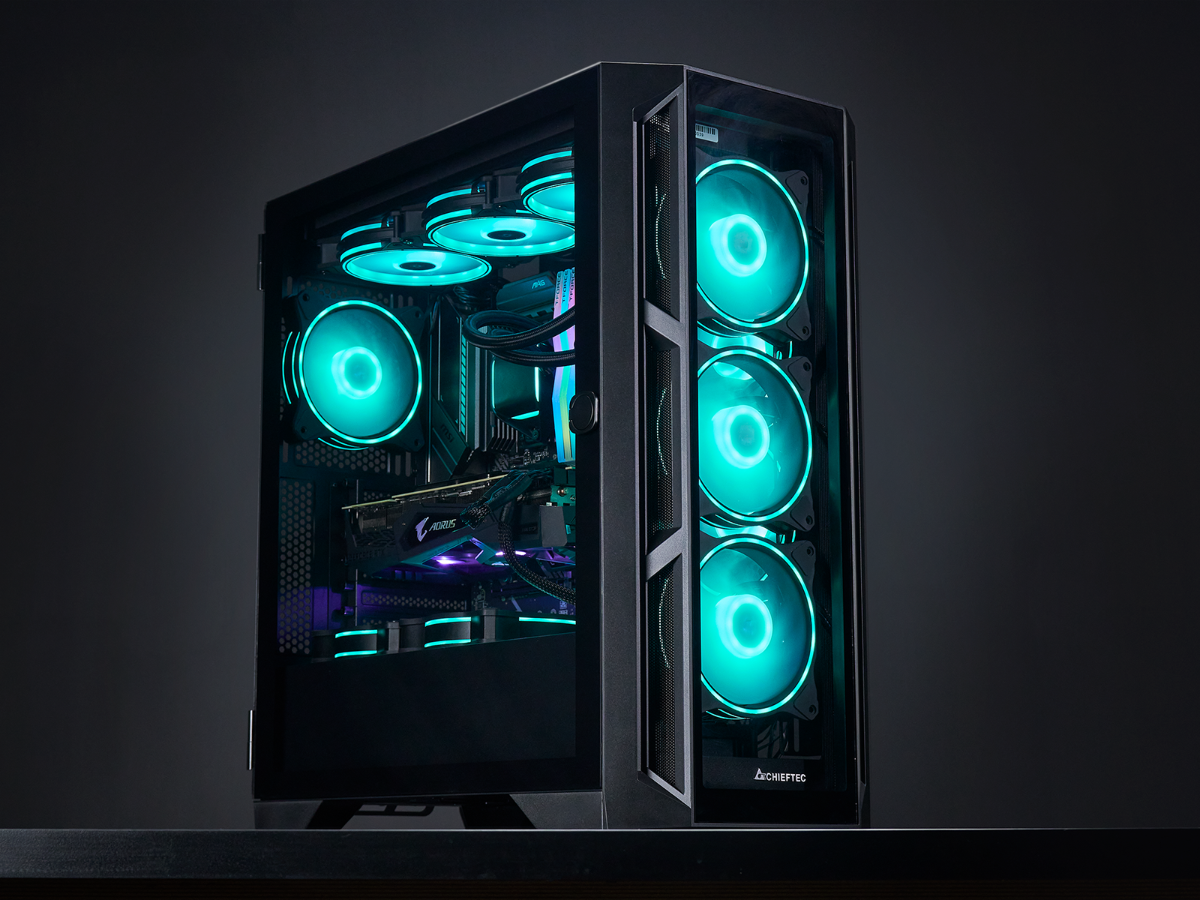

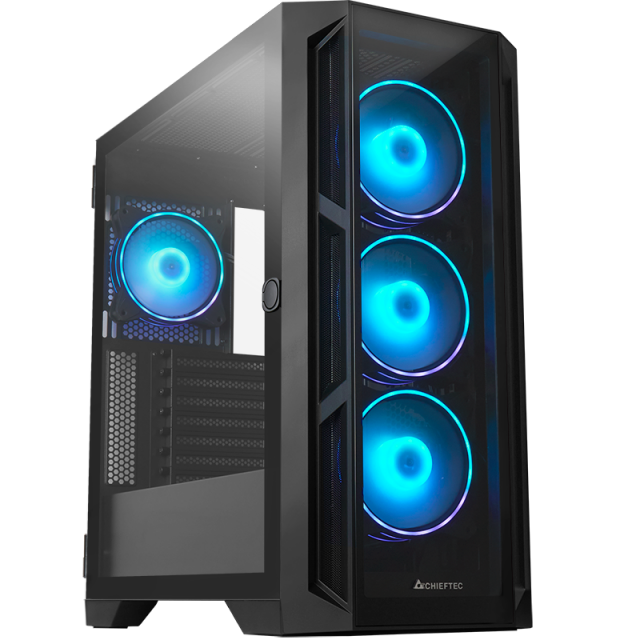

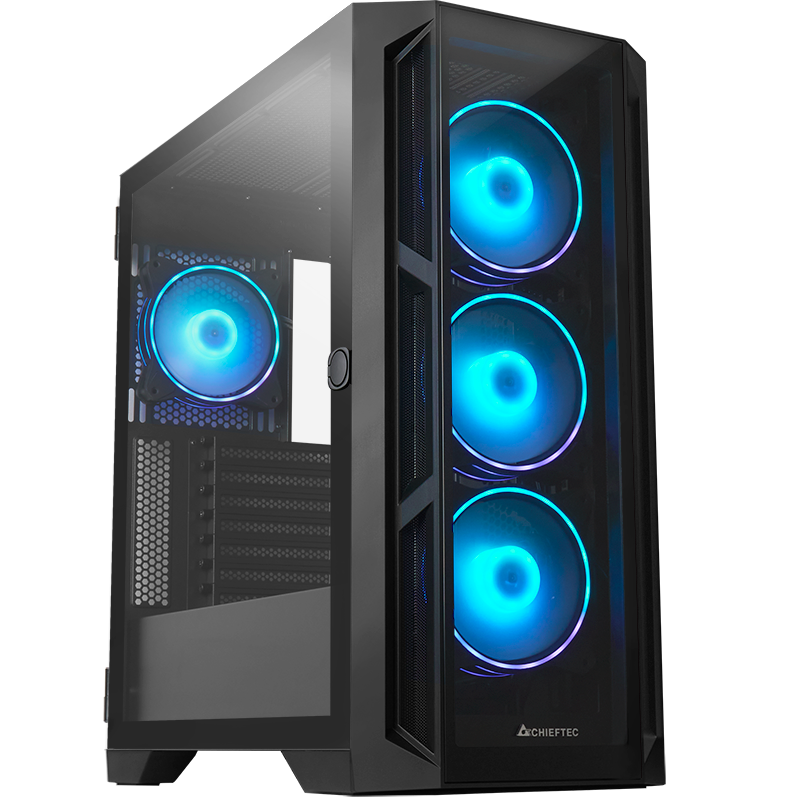

The CHIEFTEC APEX presents an E-ATX chassis with full clean tempered
glass on the front and side panels, including four pre-installed 120mm
ARGB fans that provide impressive style and cooling.

APEX with 4 pre-installed rainbow ARGB fans connected to a control hub
that allows for ARGB M/B sync and fan speed control.

The case is generous with space, offering support for GPUs up to 400 mm
in length, CPU coolers up to 175mm in height, and radiator support up to
360mm on the top and up to 420mm on the front.



SPECIFICATIONS

CE
EAC
interseroh
Recycle
RoHS
WEEE
ASUS-RGB
MSI-RGB
RGB-ASROCK
GIGABYTE-RGB
RGB-CHIEFTEC
Model APEX
Article no. GA-01B-TG-OP
EAN code 0753263078520
Color Black
Material Material 0.6mm SPCC and tempered glass at left side panel

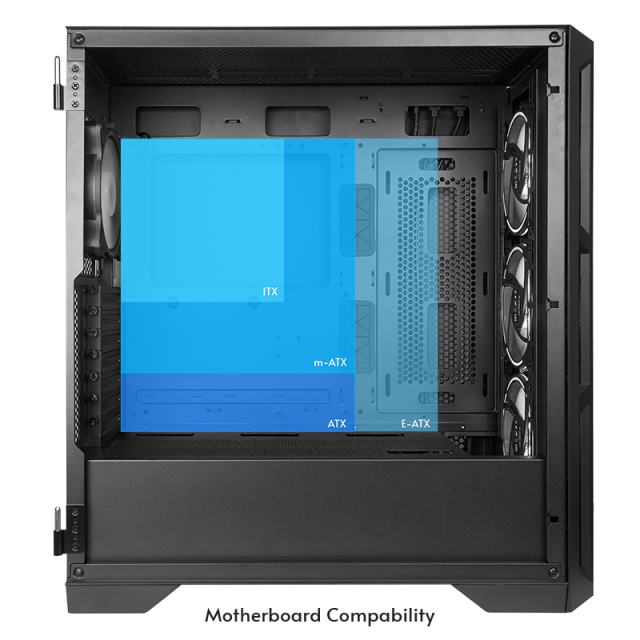

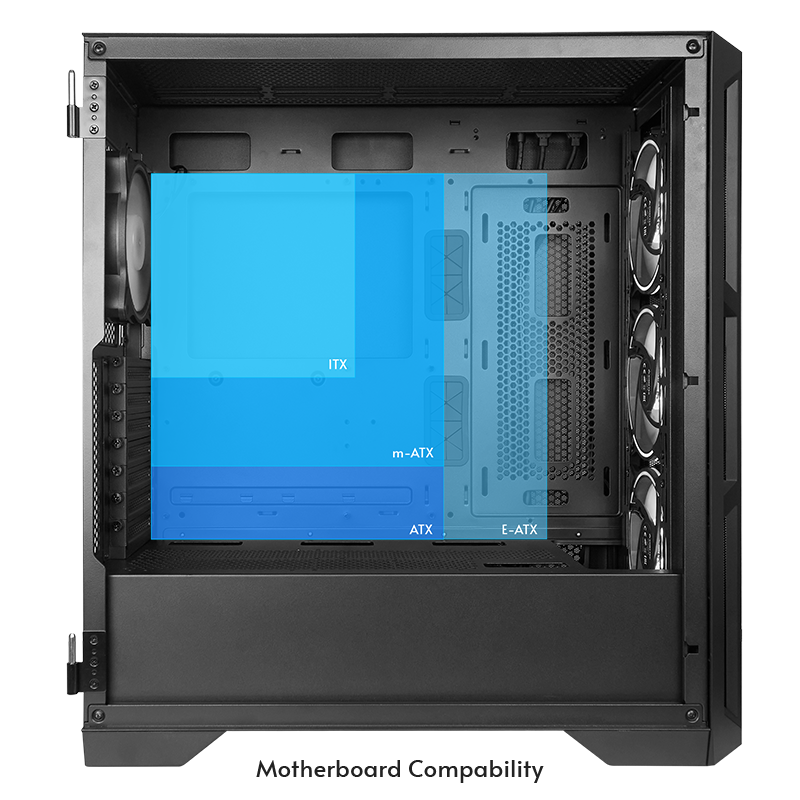

Motherboard support Mini ITX, M-ATX, ATX, E-ATX
Dimension (DxWxH) 465mm x 230mm x 495mm
Weight (without/with package) 8.0 kg / 9.50 kg
Drive bay external -
Drive bay internal 3x 2.5“ and 1x 3.5“ / 2x 2.5“ and 2x 3.5“
Power supply ATX PSU (optional, ~220mm)

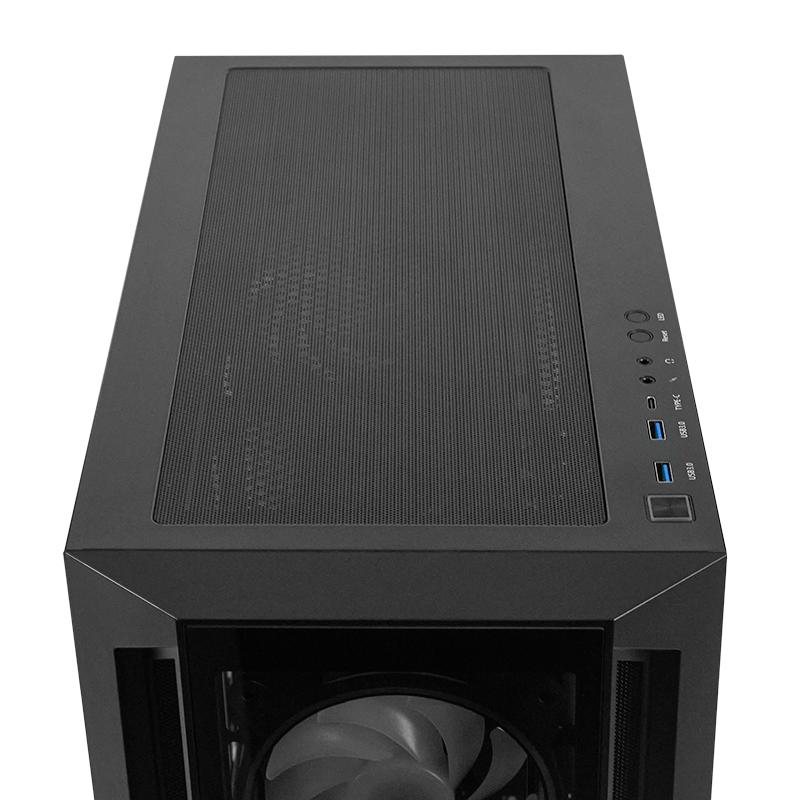

Front I/O 1x USB3.2 Gen2 Type C, 2x USB3.0 , Audio-out (AZALIA / HD-Audio), Mic-In, RGB Mode Button
Scope of delivery Set of screws, instruction manual

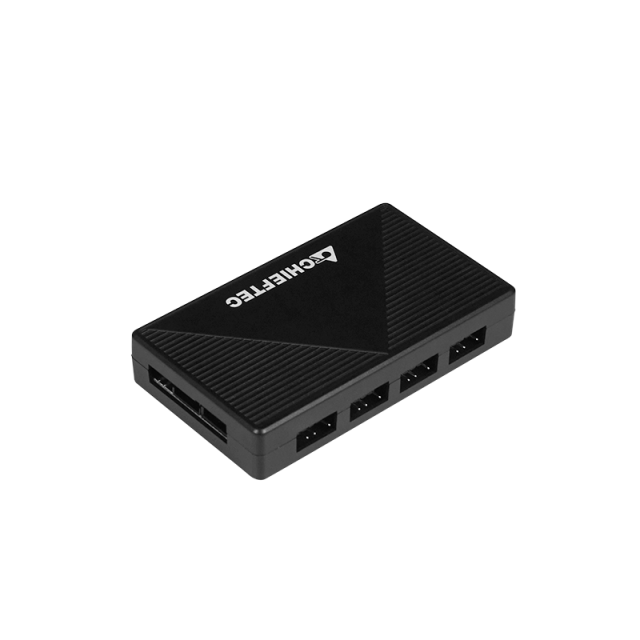

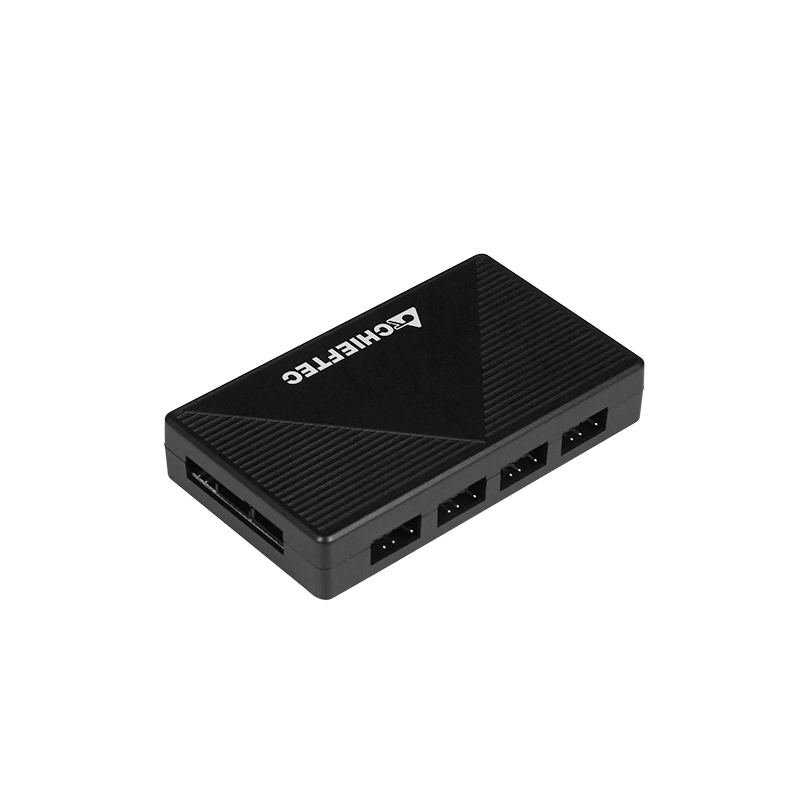

RGB control hub (DF-200) with 3PIN +5V M/B Sync and SATA power cable

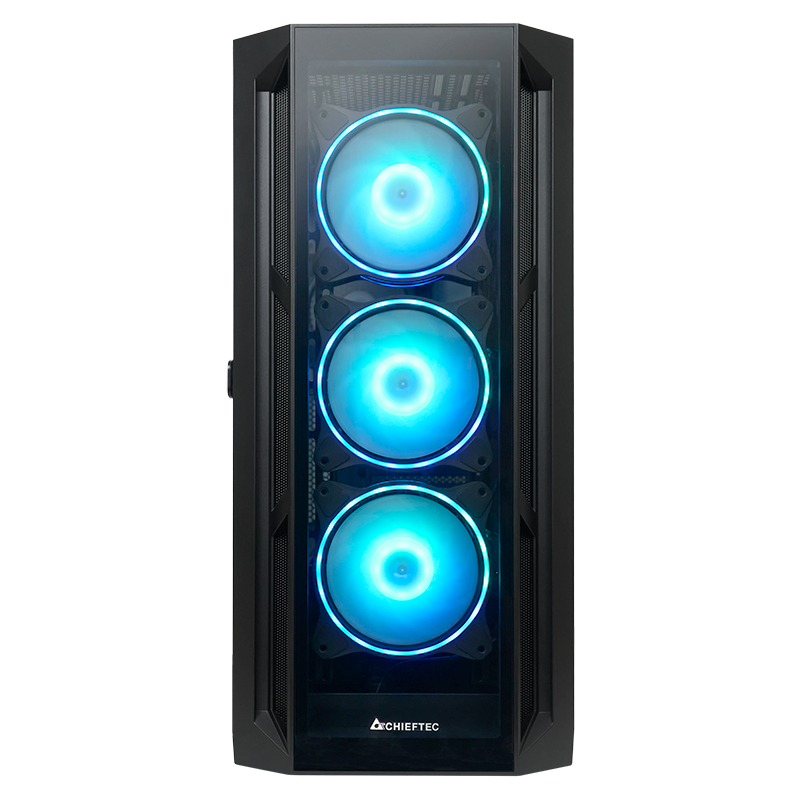

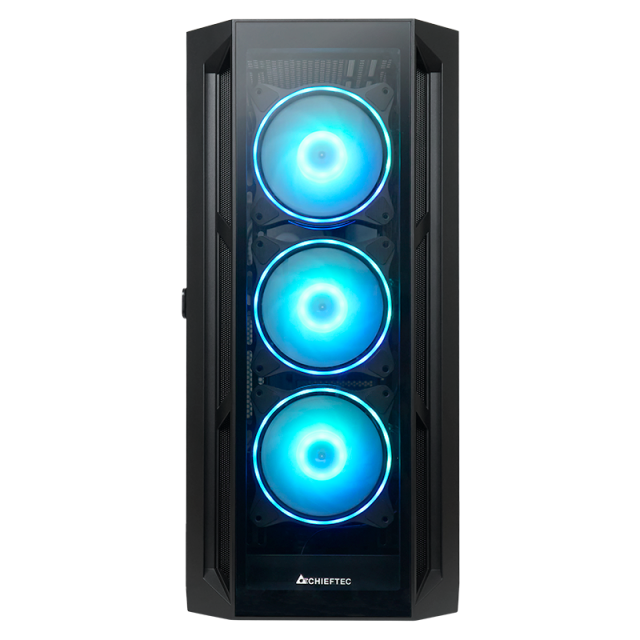

Front: 3x 120mm A-RGB rainbow fans pre-installed

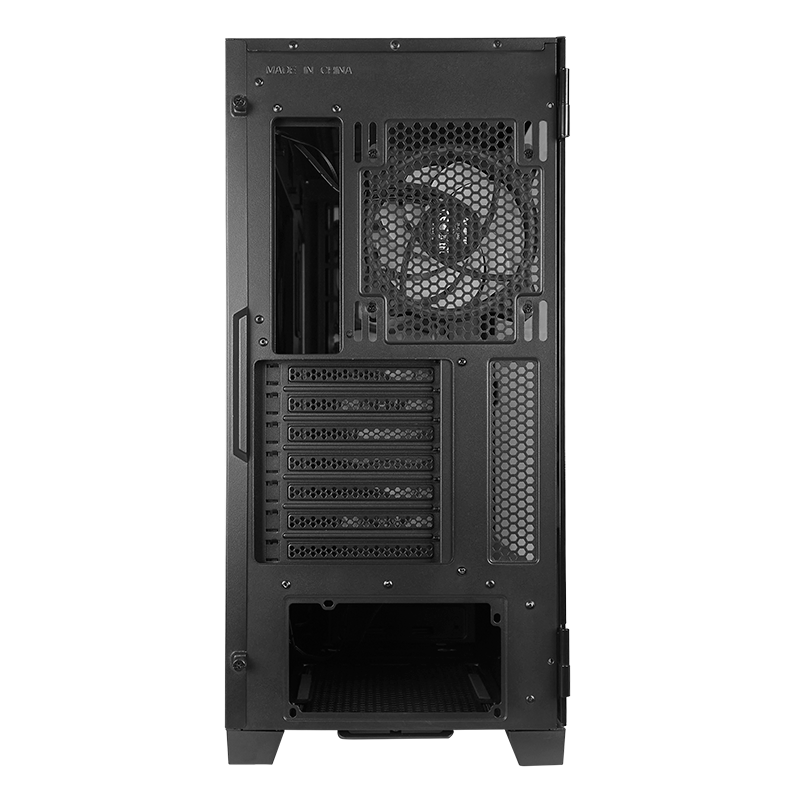

Rear: 1x 120mm A-RGB rainbow fan pre-installed

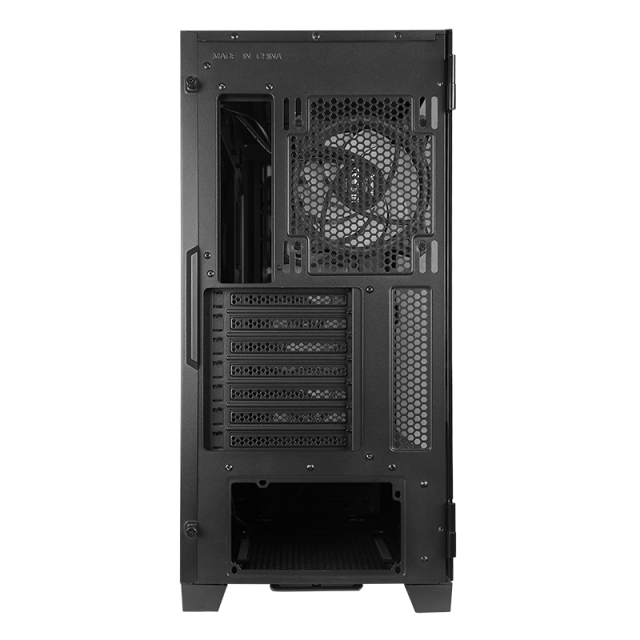

Expansion slots 7

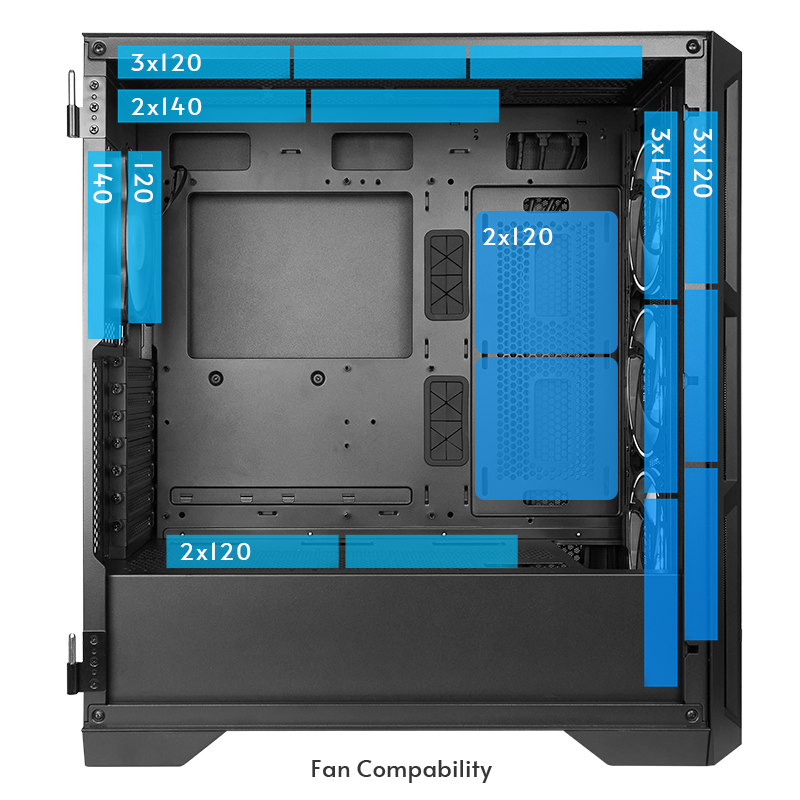

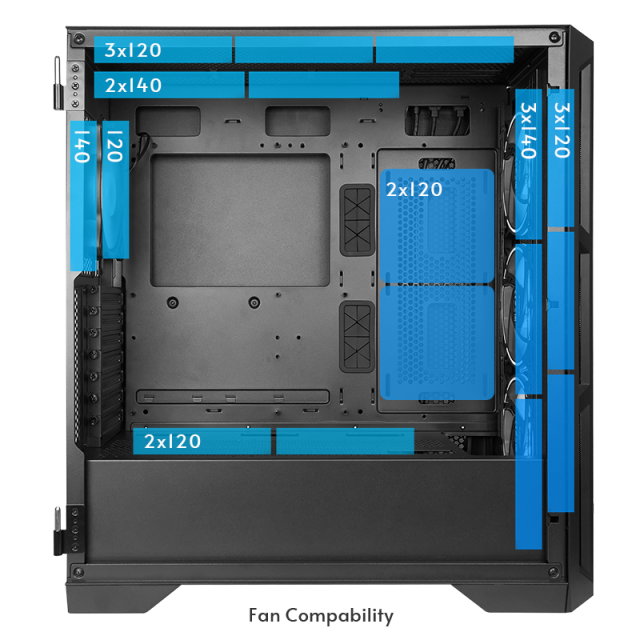

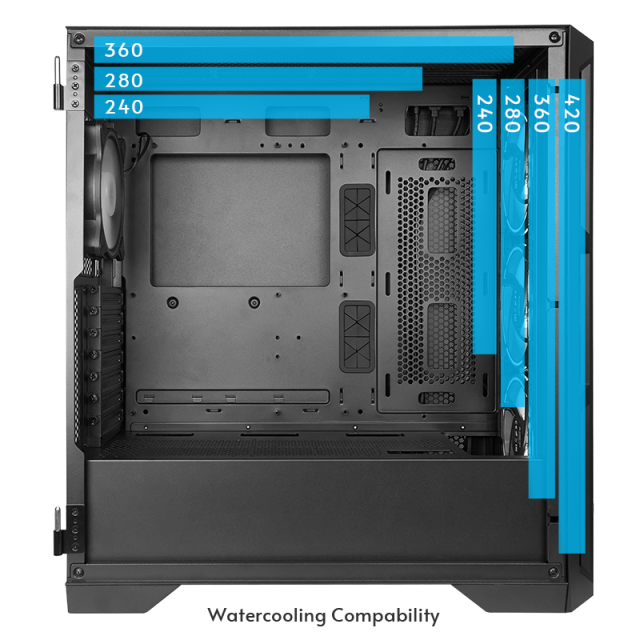

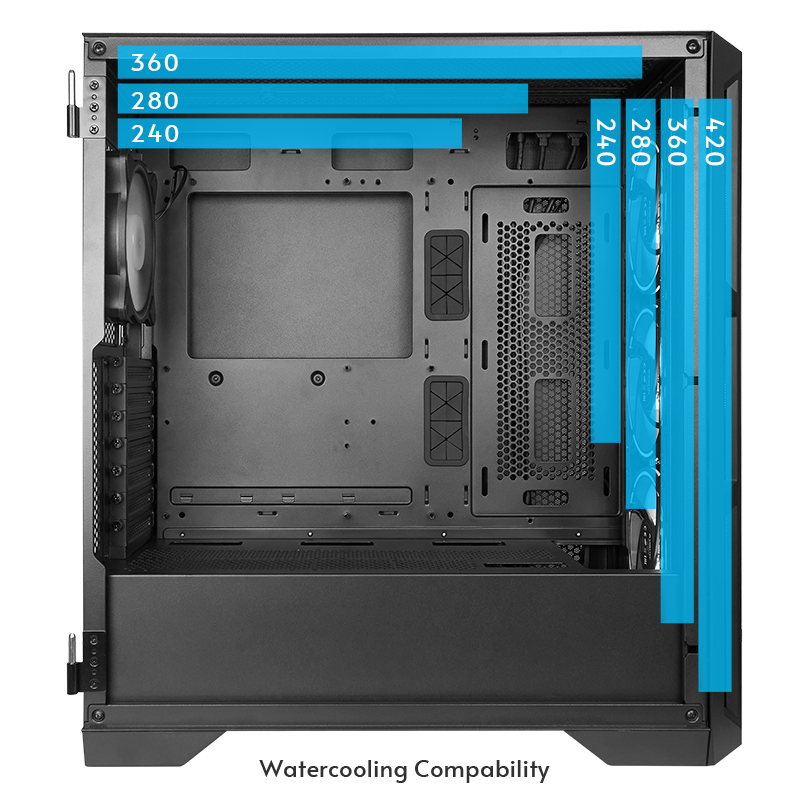

Cooling Compatibility Front: 3x 120mm or 3x 140mm or 240mm radiator or 280mm radiator or 360mm radiator or 420mm radiator
Top: 3x 120mm or 2x 140mm or 240mm radiator or 280mm radiator or 360mm radiator
Rear: 1x 120mm or 1x 140mm
PSU Cover : 2 x 120mm fan
Side: 2 x 120mm fan
CPU cooler height (max.) 175mm
VGA card length (max.) 400mm
Warranty 24 Months
