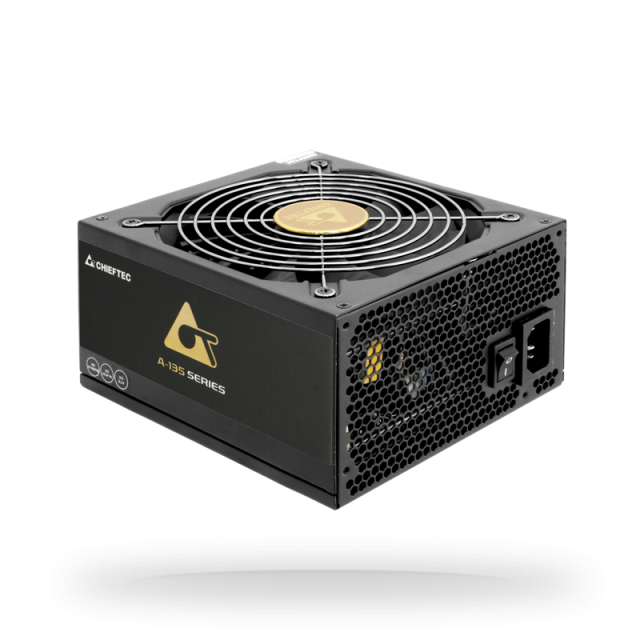

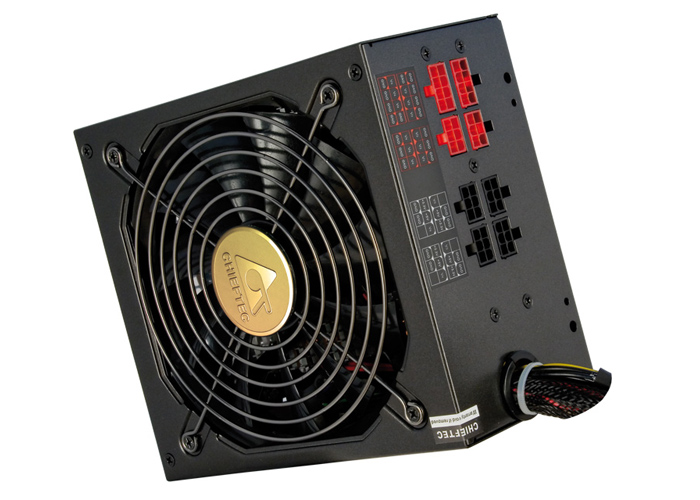

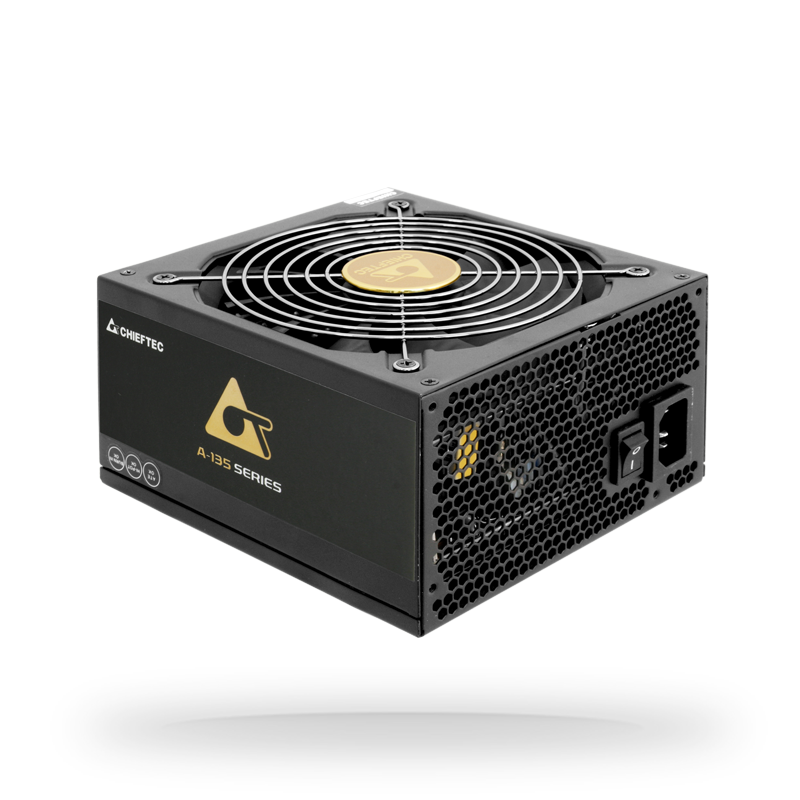

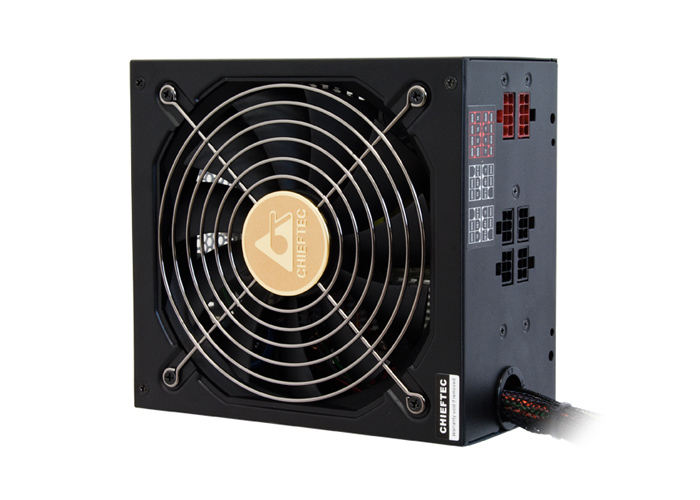

APS-1000CB
New A-135 SERIE

80 PLUS BRONZE
eol

ÜBERBLICK

Progressives Kabelmanagement kombiniert mit der erwünschten 80 PLUS Bronze Zertifizierung zeichnet die A-135 Serie aus und macht sie zu einer high end Komposition. Selbstverständlich unterstützen die hochwertigen Komponenten jetzt schon die kommende Generation der Intel Prozessoren mit einer Last von >0.05A. Die Kühlung übernimmt ein hochwertiger, temperaturgeregelter 140mm große Lüfter.

DETAILS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
Leistung
AC Input 115-230V
Frequency 50 - 60Hz
+5V 23A
+3,3V 23A
+5V & +3,3V combined 140W
+12V 1 42A
+12V 2 42A
+12V 1 & +12V 2 combined 996W
+12V 3 N/A
+12V 4 N/A
+12V 3 & +12V 4 combined N/A
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Load 1000W

Fixe Kabel
20+4PIN ATX 1
SATA -
MOLEX -
Floppy -
4PIN 12V -
8PIN 12V 1
8PIN (4+4) 12V 1
6PIN PCIe -
8PIN (6+2) PCIe 2

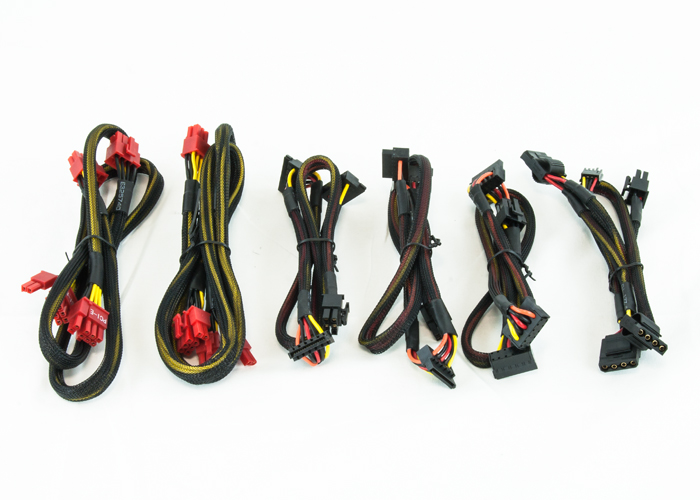

Modular Kabel
20+4PIN ATX -
SATA 9
MOLEX 3
Floppy 1
4PIN 12V -
8PIN 12V -
8PIN (4+4) 12V -
6PIN PCIe -
8PIN (6+2) PCIe 4

Eigenschaften
Spezifikation ATX 12V 2.3
Formfaktor PS II
Wirkungsgrad 80+Bronze
Abmessungen (TxBxH) 160 mm x 150 mm x 87 mm
PFC Active PFC (0,9)
Lüfter 140mm Lüfter
Sicherheit AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Zertifikate 80PLUS Bronze
Garantie 24 Monate
