- 80 PLUS Gold Efficiency
- Compact size with only 140mm depth
- 500-700W power output
- Motherboard, CPU and PCI-E cable lengths of 650mm
BBS-500S
CORE SERIES
OVERVIEW

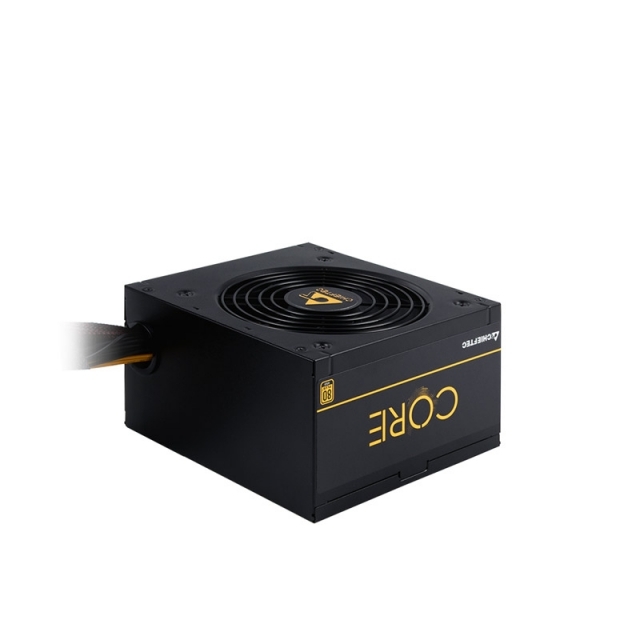

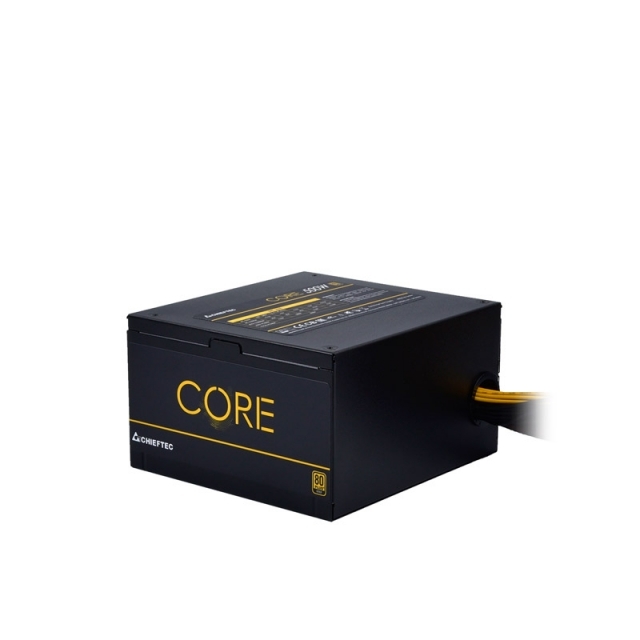

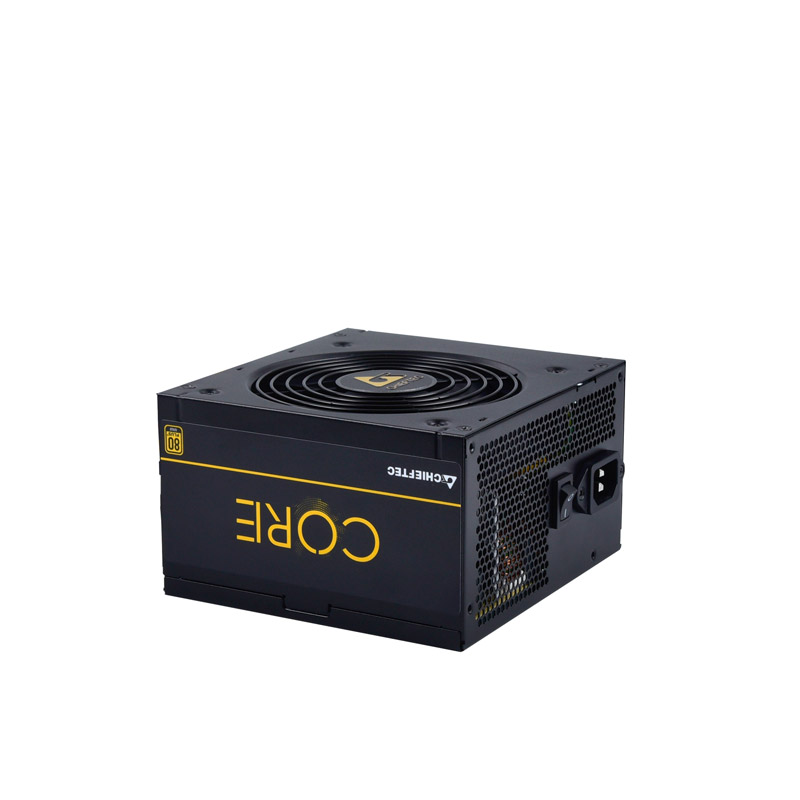

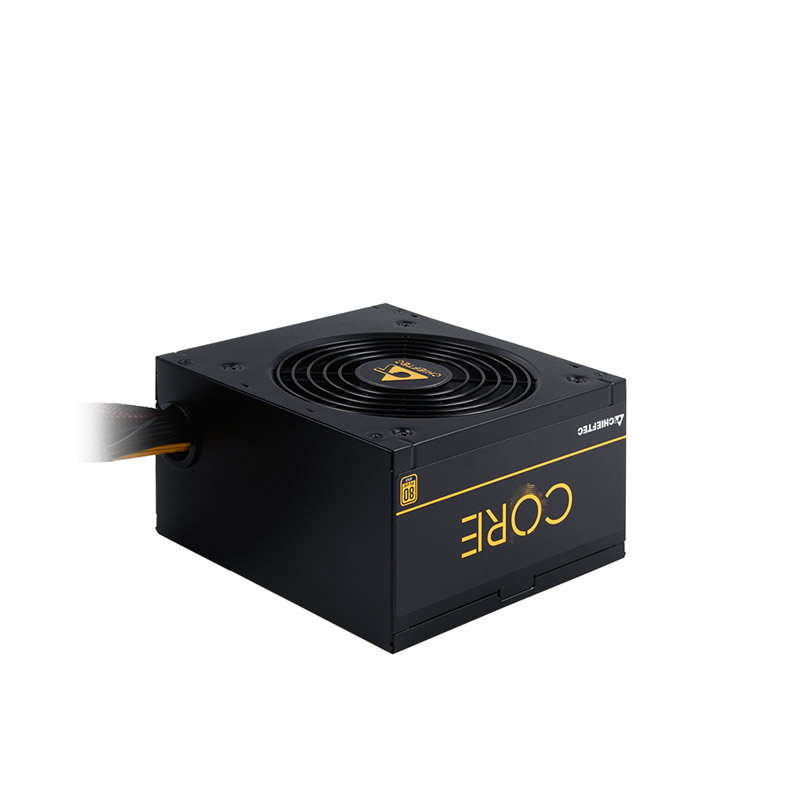

With the Core series, Chieftec is launching a new 80 PLUS Gold certified power supply on the market, which not only impresses with its good price-performance ratio. The aim of the Core series power supplies is to offer a combination of performance, efficiency and reliability without unnecessary fancy bells and whistles design. The performance range of the Core series from 500 to 700 watts is perfect for customers who are looking for first-class power supplies at a very attractive price..
SPECIFICATIONS
| Model | CORE 500W |
|---|---|
| Article no. | BBS-500S |
| EAN code | 0753263076120 |
| Weight (Net/Gross) | 1.68kg / 2.47kg |
| AC Input | 100-240V / 8.0A |
| Frequency | 47 - 63Hz |
| +5V | 18A |
| +3,3V | 18A |
| +5V & +3,3V combined | 100W |
| +12V1 | 41A |
| +12V2 | - |
| +12V1, +12V2 combined | 492W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 500W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 1 |
| SATA | 4 |
| MOLEX/FLOPPY | 3/1 |
| 20+4 PIN ATX | 650 |
|---|---|
| 8 PIN EPS(4+4) | 650 |
| 8 PIN PCIe (6+2) | 500 |
| SATA | 1x 500/150/150 1x 500 |
| MOLEX/FLOPPY | 500/150/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 140mm x 150mm x 86mm |
| PFC | Active PFC |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
