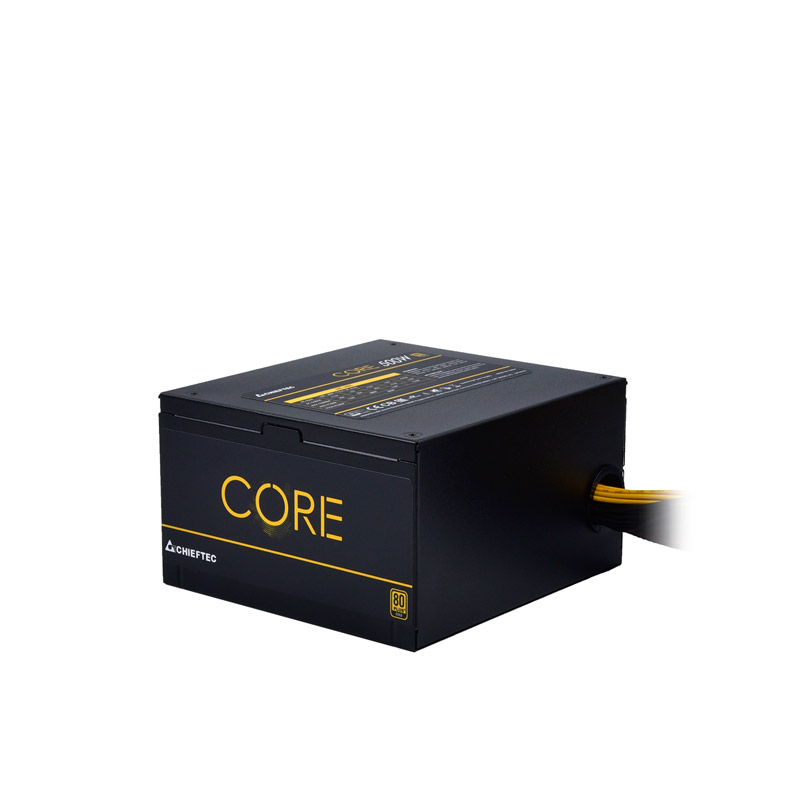

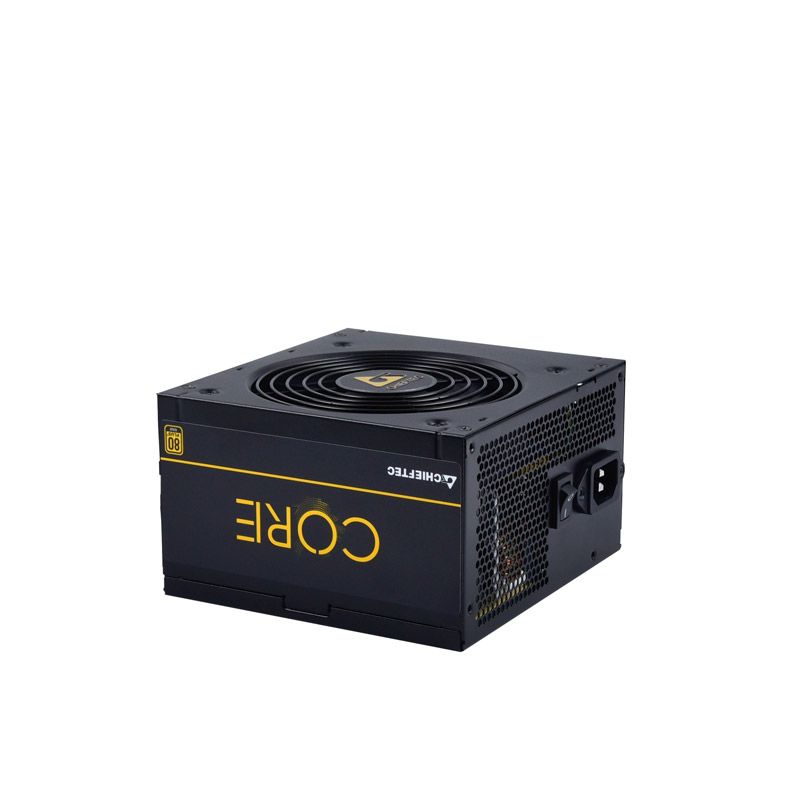

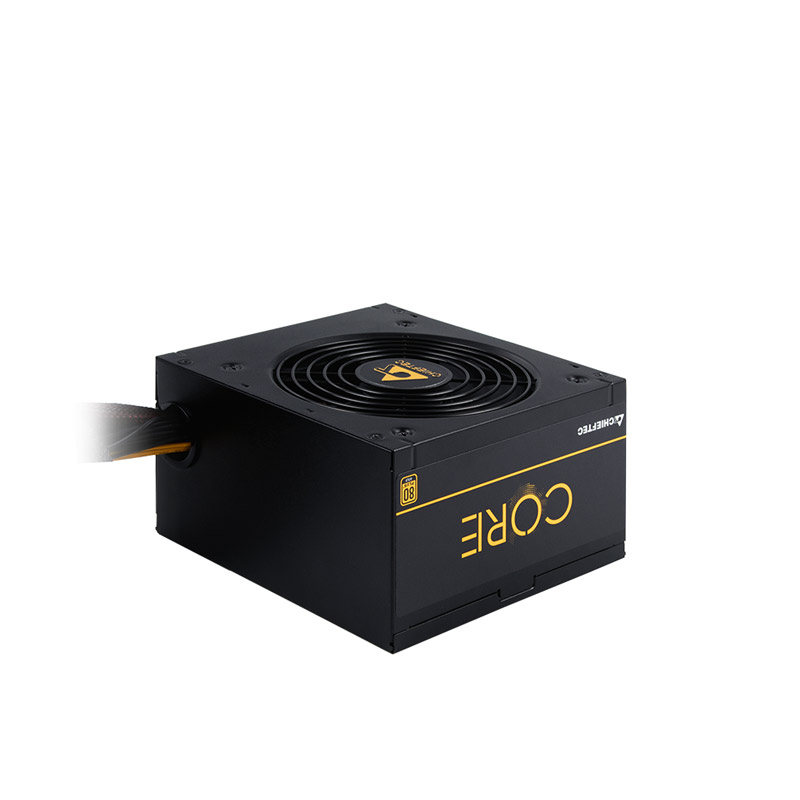

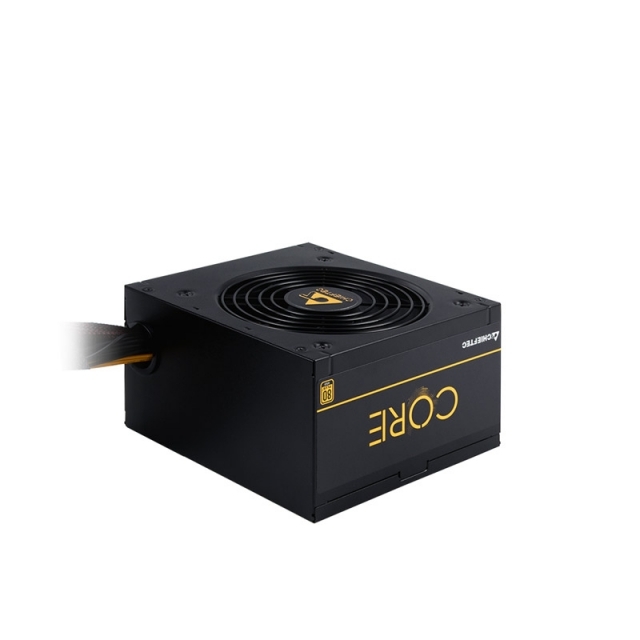

BBS-600S
CORE SERIES

  • 80 PLUS Gold Efficiency
  • Compact size with only 140mm depth
  • 500-700W power output
  • Motherboard, CPU and PCI-E cable lengths of 650mm
80 PLUS Gold

OVERVIEW

With the Core series, Chieftec is launching a new 80 PLUS Gold certified power supply on the market, which not only impresses with its good price-performance ratio. The aim of the Core series power supplies is to offer a combination of performance, efficiency and reliability without unnecessary fancy bells and whistles design. The performance range of the Core series from 500 to 700 watts is perfect for customers who are looking for first-class power supplies at a very attractive price..

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
FCC
TECHNICAL DATA
Model CORE 600W
Article no. BBS-600S
EAN code 0753263076137
Weight (Net/Gross) 1.75kg / 2.54kg
AC Input 100-240V / 9.0A
Frequency 47 - 63Hz
+5V 20A
+3,3V 20A
+5V & +3,3V combined 110W
+12V1 49A
+12V2 -
+12V1, +12V2 combined 588W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 600W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 2
SATA 6
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS(4+4) 650
8 PIN PCIe (6+2) 500/150
SATA 2x 500/150/150
MOLEX/FLOPPY 500/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Gold
Dimension (DxWxH) 140 mm x 150 mm x 86 mm
PFC Active PFC
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
