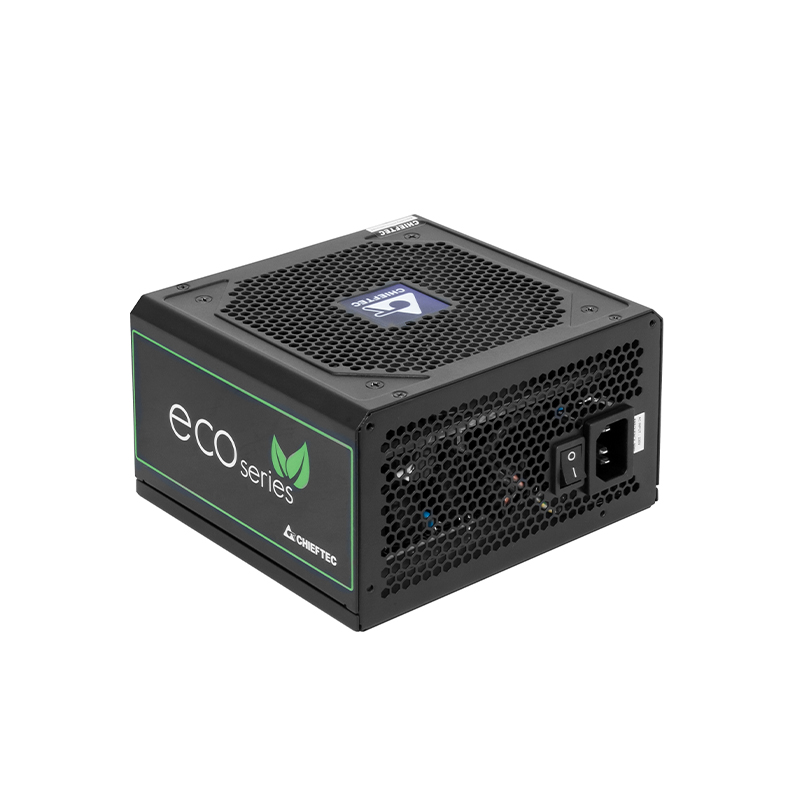

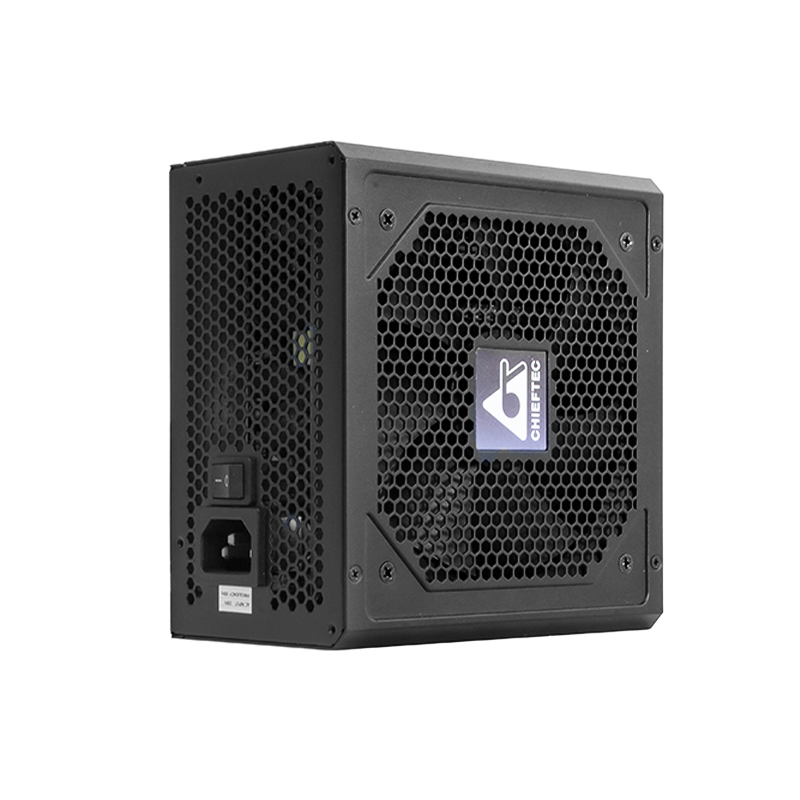

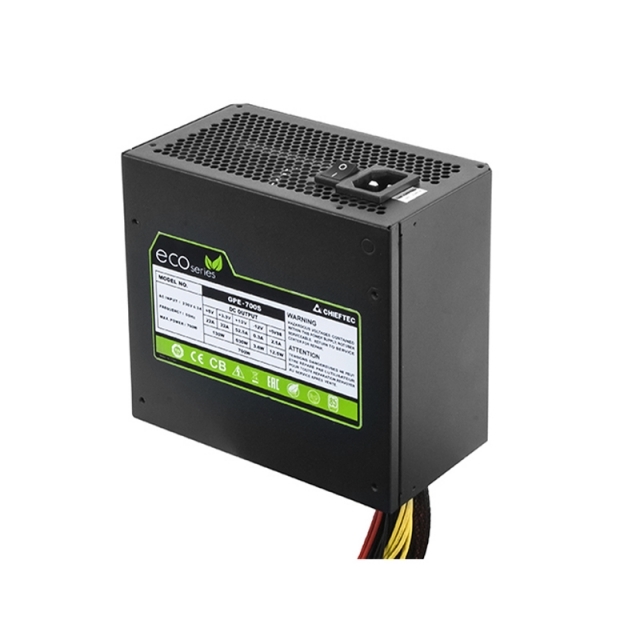

GPE-700S
ECO SERIES

>85%(230V Only)

OVERVIEW

The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model ECO 700W
Article no. GPE-700S
EAN code 4710713234208
Weight (without/with package) 1.55kg / 1.66kg
AC Input 230V / 6.3A
Frequency 50 Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 130W
+12V1 52.5A
+12V2 -
+12V1, +12V2 combined 630W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 700W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 2
SATA 6
MOLEX/FLOPPY 2

Cable length (mm)
20+4 PIN ATX 450
8 PIN EPS(4+4) 550
8 PIN PCIe (6+2) 450/150
SATA 2x 350/150/150
MOLEX/FLOPPY /150

Features
ATX12V Version ATX 12V 2.3
Efficiency >85%
Dimension (DxWxH) 140 mm x 150 mm x 86 mm
PFC Active PFC (0,9)
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Month
