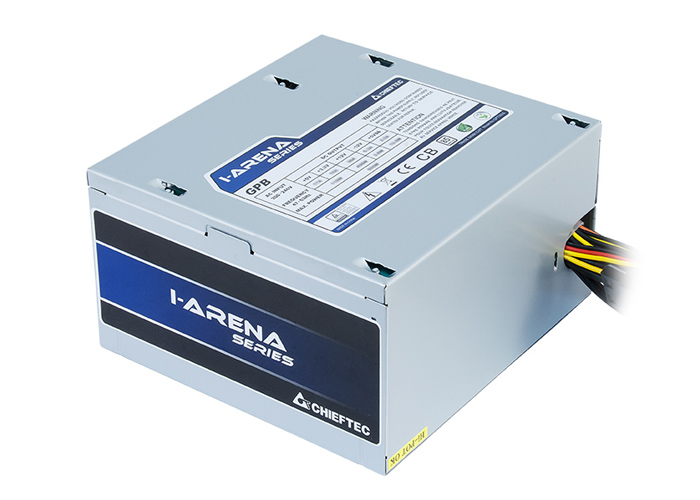

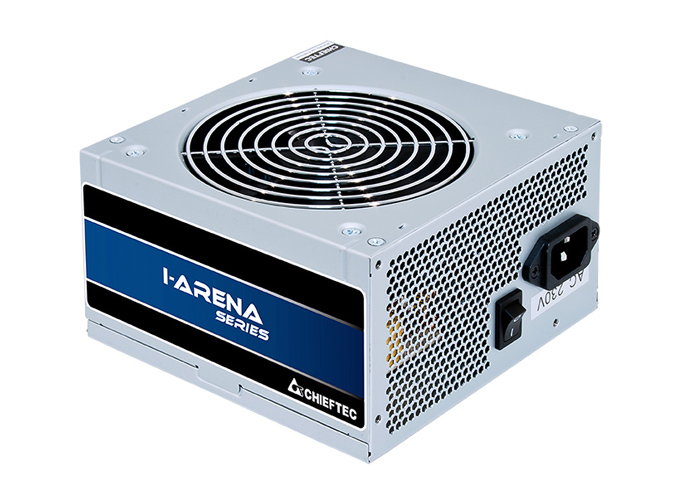

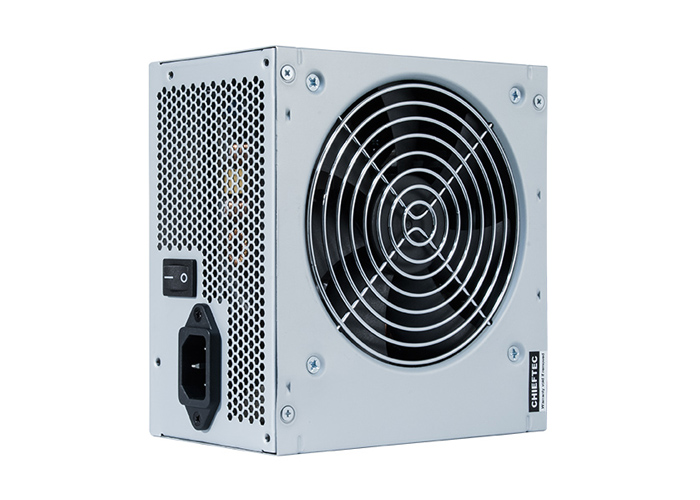

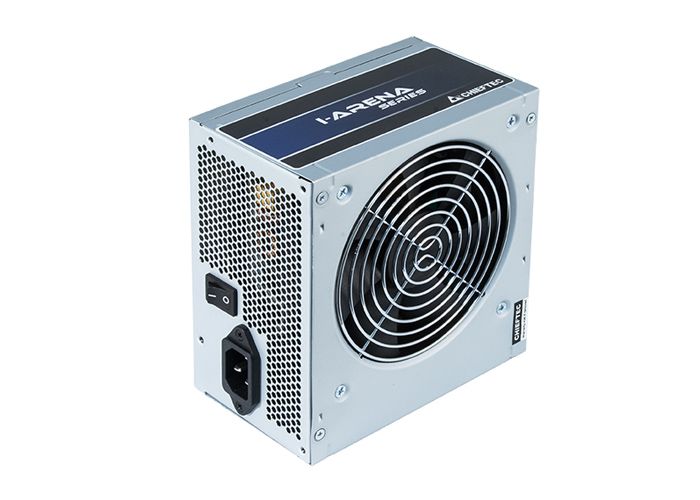

GPB-500S
IARENA SERIES

>85%(230V Only)
Bulk

OVERVIEW

High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model IARENA 500W
Article no. GPB-500S
EAN code 4710713233645
Weight (without/with package) 1.25kg / 1.37kg
AC Input 200-240V / 4.0A
Frequency 47-63 Hz
+5V 17A
+3,3V 18A
+5V & +3,3V combined 110W
+12V1 38A
+12V2 -
+12V1, +12V2 combined 456W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 500W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 1
SATA 5
MOLEX/FLOPPY 3

Cable length (mm)
20+4 PIN ATX 400
8 PIN EPS(4+4) 400
8 PIN PCIe (6+2) 400
SATA 1x 550/150
1x 400/150
1x 400
MOLEX/FLOPPY 1x 400
1x 550/150

Features
ATX12V Version ATX 12V 2.3
Efficiency >85%
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC (0,9)
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
