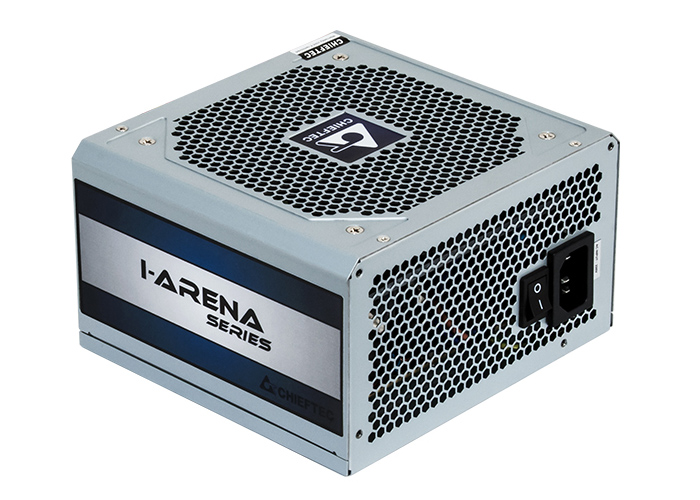

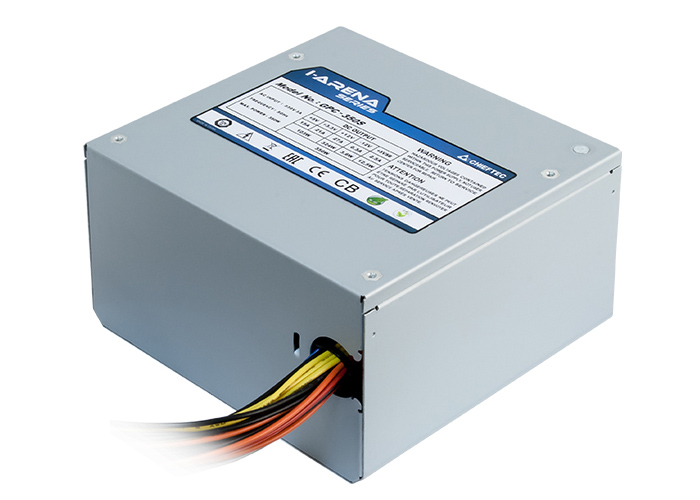

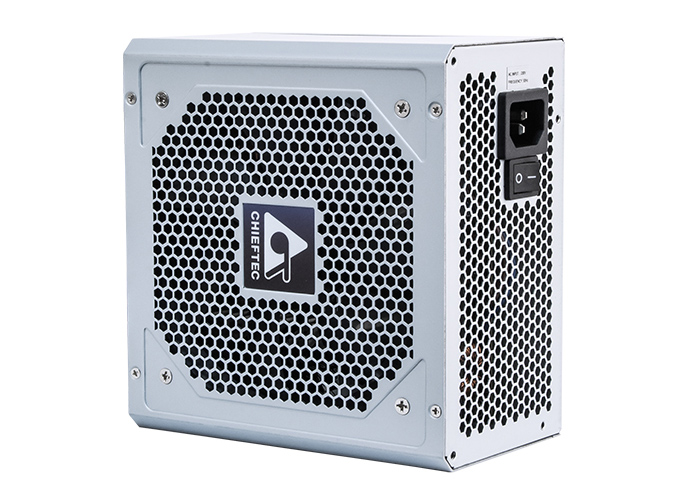

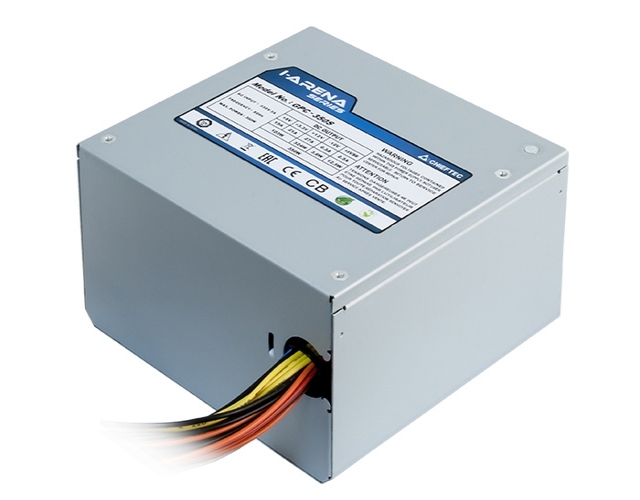

GPC-500S
IARENA SERIES

80%(230V Only)
Bulk

OVERVIEW

In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model IARENA 500W
Article no. GPC-500S
EAN code 4710713234147
Weight (without/with package) 1.27kg / 1.39kg
AC Input 230V / 5A
Frequency 50 Hz
+5V 20A
+3,3V 20A
+5V & +3,3V combined 120W
+12V1 37.5A
+12V2 -
+12V1, +12V2 combined 450W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 500W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 1
SATA 4
MOLEX/FLOPPY 2

Cable length (mm)
20+4 PIN ATX 450
8 PIN EPS(4+4) 450
8 PIN PCIe (6+2) 400
SATA 2x 350/150
MOLEX/FLOPPY /150

Features
ATX12V Version ATX 12V 2.4
Efficiency 80%
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC (0,9)
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
