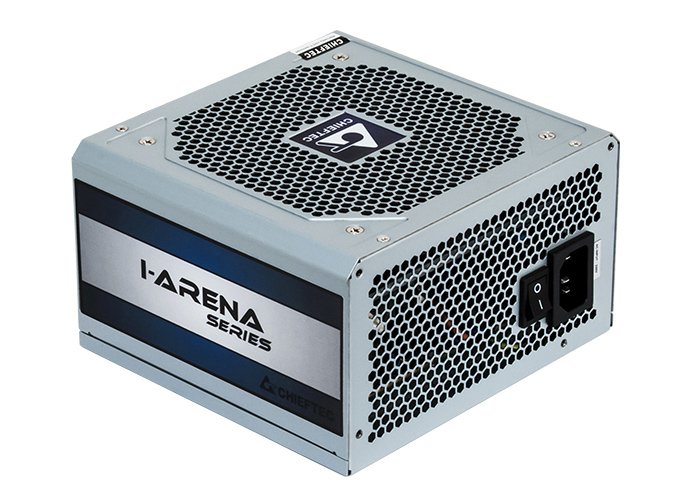

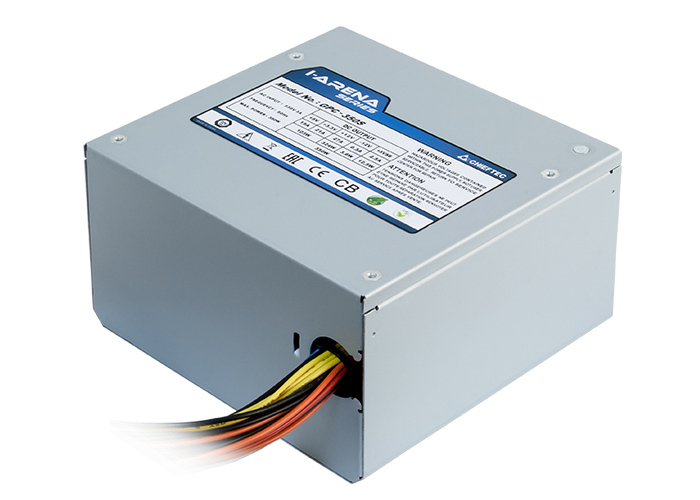

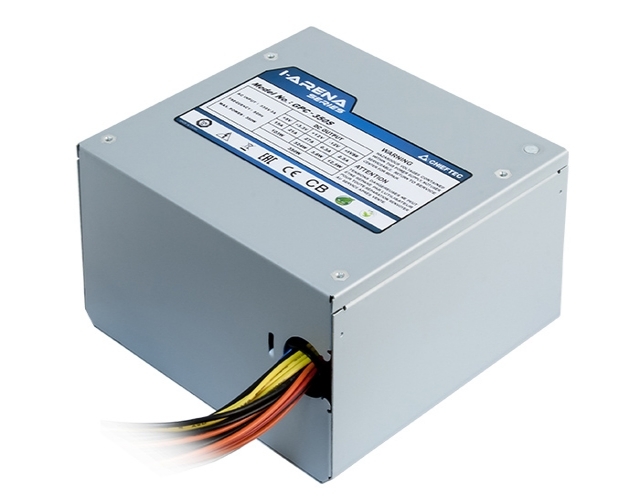

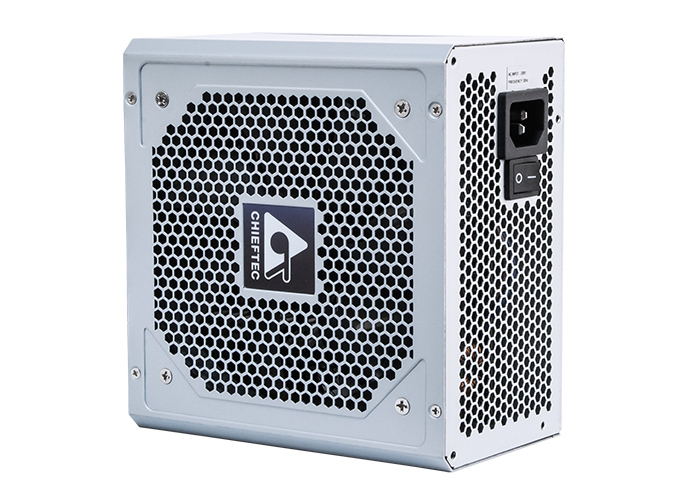

GPC-700S
IARENA SERIES
OVERVIEW
In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
SPECIFICATIONS
| Model | IARENA 700W |
|---|---|
| Article no. | GPC-700S |
| EAN code | 4710713234161 |
| Weight (without/with package) | 1.53kg / 1.65kg |
| AC Input | 230V / 6.3A |
| Frequency | 50 Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 130W |
| +12V1 | 52.5A |
| +12V2 | - |
| +12V1, +12V2 combined | 630W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 700W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX/FLOPPY | 2 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS(4+4) | 500 |
| 8 PIN PCIe (6+2) | 450/150 |
| SATA | 2x 350/150/150 |
| MOLEX/FLOPPY | /150 |
| ATX12V Version | ATX 12V 2.4 |
|---|---|
| Efficiency | 80% |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
