- PROTON PC Power Supply Series are certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.

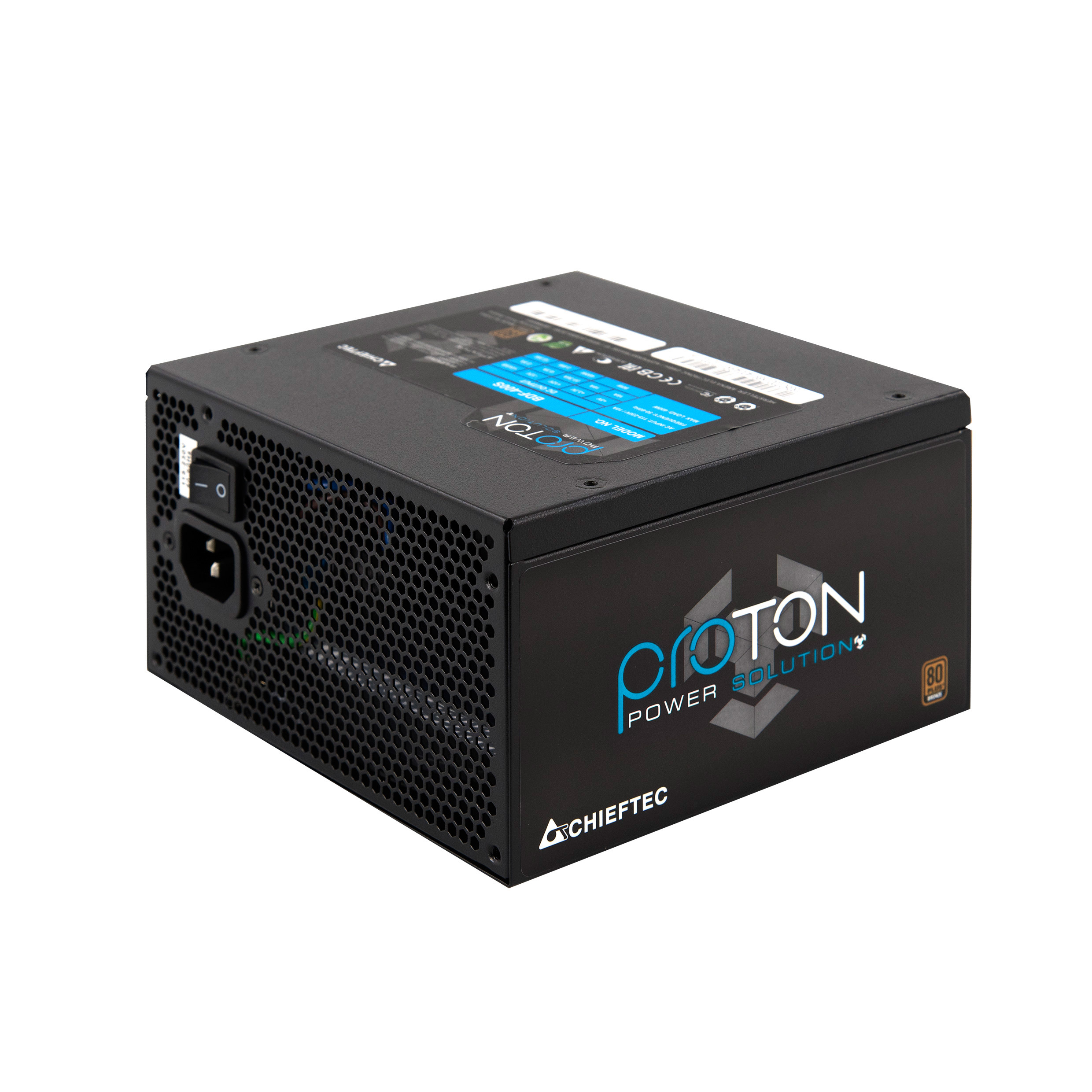

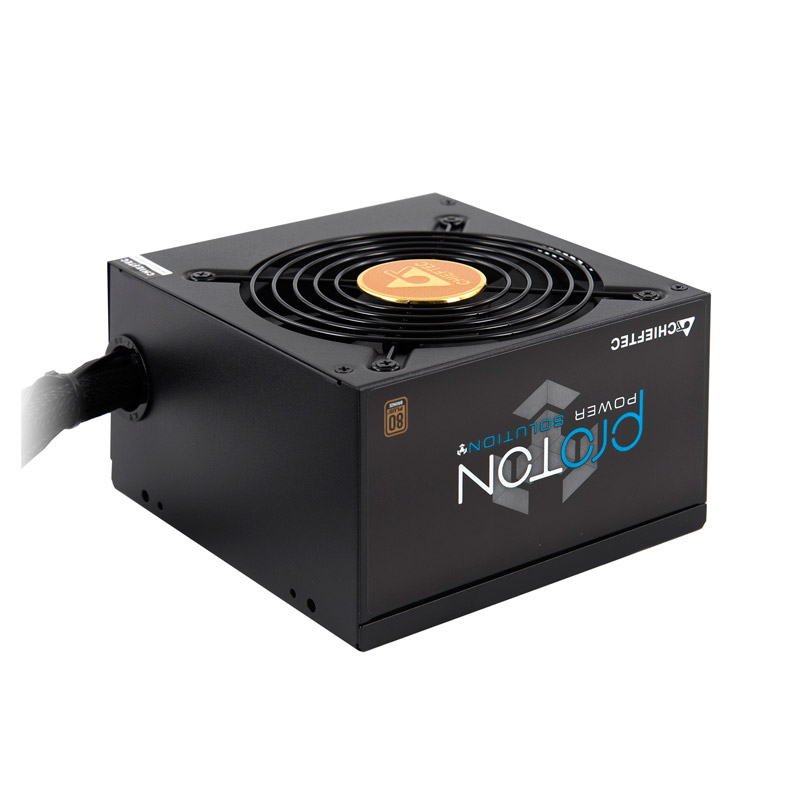

BDF-500S
PROTON SERIES
OVERVIEW
With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
SPECIFICATIONS
| Model | PROTON 500W |
|---|---|
| Article no. | BDF-500S |
| EAN code | 4710713231269 |
| Weight (without/with package) | 1.55kg / 1.90kg |
| AC Input | 115-230V / 10A |
| Frequency | 50 - 60Hz |
| +5V | 18A |
| +3,3V | 18A |
| +5V & +3,3V combined | 90W |
| +12V1 | 41.68A |
| +12V2 | - |
| +12V1, +12V2 combined | 500W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 500W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX | 3 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS (4+4) | 550 |
| 8 PIN PCIe (6+2) | 450/150 |
| SATA | 2x 400/150/150 |
| MOLEX | 400/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80+Bronze |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
