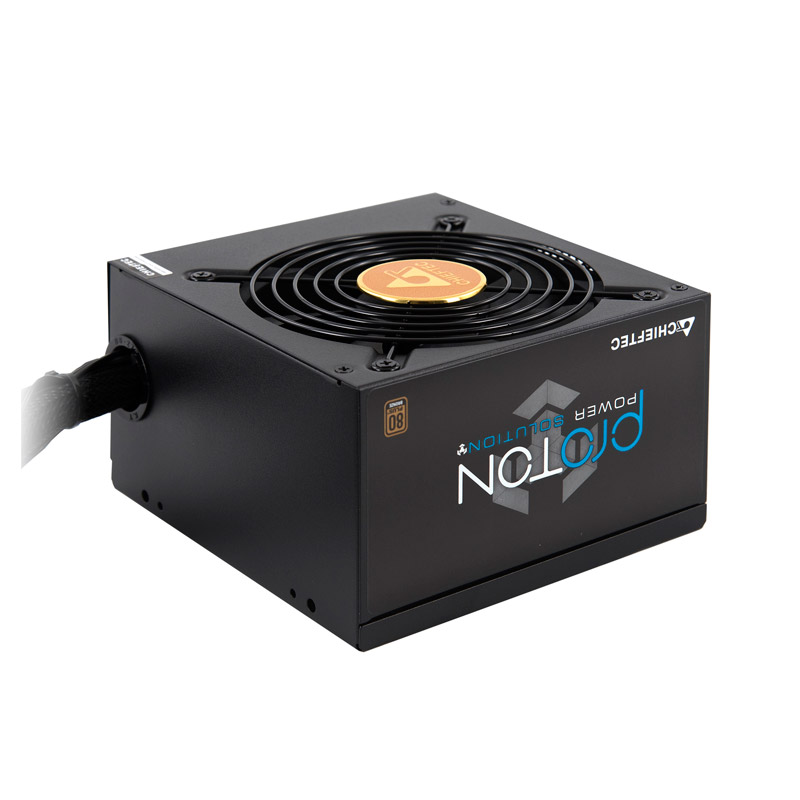

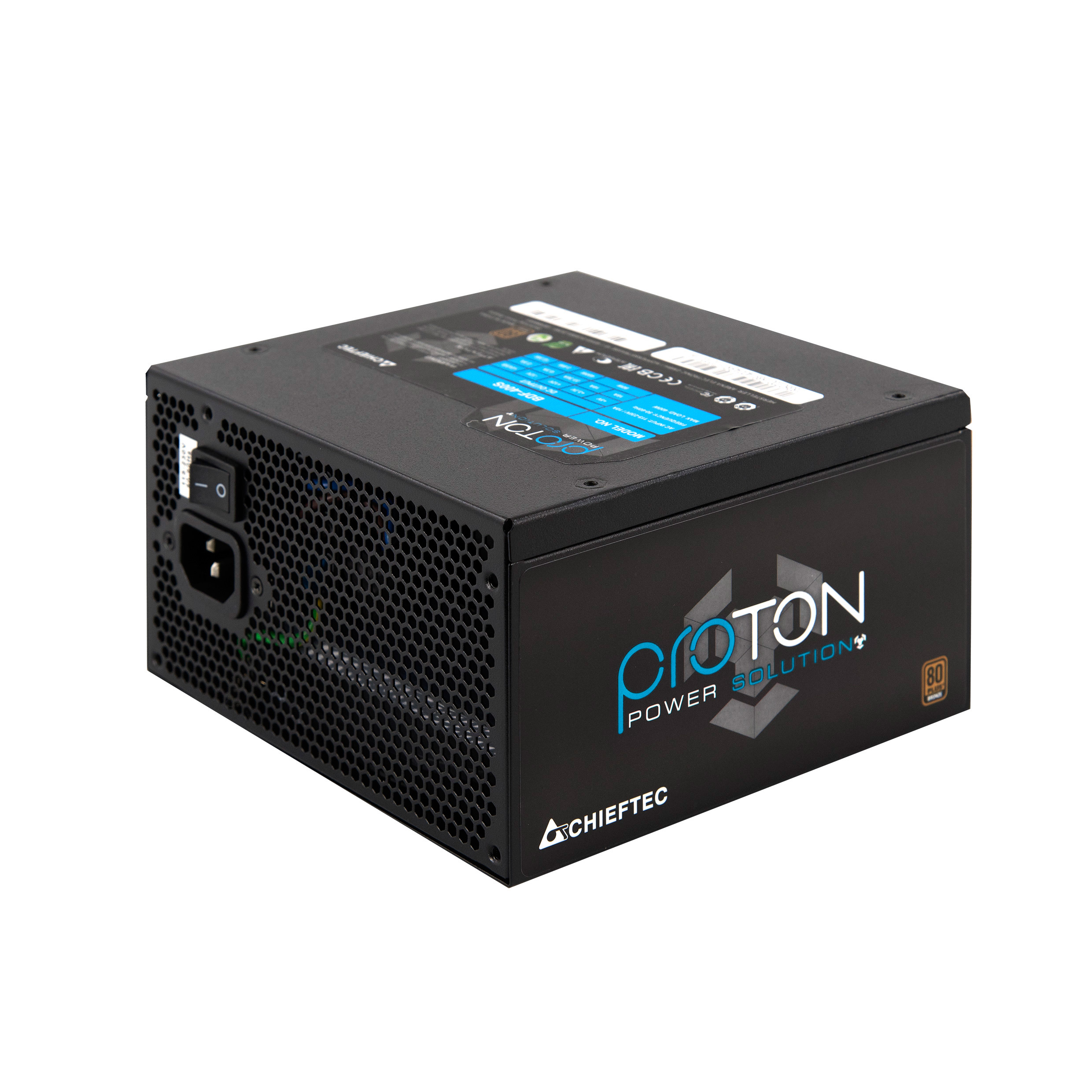

BDF-600S
PROTON SERIES

80 PLUS BRONZE

OVERVIEW

With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
cTUVus
FCC
TECHNICAL DATA
Model PROTON 600W
Article no. BDF-600S
EAN code 4710713231276
Weight (without/with package) 1.60kg / 1.95kg
AC Input 115-230V / 10A
Frequency 50 - 60Hz
+5V 18A
+3,3V 18A
+5V & +3,3V combined 103W
+12V1 50A
+12V2 -
+12V1, +12V2 combined 600W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 600W

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 2
SATA 6
MOLEX 3

Cable length (mm)
20+4 PIN ATX 450
8 PIN EPS (4+4) 550
8 PIN PCIe (6+2) 450/150
SATA 2x 400/150/150
MOLEX 400/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Bronze
Dimension (DxWxH) 140 mm x 150 mm x 86 mm
PFC Active PFC
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
