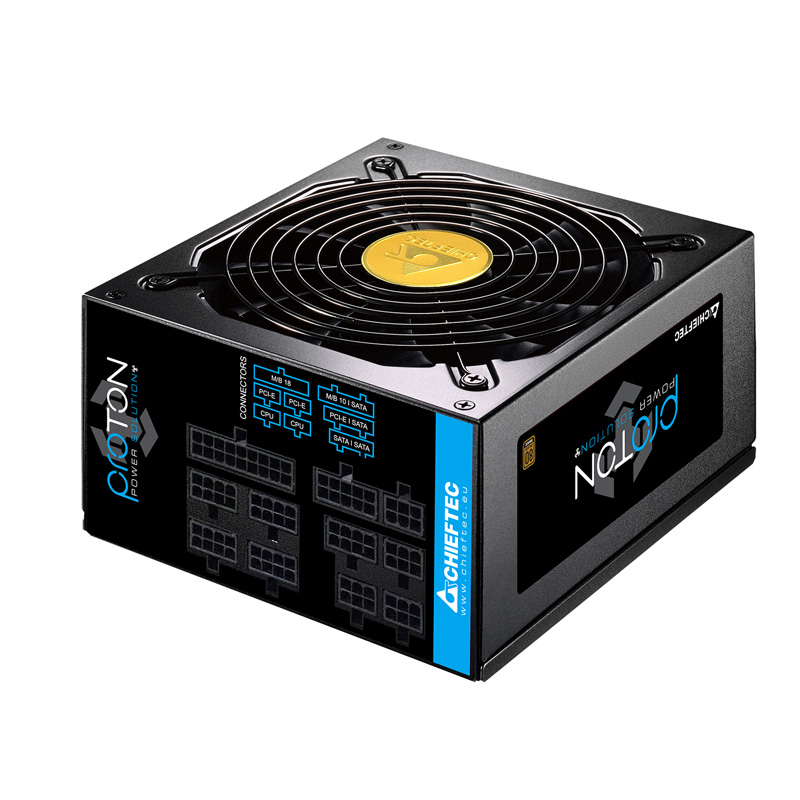

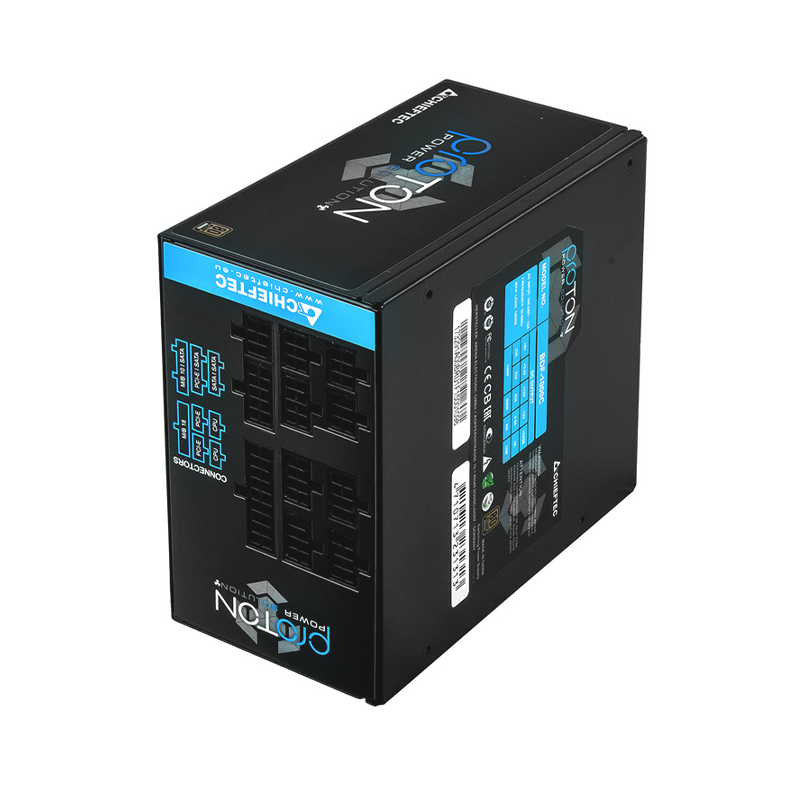

BDF-1000C
PROTON SERIES

  • PROTON Full-Module PSU Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
80 PLUS BRONZE

OVERVIEW

With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
cTUVus
FCC
TECHNICAL DATA
Model PROTON 1000W
Article no. BDF-1000C
EAN code 4710713231313
Weight (without/with package) 2.53kg / 2.86kg
AC Input 100-240V / 15.0A
Frequency 50 - 60Hz
+5V 23A
+3,3V 23A
+5V & +3,3V combined 140W
+12V1 83A
+12V2 -
+12V1, +12V2 combined 996W
P.F. >0,9
-12V 0.5A / 6.0W
+5VSB 3.0A / 15W
Maximum Power 1000W

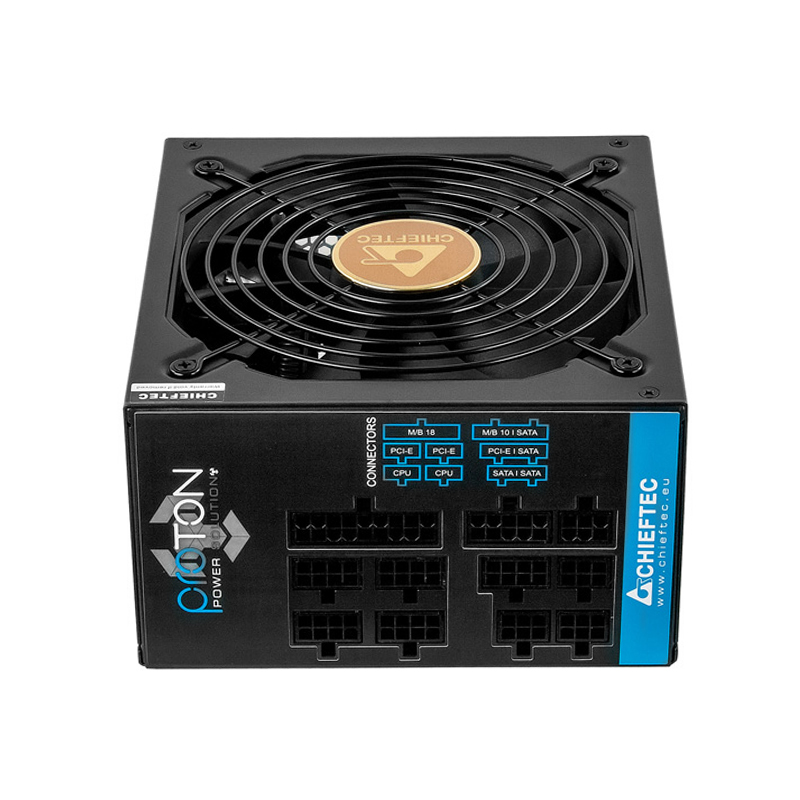

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN EPS 12V 1
8 PIN PCIe (6+2) 6
SATA 9
MOLEX/FLOPPY 3/1

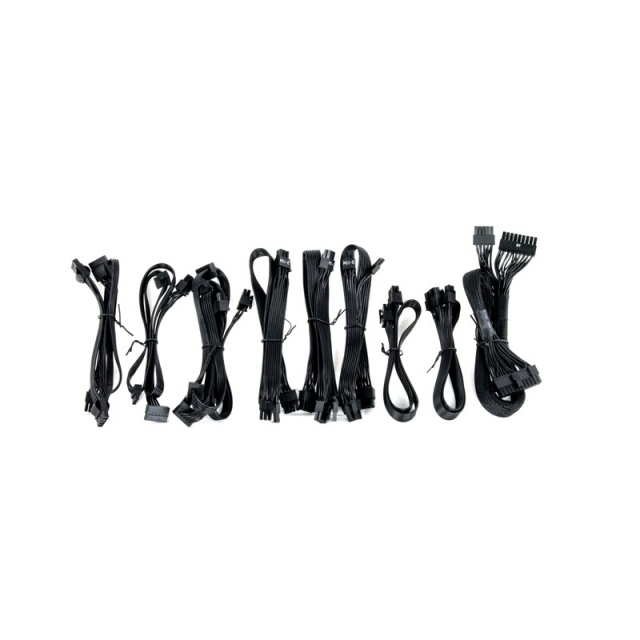

Cable length (mm)
20+4 PIN ATX 500
8 PIN EPS (4+4) 550
8 PIN EPS 12V 550
8 PIN PCIe (6+2) 3x 500/150
SATA 3x 450/150/150
MOLEX/FLOPPY 550/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Bronze
Dimension (DxWxH) 160 mm x 150 mm x 86 mm
PFC Active PFC (0,9)
Fan 140mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
