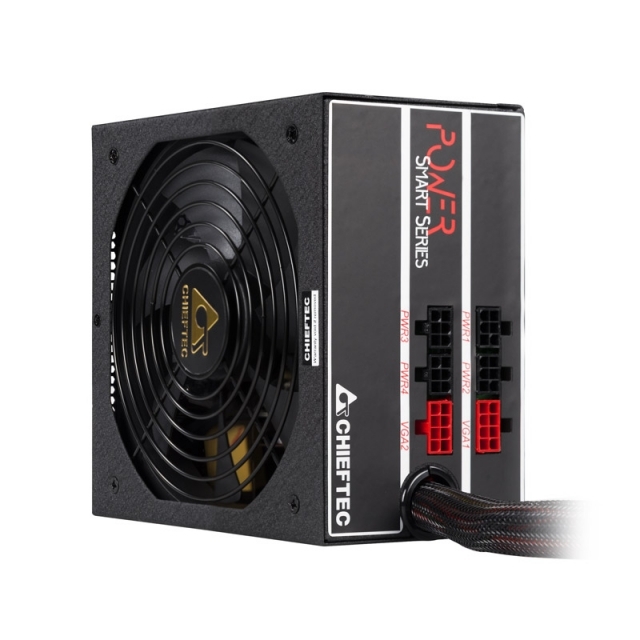

GPS-650C
POWER SMART SERIES

80 PLUS Gold
eol

OVERVIEW

POWER SMART series: With the eight brand new ATX 2.3, full range (110V ~ 240V) and 80plus GOLD certified just launched power supplies of the renowned and severally awarded POWER SMART series with ratings from 450W up to 1450W, CHIEFTEC makes the “GOLD” affordable and accessible to all segments of market. Supporting Intel’s Haswell technology, the smart cable management with modern +12V single rail technology and luxuriously long cables as well as a vast amount of connectors, supports all components with intensive power consumption, such as multiple GPUs thereby optimizing to the maximum, the power consumption and keeping electricity bills low.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model POWER SMART 650W
Article no. GPS-650C
EAN code 4710713233560
Weight (without/with package) 2.21 kg / 2.48 kg

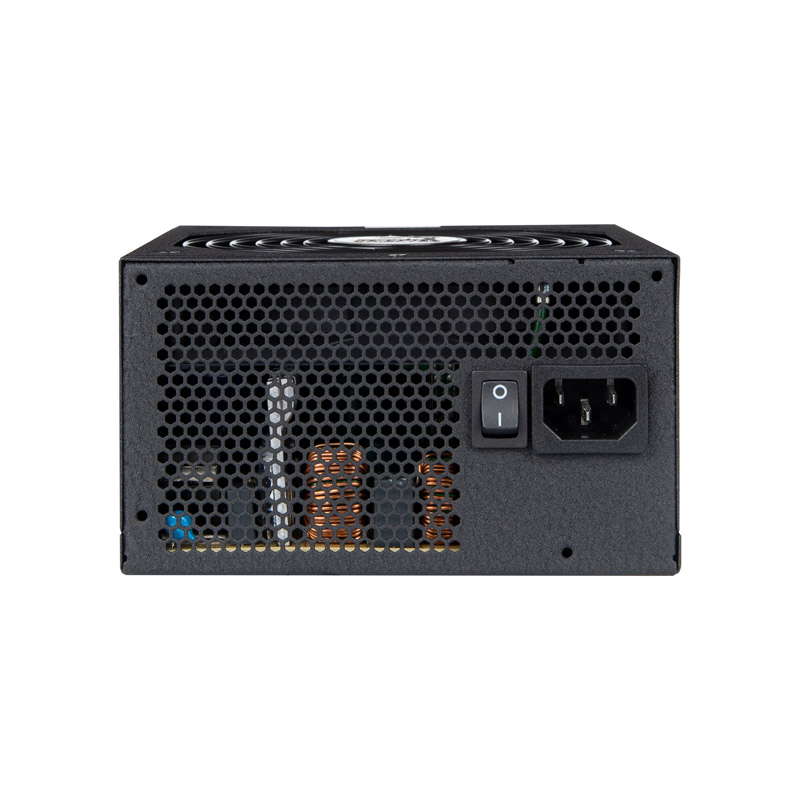

AC Input 100-240V / 10A
Frequency 47 - 63Hz
+5V 20A
+3,3V 20A
+5V & +3,3V combined 110W
+12V1 53A
+12V2 -
+12V1, +12V2 combined 636W
P.F. >0,9
-12V 0,3A
+5VSB 2,5A
Maximum Power 650W

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
4 PIN 12V 1
8 PIN PCIe (6+2) 4
SATA 6
MOLEX 3

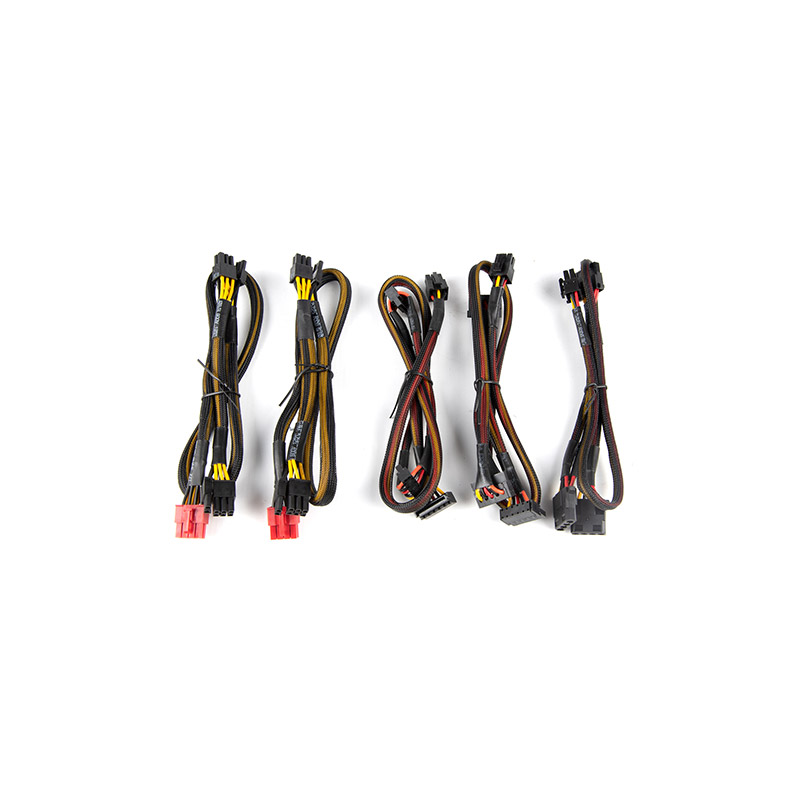

Cable length (mm)
20+4 PIN ATX 550
8 PIN EPS (4+4) 550
4 PIN 12V /100
8 PIN PCIe (6+2) 2X 550/150
SATA 2X 550/150/150
MOLEX 550/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Gold
Dimension (DxWxH) 160 mm x 150 mm x 87 mm
PFC Active PFC (0,9)

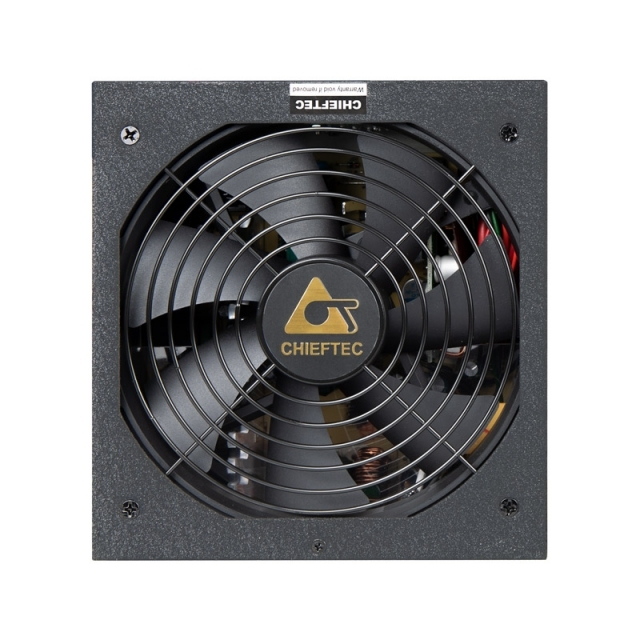

Fan 140mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 36 Months
