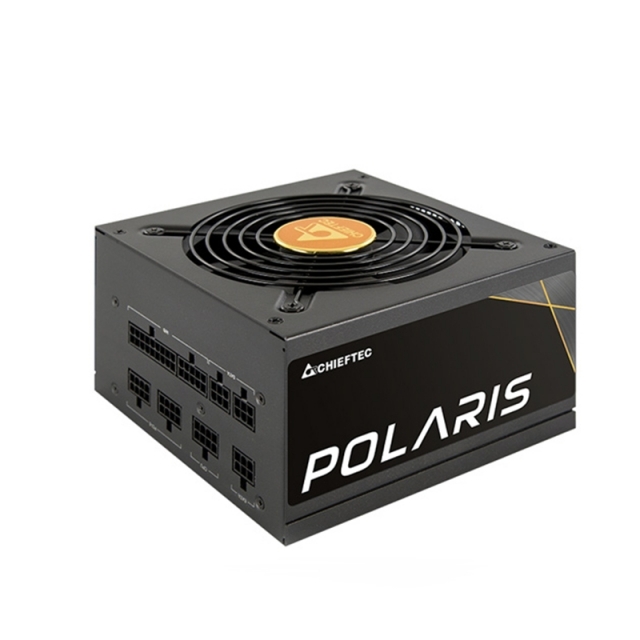

PPS-550FC
POLARIS SERIES

  • 80 PLUS® Gold certified efficiency

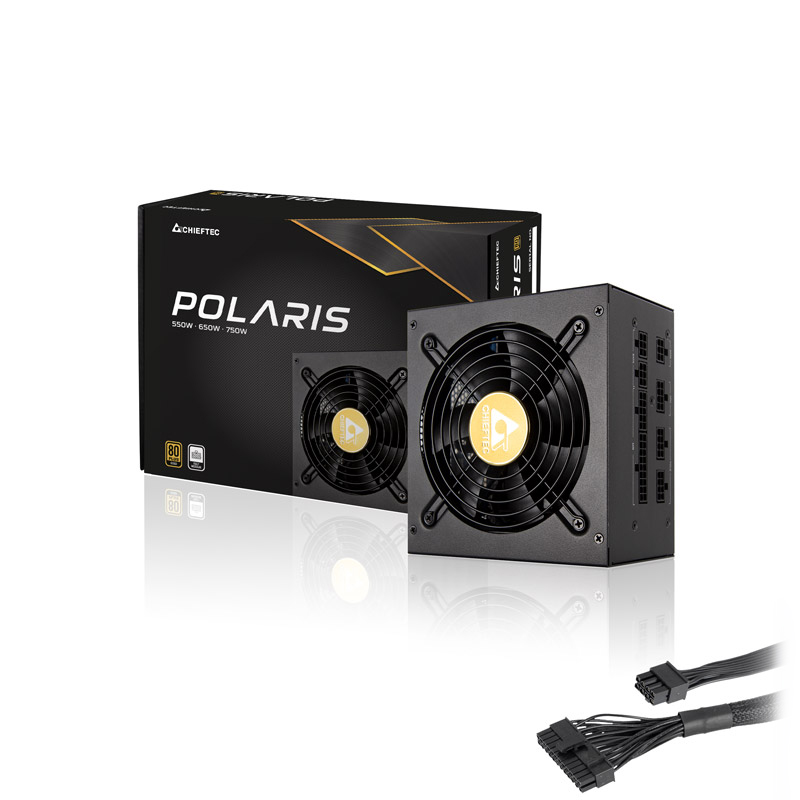

  • Fully modular cable management
  • High power density design for compact size
  • LLC half-bridge converter with DC-to-DC technology
80 PLUS Gold

OVERVIEW

The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.

With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
cTUVus
FCC
TECHNICAL DATA
Model POLARIS 550W
Article no. PPS-550FC
EAN code 0753263076427
Weight (without/with package) 2.025kg / 2.330kg
AC Input 100-240V / 8.0A
Frequency 50 - 60Hz
+5V 20A
+3,3V 20A
+5V & +3,3V combined 105W
+12V1 45.8A
+12V2 -
+12V1, +12V2 combined 550W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 3.0A / 15W
Maximum Power 550W

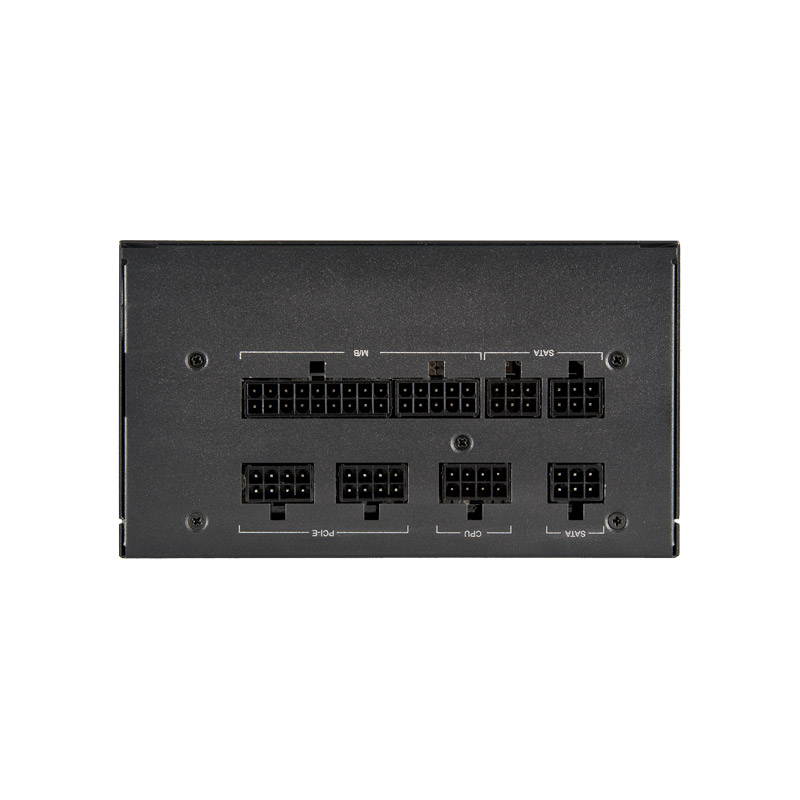

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 2
8 PIN PCIe (6+2) 2
SATA 6
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS (4+4) 650/150
8 PIN PCIe (6+2) 500/150
SATA 2x 450/150/150
MOLEX/FLOPPY 450/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Gold
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC

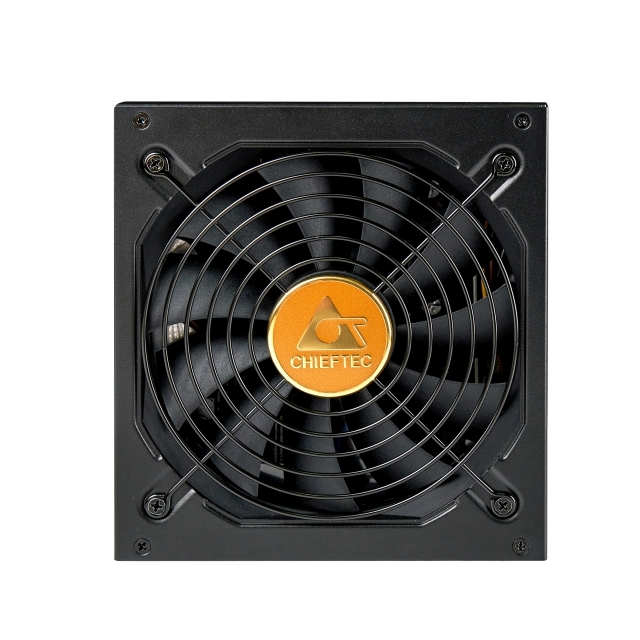

Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
