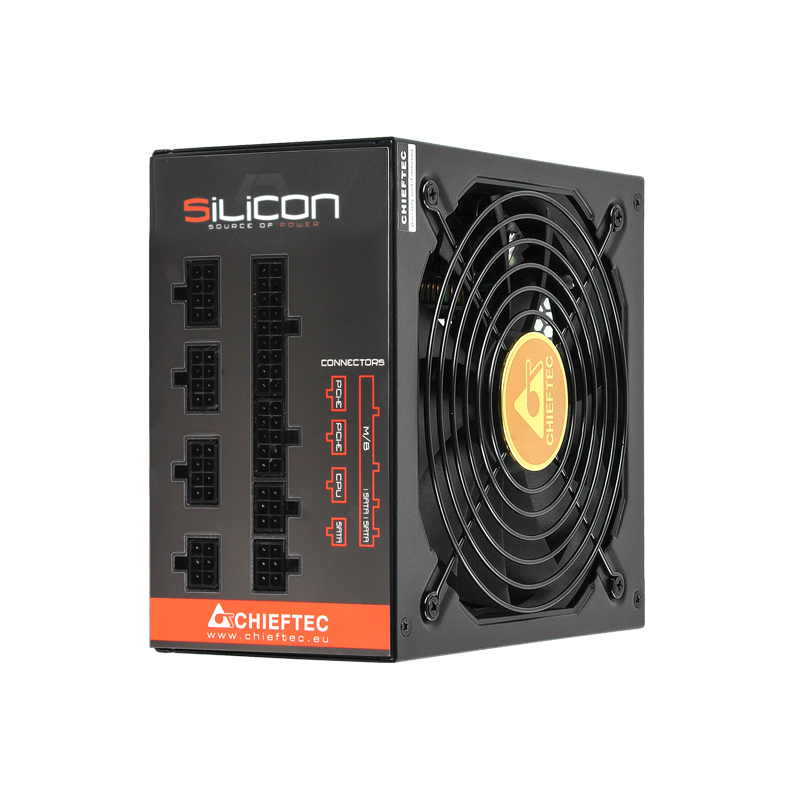

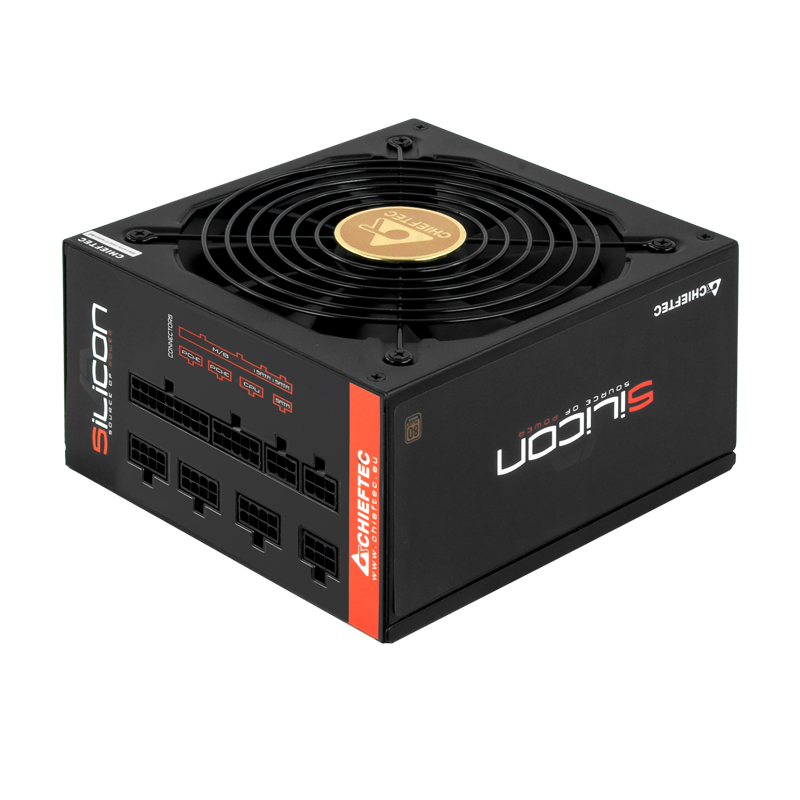

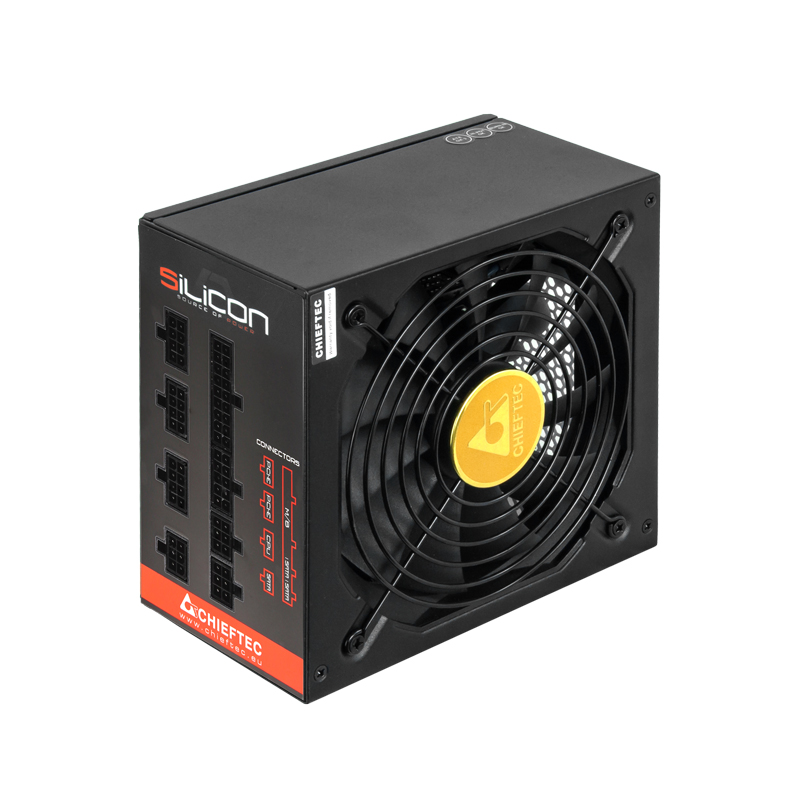

SLC-650C
SILICON SERIES

80 PLUS BRONZE
FOB

OVERVIEW

With the SILICON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the SILICON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
cTUVus
FCC
TECHNICAL DATA
Model SILICON 650W
Article no. SLC-650C
EAN code 4710713235540
Weight (without/with package) 2.24kg / 2.51kg
AC Input 115-230V
Frequency 50 - 60Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V1 54.2A
+12V2 -
+12V1, +12V2 combined 650W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 650W

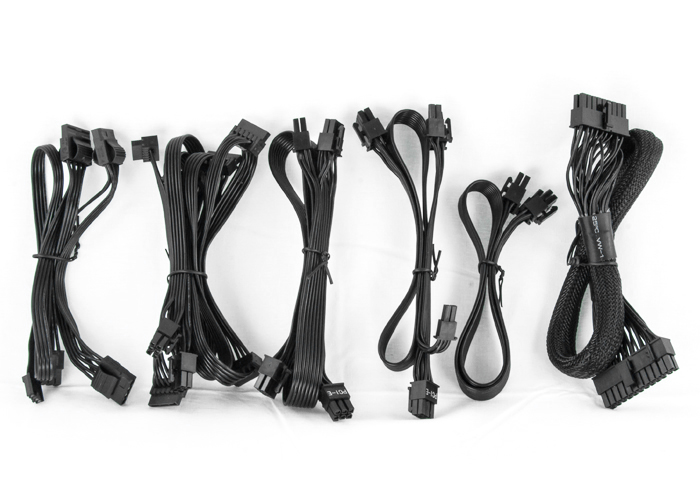

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 4
SATA 6
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 500
8 PIN EPS (4+4) 550
8 PIN PCIe (6+2) 2x 500/150
SATA 2x 450/150/150
MOLEX/FLOPPY 450/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Bronze
Dimension (DxWxH) 160 mm x 150 mm x 87 mm
PFC Active PFC (0,9)
Fan 140mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months

DOWNLOADS
