GPS-500A8
SMART SERIES

>85%(230V Only)

OVERVIEW

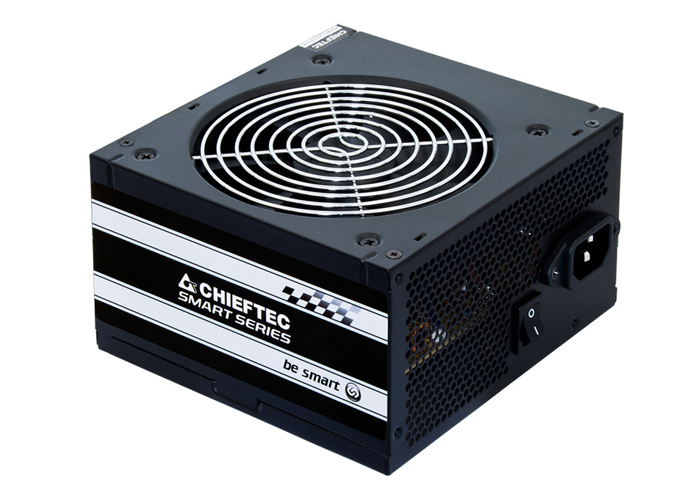

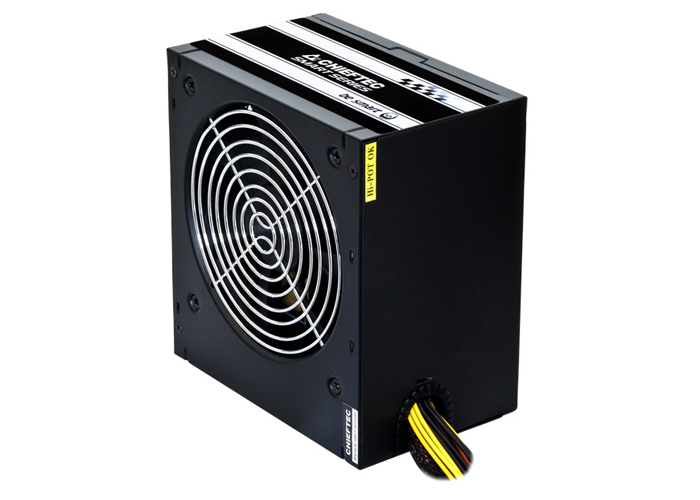

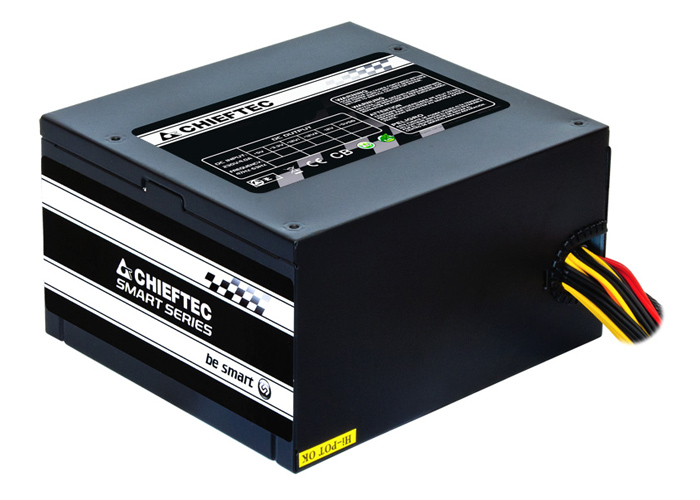

This new smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model SMART 500W
Article no. GPS-500A8
EAN code 4710713239531
Weight (without/with package) 1.46kg / 1.66kg
AC Input 200-240V / 4.0A
Frequency 47 - 63Hz
+5V 17A
+3,3V 18A
+5V & +3,3V combined 110W
+12V1 38A
+12V2 -
+12V1, +12V2 combined 456W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 500W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 1
SATA 3
MOLEX/FLOPPY 2/1

Cable length (mm)
20+4 PIN ATX 500
8 PIN EPS(4+4) 500
8 PIN PCIe (6+2) 500
SATA 500/150/150
MOLEX/FLOPPY 500/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency >85%
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC (0,9)
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
