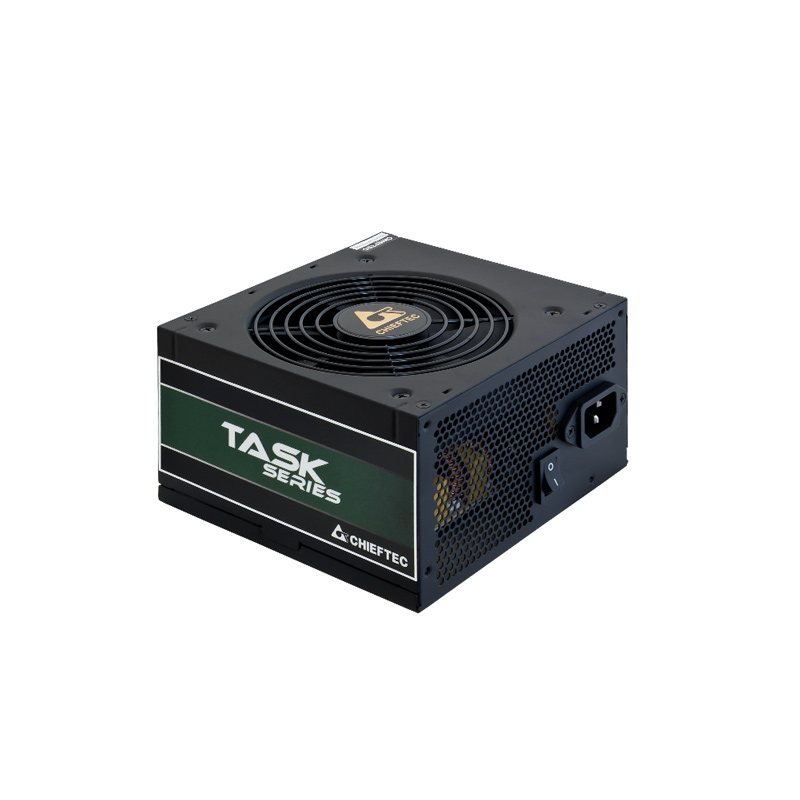

TPS-600S
TASK SERIES

  • 80PLUS® Bronze certified efficiency
  • 650mm long cables for maximum case compatibility
  • All modern protection and safety features included
80 PLUS BRONZE

OVERVIEW

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.

With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
cTUVus
TECHNICAL DATA
Model TASK 600W
Article no. TPS-600S
EAN code 0753263076496
Weight (without/with package) 1.67 kg / 2.08 kg
AC Input 110V-240V / 9.0A
Frequency 47 - 63Hz
+5V 17A
+3,3V 19A
+5V & +3,3V combined 110W
+12V1 46A
+12V2 -
+12V1, +12V2 combined 552W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 600W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 2
SATA 5
MOLEX/FLOPPY 3

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS(4+4) 650
8 PIN PCIe (6+2) 500/150
SATA 1x 500/150
1x 500/150/150
MOLEX/FLOPPY 500/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Bronze
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC (0,9)
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
