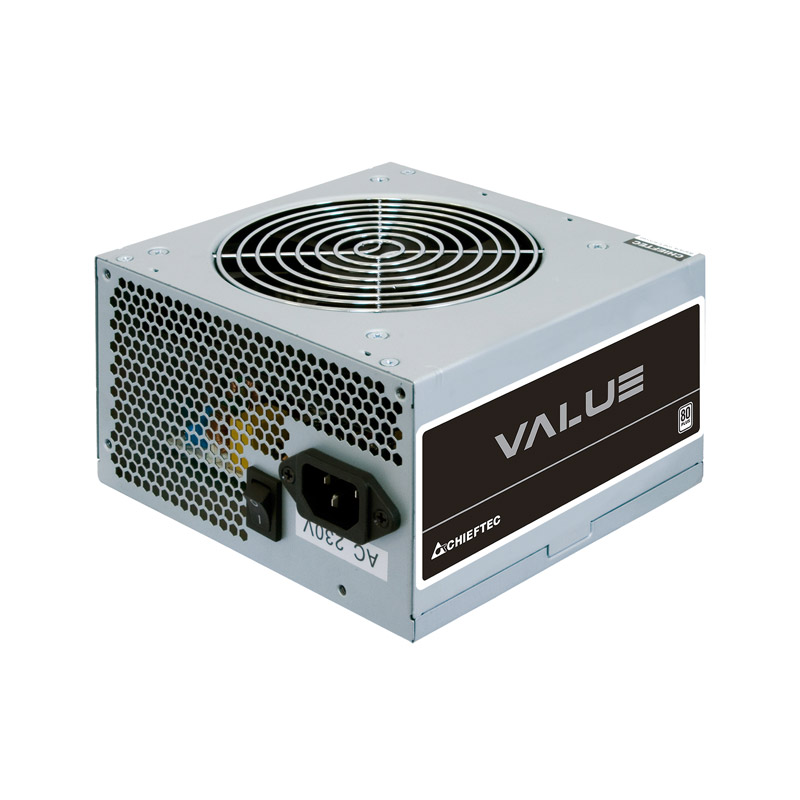

APB-500B8
VALUE SERIES

80 PLUS WHITE 230V EU
Bulk

OVERVIEW

The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model VALUE 500W
Article no. APB-500B8
EAN code 4710713230569
Weight (without/with package) 1.22kg / 1.35kg
AC Input 200-240V / 4.0A
Frequency 47 - 63Hz
+5V 17.0A
+3,3V 18.0A
+5V & +3,3V combined 110W
+12V1 38.0A
+12V2 --
+12V1, +12V2 combined 456W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 500W

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 1
SATA 3
MOLEX/FLOPPY 2/1

Cable length (mm)
20+4 PIN ATX 500
8 PIN EPS (4+4) 350
8 PIN PCIe (6+2) 350
SATA 350/150/150
MOLEX/FLOPPY 350/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+ White (230V Only)
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC (0,9)
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
