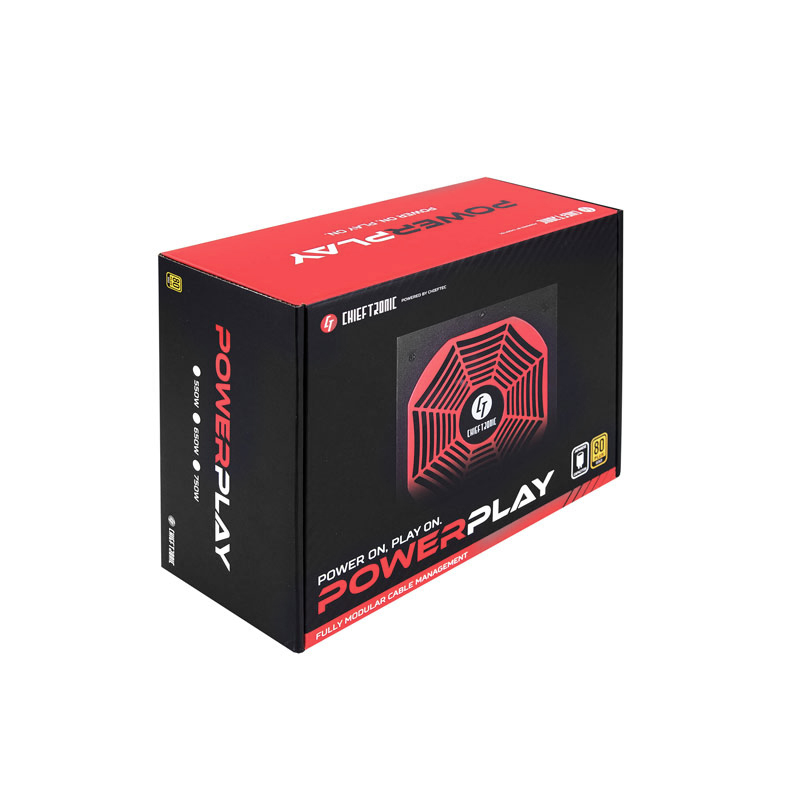

Chieftronic GPU-750FC
PowerPlay Gold SERIES

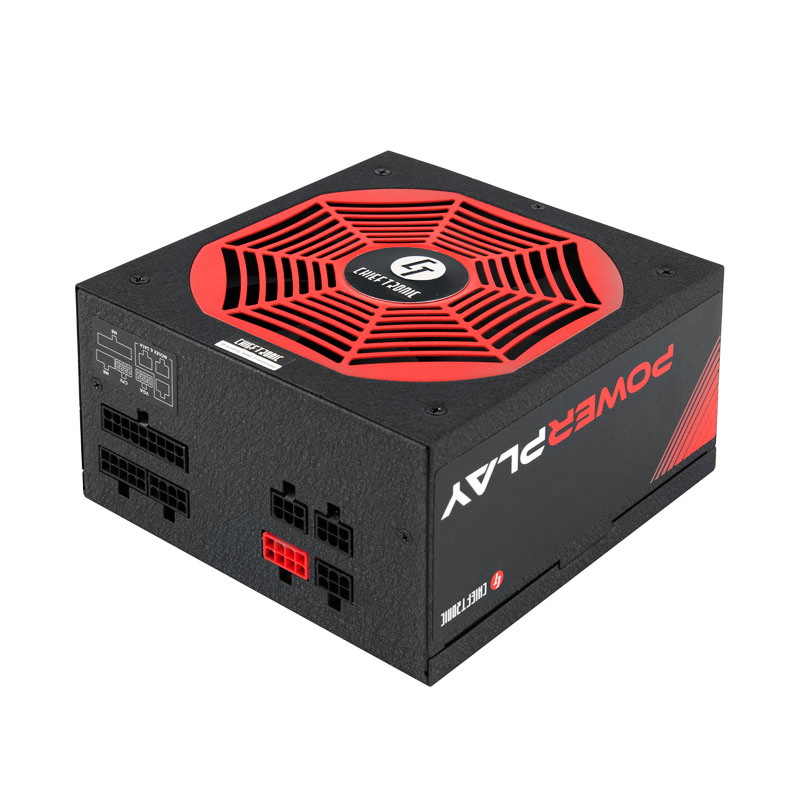

  • Fully modular cable management
  • 80 PLUS Gold Efficiency
  • Premium Japanese capacitors for minimal ripple noise

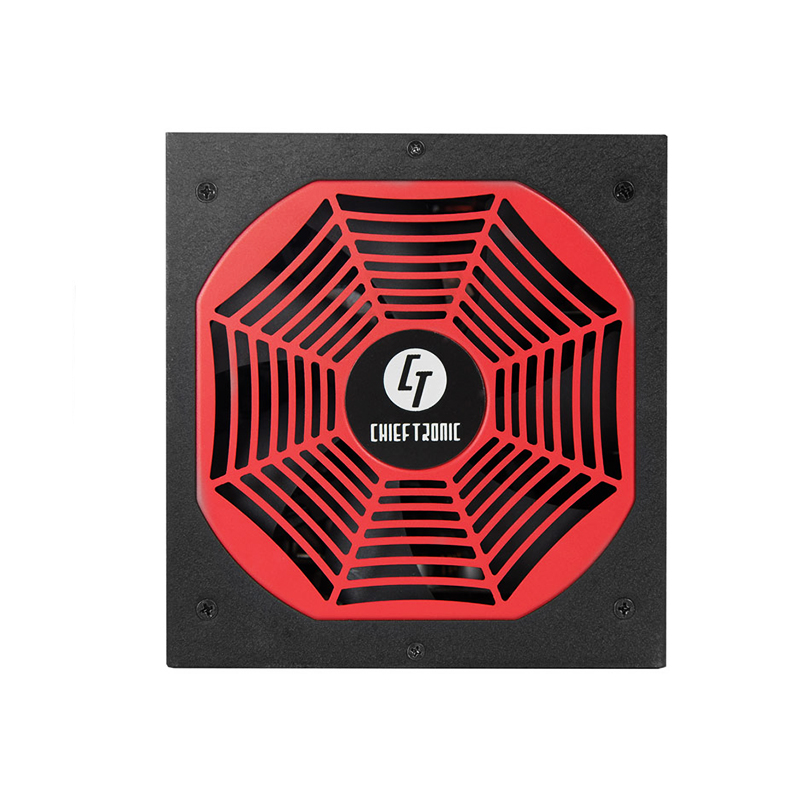

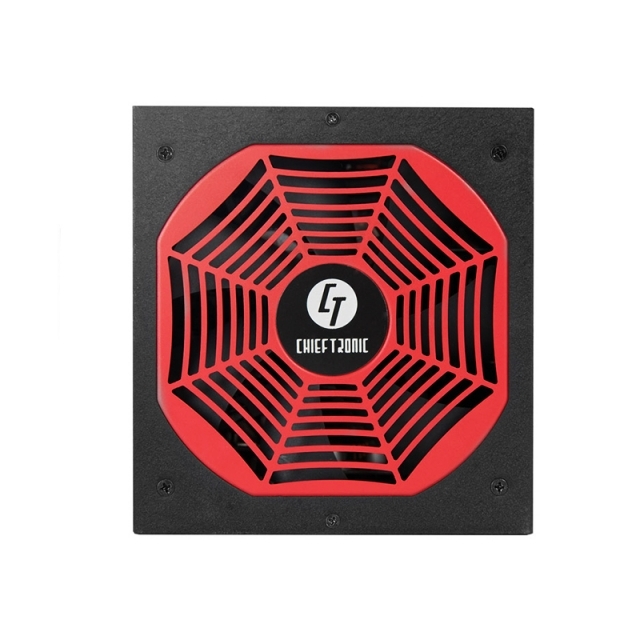

  • Quality case housing finish with eye-catching fan filter design
80 PLUS Gold

OVERVIEW

The Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality power-supplies and combines top specs like 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W), premium Japanese capacitors for low ripple noise with an eye-catching fan filter design to offer an attractive PSU for users who want a true top-tier product.

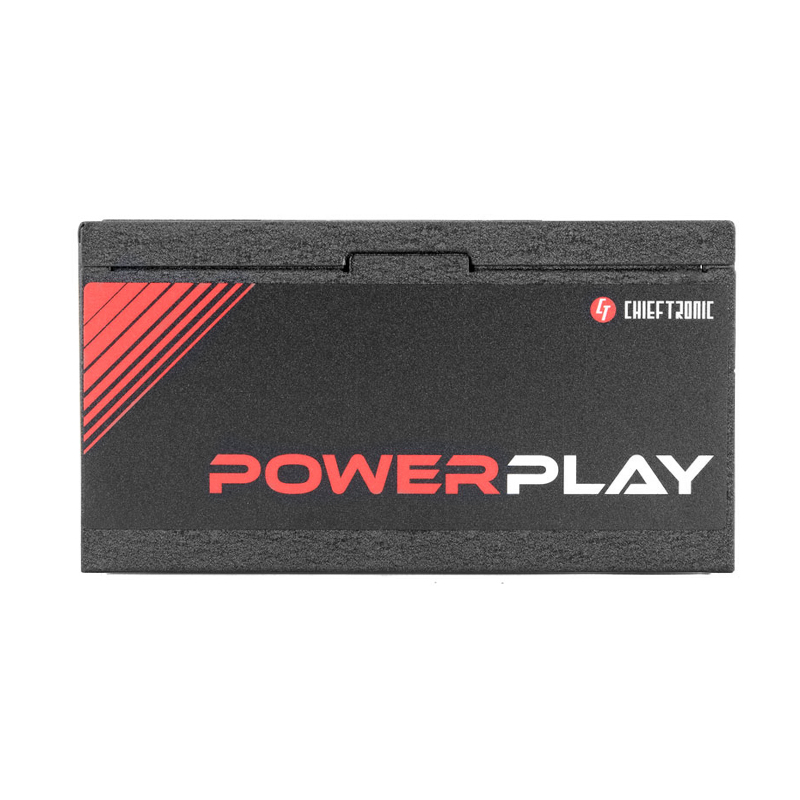

Featuring a rugged build quality, the PowerPlay series measures only 160mm in length, therefore comfortably fitting into almost any system supporting ATX format PSU’s and leaving plenty of space for easy cable management.

This combination of efficiency, performance and build design makes the PowerPlay series a true top-of-the-line model leading Chieftronic’s PSU line-up.





SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
FCC
TECHNICAL DATA
Model PowerPlay Gold 750W
Article no. GPU-750FC
EAN code 0753263076083
Weight (without/with package) 2.44kg / 2.85kg

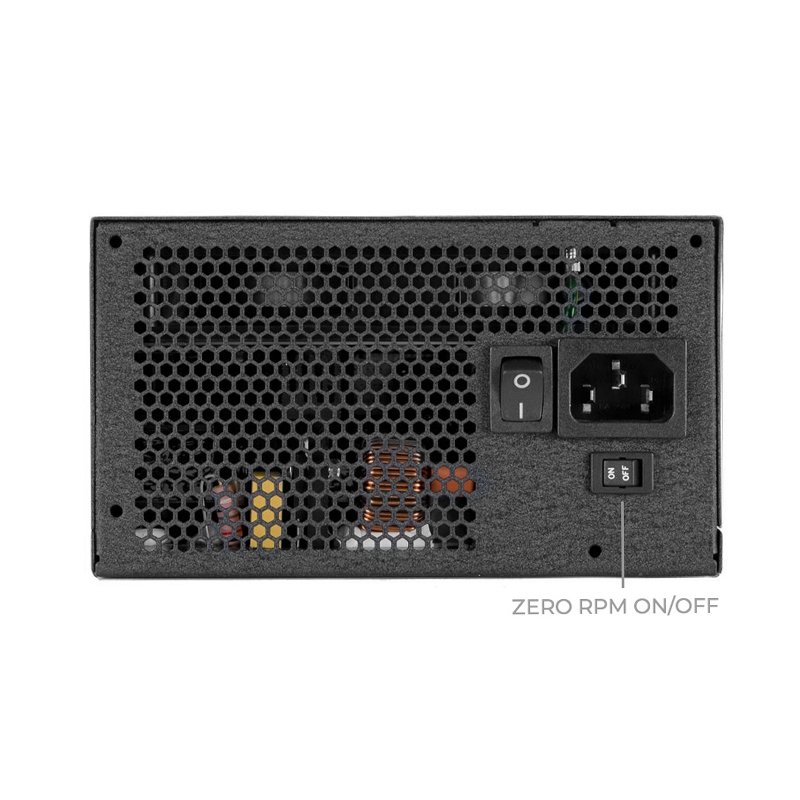

AC Input 100 - 240V / 10.0A
Frequency 47 - 63Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V1 62.5W
+12V2 -
+12V1, +12V2 combined 750W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 3,0A / 15W
Maximum Power 750W

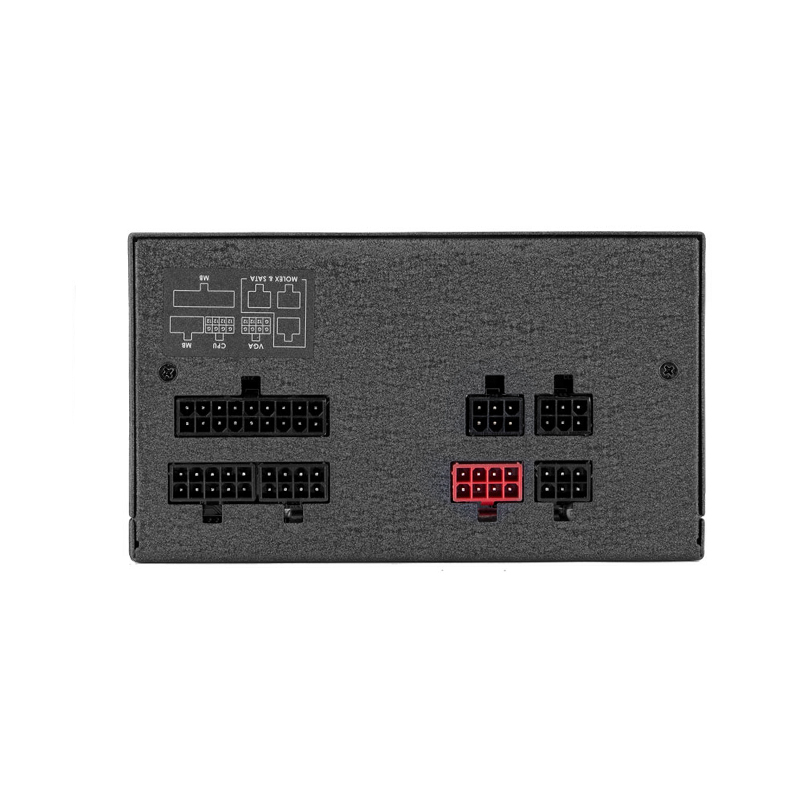

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 4
SATA 9
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 600
8 PIN EPS(4+4) 700
8 PIN PCIe (6+2) 2x 600/150
SATA 3x 800/150/150
MOLEX/FLOPPY 700/150/150/150

Features
ATX12V Version ATX 12V 2.53
Efficiency 80+Gold
Dimension (DxWxH) 160 mm x 150 mm x 87 mm
PFC Active PFC
Fan 140mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 60 Months
