CSN-450C
COMPACT SERIES

80 PLUS Gold

OVERVIEW

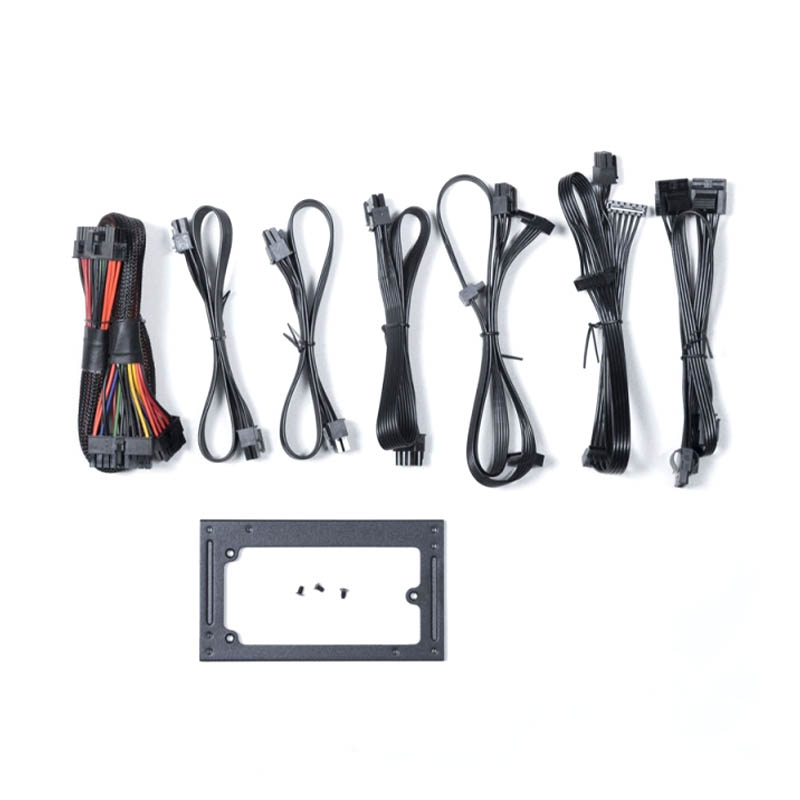

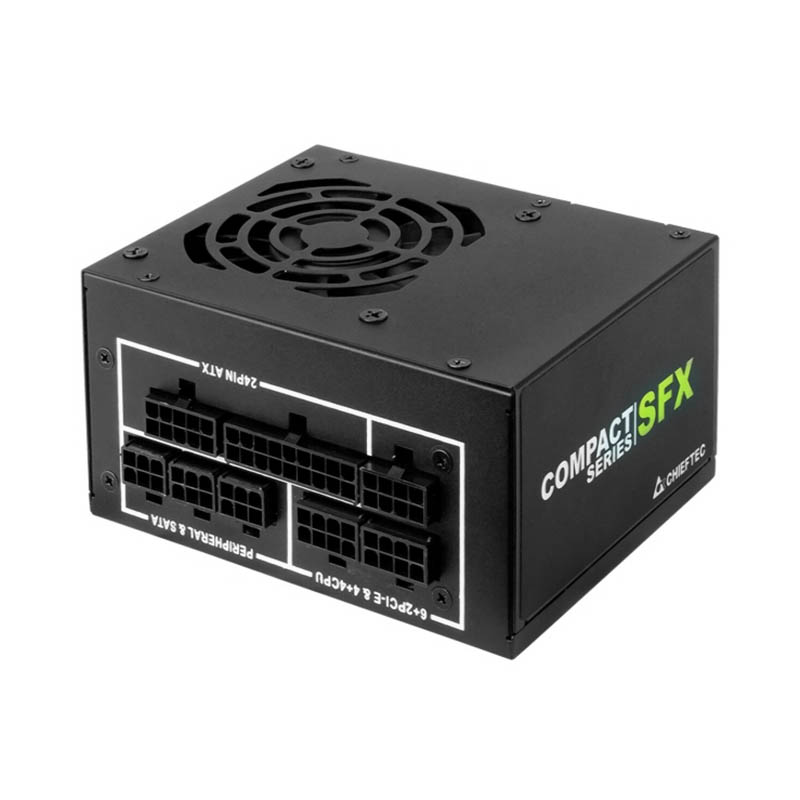

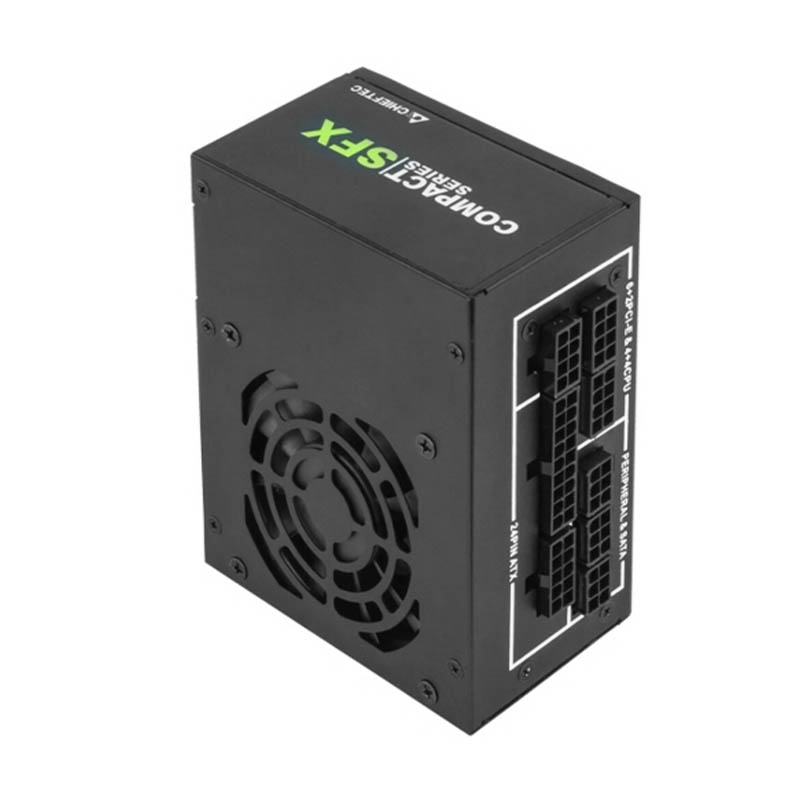

This small SFX PSU surprises with massive power and an incredible power output of 450 watts. You won’t have unnecessary cables anymore as it comes with a cable managment and 80plus gold certification. The 80mm Ultra Silent fan is perfect to cool down the power supply.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
cTUVus
TECHNICAL DATA
Model COMPACT 450W
Article no. CSN-450C
EAN code 4710713235755
Weight (without/with package) 1.5  kg / 1.97 kg
AC Input 100 - 240V / 6A
Frequency 47 - 63Hz
+5V 15A
+3,3V 18A
+5V & +3,3V combined 90W
+12V1 37.5A
+12V2 -
+12V1, +12V2 combined 450W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 3,0A / 15W
Maximum Power 450W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 2
SATA 6
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 450
8 PIN EPS(4+4) 450
8 PIN PCIe (6+2) 2x450
SATA 2x 450/150/150
MOLEX/FLOPPY 450/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Gold
Dimension (DxWxH) 100 mm x 125 mm x 64 mm
PFC Active PFC (0,9)
Fan 80mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
