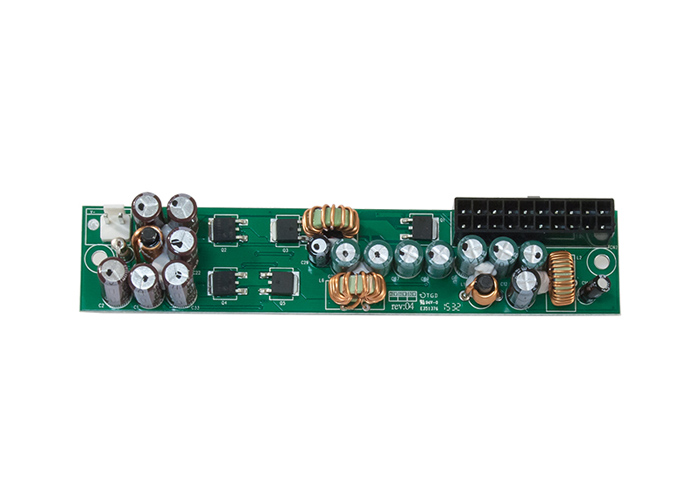

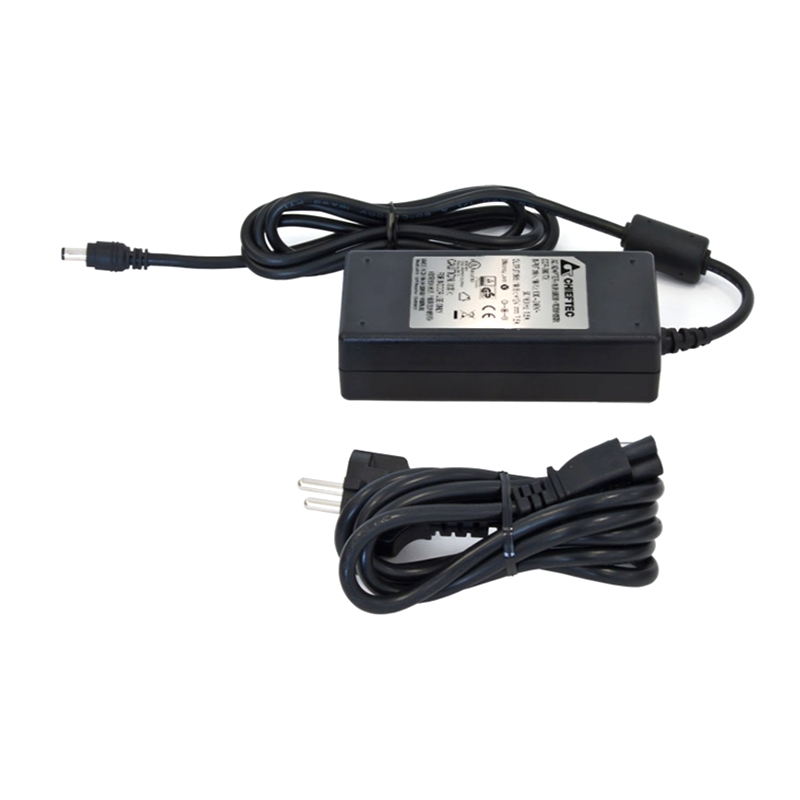

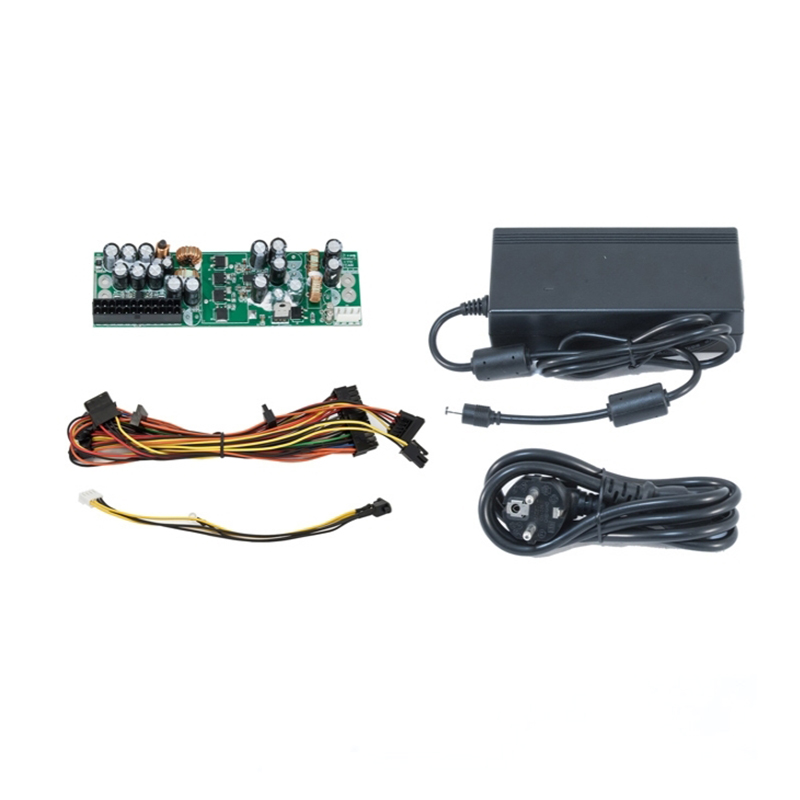

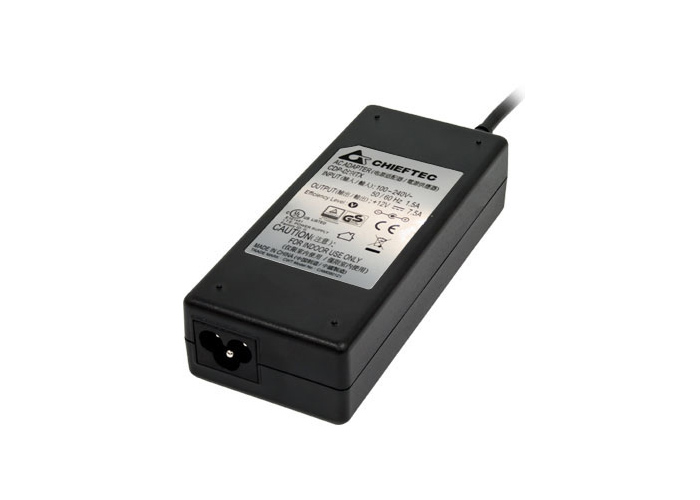

- The CDP-085ITX is matched perfectly to the IX-01B and IX-03B. The delivery not only includes the fanless external power supply, but also an appropriate DC/DC board. The black power supply with 85 watts delivers at +12 Volt / 7.5 Ampere
CDP-085ITX
Adapter + DC to DC SERIES
SPECIFICATIONS
| Model | Adapter + DC to DC SERIES 85W |
|---|---|
| Article no. | CDP-085ITX |
| EAN code | 4710713233492 |
| Weight (without/with package) | |
| AC Input | 100-240V / 1.5A |
| Frequency | 50 - 60Hz |
| +5V | |
| +3,3V | |
| +5V & +3,3V combined | |
| +12V1 | 7.5A |
| +12V2 | |
| +12V1, +12V2 combined | |
| P.F. | |
| -12V | |
| +5VSB | |
| Maximum Power | 85W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | |
| 8 PIN PCIe (6+2) | |
| SATA | 3 |
| MOLEX/FLOPPY | 1 |
| 20+4 PIN ATX | |
|---|---|
| 8 PIN EPS(4+4) | |
| 8 PIN PCIe (6+2) | |
| SATA | |
| MOLEX/FLOPPY |
| ATX12V Version | |
|---|---|
| Efficiency | 87% |
| Dimension (DxWxH) | 133 mm x 58 mm x 30.3 mm |
| PFC | |
| Fan | |
| Security | OCP (Over Current Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) |
| Warranty | 24 Months |
