- 7 blade design with enhanced bearing technology
- Special fan blades designed for maximum airflow, low noise & perfect illumination
- 16 addressable LEDs (16.8 million colors) offering complex RGB lighting
- Home
- Accessories
- Cooling
- CF-1225RGB
CF-1225RGB
OVERVIEW

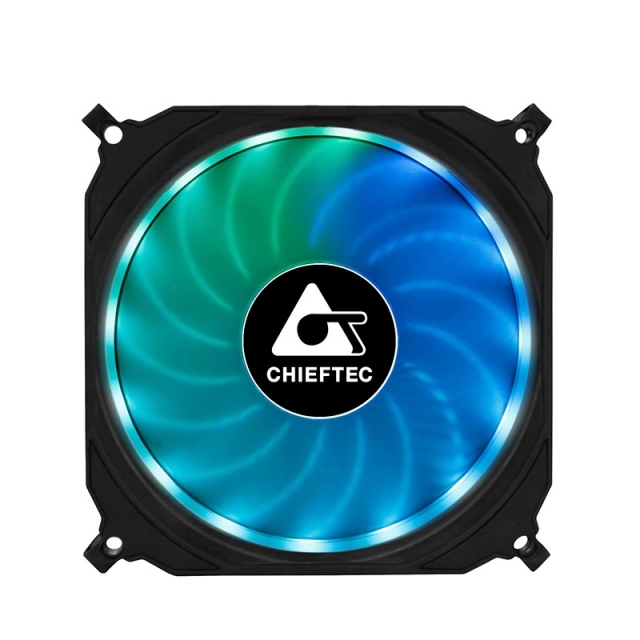

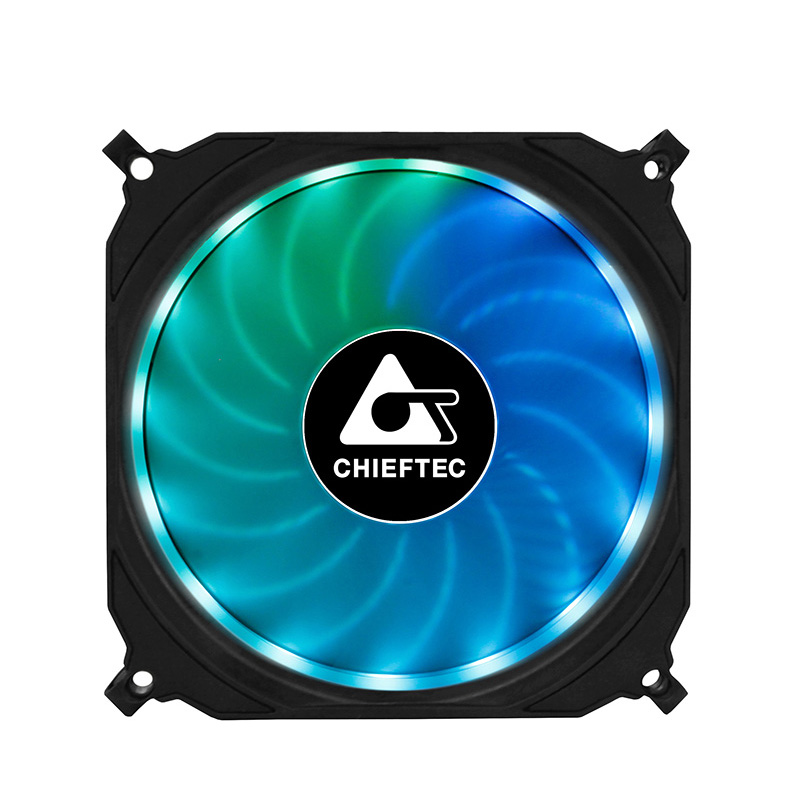

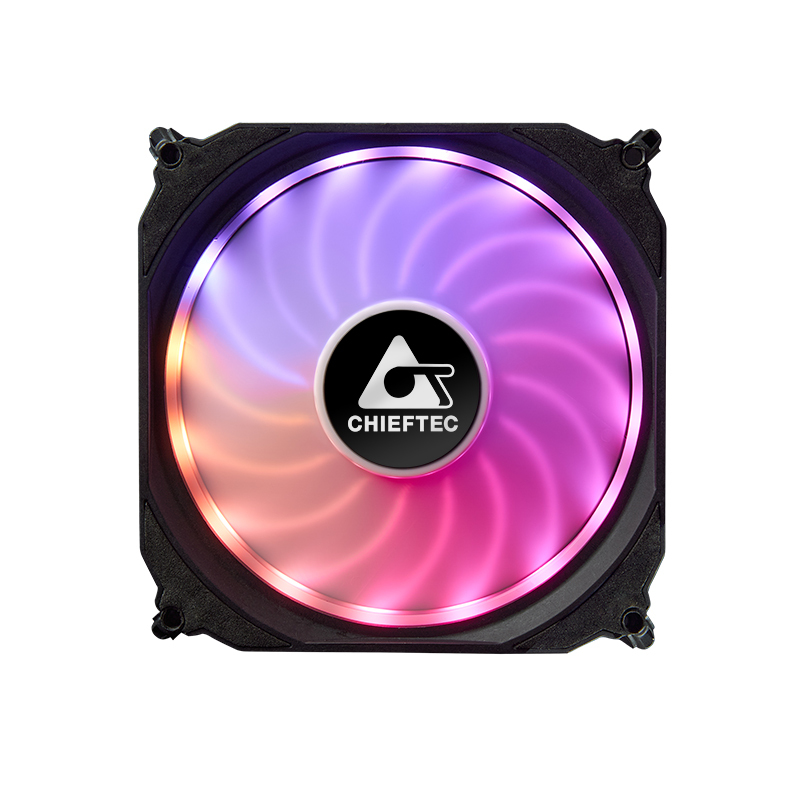

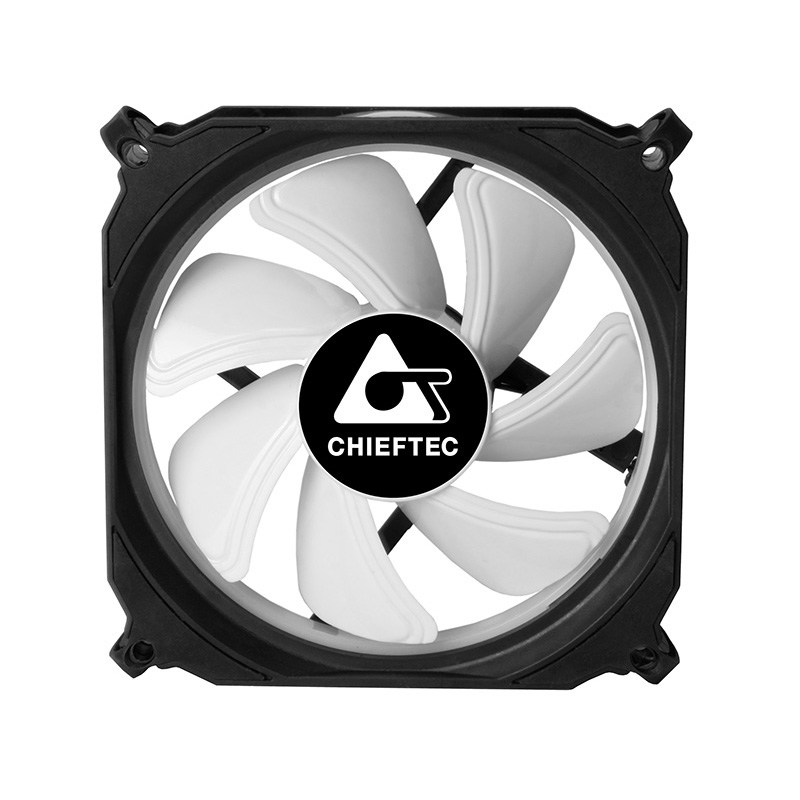

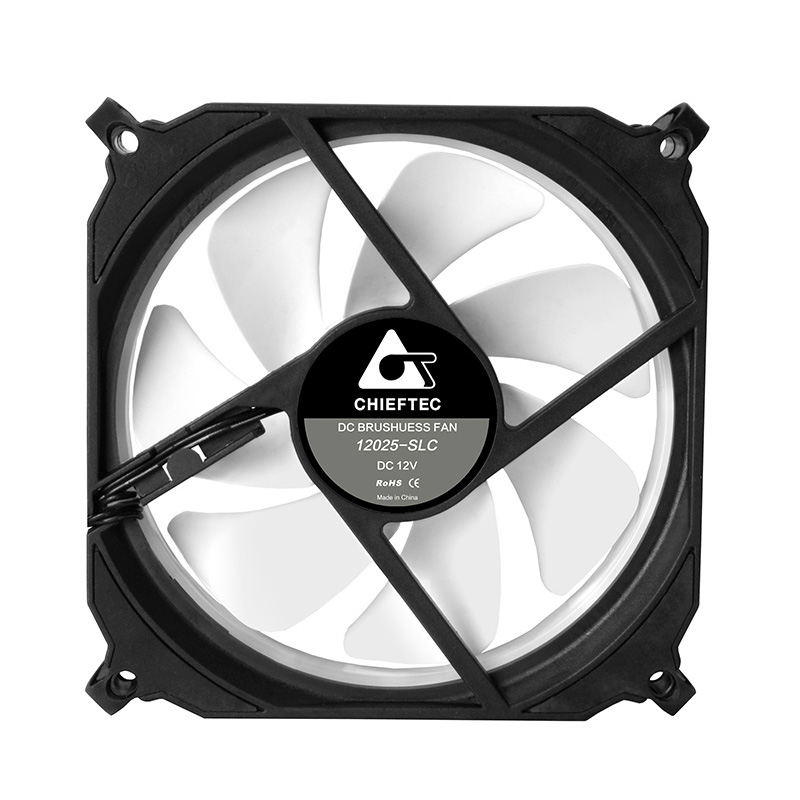

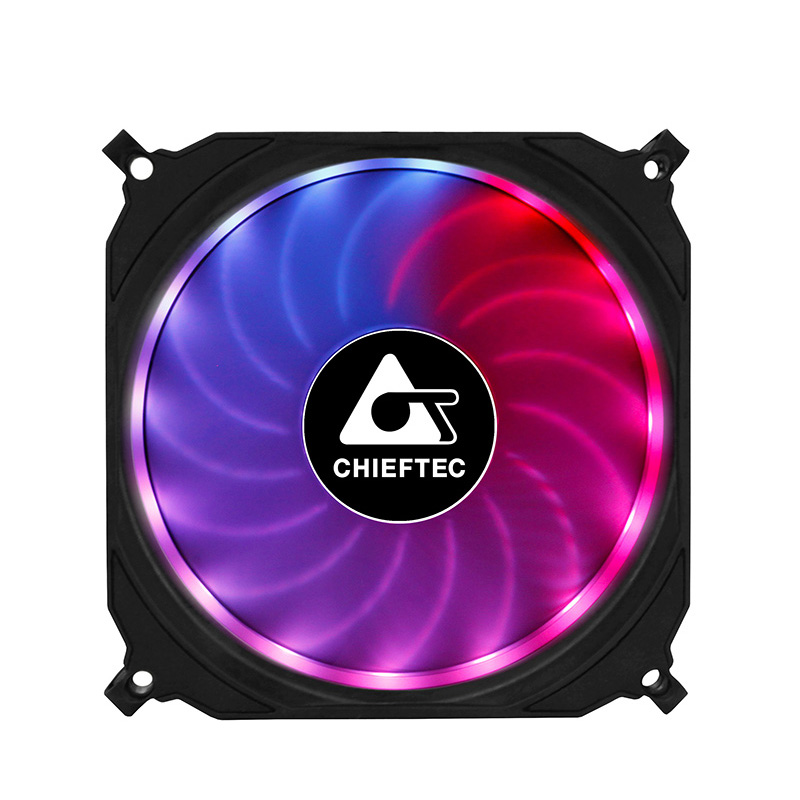

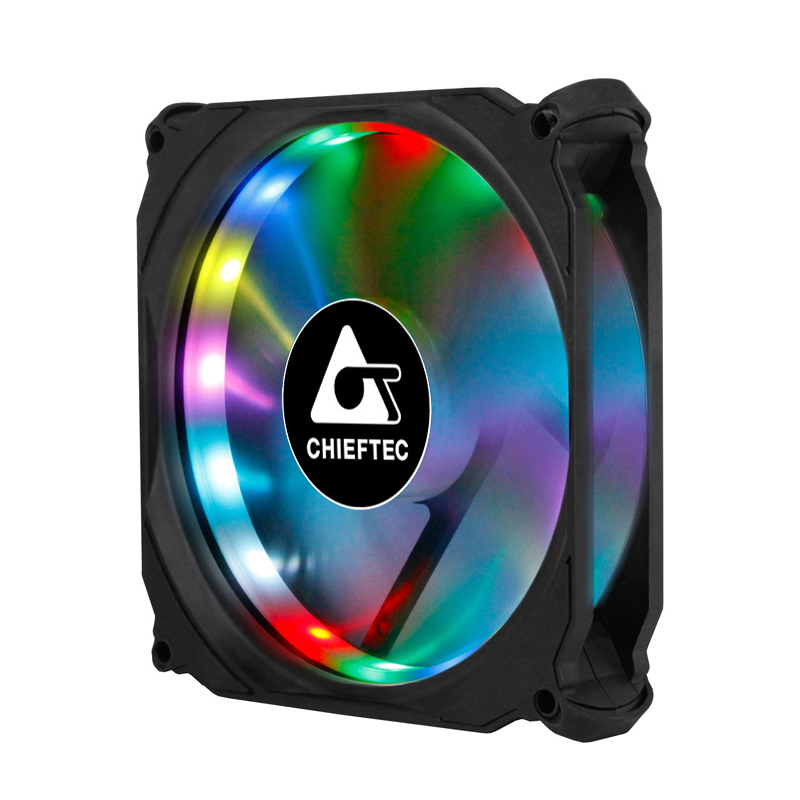

With the CF-1225RGB, CHIEFTEC delivers a brand new RGB LED fan that convinces all along the line. The fan is equipped with 16 addressable LEDs and allows an almost infinite RGB effect variety, which is not possible with a conventional + 12V RGB lighting. In addition, each fan is decoupled and designed for whisper-quiet operation due to the special design of the 7 fan blades. The white finish of the fan blades ensure uniform illumination. In combination with our *DF-908 control board, all conventional +5V addressable RGB motherboard technologies such as ASUSTM AURA SYNC, MSITM MYSTIC LIGHT SYNC, ASROCKTM POLYCHROME SYNC, GIGABYTETMRGB FUSION are supported.
Guaranteed-compatible only with CHIEFTEC/CHIEFTRONIC control units
(DF-906, DF-908).
SPECIFICATIONS
| Article no. | CF-1225RGB |
| EAN Code | 0753263075987 |
| Dimension (DxWxH) | 120 x 120 x 25mm |
| Weight (without/with package) | 150g / 169g |
| Start-up Voltage | +5V |
| Operating Voltage | DC +7V ~ DC +12V |
| Rating Voltage | DC +12V |
| Power Connector | 6PIN |
| Rated Current | 0.65A Max |
| Fan Speed | 1200 RPM |
| Air Flow | 53 CFM |
| Noise Level | 16 dBA |
| LED Colors | 16.8 Million colors |
| Lightning mode | 20x dynamic modes / 9x static modes ( in combination with our DF-908 control board) |
| Scope of delivery | 1x 120mm RGB Rainbow fan, 4x Mounting screws |
| RGB Sync Compatibilities | Support and sync the lighting with: ASUSTM AURA SYNC, MSITMMYSTIC LIGHT SYNC, ASROCKTM POLYCHROME SYNC, GIGABYTETM RGB FUSION |
| Warranty | 24 Months |
