- 9 blade design with enhanced air pressure technology
- Dual-Ring setup for perfect illumination inside and out
- 32 addressable LEDs oering complex RGB eects
- 4-PIN PWM fan-speed control and 3-PIN +5V A-RGB M/B-Sync Technologies supported

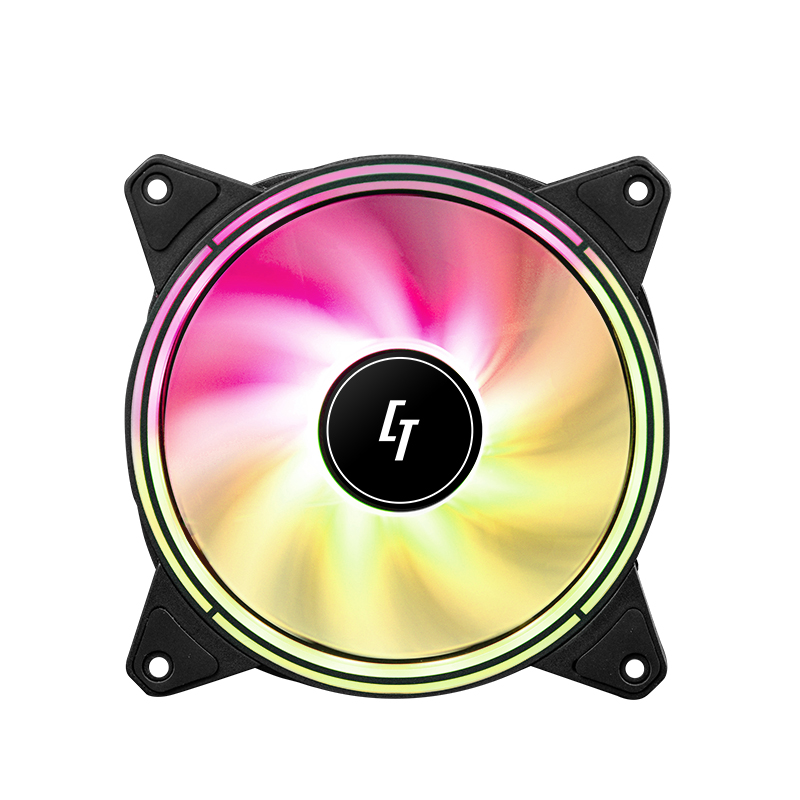

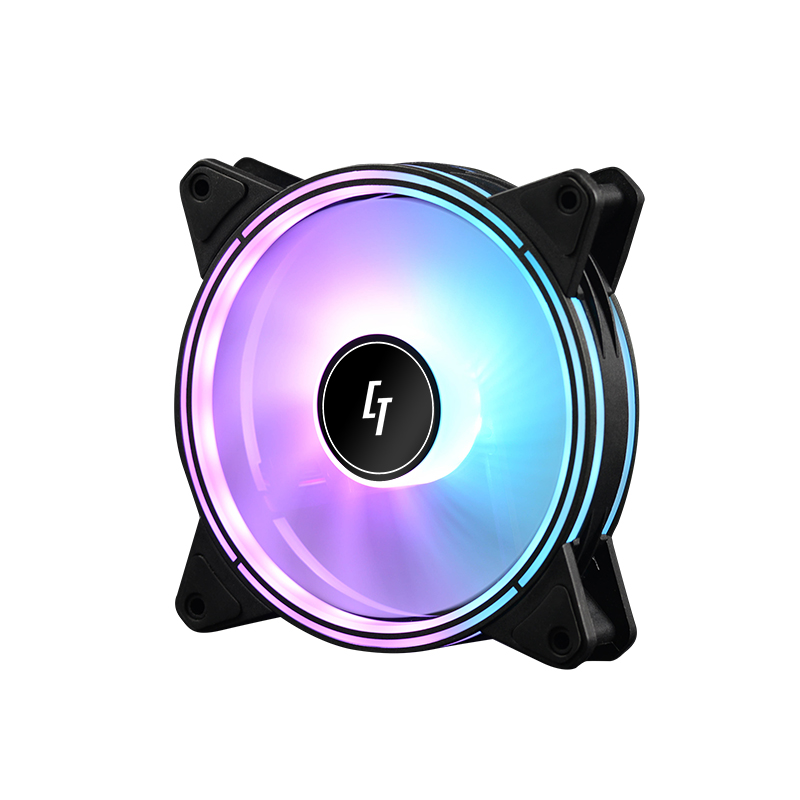

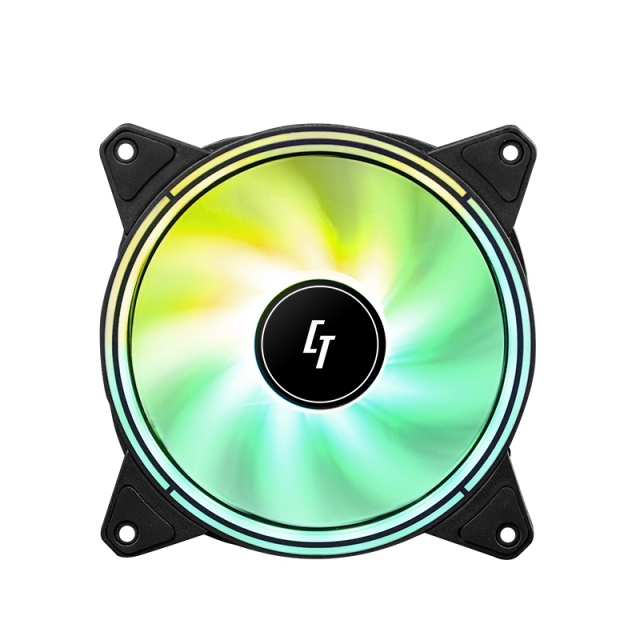

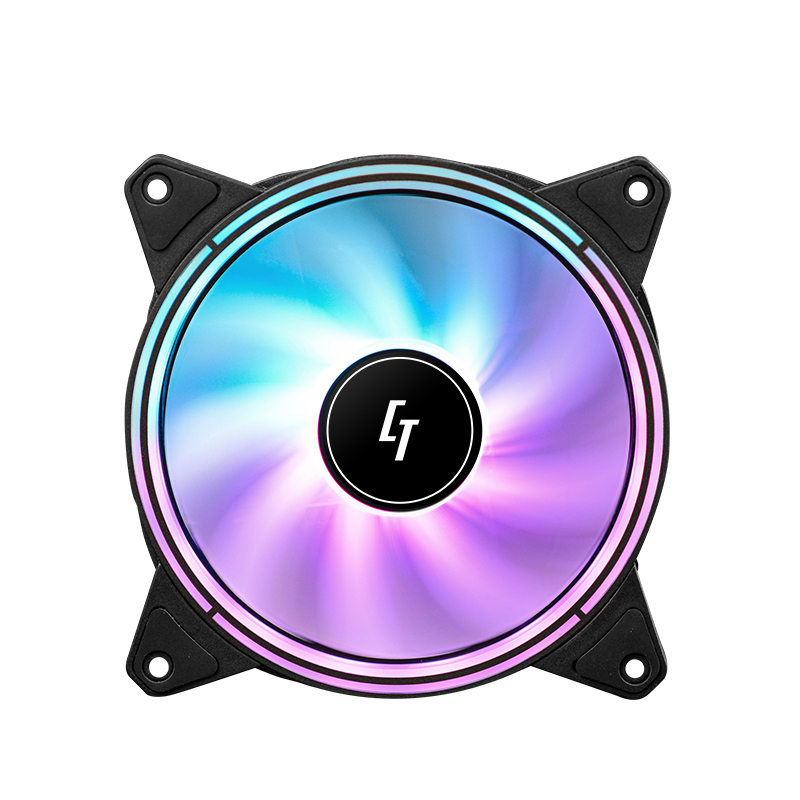

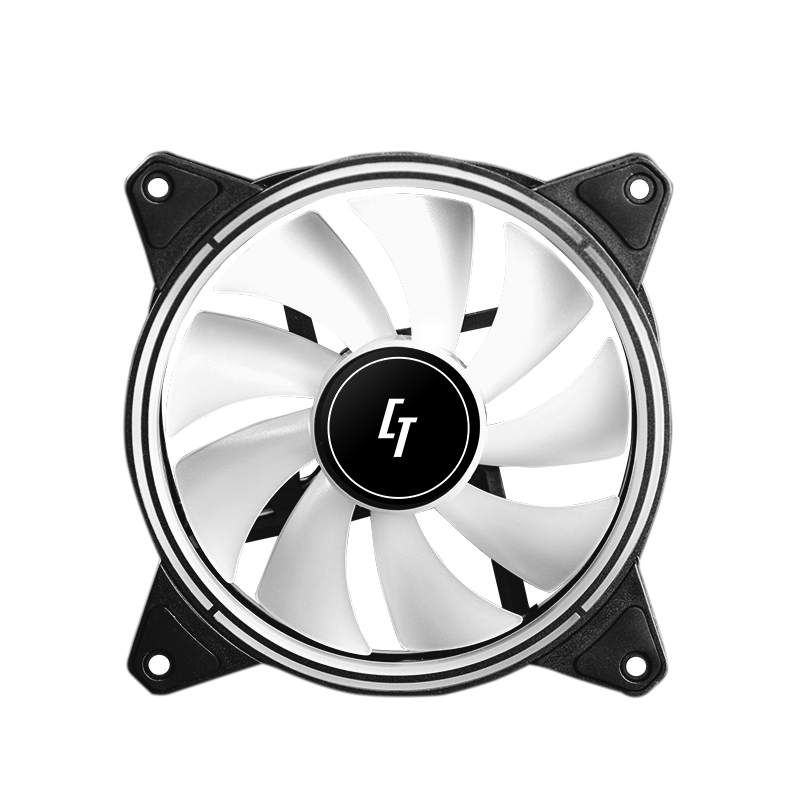

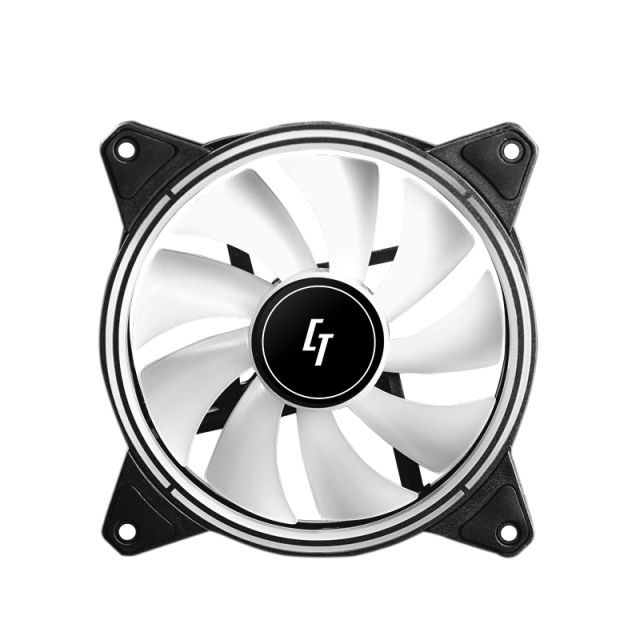

CHIEFTRONIC’s NOVA RGB Fan comes with beautiful A-RGB illumination from a dual-ring design to ensure smooth and full lighting with 16 LED’s on the inner ring as well as 16 more LED’s on the outer ring. Additional frame design elements on the outer ring ensure the Nova fan stands out from the crowd and impress visually.

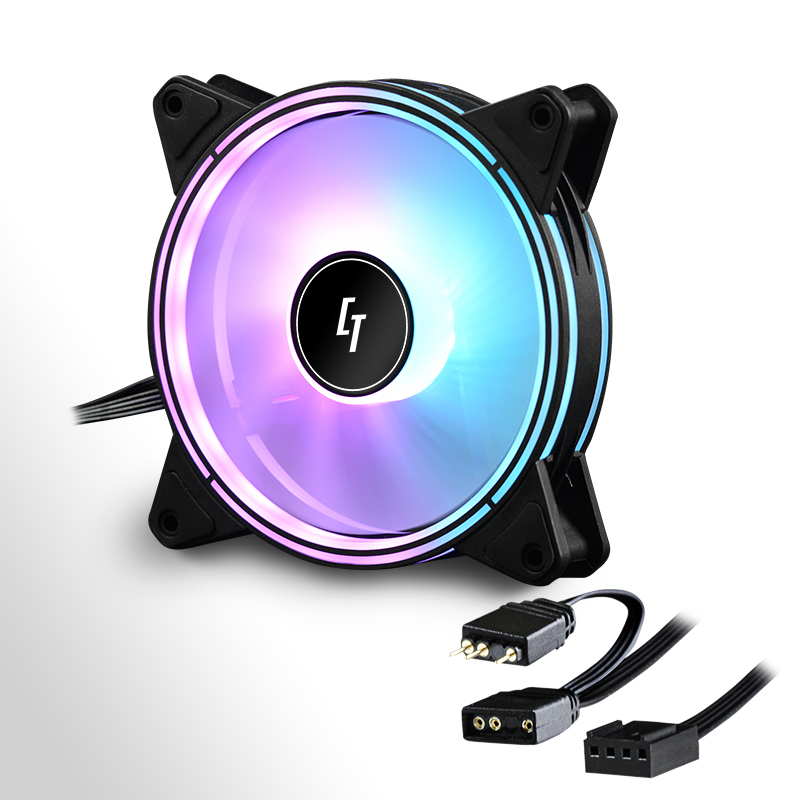

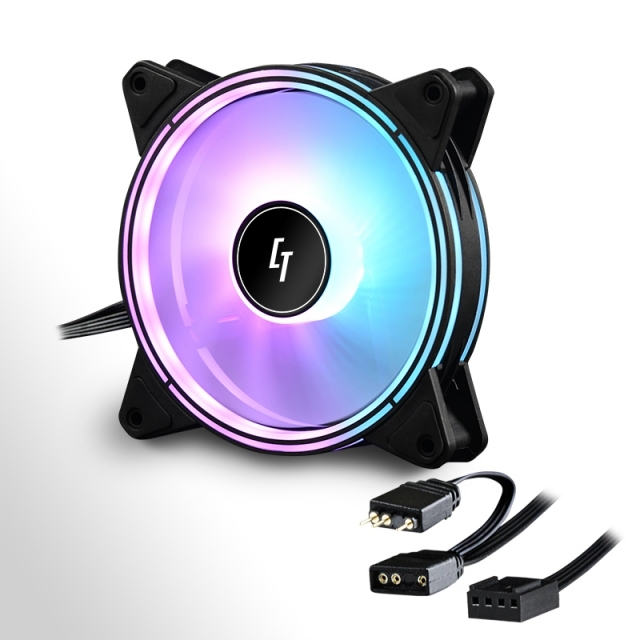

The single fan comes with 4-PIN PWM connector to power and control the fan speed via the motherboard, as well as a 3-PIN +5V A-RGB connector to allow for control via most mainstream motherboard sync technologies like ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC, GIGABYTE™ RGB FUSION.

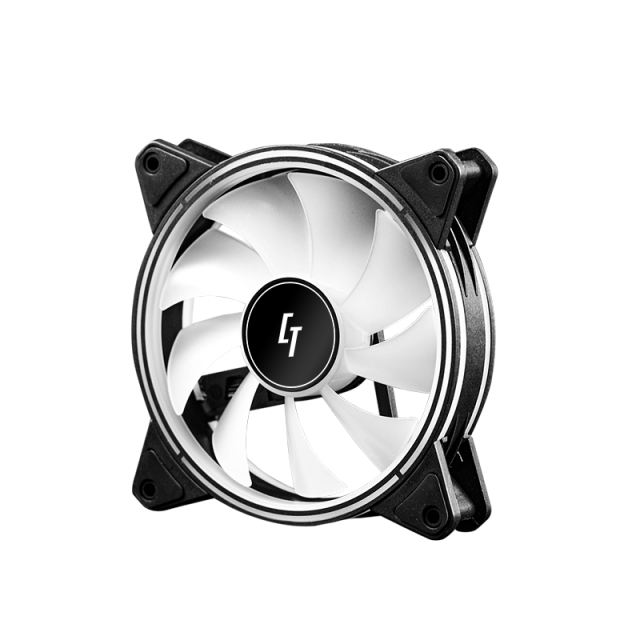

Translucent fan blades ensure lighting transfers evenly throughout the entire fan, while anti-vibration pads ensure smooth and quiet operation.
|Connectors||Fan: 4 pin PWM ; ARGB: 3 pin|
|Dimension (DxWxH)||120 x 120 x 25mm|
|Weight (without/with package)||135g / 145g|
|LED Type||Addressable RGB (A-RGB)|
|LED Count||32 pcs (Inner Ring: 16 pcs ; Outer Ring: 16pcs )|
|Rated Voltage||FAN: DC12V ; LED: DC5V|
|Rated Current||0.29A (Max: 0.65A)|
|Operating Voltage||7V -13.2V|
|Fan Speed (RPM)||1600 RPM ± 10%|
|Air Flow (CFM)||68 CFM|
|Air Pressure (mmH2O)||2.2 mmH2O|
|Noise Level (dBA)||24 dBA (Max: 28)|
|Scope of delivery||1x 120mm RGB Rainbow fan, 4x Mounting screws|
|RGB Sync Compatibilities||ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC,
GIGABYTE™ RGB FUSION
