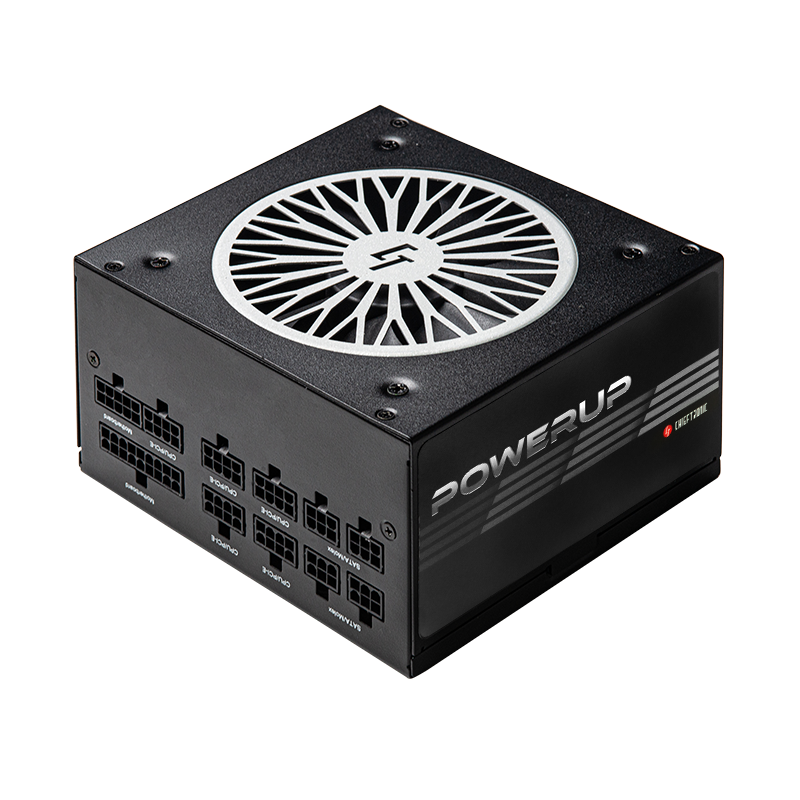

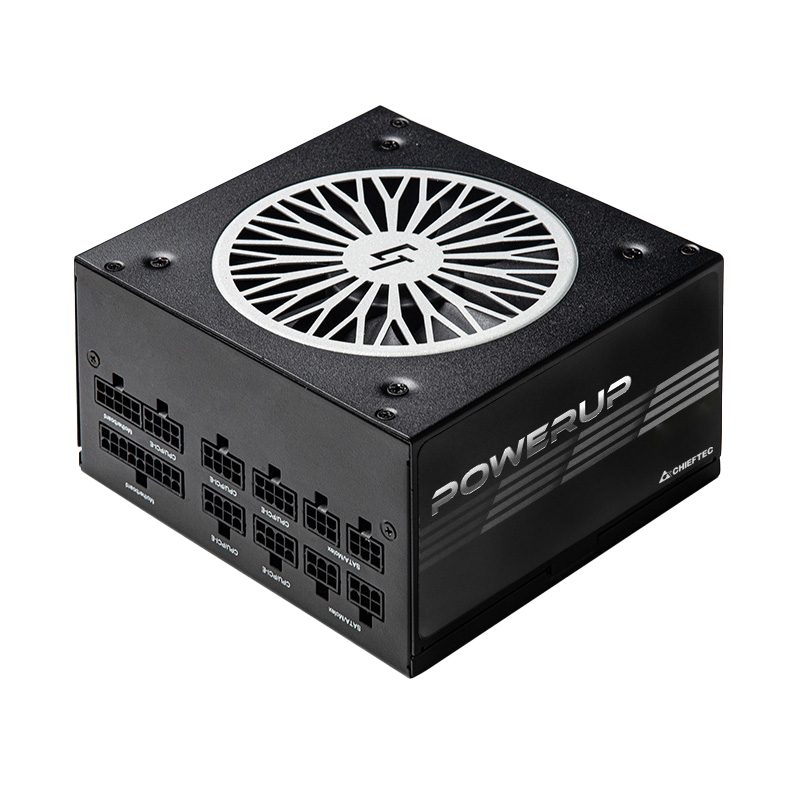

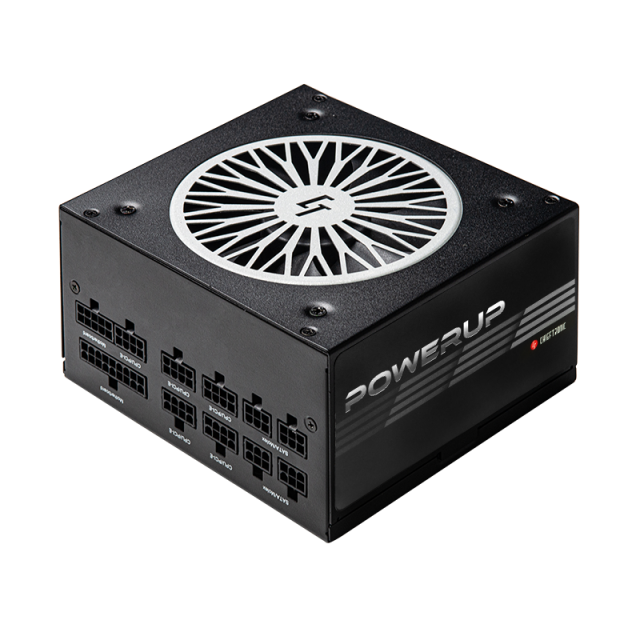

GPX-850FC
PowerUP SERIES

  • 80 PLUS® Gold certified efficiency

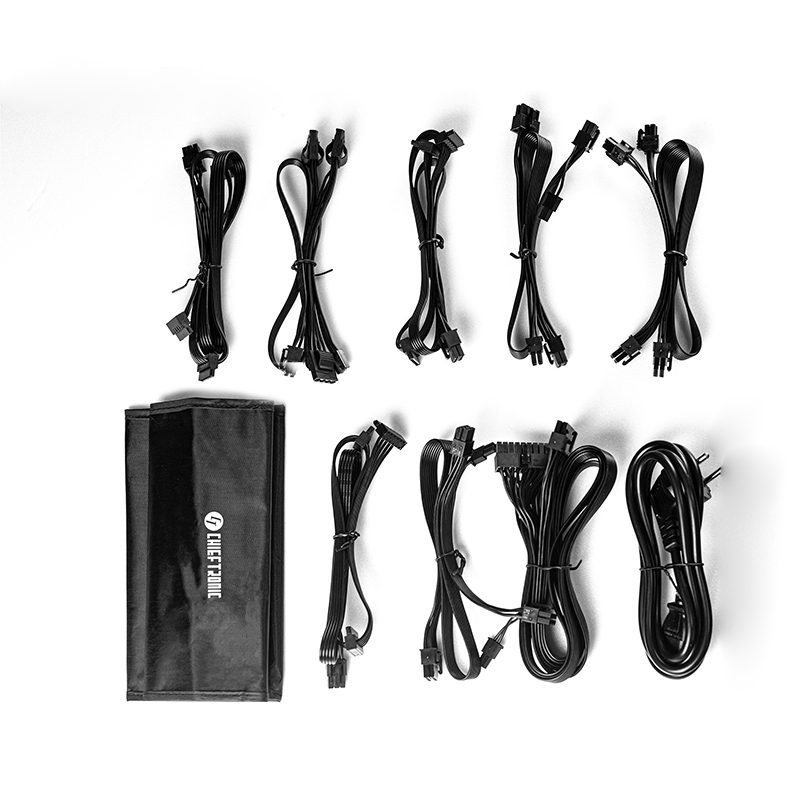

  • Fully modular cable management
  • Full-bridge LLC converter with DC-to-DC technology
  • Low ripple and tight voltage regulation
  • 5-year warranty
80 PLUS Gold

OVERVIEW

With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.

A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.





SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
FCC
TECHNICAL DATA
Model PowerUp 850W
Article no. GPX-850FC
EAN code 0753263077202
Weight (without/with package) 2.4kg / 2.95kg

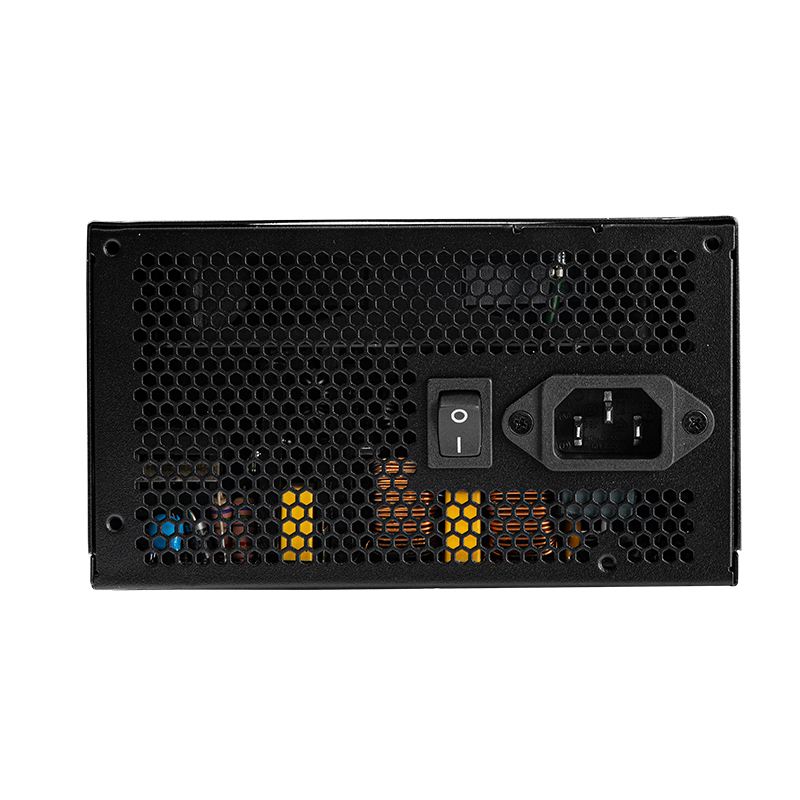

AC Input 100 - 240V / 12.0A
Frequency 47 - 63Hz
+5V 20A
+3,3V 20A
+5V & +3,3V combined 110W
+12V1 70.5A
+12V2 -
+12V1, +12V2 combined 846W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 850W

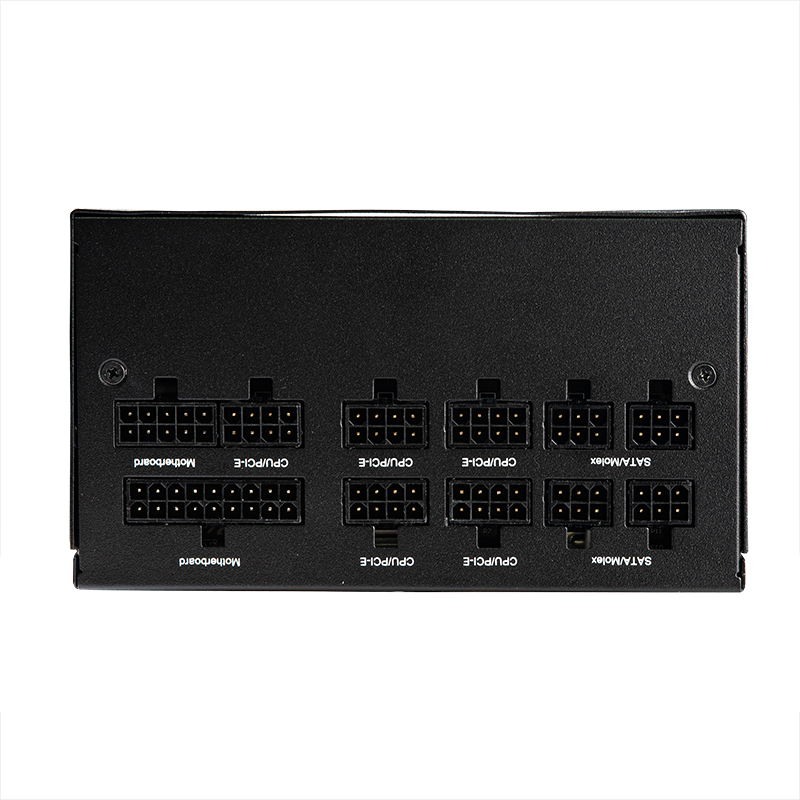

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 2
8 PIN PCIe (6+2) 6
SATA 9
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS(4+4) 650/150
8 PIN PCIe (6+2) 3x 500/150
SATA 3x 500/150/150
MOLEX/FLOPPY 500/150/150/150

Features
ATX12V Version ATX 12V 2.53
Efficiency 80+Gold
Dimension (DxWxH) 140 mm x 150 mm x 86 mm
PFC Active PFC
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 60 Months
