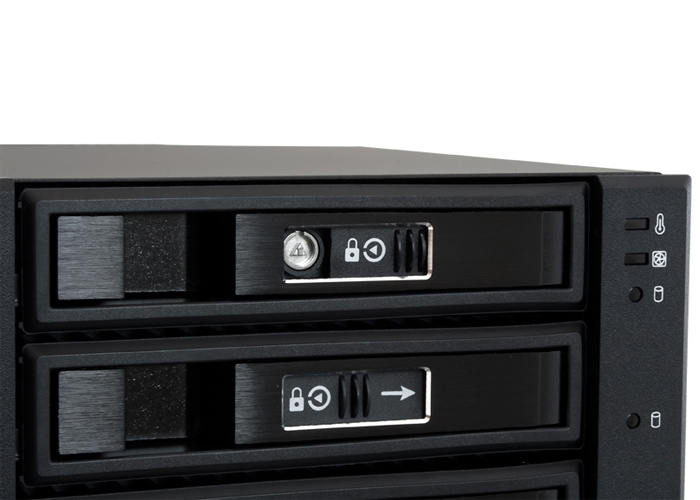

- Lock mechanism with key
- Space saving
- Home
- Accessories
- SAS / SATA Backplanes
- CBP-2131SAS
CBP-2131SAS
OVERVIEW

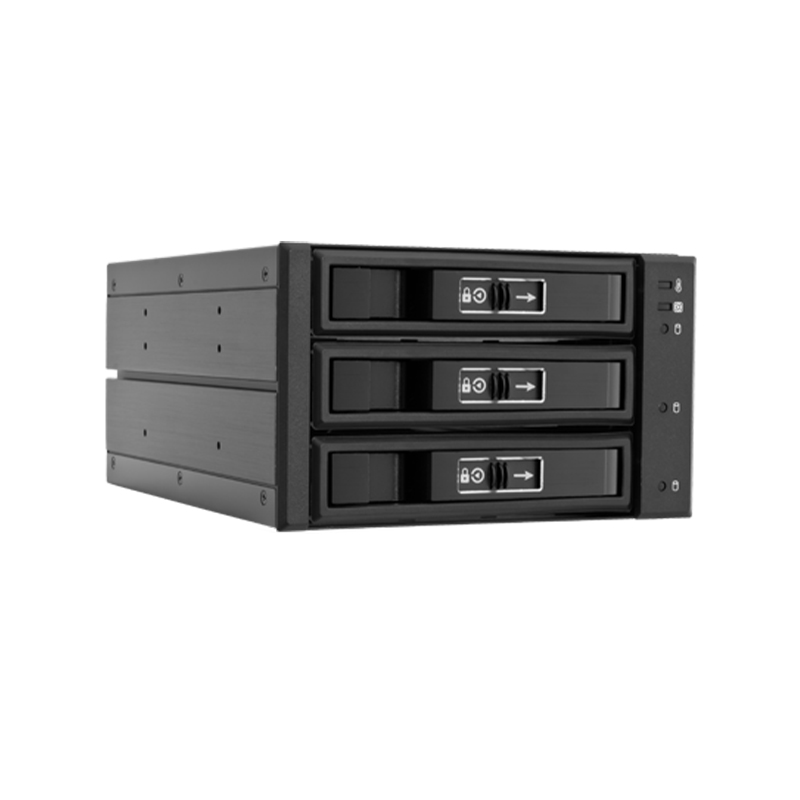

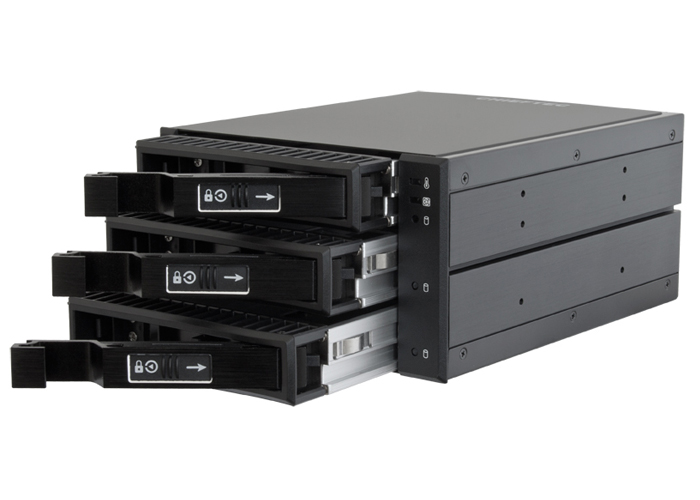

The new backplane CBP-2131SAS sets the standard with the patented anti-vibration design. Like no other backplane makes it suitable for diverse applications. The chassis is made of high quality aluminum and requires only two 5.25" and provides space for three 3.5" or 2.5" hard drives or SSDs. Supports both SATA I/II/III and SAS I/II.
SPECIFICATIONS
| Interface (HDD/SSD) | SATA I, SATA II, SATA III, SAS I/II |
| Dimension (DxWxH) | 207mm x 146mm x 86mm |
| Weight | 1,09 kg |
| Form Factor | 2x 5,25" bays for 3 HDDs/SSDs (3,5" or 2,5") |

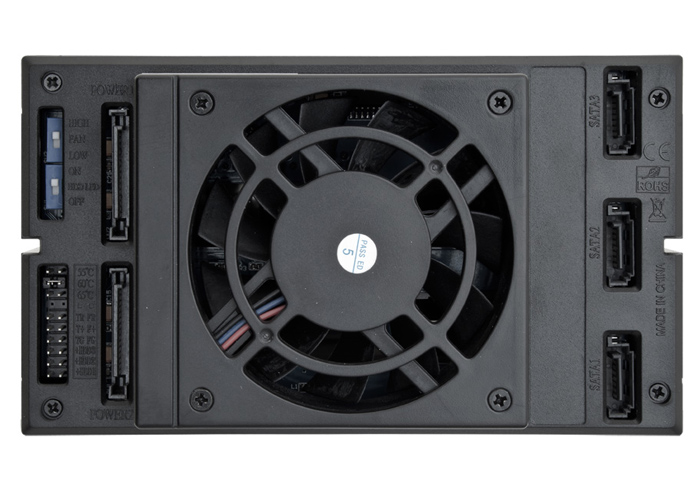

| Cooling | 70mm fan |
| Power Connector | 2x SATA |
| Data Interface (ext.) | 3 x SATA |
| Supported Raid-Level | No Raid controller is included |
| Special Features |
|

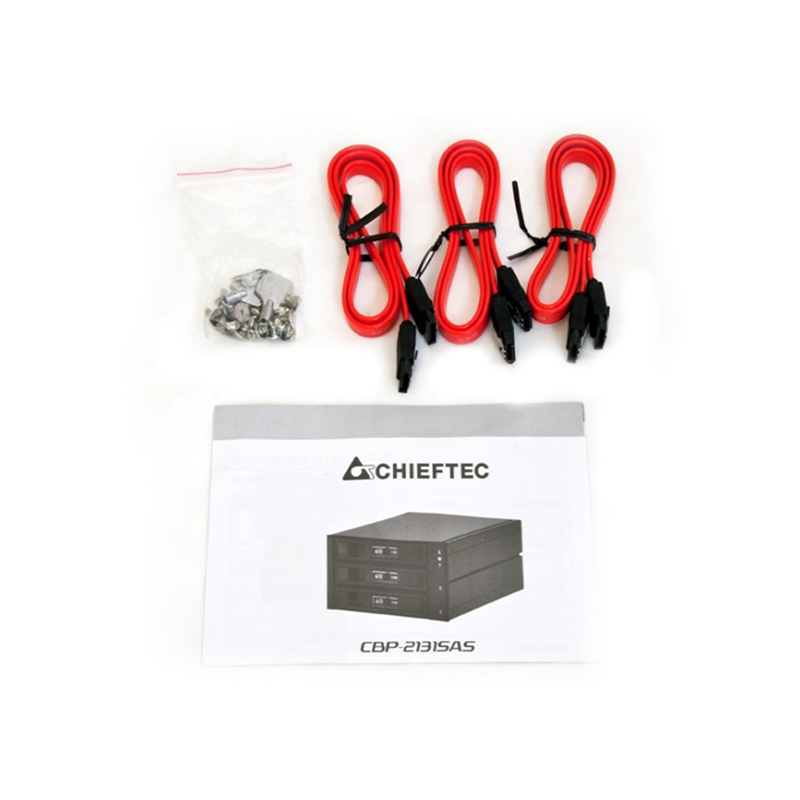

| Scope of delivery | Backplane, 3x SATA cable (60cm), set of screws, User manual (engl.) |
| Warranty | 24 Month |
