CMR-2131SAS
OVERVIEW

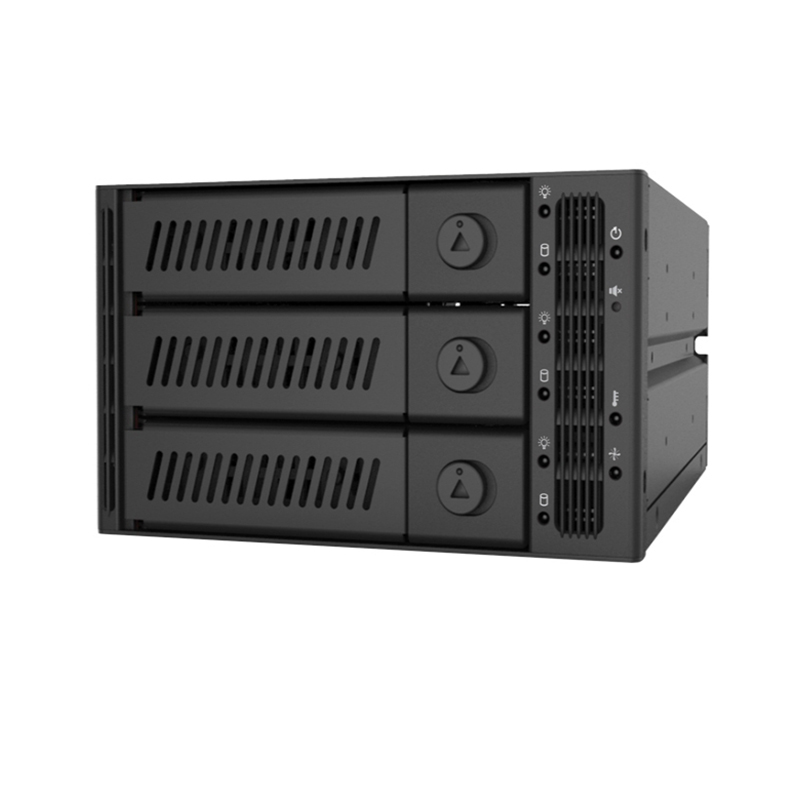

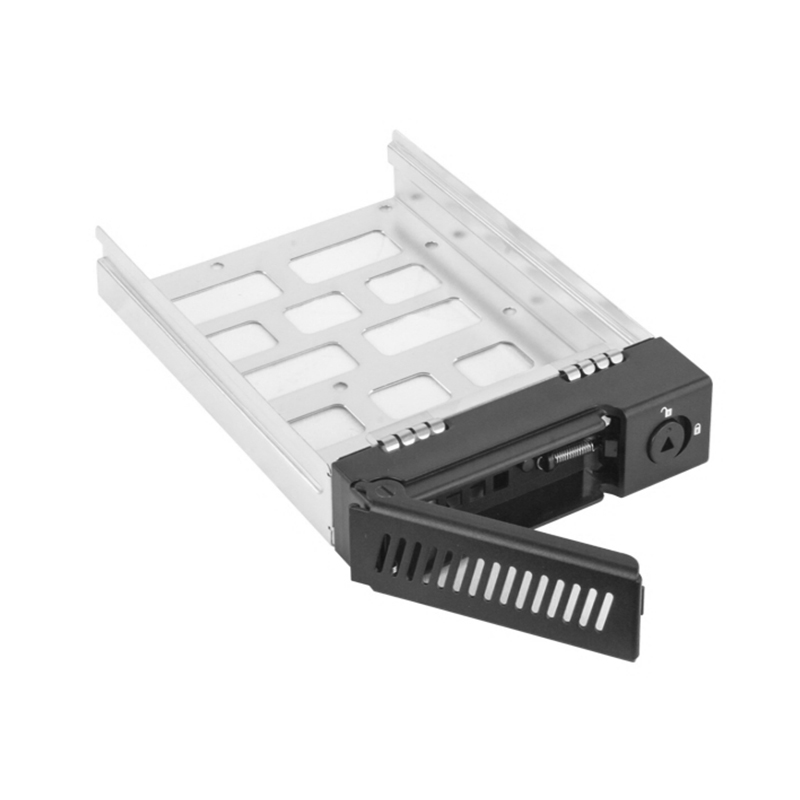

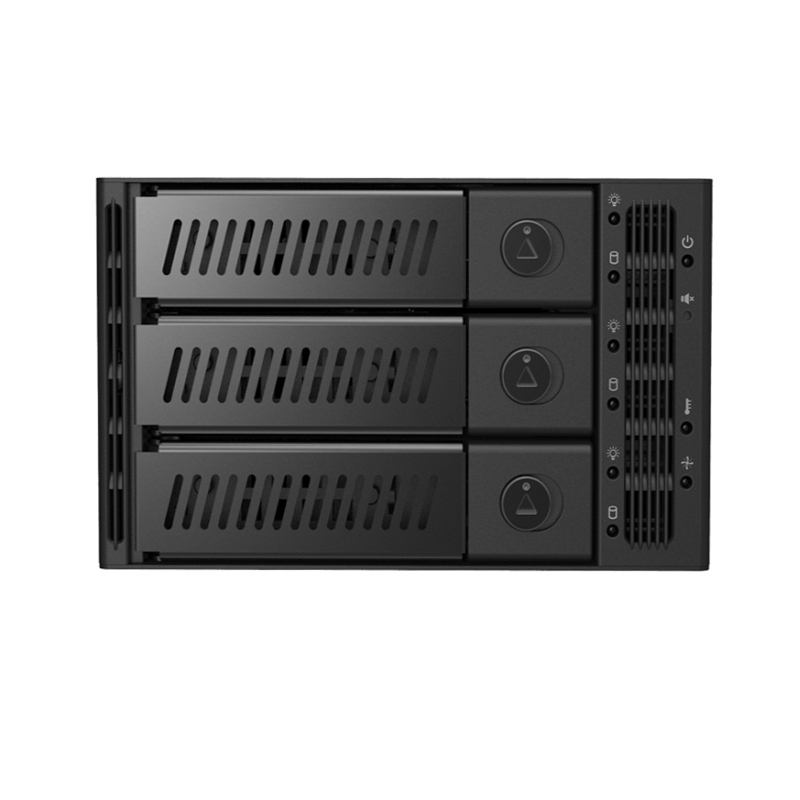

This SAS / SATA Backplanes as well as the detachable bays, are all exclusively designed and made of SECC Steel that they are especially suited to keeping the HDDs/SSDs cool. The Backplane is Plug & Play compatible and supports hot swap. With an 80mm fan, even the fastest HDDs/SSDs are kept cool. The operating status of each HDD/SSD as well as the power and the activity of the fans are shown in the front of the Backplane by LED's.
SPECIFICATIONS
| Interface (HDD/SSD) | SATA/SAS I/II/III |
| Dimension (DxWxH) | 217mm x 146mm x 85mm |
| Weight | 1,91 kg |
| Form Factor | 2x 5,25" bays for 3x SATA/SAS HDDs/SSDs (3,5"/2,5") |

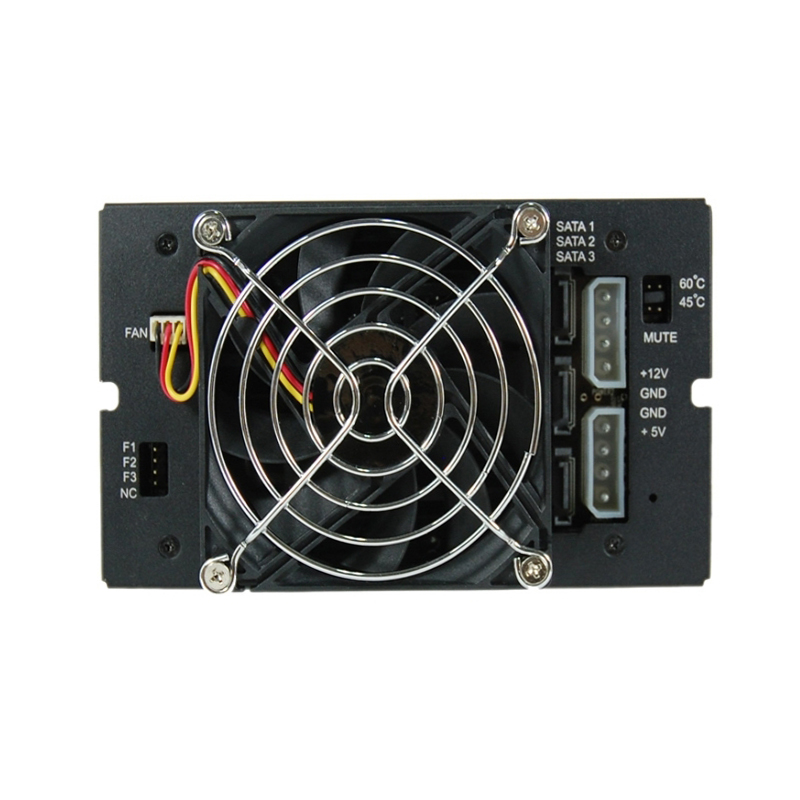

| Cooling | 80mm fan |
| Power Connector | 2x Molex |
| Data Interface (ext.) | 3x SATA |
| Supported Raid-Level | No Raid controller is included |
| Special Features |
|

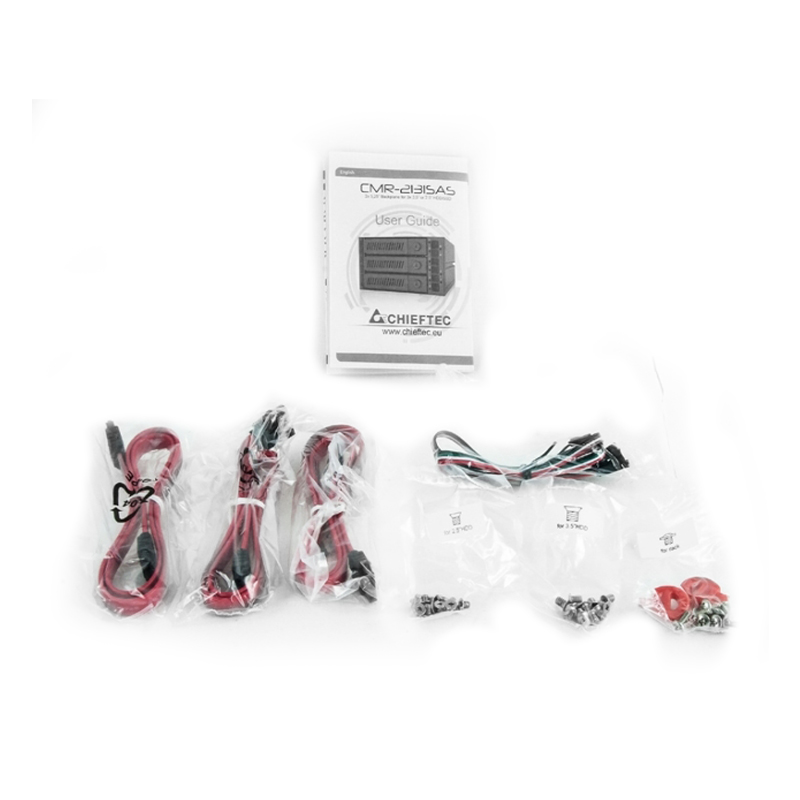

| Scope of delivery | Backplane, 3x SATA cable, set of screws, User manual (engl.) |
| Warranty | 24 Month |
