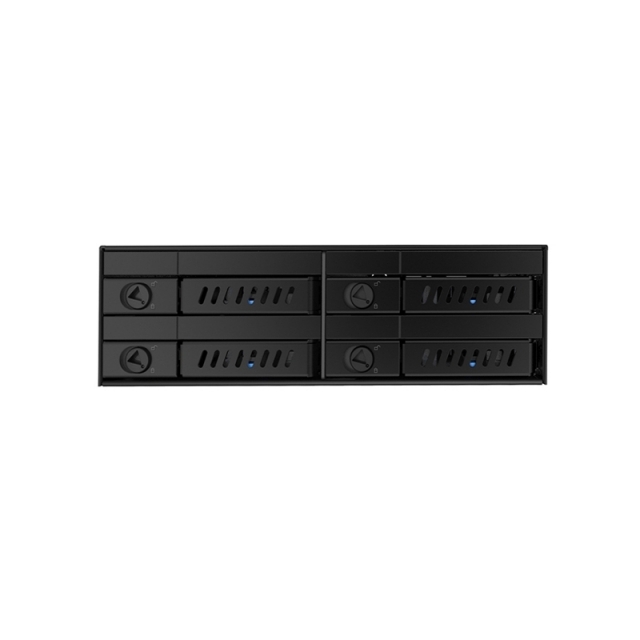

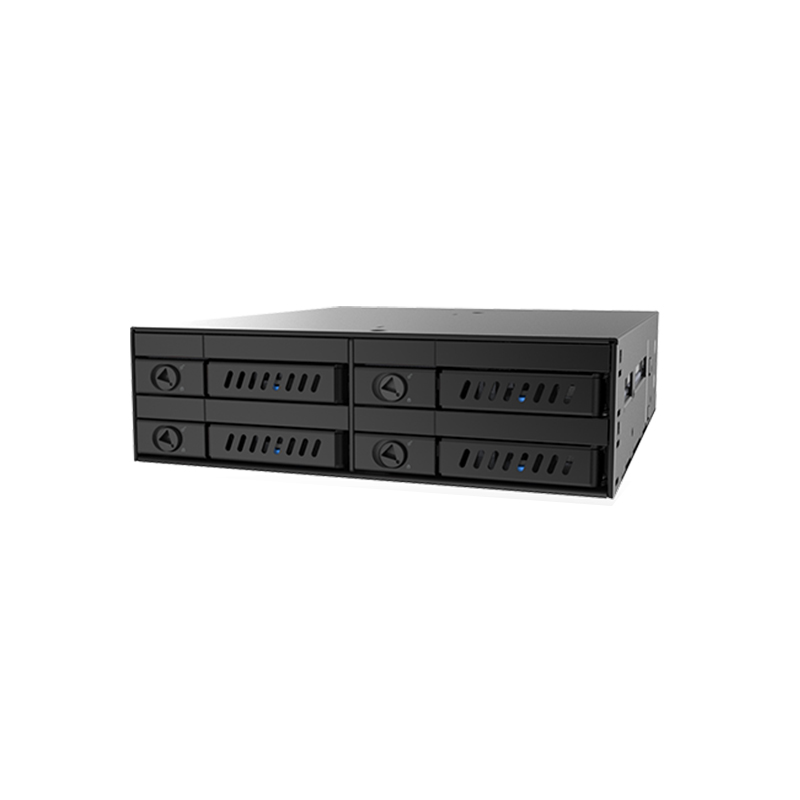

CMR-425
OVERVIEW

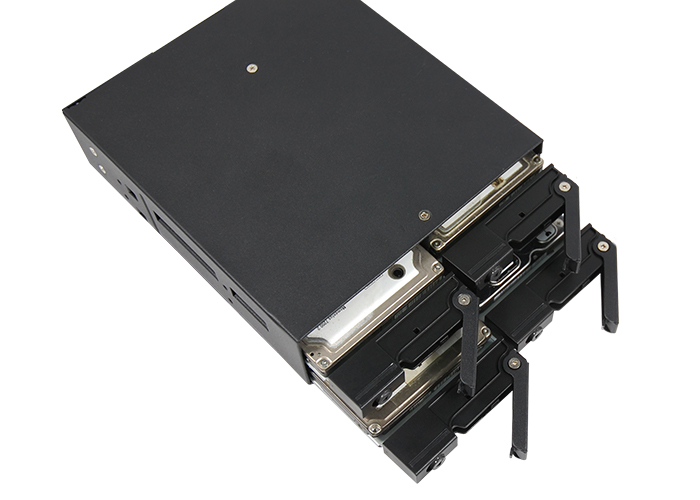

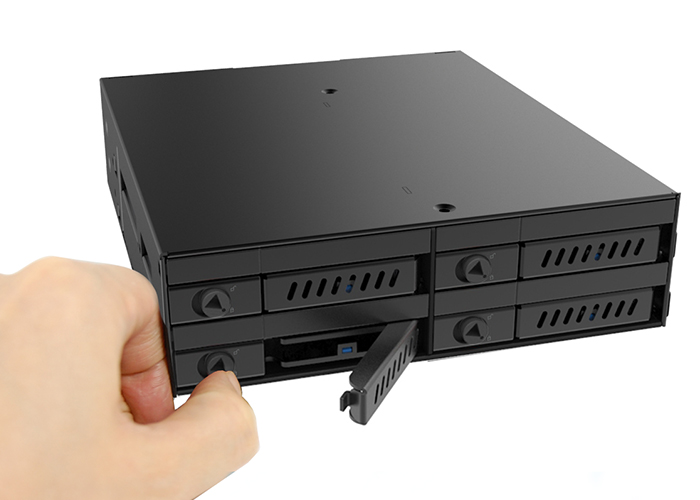

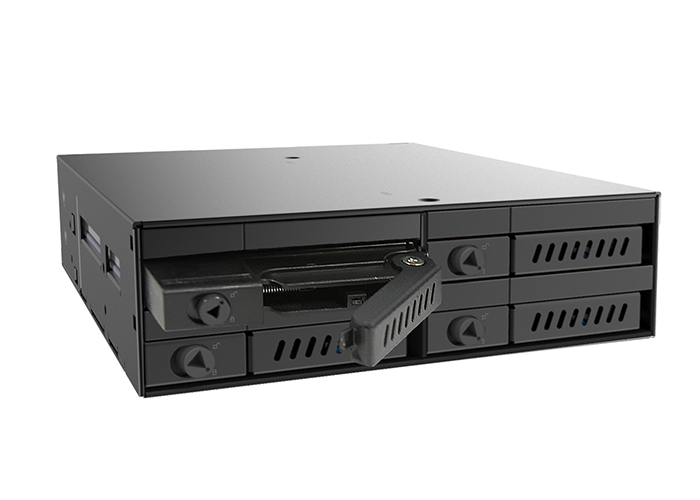

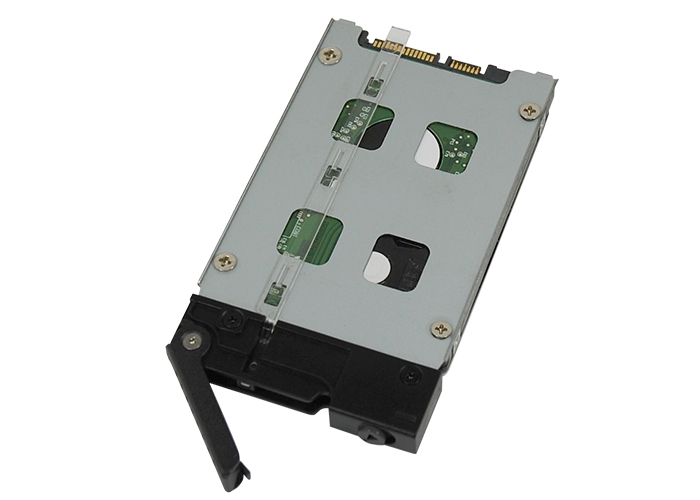

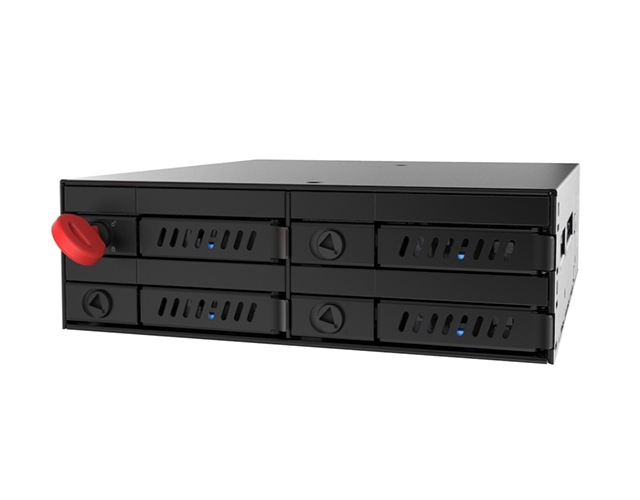

The highly innovative backplane CMR-425 sets a new standard by providing 4x 2,5” HDD/SSD//SATA I /II/III mounting option using a 1x 5,25” external slot. Compatible with all 2,5” HDDs/SSDs (height: 7 ~ 9,5mm) it sources its power via the SATA connection offers LEDs to indicate HDD access and power while trays are detachable for easy installation. The case being 100% metal and lockable ensures maximum security. All installed discs are hot-swappable which makes it suitable for diverse applications.
SPECIFICATIONS
| Interface (HDD/SSD) | SATA I, SATA II, SATA III |
| Dimension (DxWxH) | 168mm x 146mm x 42mm |
| Weight | 0,764 kg |
| Form Factor | 1x 5,25" bay for 4x 2,5" HDDs/SSDs (max. HDD/SSD height up to 9,5mm) |

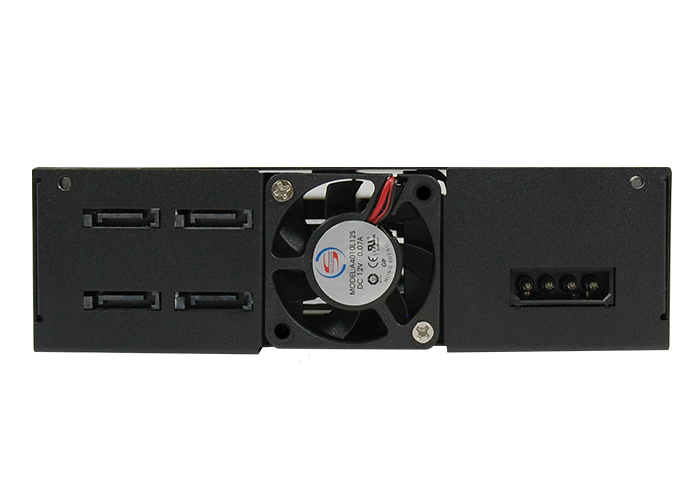

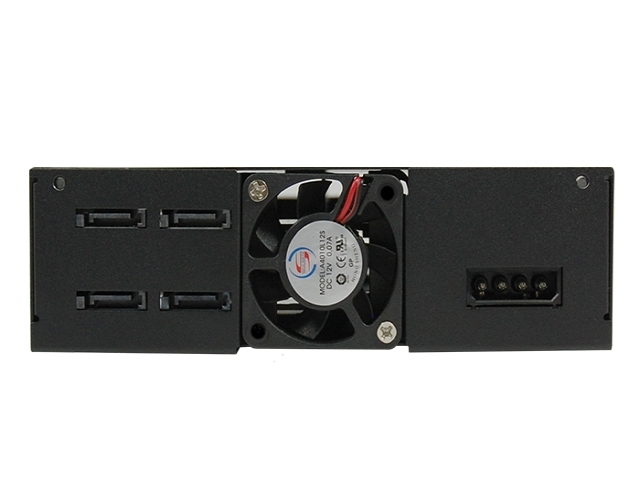

| Cooling | 1x 40mm |
| Power Connector | 1x Molex |
| Data Interface (ext.) | 4x SATA |
| Material | Full Metal structure |
| Special Features |
|
| Scope of delivery | SATA Backplane, 4x SATA cables, 2 keys, set of screws, User manual |
| Warranty | 24 Month |
