BA-01B-B-B-OP
BA-01B-B-B-OP

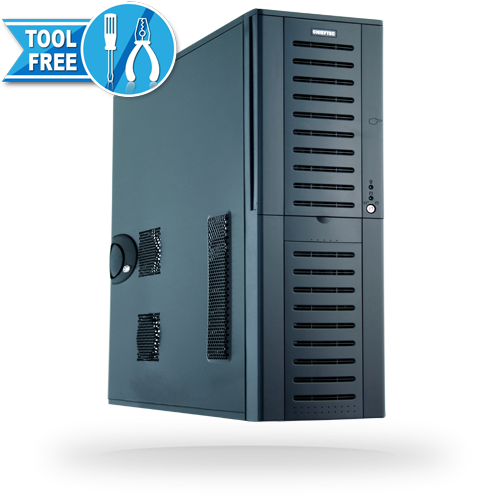

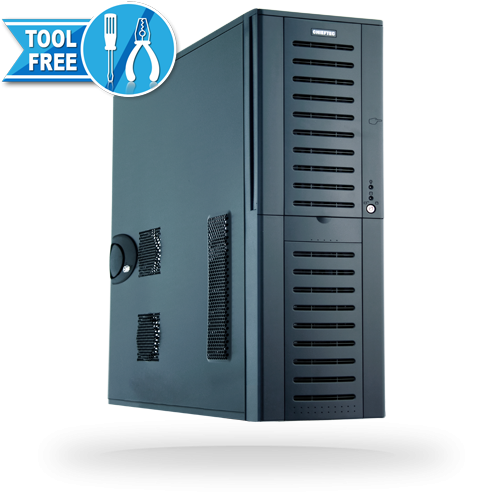

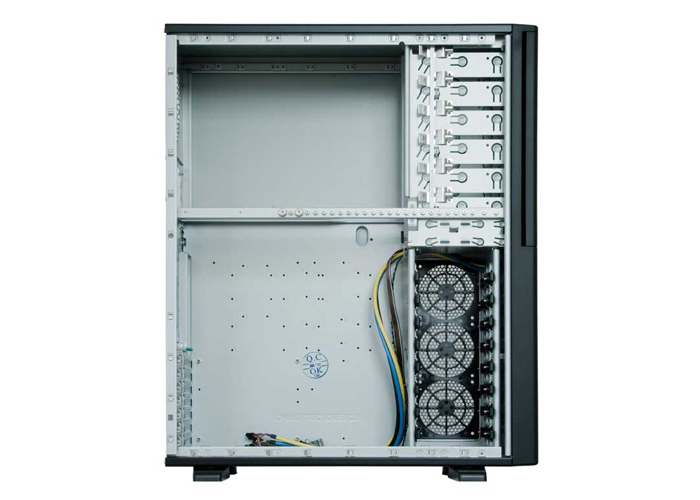

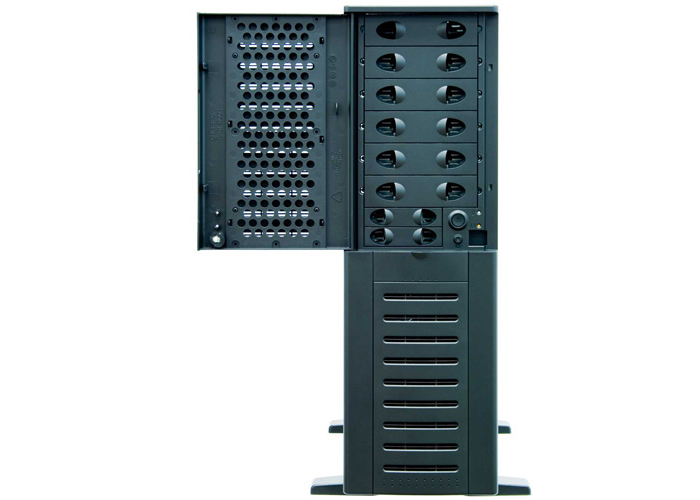

  • A Big Tower with very convincing dimension. This chassis offers not only enough space for components and expansion, but also the possibility to install a redundant power supply. Offering 6x 5,25" and 2x 3,5" external bays for ODDs, as well as the possibility to install up to 8 additional HDDs internally. BA-01B-B-B-B is an ideal solution for server and workstation alike.
eol

SPECIFICATIONS

Form factor mATX, ATX (CEB 1.01) and EATX (SSI EEB 3.x)
Dimension (DxWxH) 540mm x 205mm x 650mm (Stand +20mm)
Weight 17,56 kg w/o PSU (net)

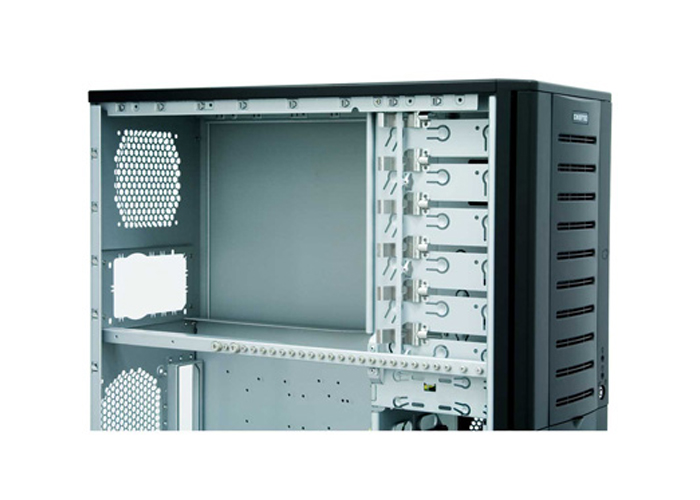

Drive Bays ext. 6x 5,25" / 2x 3,5"
Drive Bays int. 8x 3,5"
Power Supply ATX (not included)

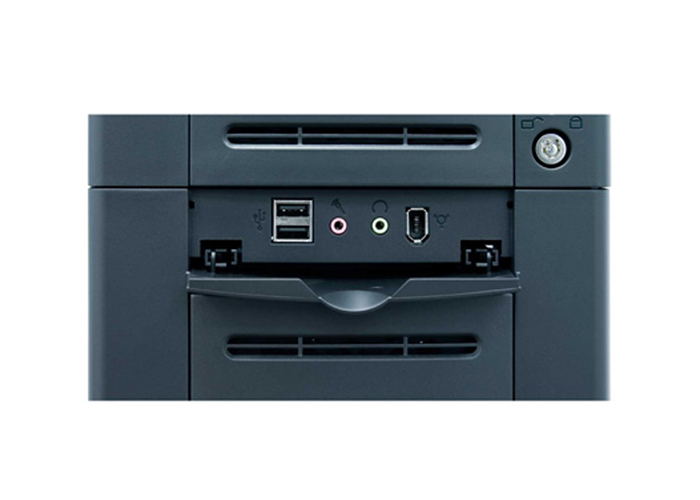

Front I/O 2x USB2.0, 1x IEEE 1394 Firewire, Mic-in, Audio-out (AZALIA / HD-Audio)
Scope of delivery Set of screws, set of keys
Material SECC, 1mm

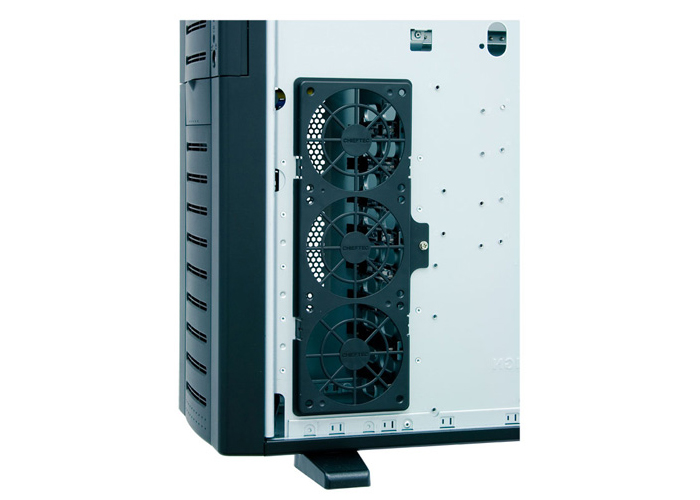

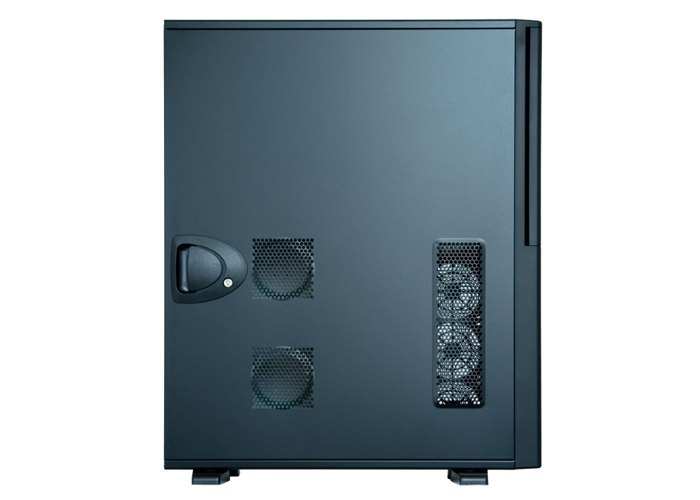

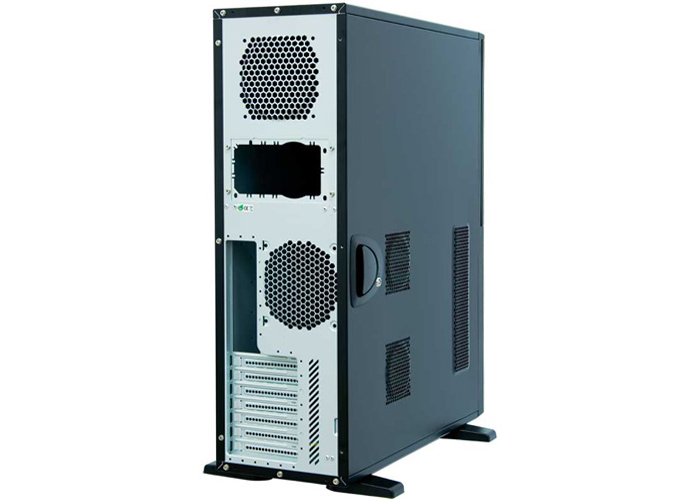

Cooling (opt.) 2x 120mm on the rear, 5x 92mm on the side panels (2 left / 3 right)
CPU cooler height (max.) 160mm
VGA card lenght (max.) 320mm
Warranty 24 Month
