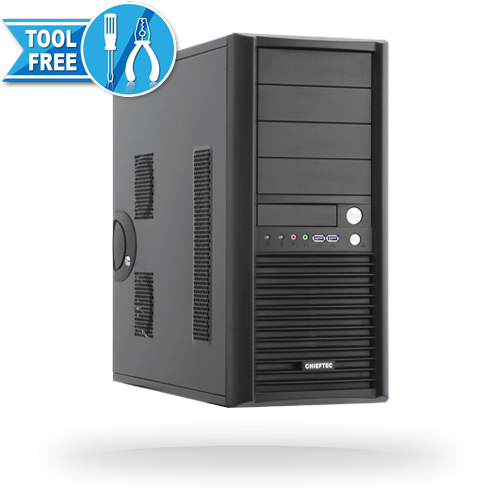

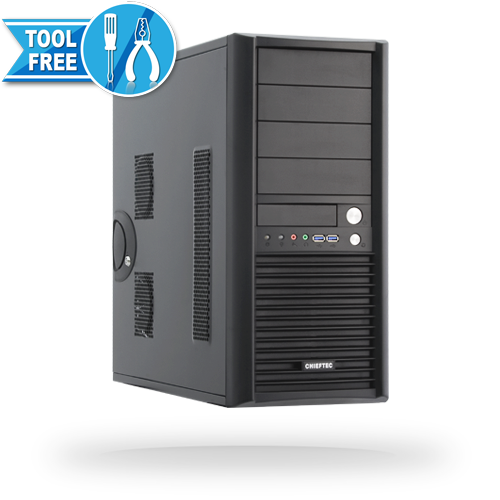

CH-09B-U3-OP

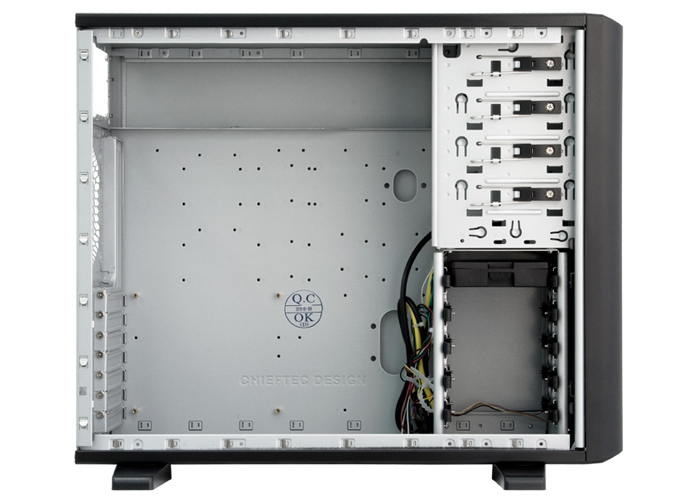

  • Pay less - get more! CH-09B-U3 is the best bargain for comforts and innovation of the cutting edge technology. It has plentiful space suitable for motherboards, from mATX to EATX, and for up to 5 HDDs & 4 x 5.25" bays. The installation is so simple and the price is so unbeatable.

SPECIFICATIONS

Form factor mATX, ATX (CEB 1.01) and EATX (SSI EEB 3.x)
Dimension (DxWxH) 540mm x 205mm x 440mm (Stand +20mm)
Weight 12,15 kg w/o PSU

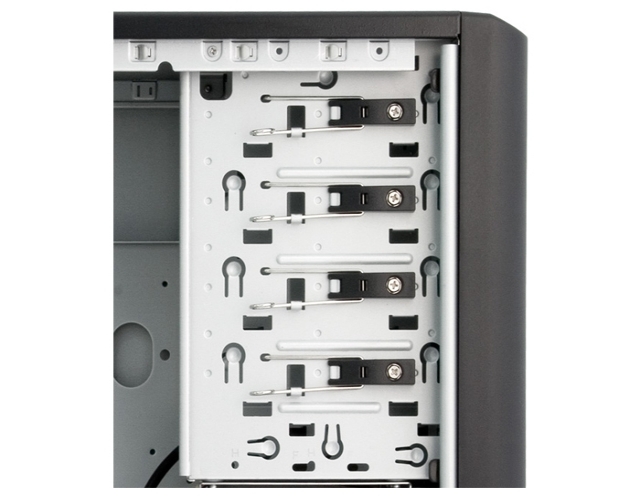

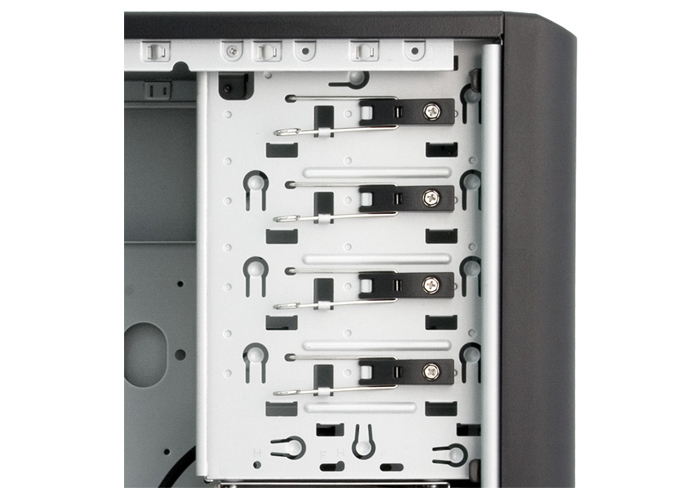

Drive Bays ext. 4x 5,25" / 1x 3,5"

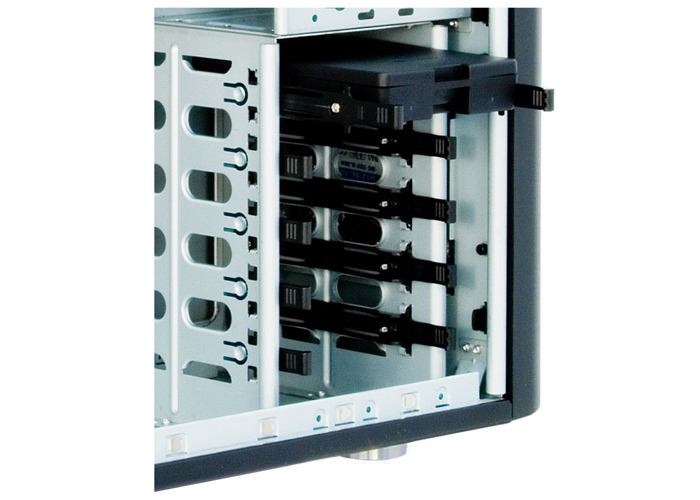

Drive Bays int. 5x 3,5" without accessory box / 4x 3,5" with accessory box
Power Supply ATX (not included)

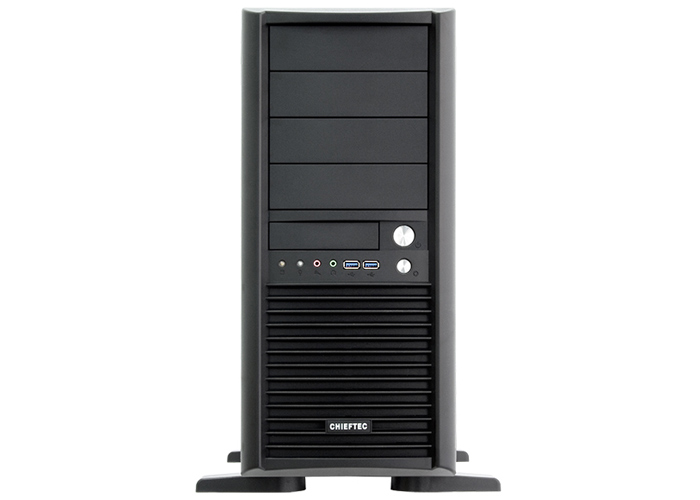

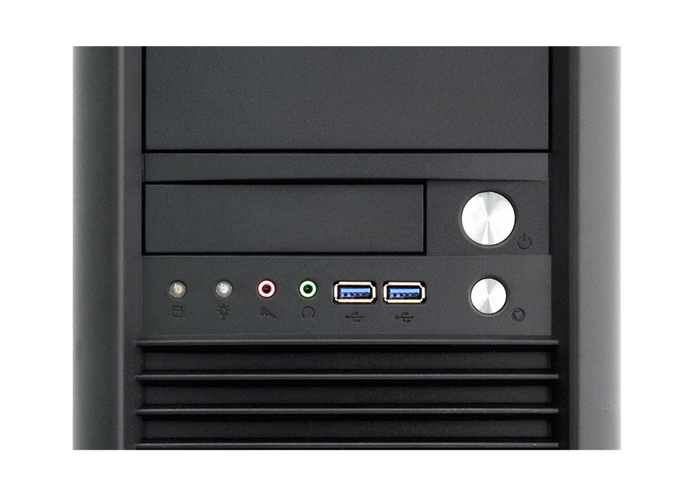

Front I/O 2x USB3.0 (USB3.1 Gen 1), Mic-in, Audio-out (AZALIA / HD-Audio)
Scope of delivery Set of screws, set of keys
Material SECC, 1mm
Cooling (opt.) 1x 120mm on the rear, 1x 120mm on the front (pre installed), 2x 92mm on the side panels (2 left)
CPU cooler height (max.) 160mm
VGA card lenght (max.) 320mm
Warranty 24 Months
