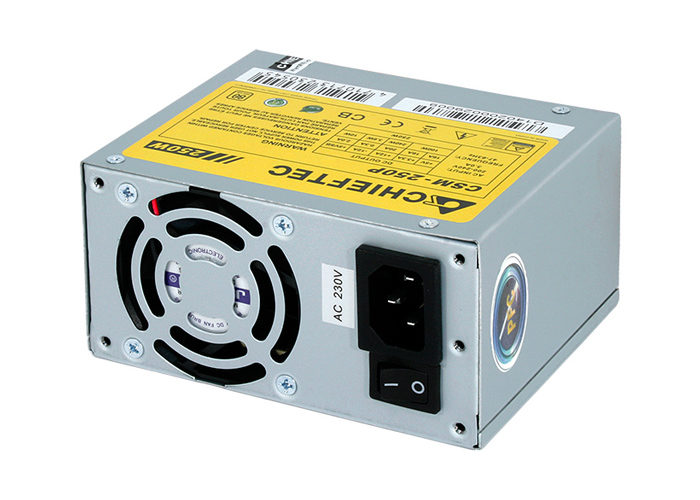

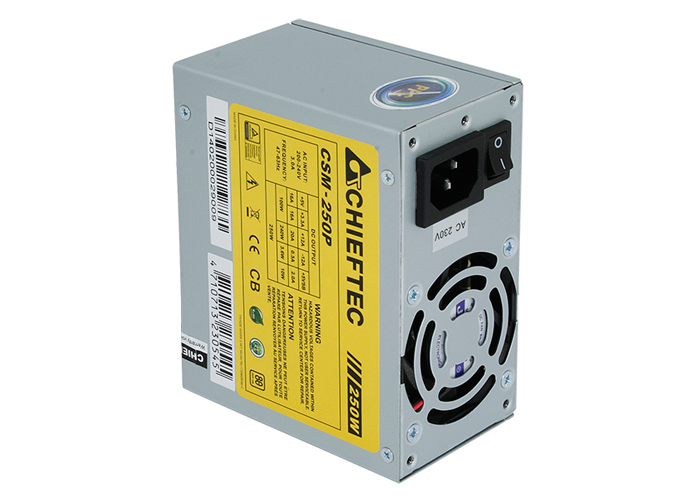

CSM-250P
CSM-250P

  • This compact SFX power supply is the optimal solution to be used in rather small cases such as mATX and ITX.
80%(230V Only)
eol

SPECIFICATIONS

CE
CB
EAC
RoHS
ErP
WEEE
TUV
Performance
AC Input 230-240V / 3.0A
Frequency 47-63 Hz
+5V 16A
+3,3V 16A
+5V & +3,3V combined 100W
+12V 1 20A / 240W
+12V 2 -
+12V 1 & +12V 2 combined N/A
+12V 3 N/A
+12V 4 N/A
+12V 3 & +12V 4 combined N/A
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2A / 10W
Maximum Load 250W

Native cable
20+4PIN ATX 1
SATA 2
MOLEX 2
Floppy 1
4PIN 12V 1
8PIN 12V -
8PIN (4+4) 12V -
6PIN PCIe -
8PIN (6+2) PCIe -

Features
Spezification ATX 12V 2.3
Form factor SFX
Efficiency > 80%
Dimension (DxWxH) 100 mm x 125 mm x 64 mm
PFC Active PFC (0,9)
Fan 60mm silent fan
Security AFC (Automatic Fanspeed Control)
OPP (Overload protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
UVP (Undervoltage protection)
Warranty 24 Months
