PPS-1050FC
POLARIS SERIES

  • 80 PLUS® Gold certified efficiency
  • Fully modular cable management
  • LLC Half-Bridge converter with DC-to-DC technology
80 PLUS Gold

OVERVIEW

The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power density to allow higher efficiency and power output with a more compact size.

Cable lengths of 650mm ensure that these power-supplies can be used evenin large builds.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
cTUVus
FCC
TECHNICAL DATA
Model POLARIS 1050W
Article no. PPS-1050FC
EAN code 0753263077363
Weight (without/with package) 2.6kg / 3.4kg

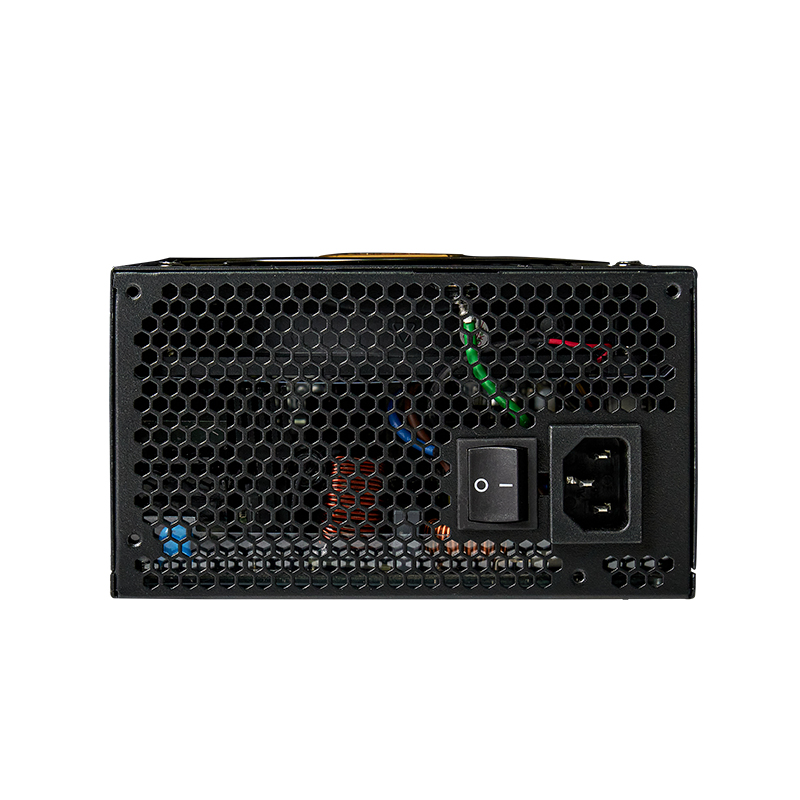

AC Input 100-240V / 15A
Frequency 50 - 60Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V1 87.5A
+12V2 -
+12V1, +12V2 combined 1050W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 3.0A / 15W
Maximum Power 1050W

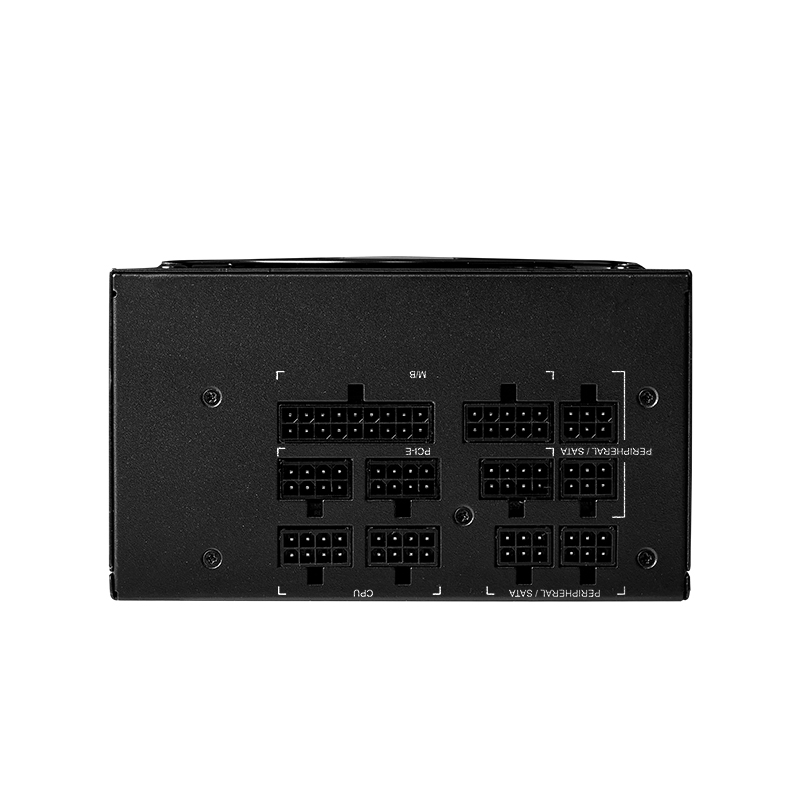

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 2
8 PIN PCIe (6+2) 6
SATA 12
MOLEX 4

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS (4+4) 2 x 650
8 PIN PCIe (6+2) 3 x 600/100
SATA 3 x 550/100/100/100
MOLEX/FLOPPY 550/100/100/100

Features
ATX12V Version ATX 12V 2.53
Efficiency 80+Gold
Dimension (DxWxH) 160 mm x 150 mm x 86 mm
PFC Active PFC

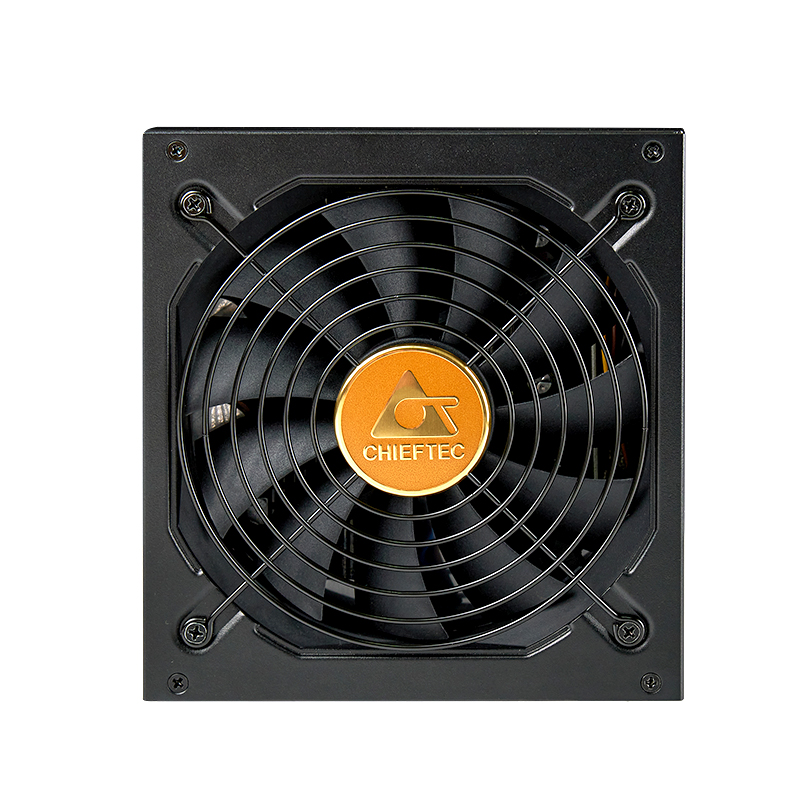

Fan 135mm FDB fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
