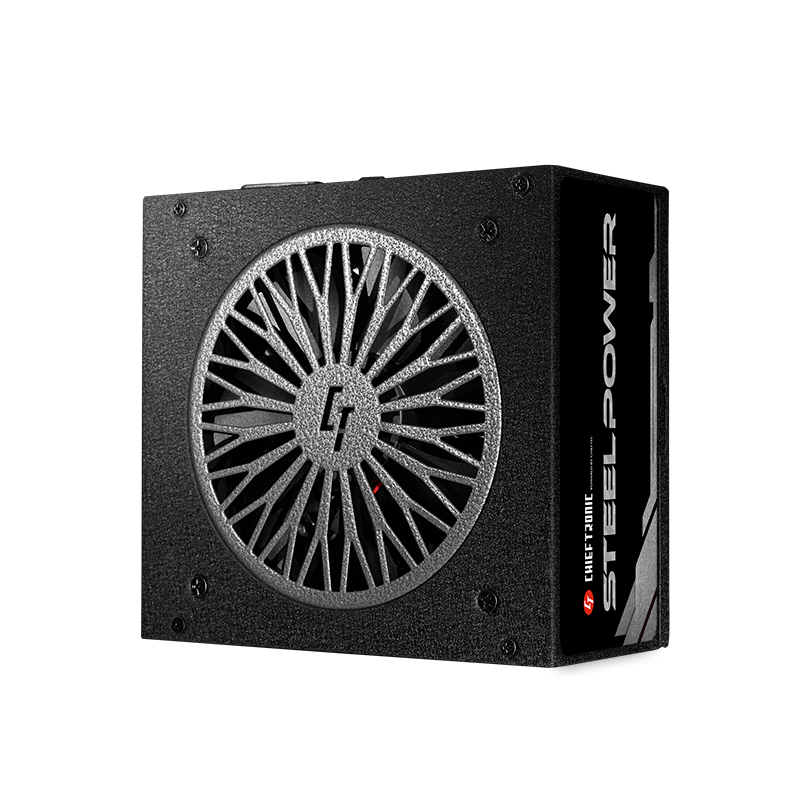

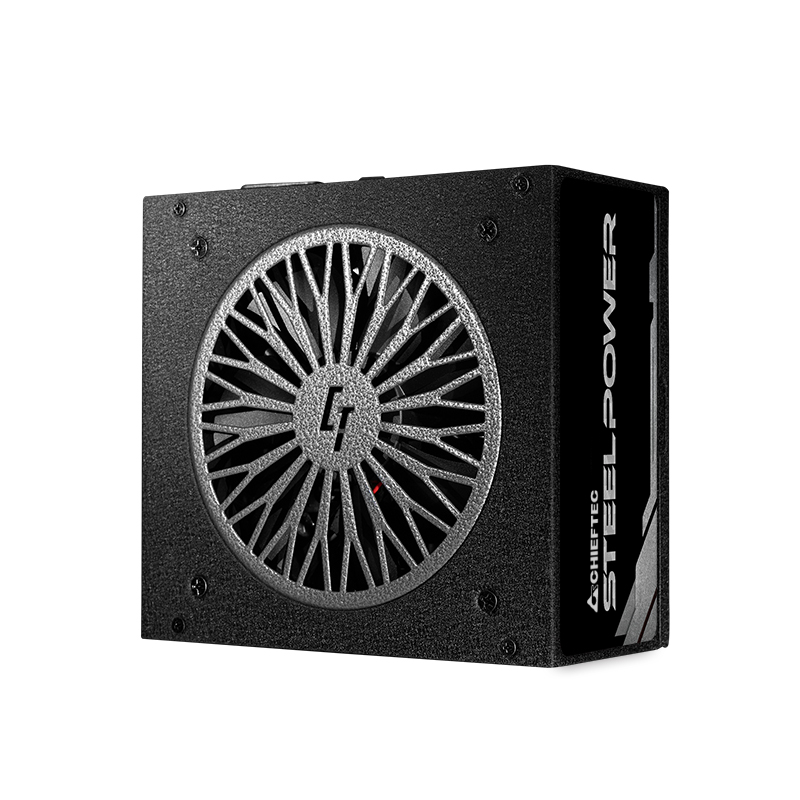

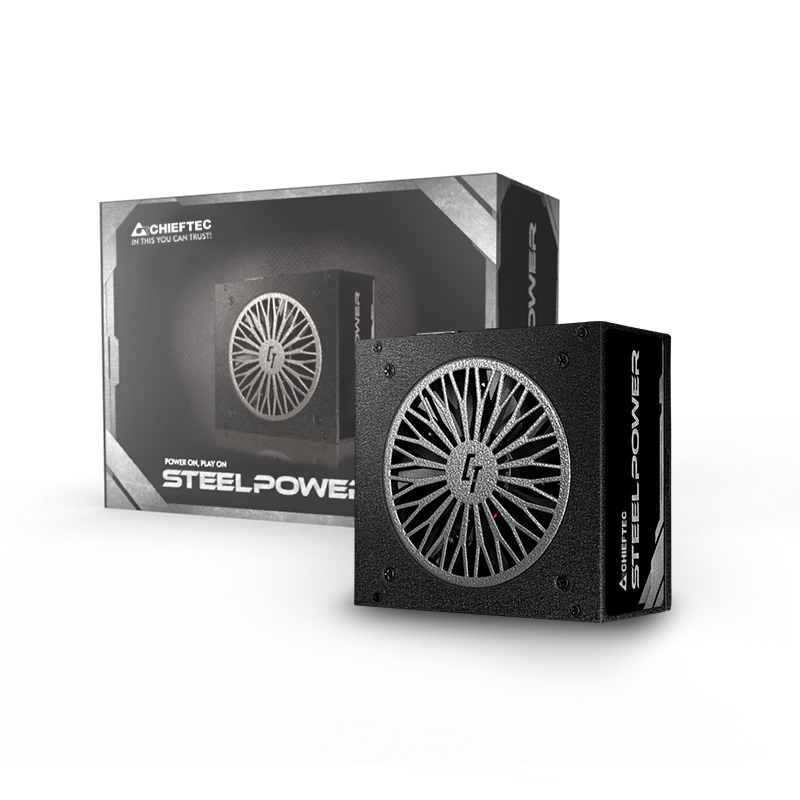

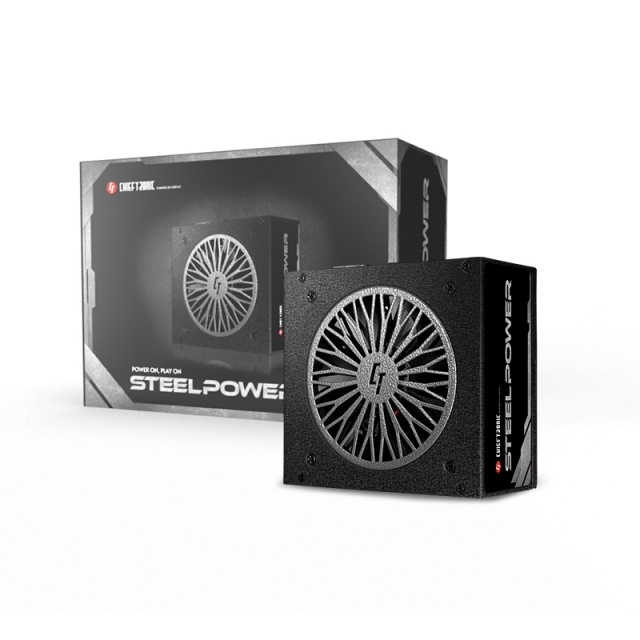

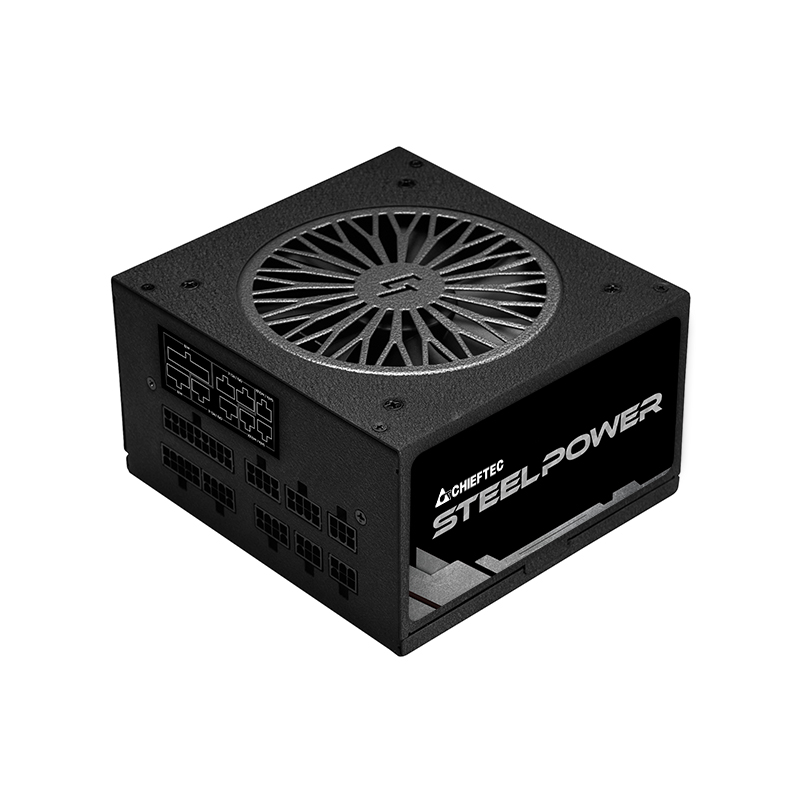

BDK-650FC
SteelPower SERIES

  • 80 PLUS® Bronze certied efficiency
  • Fully modular cable management
  • Half-bridge LLC converter with DC-to-DC technology
  • Premium Japanese capacitors
  • FDB 12cm fan
80 PLUS BRONZE

OVERVIEW

The SteelPower Series from Chieftec brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters with DC-DC technology as well as premium Japanese capacitors in combination with 80PLUS Bronze efficiency and fully modular cable management. Offered in wattages of 550W, 650W and 750W, the SteelPower series benefits from a high power-density design allowing all the above mentioned to be packed into a compact 14cm long housing with a 120mm FDB silent fan. The design of the PSU comes in a rugged understated look.





SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
FCC
TECHNICAL DATA
Model Steel Power
Article no. BDK-650FC
EAN code 0753263077424
Weight (without/with package) 1.65kg / 2.2kg

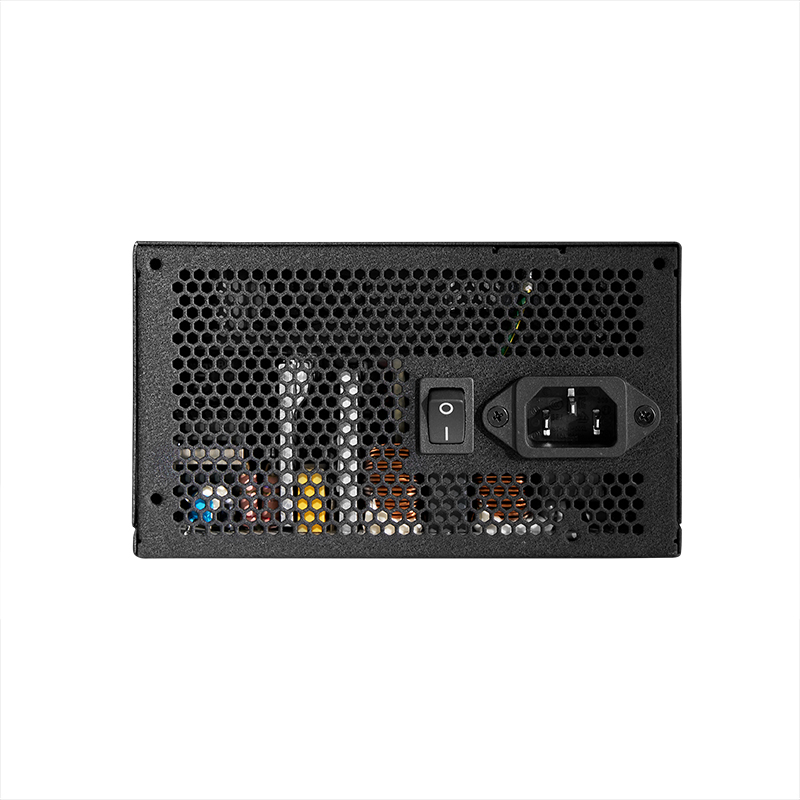

AC Input 100-240V /  10.0A
Frequency 47 - 63Hz
+5V 20.0A
+3,3V 20.0A
+5V & +3,3V combined 110W
+12V1 54.0A
+12V2 -
+12V1, +12V2 combined 648W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 650W

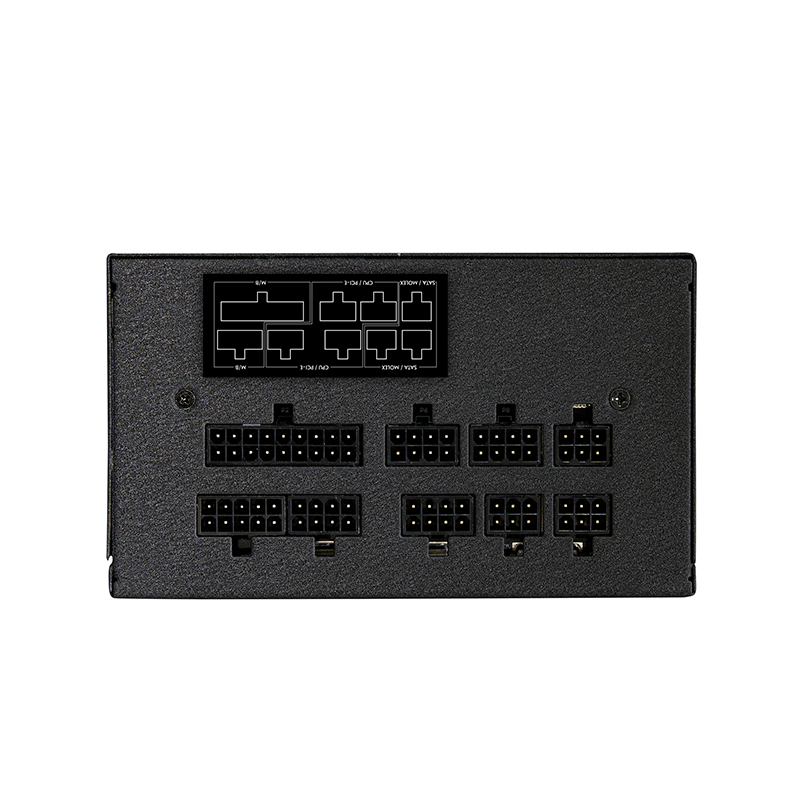

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 2
8 PIN PCIe (6+2) 4
SATA 6
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS(4+4) 600/150
8 PIN PCIe (6+2) 2x 500/150
SATA 2x 500/150/150
MOLEX/FLOPPY 500/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency 80 PLUS® Bronze
Dimension (DxWxH) 140mm x 150mm x 86mm
PFC Active PFC (0,9)

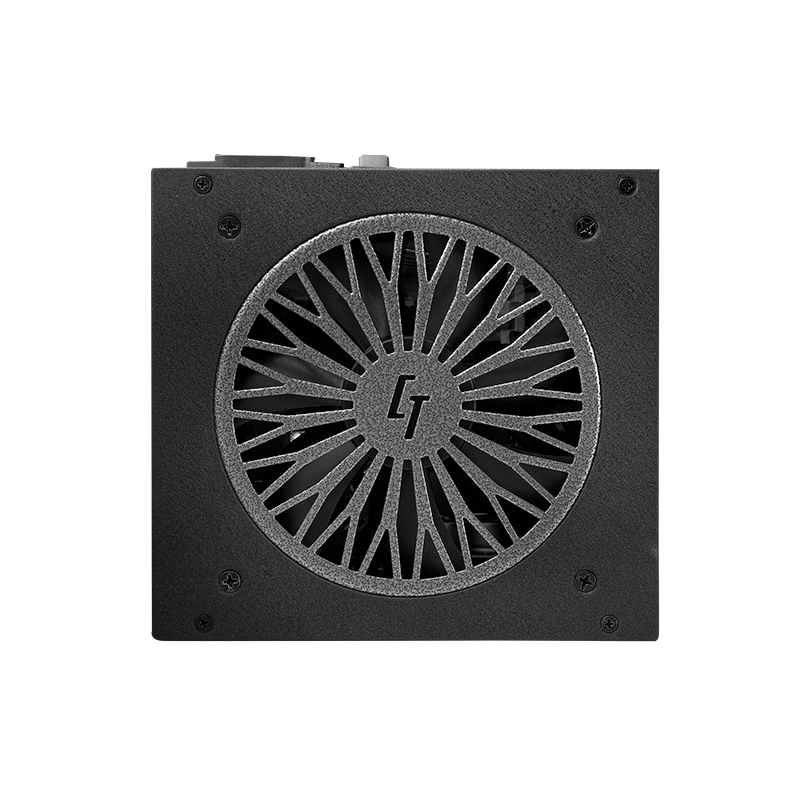

Fan 120mm FDB silent fan
Security AFC (Automatic Fan speed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over-temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage protection)
Warranty 60 Months
