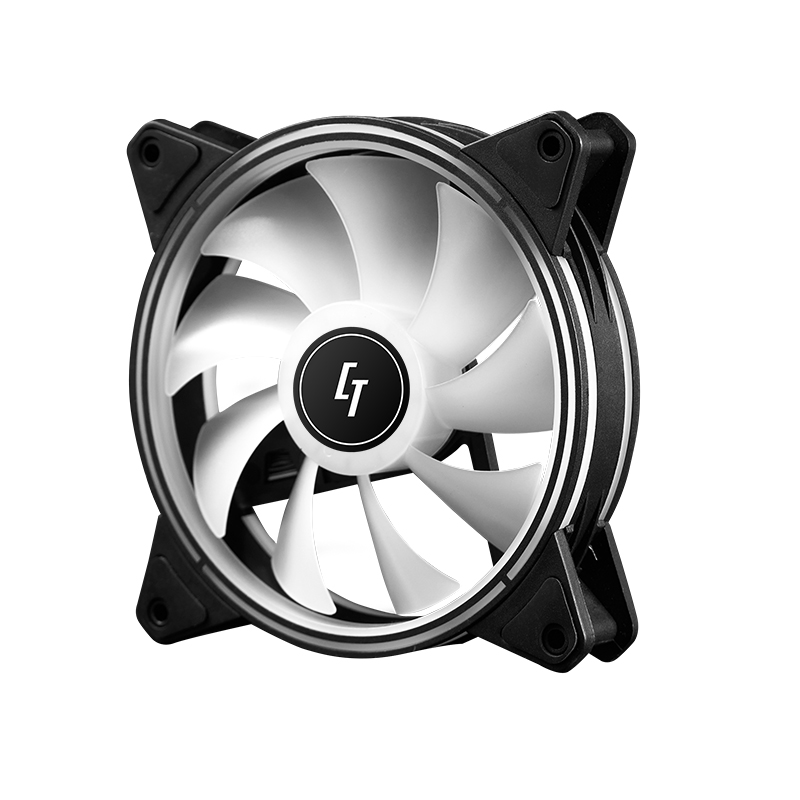

- 9 blade design with enhanced air pressure technology
- Dual-Ring setup for perfect illumination inside and out
- 32 addressable LEDs offering complex RGB effects
- 4-PIN PWM fan-speed control and 3-PIN +5V A-RGB M/B-Sync Technologies supported

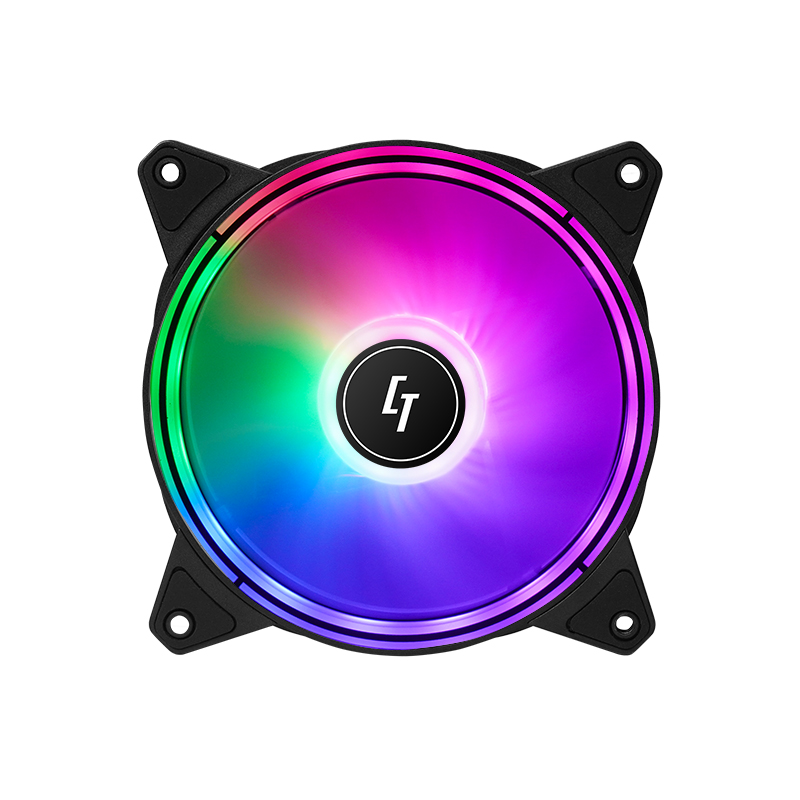

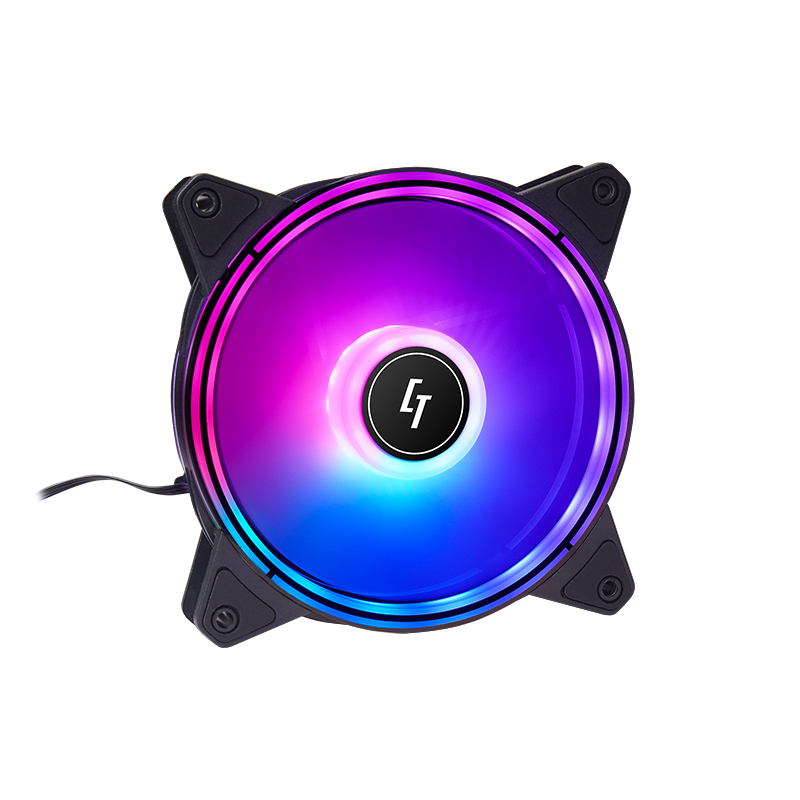

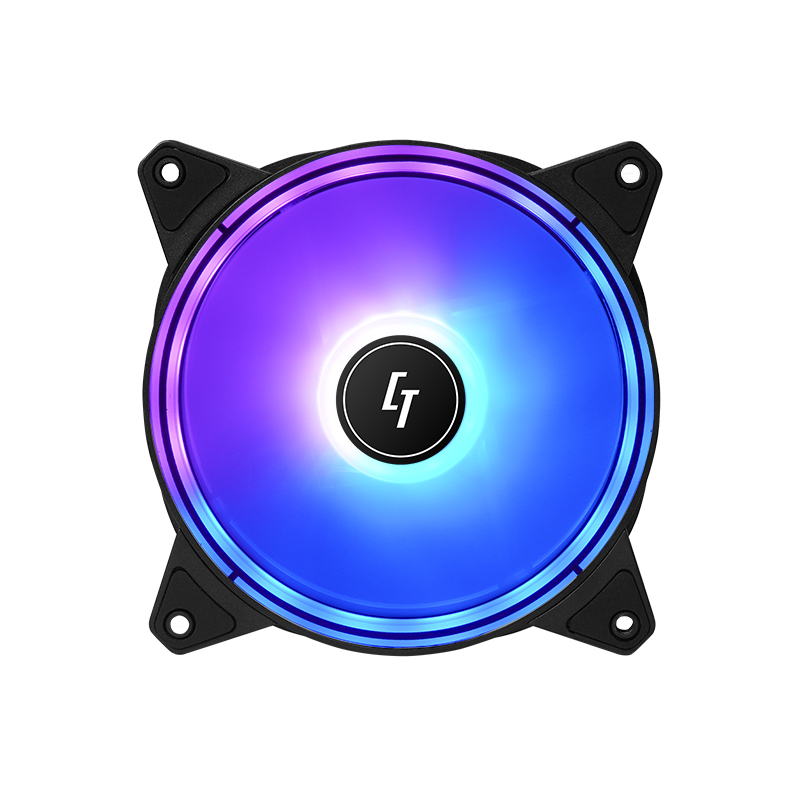

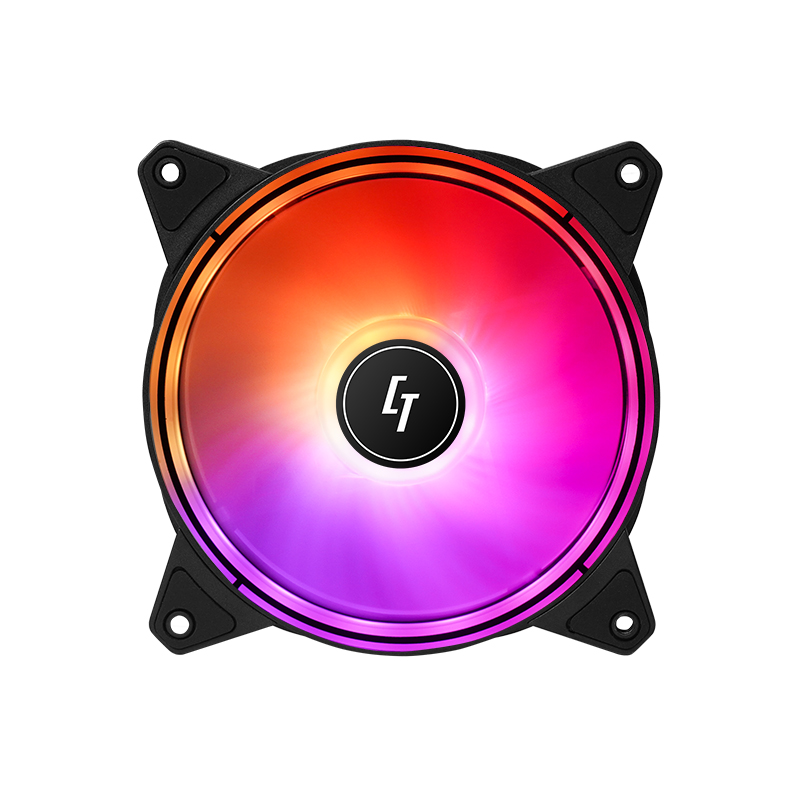

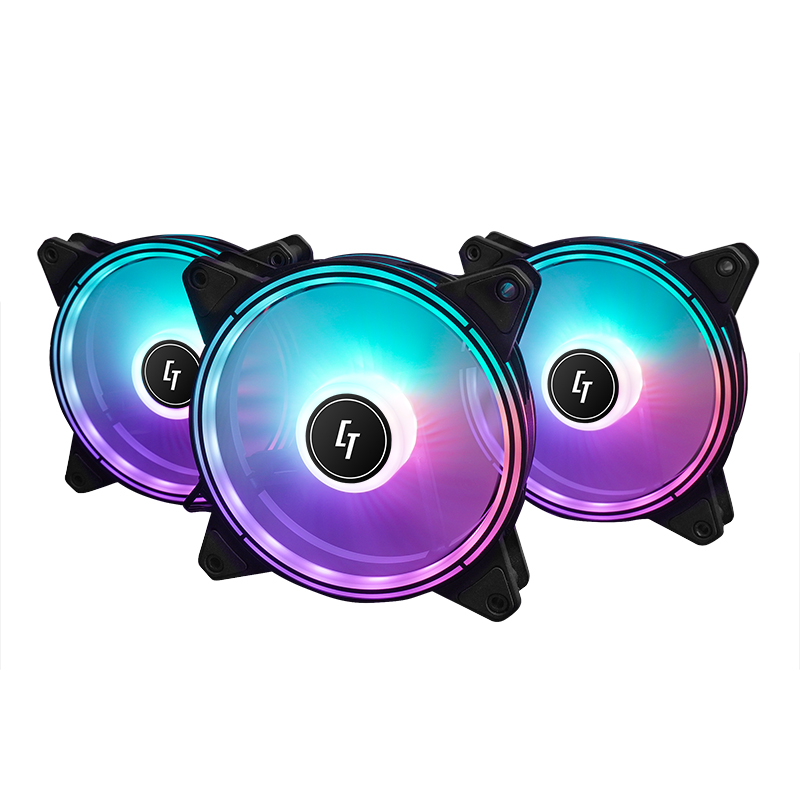

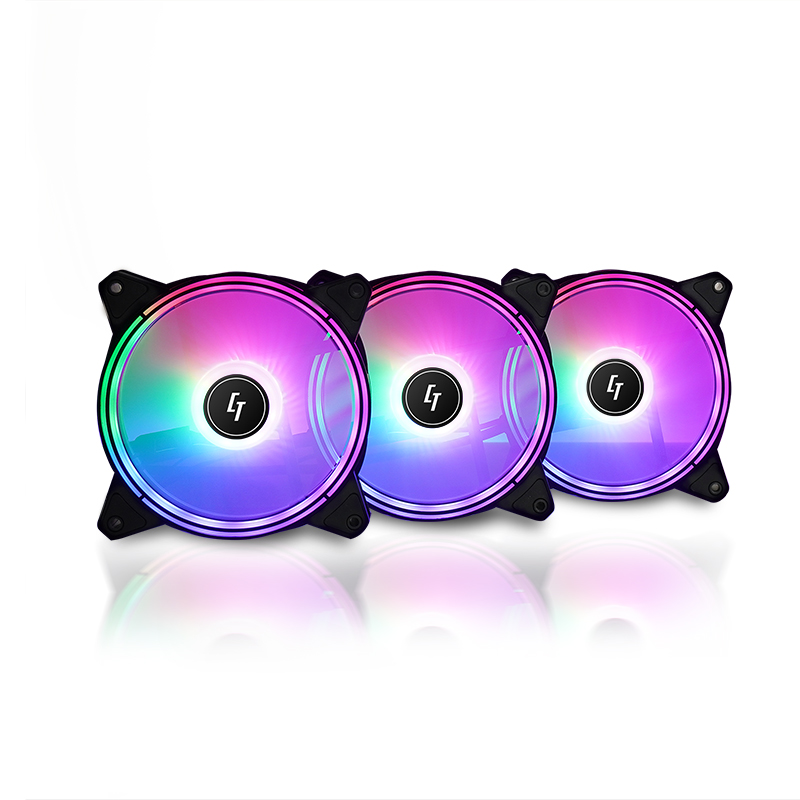

CHIEFTRONIC’s NOVA A-RGB fan set comes with beautiful illumination from a dual-ring design to ensure smooth and full lighting with 16 LEDs on the inner ring as well as 16 more LEDs on the outer ring. Additional frame design elements on the outer ring give the Nova fans a distinct visual that impresses.

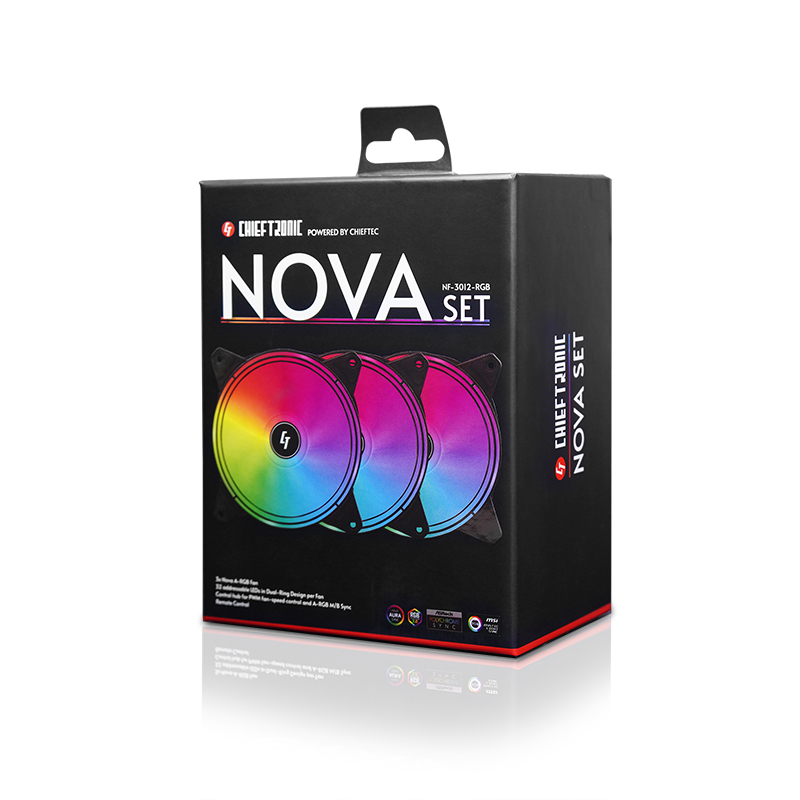

The Nova set comes with three fans, a control hub and a remote control, which allows the RGB eects to be controlled via the pre-programmed lighting eects on the control hub or via M/B sync technologies like ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC, GIGABYTE™ RGB FUSION.
Fan speeds can be controlled either via the control hub or via M/B PWM fan ports to ensure the optimal balance between cooling performance and silent operations.

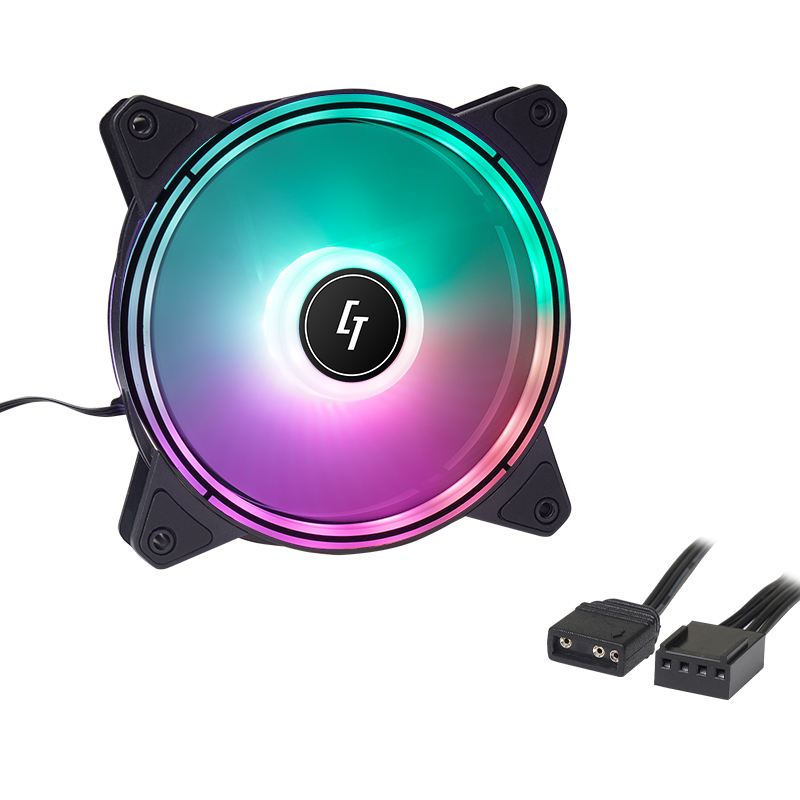

|Connectors||Fan: 4 pin PWM ; ARGB: 3 pin|
|Dimension||120 x 120 x 25mm|
|LED Type||Addressable RGB (A-RGB)|
|LED Count||32 pcs (Inner Ring: 16 pcs ; Outer Ring: 16pcs )|
|Rated Voltage||FAN: DC12V ; LED: DC5V|
|Rated Current||0.29A (Max: 0.65A)|
|Operating Voltage||7V -13.2V|
|Fan Speed (RPM)||1600 RPM ± 10%|
|Air Flow (CFM)||68 CFM|
|Air Pressure (mmH2O)||2.2 mmH2O|
|Noise Level (dBA)||24 dBA (Max: 28)|

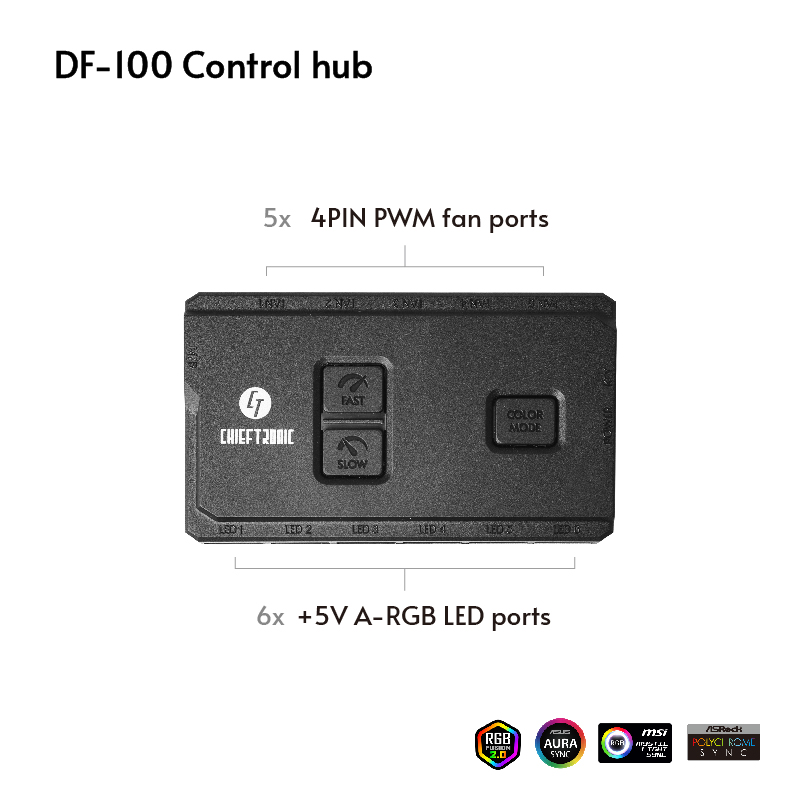

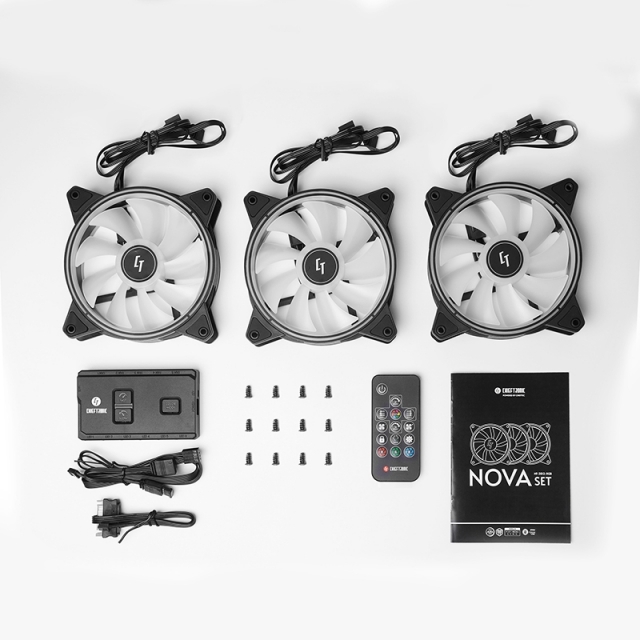

|Scope of delivery||3x 120mm A-RGB Dual Ring Rainbow fan, 1x Control Hub DF-100 (5x 4PIN PWM fan ports, 6x +5V A-RGB LED ports),|
|RGB Sync Compatibilities||ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC, GIGABYTE™ RGB FUSION|
