Pro Cube Mini
CN-01B-OP

  • ITX Cube Case
  • Compact Design
  • Highly flexible compatibility
  • Support ATX formfactor PSU

OVERVIEW

The CHIEFTEC ProCube Mini serves as a compact, multifunctional cube case in ITX form factor, while ensuring high flexibility for the components used.
Compatible with ATX PSU’s, Dual Slot GPU’s up to 320mm in length, 3x 3.5” HDD, 2x 2.5” SSDs, and a slimline ODD, the ProCube is the prime example of highly functional design in compact dimensions.

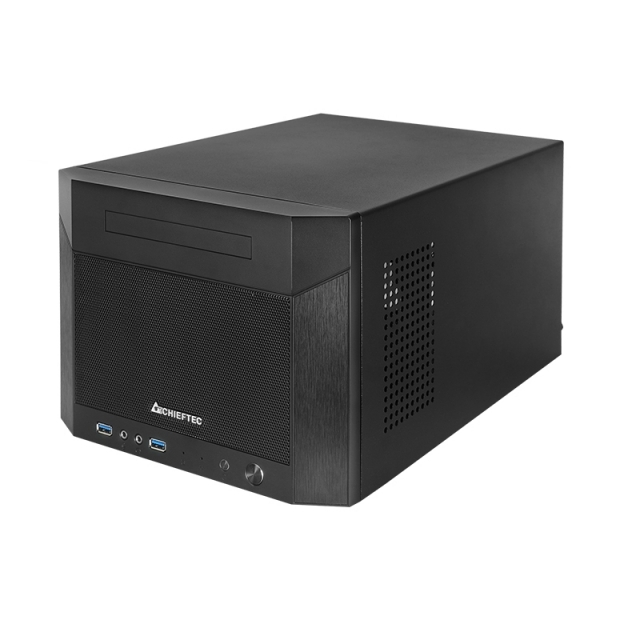

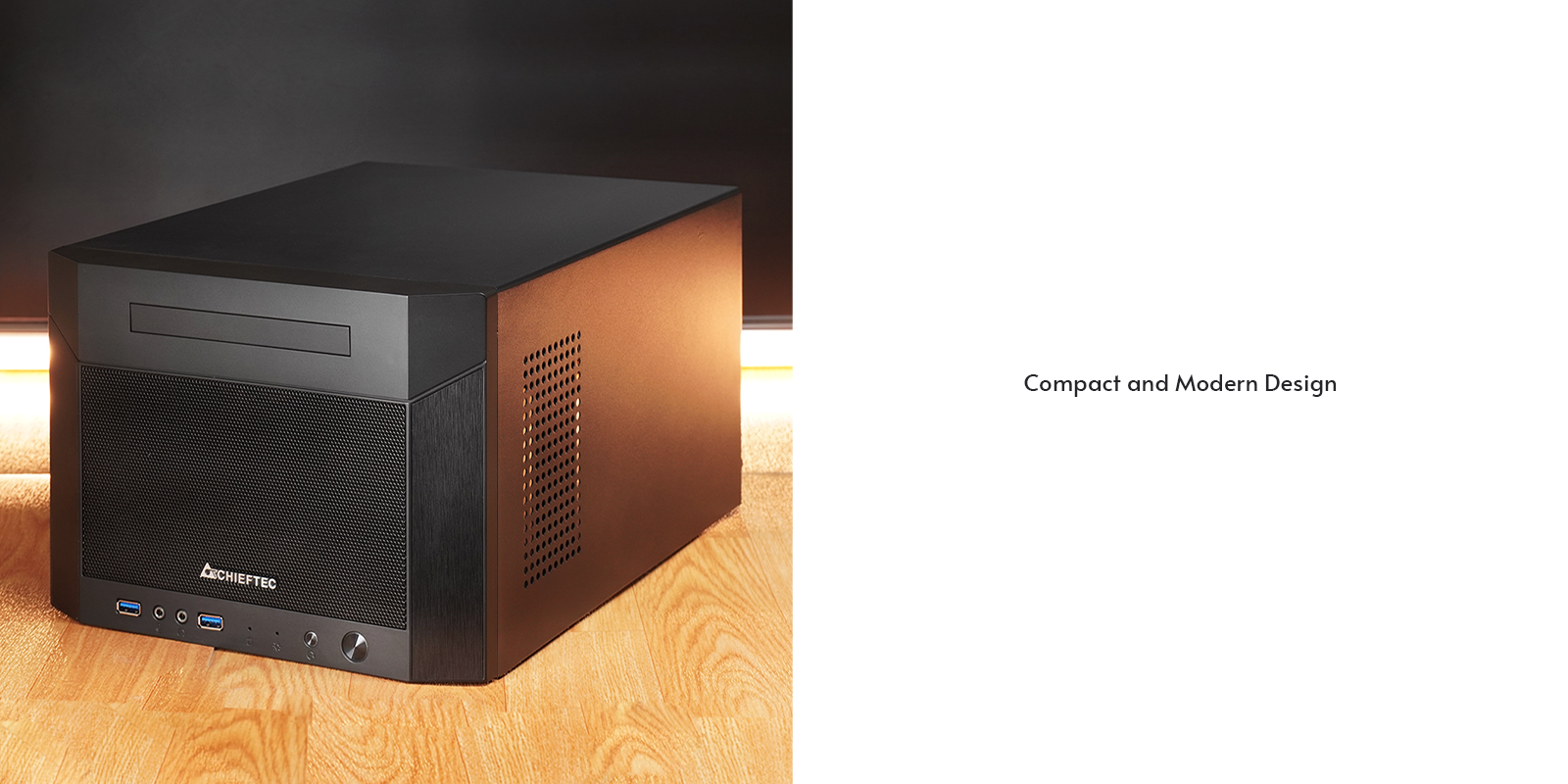

With a front panel design that elegantly combines mesh and brushed aluminum, the ProCube Mini will blend in seamlessly in many environments from the living room to the home office and any corporate working environment.




SPECIFICATIONS

CE
EAC
Recycle
RoHS
WEEE
Model  CN-01B-OP
EAN code 0753263077837
Color Black
Material 0.8mm SPCC
Motherboard support Mini ITX
Dimension (DxWxH) 356mm x 260mm x 195mm
Weight (without/with package) 3.79 kg / 4.4 kg

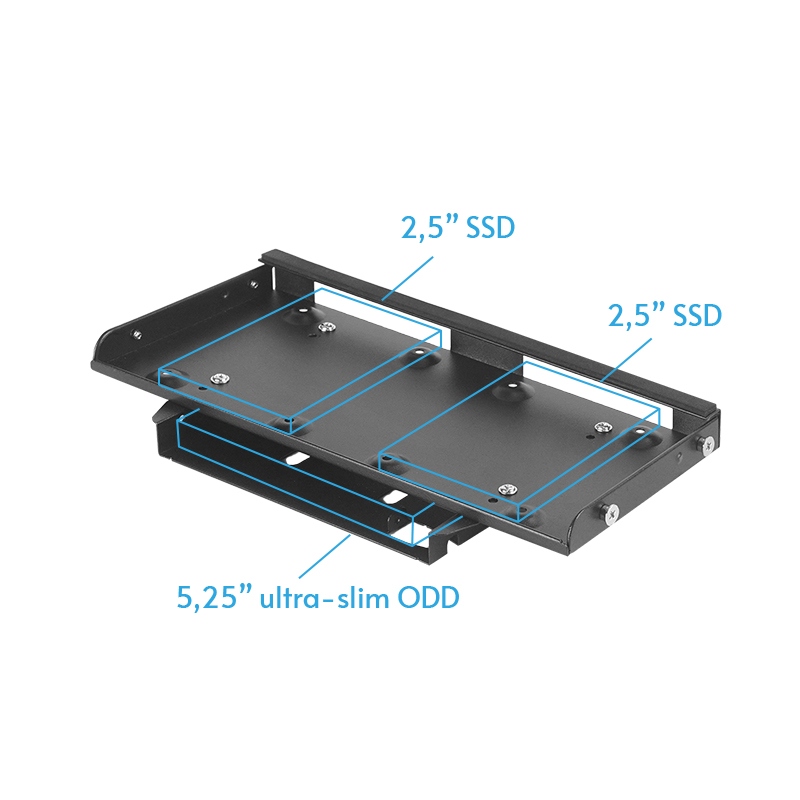

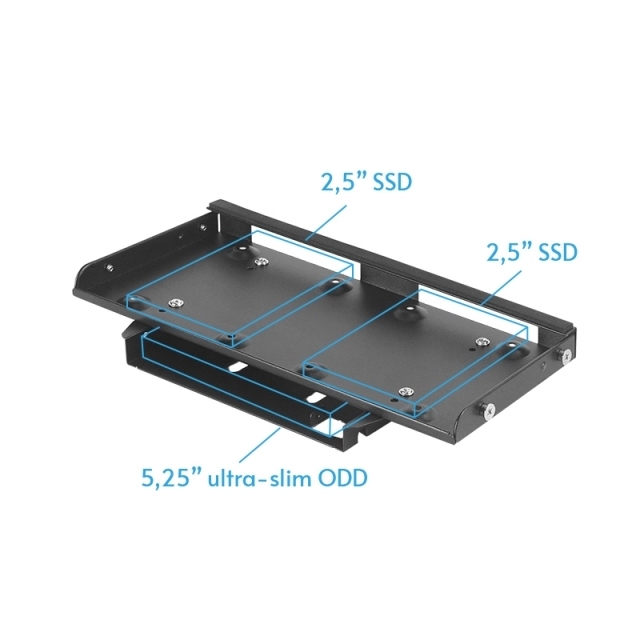

Drive bay external 1x 5,25“ ultra-slim ODD

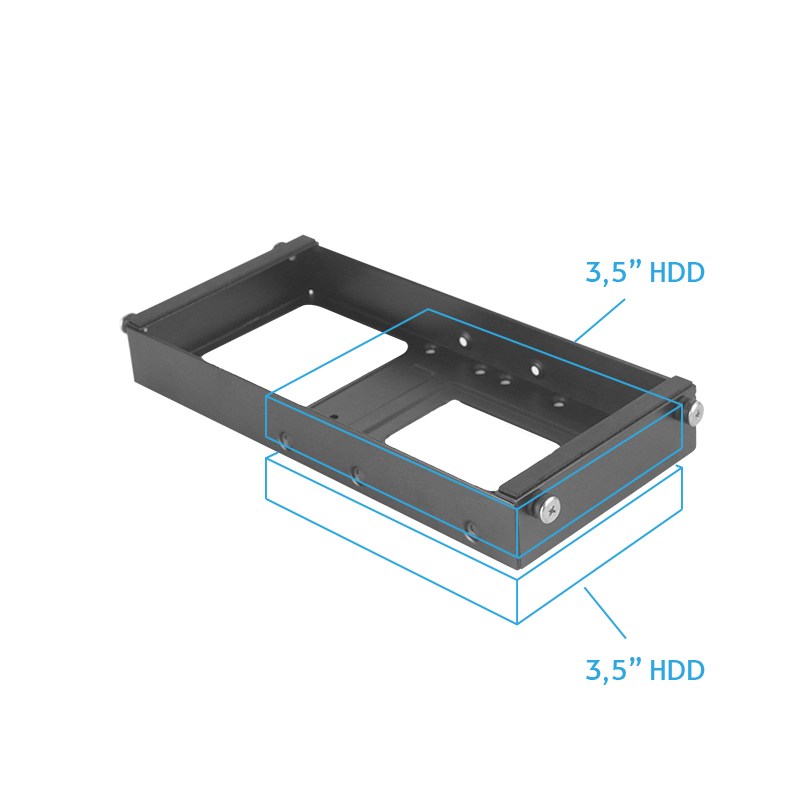

Drive bay internal 3x 3.5” and 2x 2.5”"

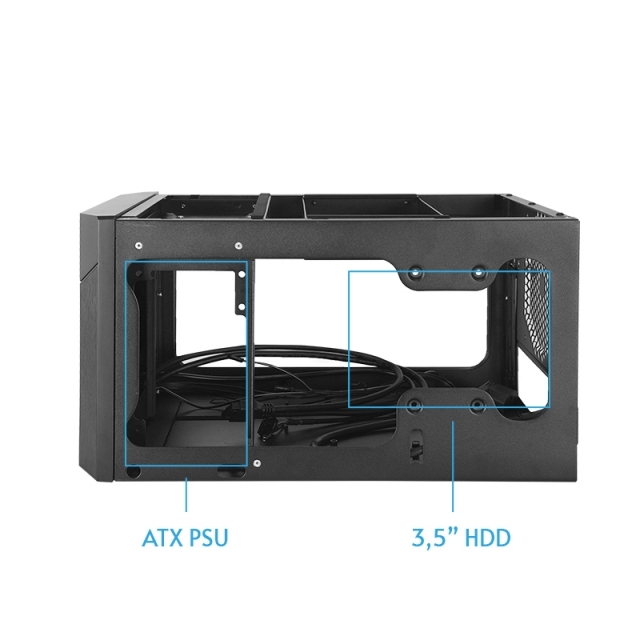

Power supply ATX PSU (optional, 140mm - 200mm)

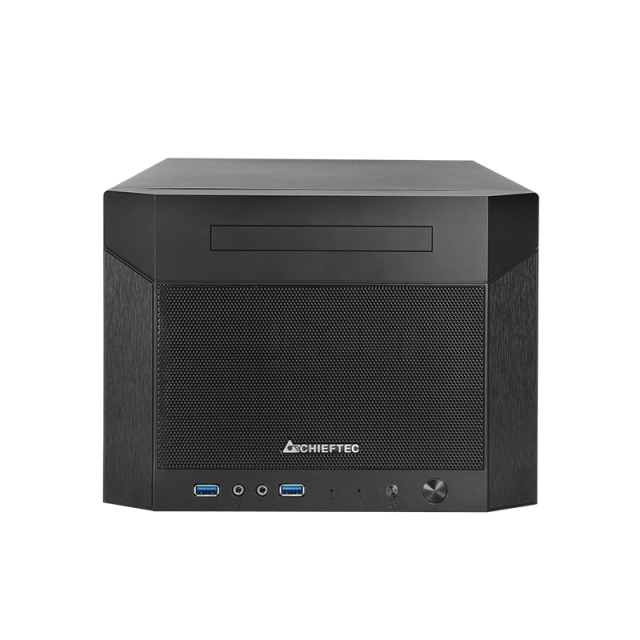

Front I/O 2x USB3.2 Gen 1, Audio-out (AZALIA / HD-Audio), Mic-In, Reset

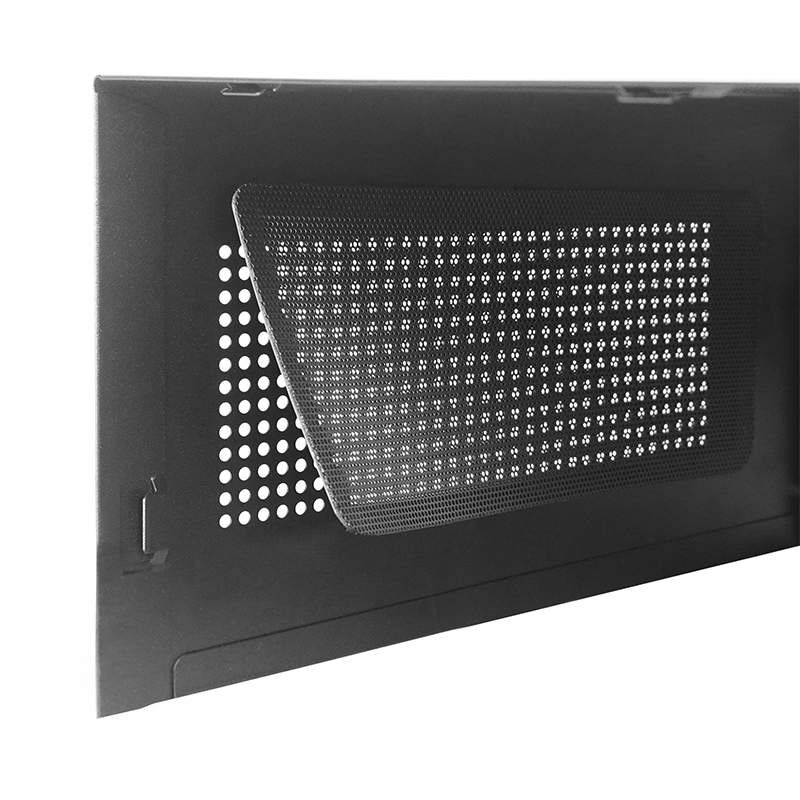

Scope of delivery Set of screws, magnetic dust filter on side
Expansion slots 2

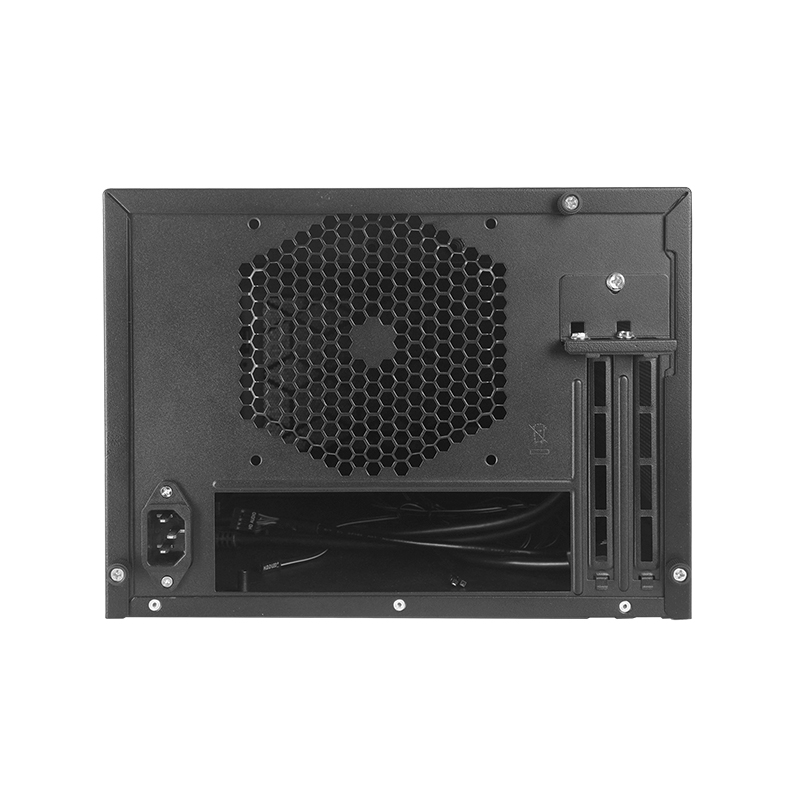

Cooling Compatibility Rear: 1x 120mm fan and radiator
CPU cooler height (max.) Up to 145mm (depending on 3.5” HDD installation)
VGA card length (max.) 230mm - 320mm (depending on PSU length)
Warranty 24 Months
