- ATX 3.0 with PCIe GEN5, 12VHPWR
- 80 PLUS® PLATINUM certified efficiency
- Full Japanese Capacitors
- LLC Half-Bridge converter with DC-to-DC technology

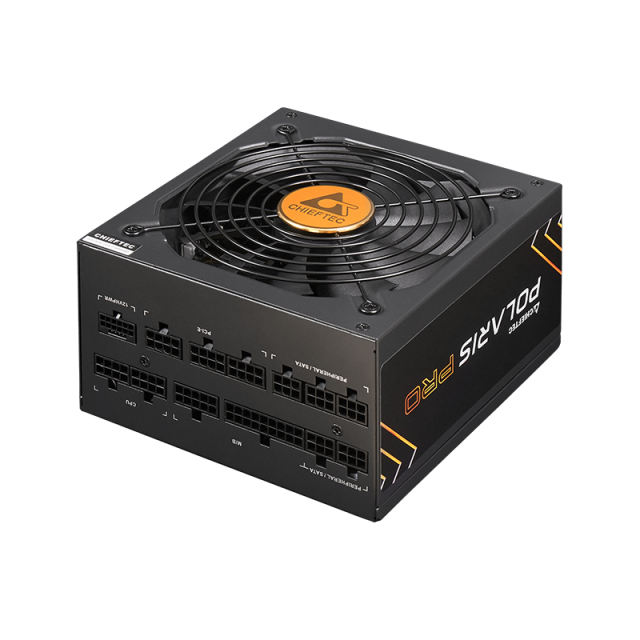

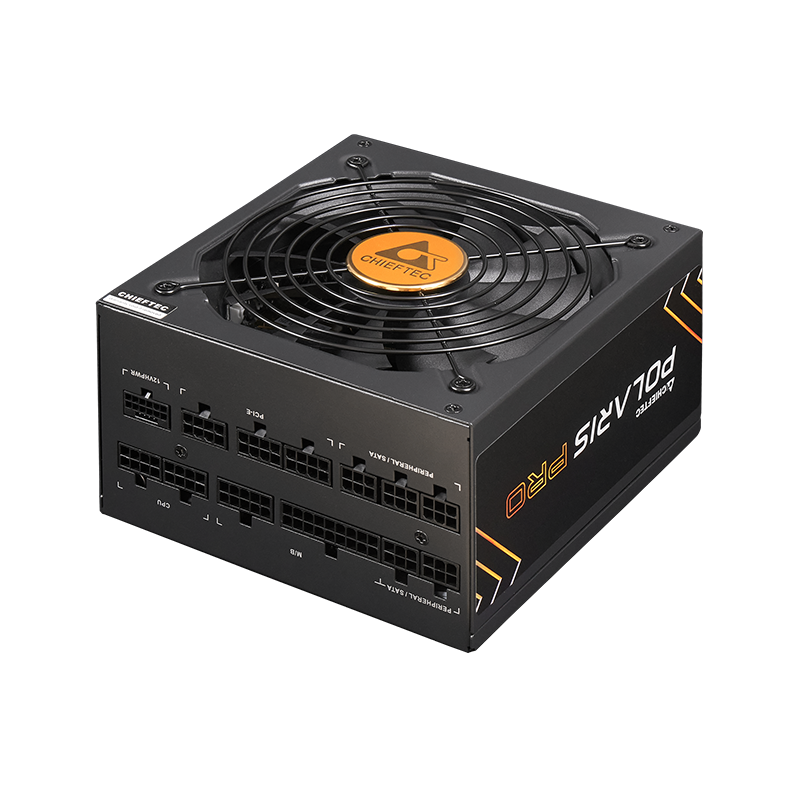

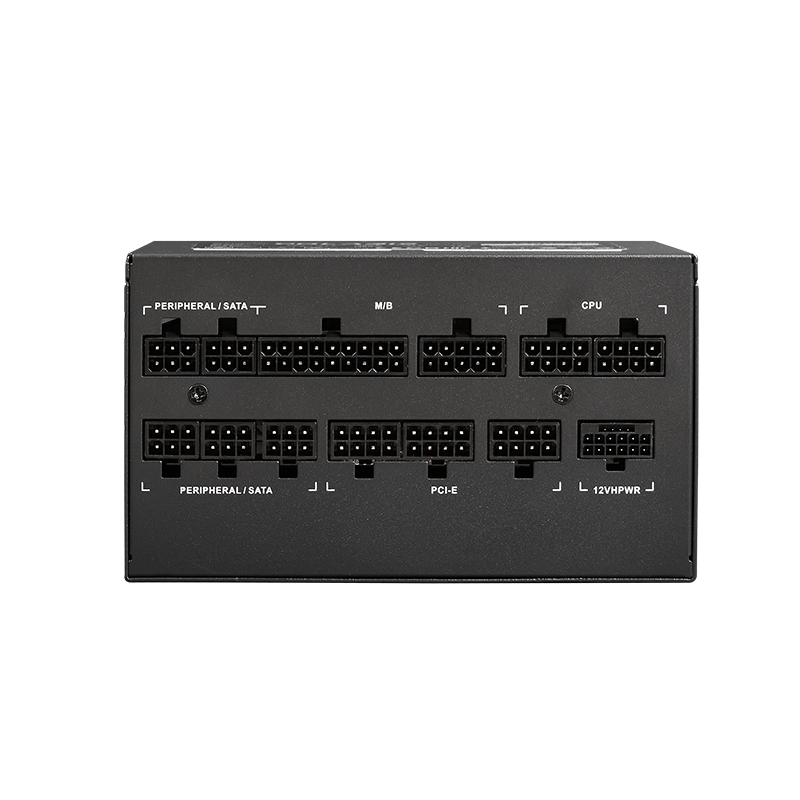

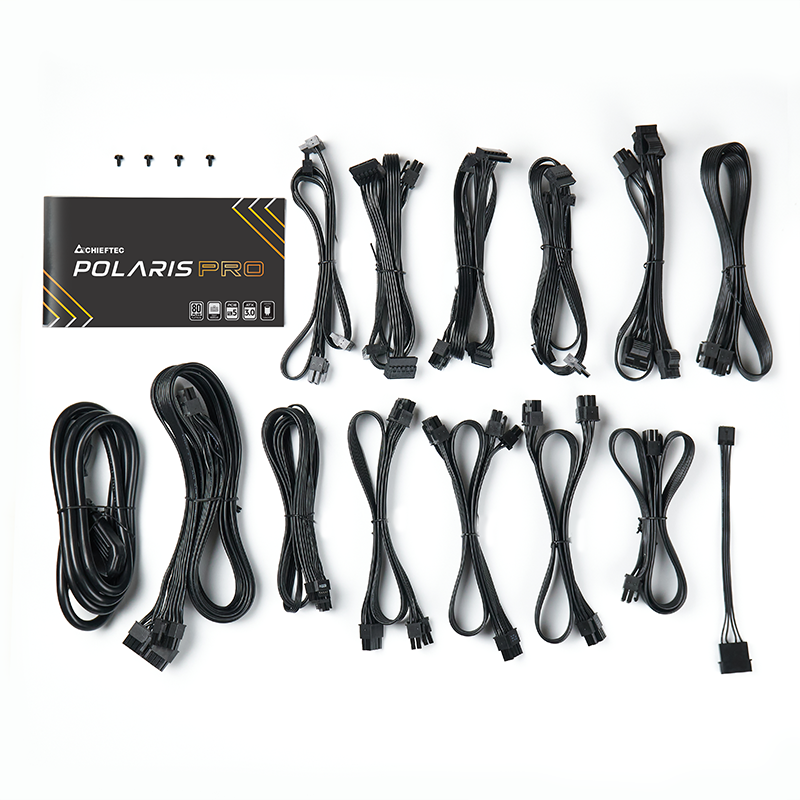

- Fully modular cable management

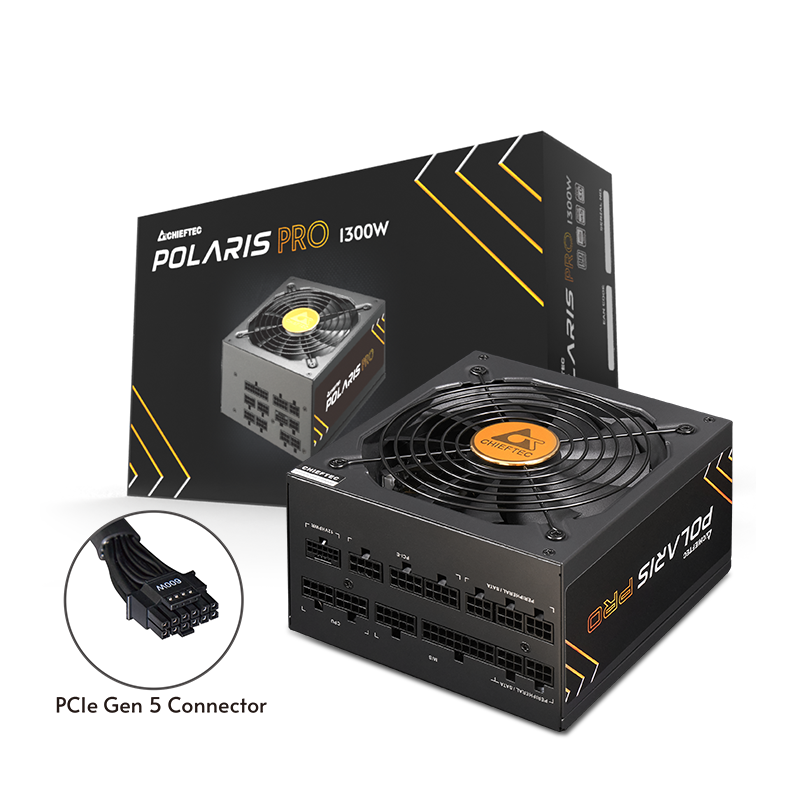

PPX-1300FC-A3

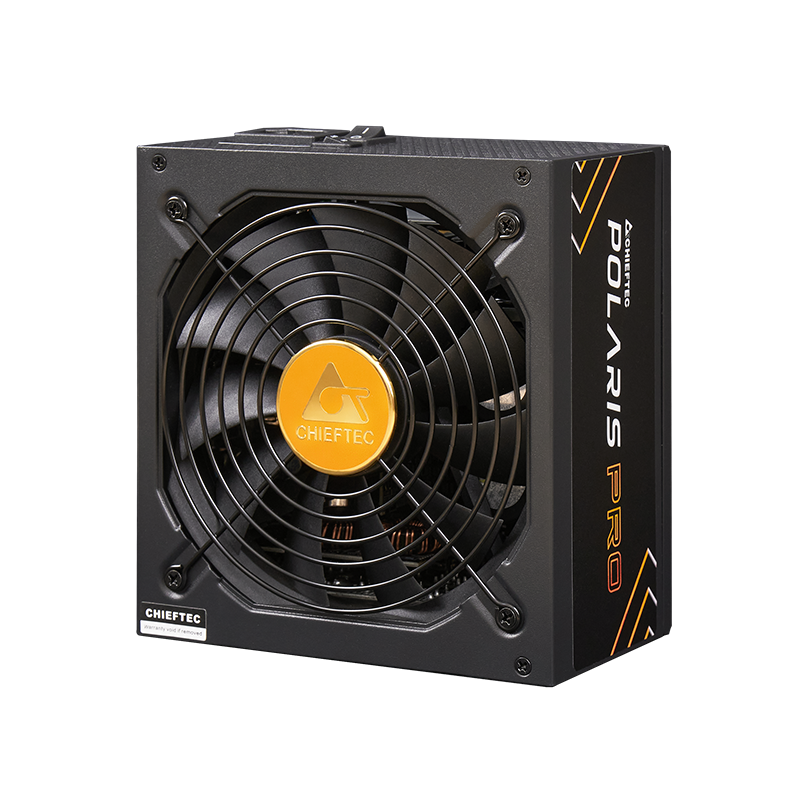

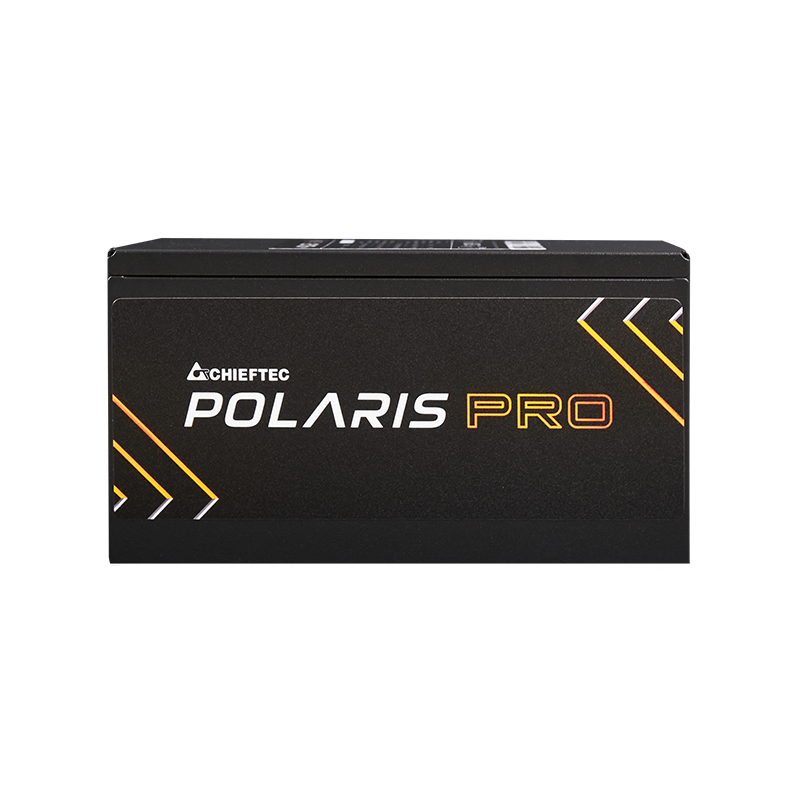

POLARIS PRO SERIES
OVERVIEW

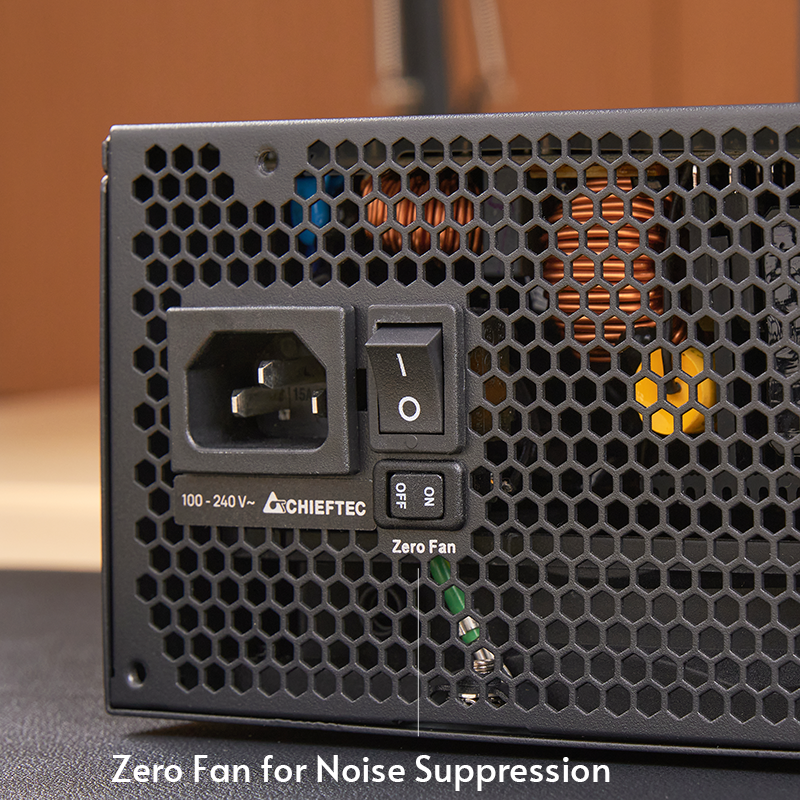

The CHIEFTEC Polaris Pro Series features advanced thermal control with the Zero RPM mode, enabling the optimal balance between silence at low power consumption and ideal cooling, with 80 PLUS® PLATINUM certified efficiency. Polaris Pro Series is designed for Intel’s state-of-the-art ATX 3.0 standard with native PCIe GEN5 connector. The Polaris Pro Series is built with 100% high-end Japanese capacitors to achieve unprecedented tight voltage regulation and lower ripple and noise to maximize your system performance and excellent durability. Fully modular cable management ensures a clean and convenient build inside any system.
SPECIFICATIONS
| Model | POLARIS PRO 1300W |
|---|---|
| Article no. | PPX-1300FC-A3 |
| EAN code | 0753263078162 |
| Weight (Net/Gross) | 3.13 kg / 3.49 kg |
| AC Input | 100-240V / 15-8A |
| Frequency | 50 - 60Hz |
| +5V | 24A |
| +3,3V | 24A |
| +5V & +3,3V combined | 120W |
| +12V1 | 108.3A |
| +12V2 | - |
| +12V1, +12V2 combined | 1300W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 3.0A / 15W |
| Maximum Power | 1300W |

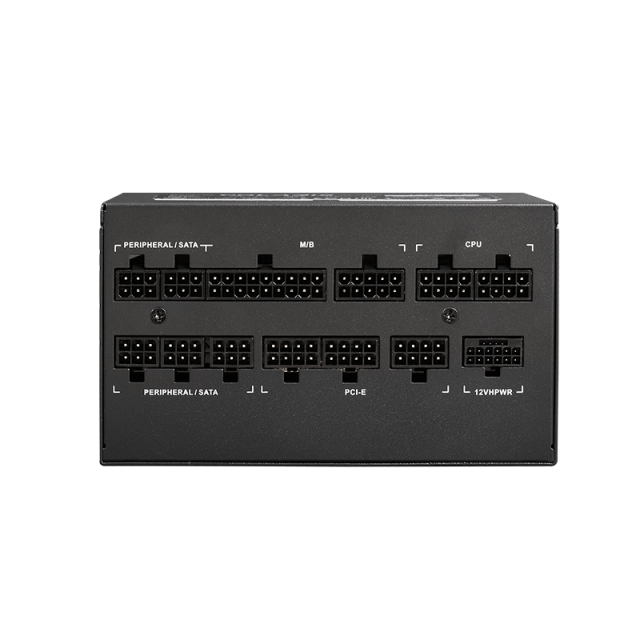

| 16 PIN PCIe Gen5 | 1 |
|---|---|
| 20+4 PIN ATX | 1 |
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 6 |
| SATA | 12 |
| MOLEX | 4 |
| FLOPPY(adaptor) | 1 |
| 16 PIN PCIe Gen5 | 600 |
|---|---|
| 20+4 PIN ATX | 600 |
| 8 PIN EPS (4+4) | 2 x 700 |
| 8 PIN PCIe (6+2) | 3 x 500/150 |
| SATA | 3 x 550/100/100/100 |
| MOLEX | 500/150/150/150 |
| FLOPPY | 150 |
| ATX12V Version | ATX 12V 3.0 |
|---|---|
| Efficiency | 80+ PLATINUM |
| Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
| PFC | Active PFC |

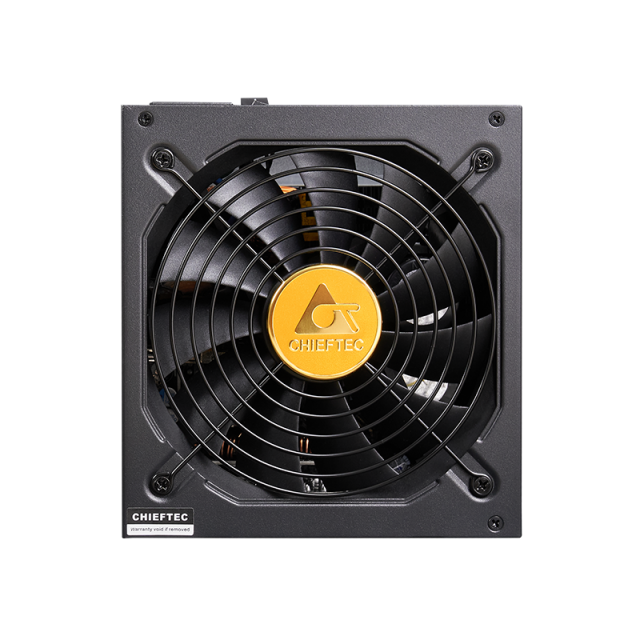

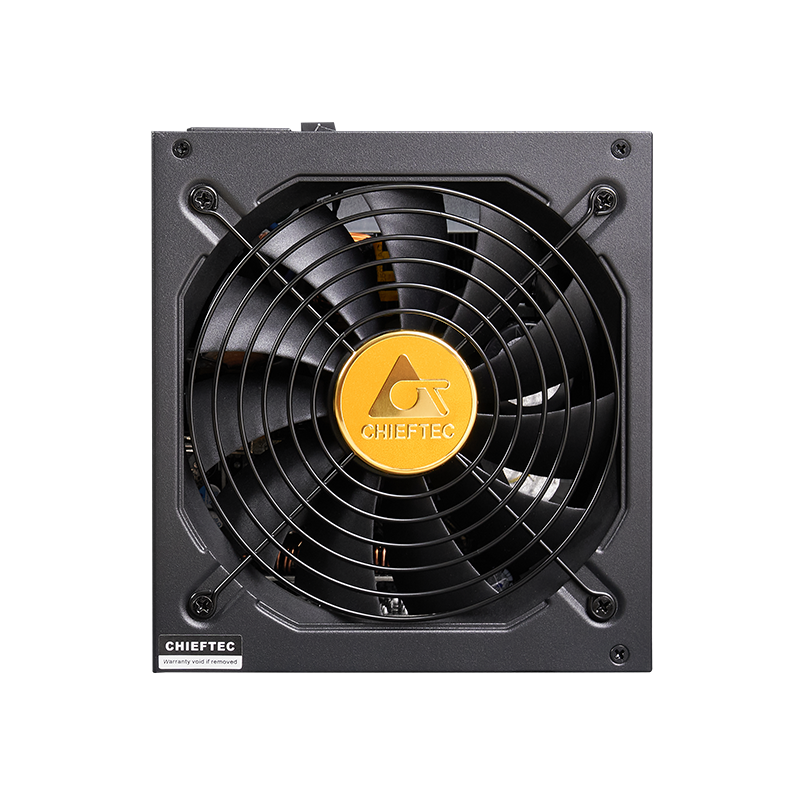

| Fan | 135mm FDB fan |
| Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 5 Years |
