Uni Series
BS-20B-OP

  • Modern Professional Design
  • Compact mini tower with less than 20L volume
  • User-centric, installation-friendly mechanisms
  • 90mm fan pre-installed

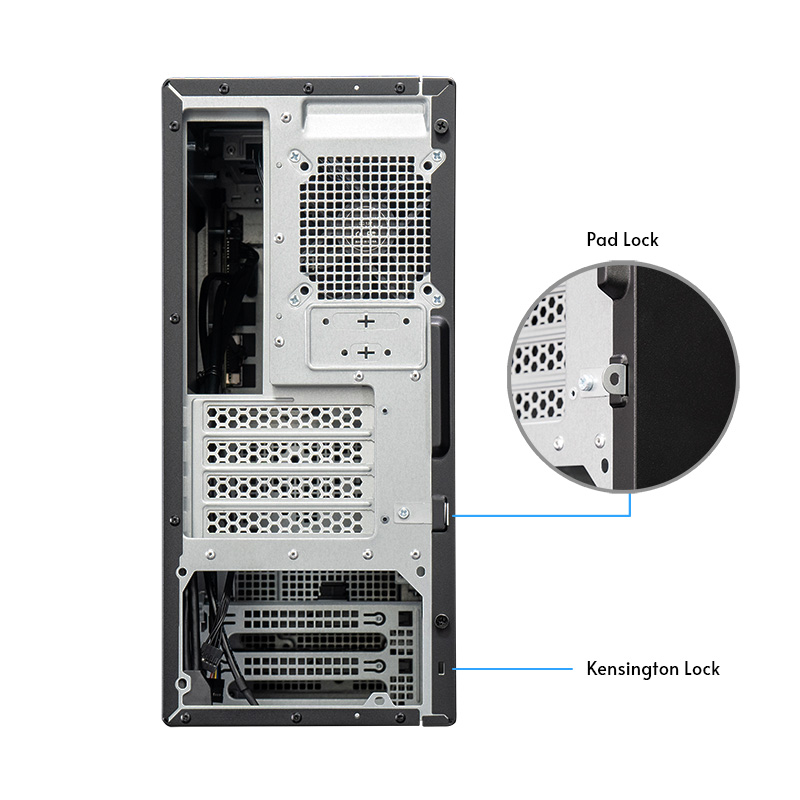

  • Kensington- and Pad-Lock compatible




OVERVIEW

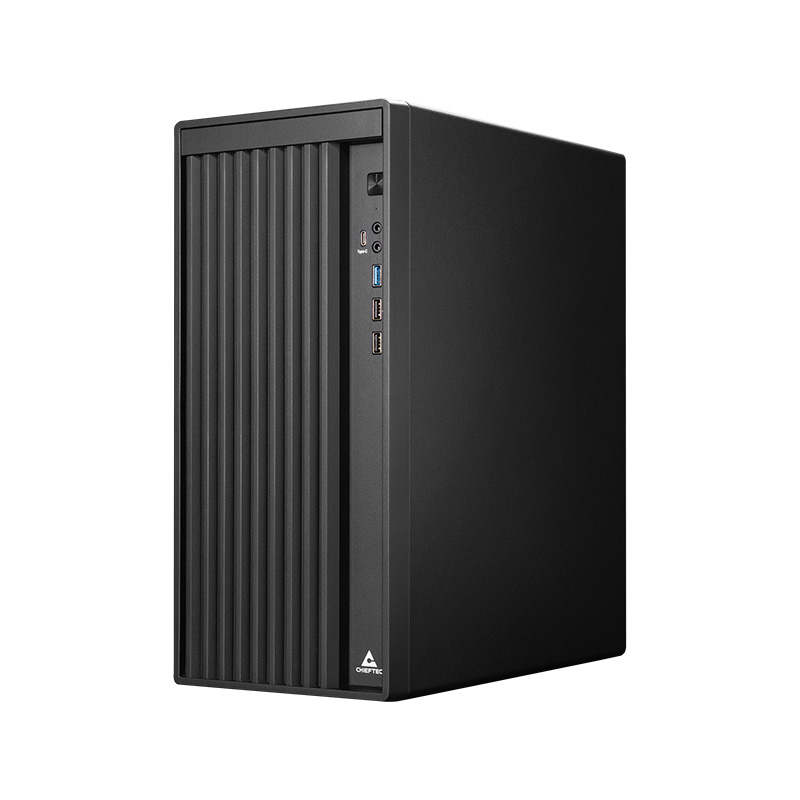

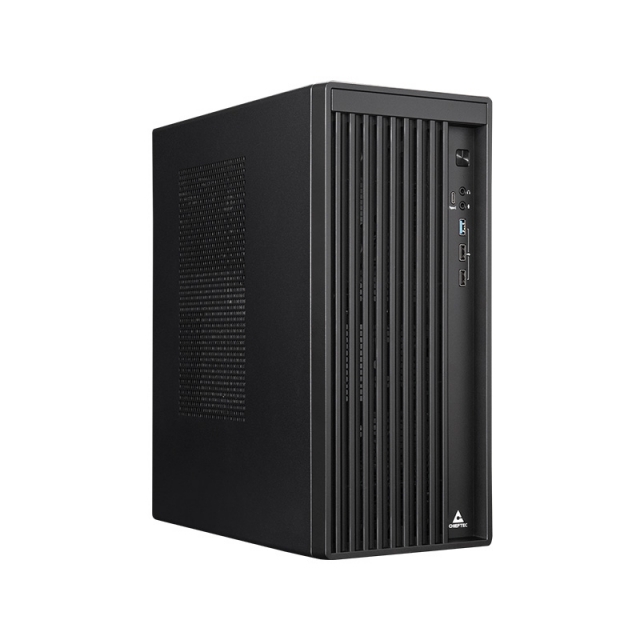

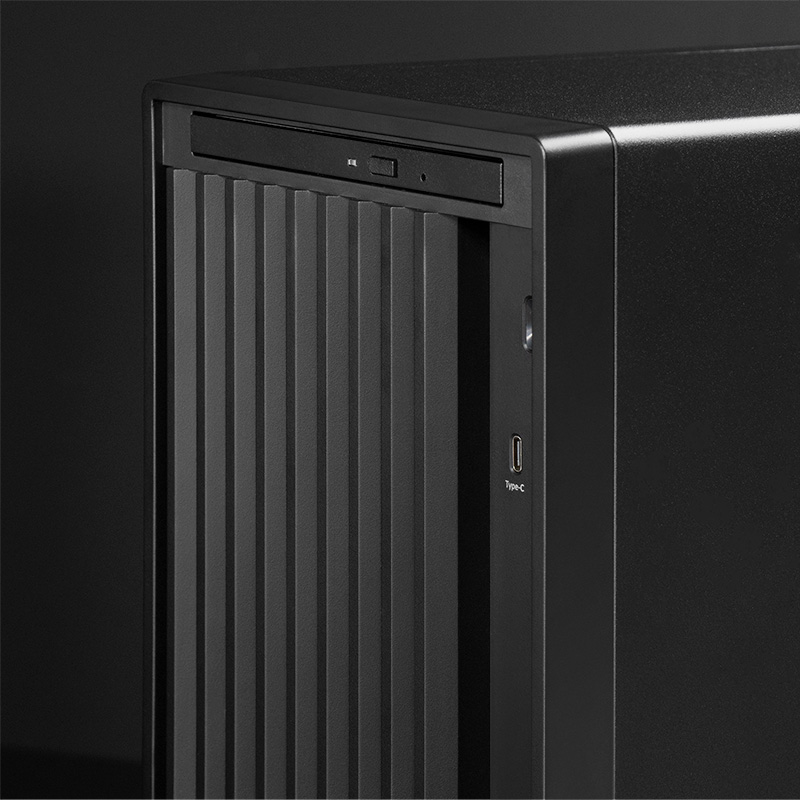

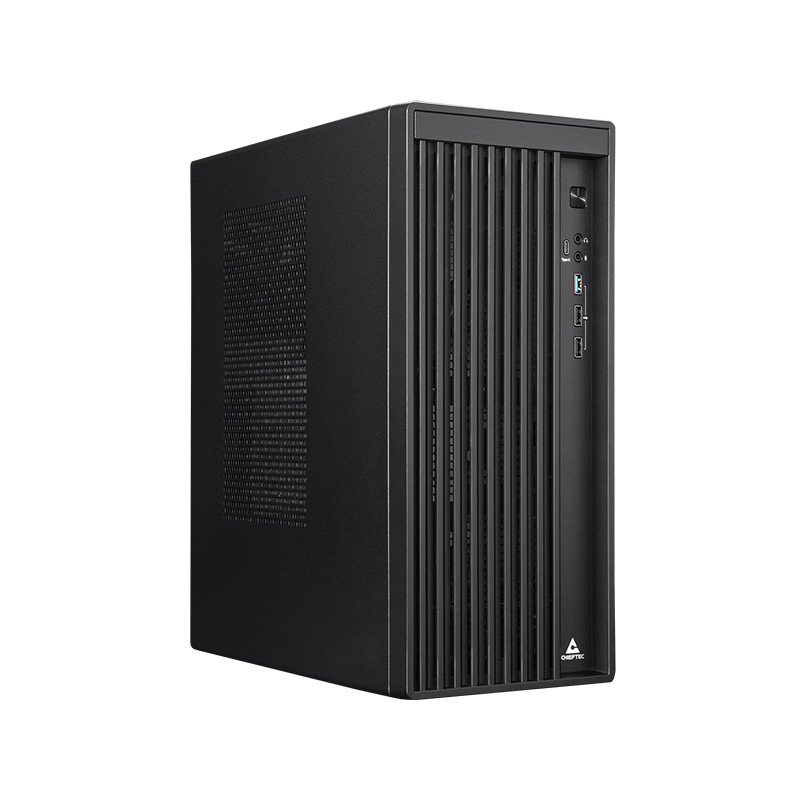

The UNI Series BS-20B-OP is a versatile, compact mini-tower PC case that combines practicality with a modern professional design. With a minimal footprint and a total volume of less than 20 liters, the BS-20B-OP is ideal for home and office environments without sacrificing any important functionality such as full mATX mainboard support, ATX PSU compatibility, ultra-slim ODD or even graphic cards up to 270mm length. Among its many features, it boasts a user-friendly pivot mechanism for easy semi-tool-free installation.The timelessly elegant front panel features all relevant connectors, including a USB Type-C port.




SPECIFICATIONS

CE
EAC
interseroh
Recycle
RoHS
WEEE
Article no. BS-20B-OP
EAN code 0753263078889
Color Black
Material 0.8mm, SGCC (0.8mm ext. and 0.7mm int.)
Motherboard support Mini ITX, mATX
Dimension (DxWxH) 329 x 170 x 408mm
Weight (without/with package) 4.49kg / 5.16kg

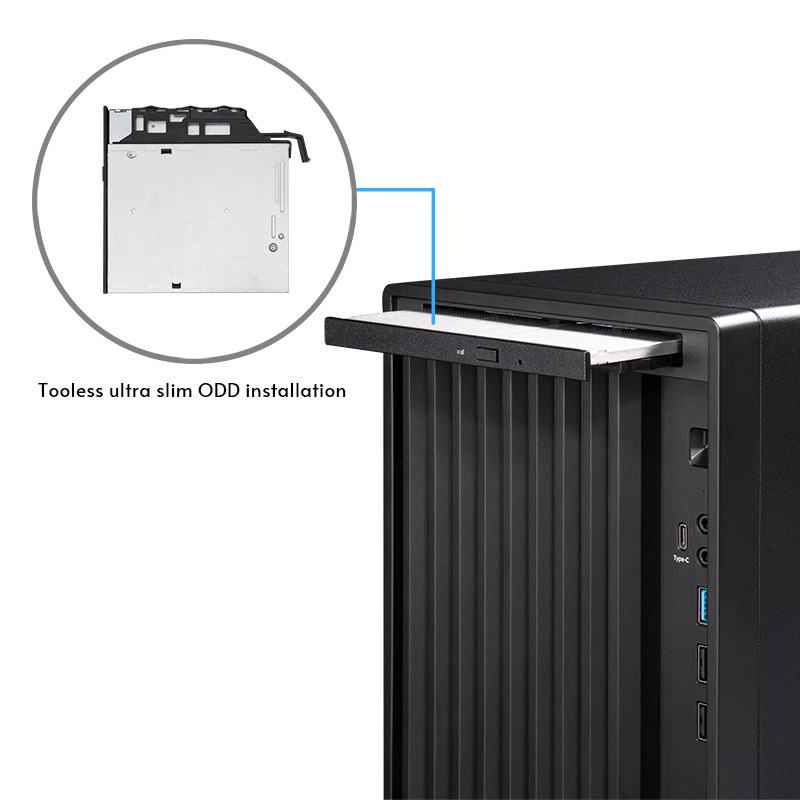

Drive bay external 1x 5.25” ultra slim 9.5mm ODD

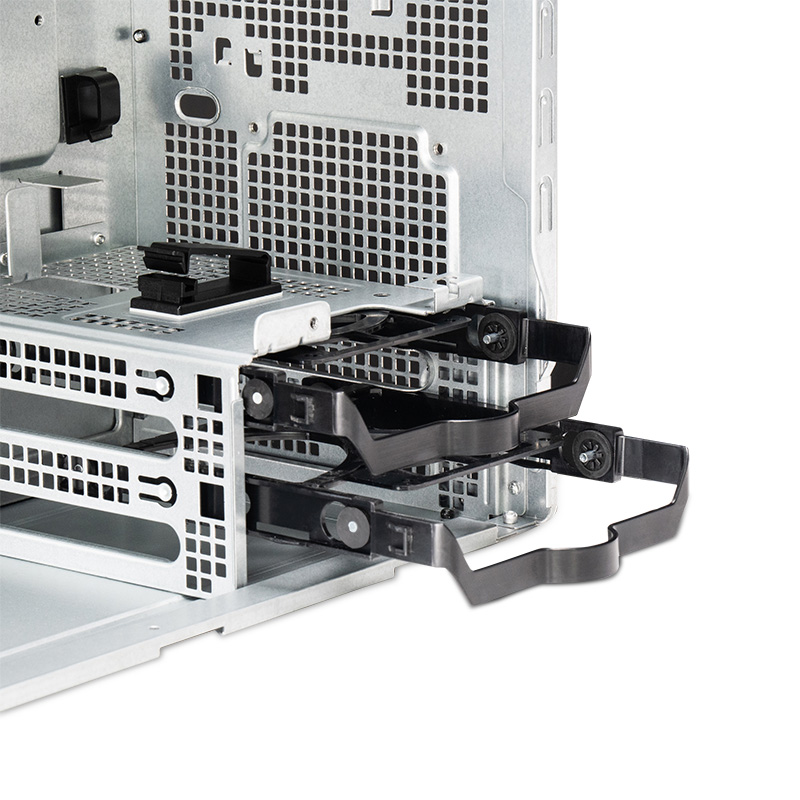

Drive bay internal 2x 3.5“ HDD or 2x 2.5“ SSD or 1x 3.5“ HDD and 1x 2.5“ SSD
Power supply ATX PSU (optional)

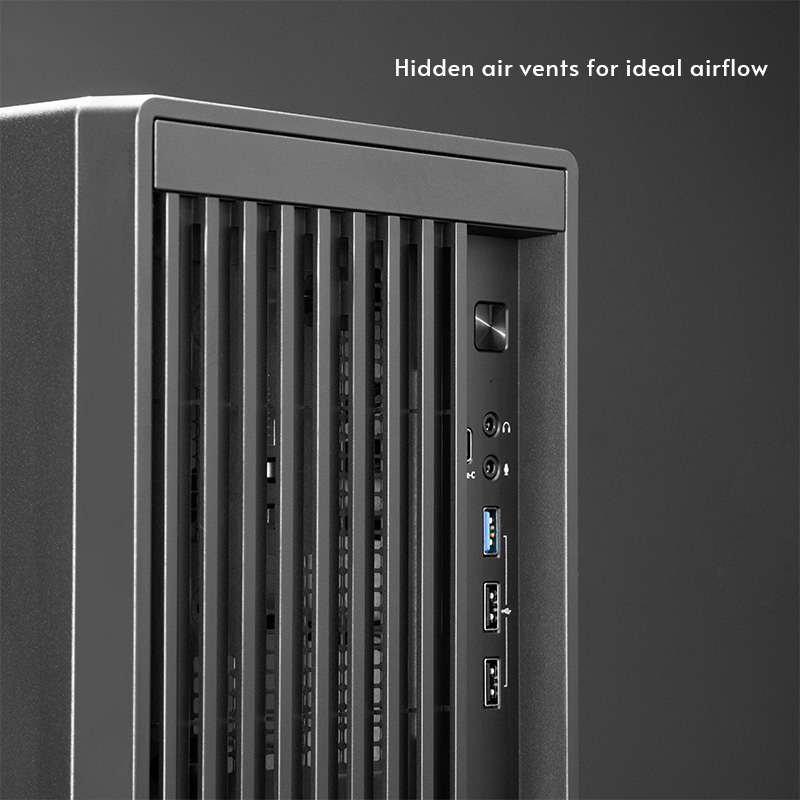

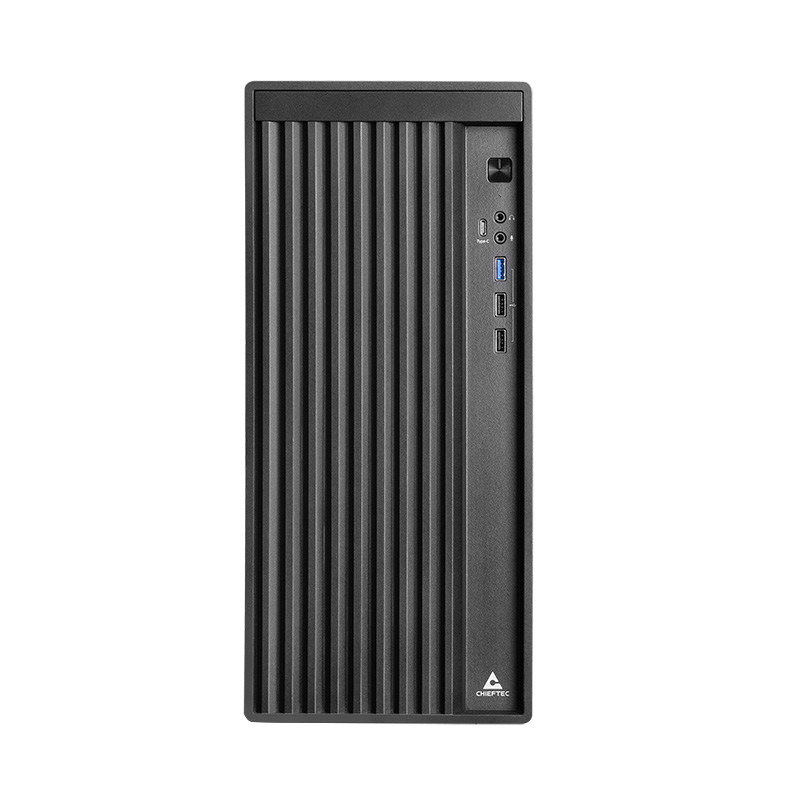

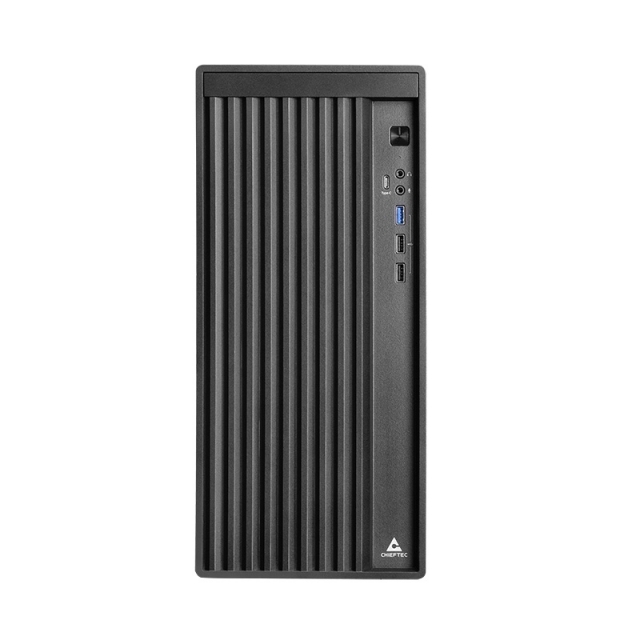

Front I/O 1x USB3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C, 2x USB2.0, Audio-out (AZALIA / HD-Audio), Mic-In

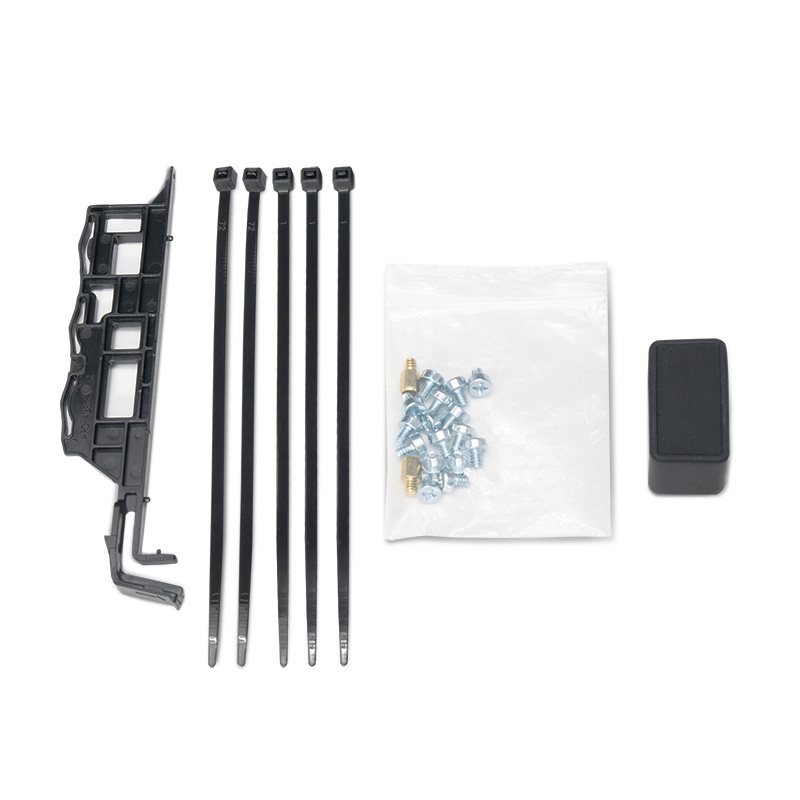

Scope of delivery Screw set,
Rear: 1x 90mm fan pre-installed

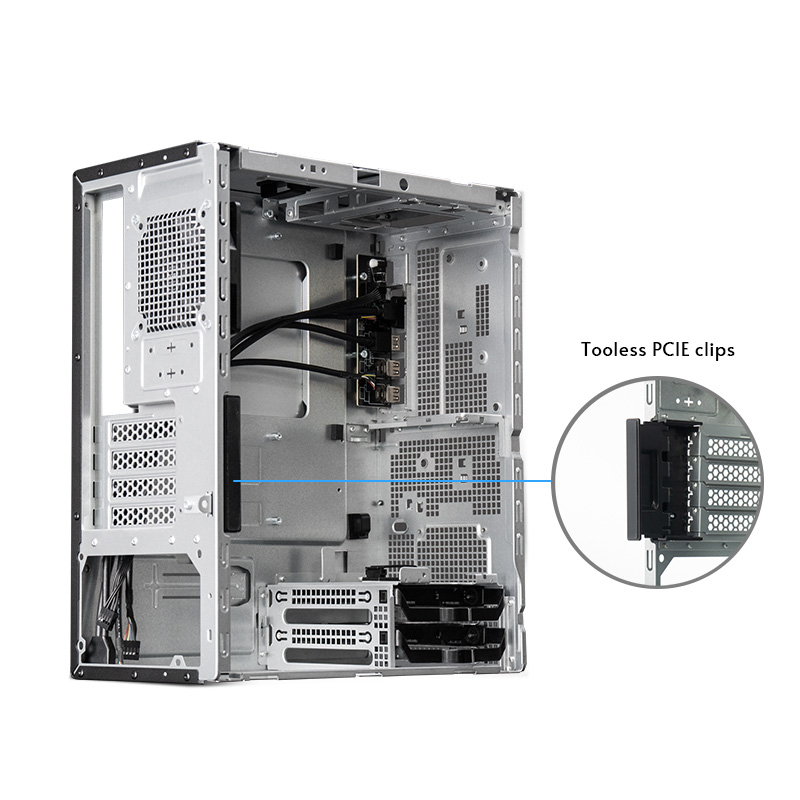

Expansion slots 4
Cooling Compatibility Front: 1x 80mm slim fan (80mm x 80mm x 10mm)
Rear: 1x 90mm fan pre-installed
CPU cooler height (max.) 143mm

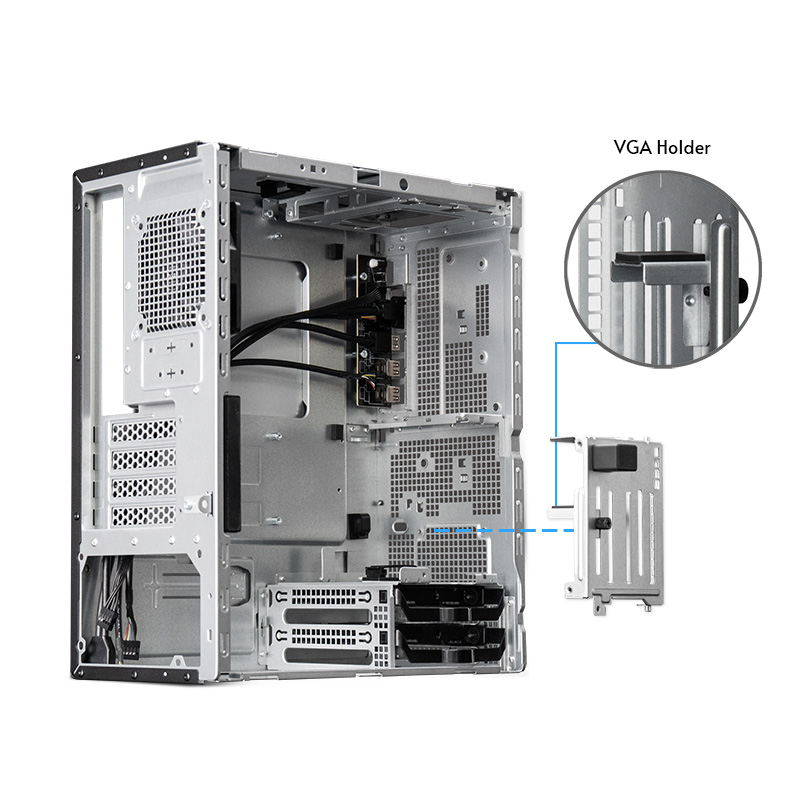

VGA card length (max.) 270mm
Warranty 24 Months
