- Compliant with ATX 12V 3.1
- Support PCIe GEN5
- 80PLUS® Gold certified efficiency
- LLC Half-Bridge converter with DC to DC technology

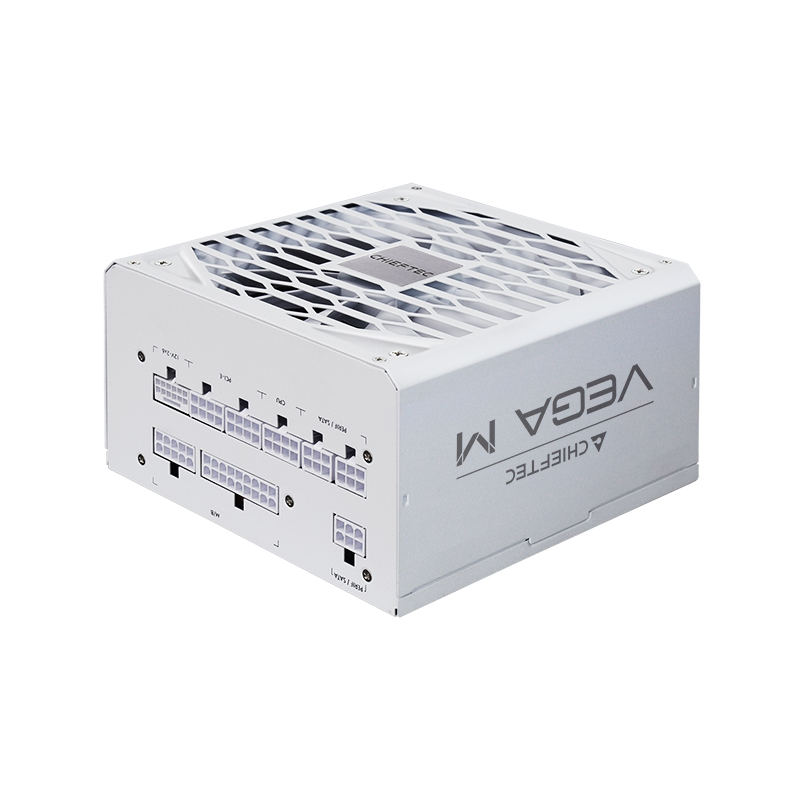

- Fully modular cable management
PPG-850-CW
VEGA M White
OVERVIEW
The CHIEFTEC Vega M Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio of up to 1000W while maintaining the trusted Chieftec quality.

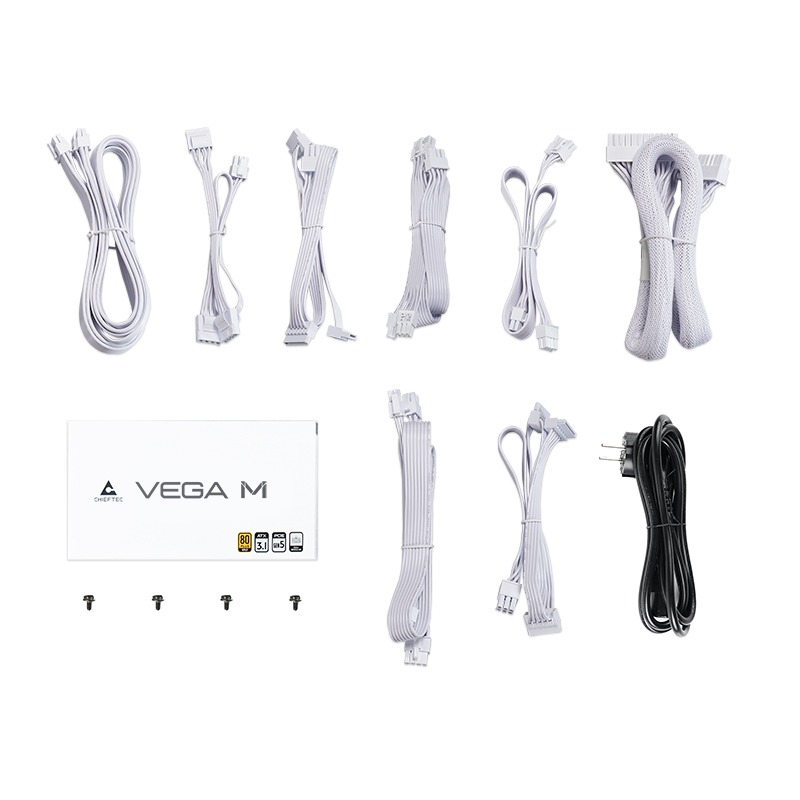

The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The fully modular design with extra long White cables makes it suitable for mainstream gamers to build their system, even in larger PC cases.

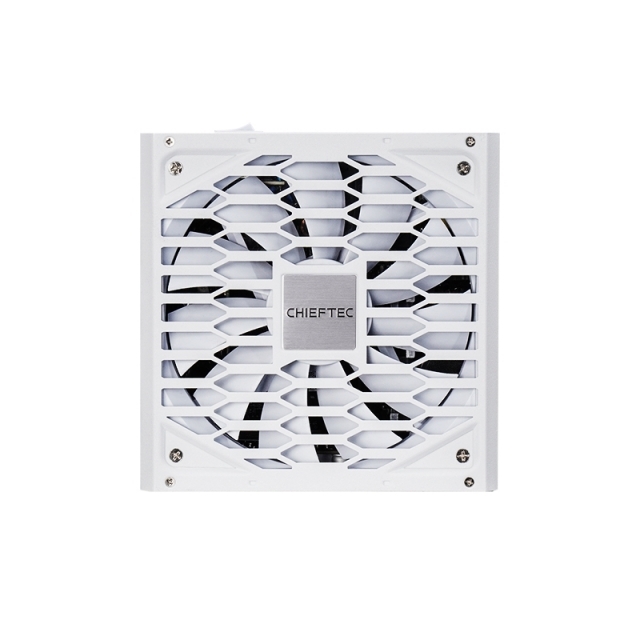

Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega M Series is your trusted and reliable choice for all computing needs incorporating all necessary modern protection and safety features.
The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The fully modular design with extra long White cables makes it suitable for mainstream gamers to build their system, even in larger PC cases.
Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega M Series is your trusted and reliable choice for all computing needs incorporating all necessary modern protection and safety features.
SPECIFICATIONS
| Model | Vega M 850W White |
|---|---|
| Article no. | PPG-850-CW |
| EAN code | 0753263079114 |
| Weight (without/with package) | 2.15kg / 2.61kg |
| AC Input | 100-240V~ / 12-6A |
| Frequency | 50 - 60Hz |
| +5V | 20A |
| +3,3V | 20A |
| +5V & +3,3V combined | 100W |
| +12V1 | 70.8A |
| +12V2 | - |
| +12V1, +12V2 combined | 850W |
| P.F. | >0.9 |
| -12V | 0.3A / 3.6W |
| +5VSB | 3.0A / 15W |
| Maximum Power | 850W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (8/4+4) | 1/1 |
| 8 PIN PCIe (6+2) | 4 |
| 16 PIN 12V - 2 x 6 | 1 |
| SATA | 6 |
| MOLEX | 3 |
| 20+4 PIN ATX | 600 |
|---|---|
| 8 PIN EPS (4+4) | 650/150 |
| 8 PIN PCIe (6+2) | 2 x 600/150 |
| 16 PIN 12V - 2 x 6 | 600 |
| SATA | 2 x 400/150/150 |
| MOLEX | 400/150/150 |
| ATX12V Version | ATX 12V 3.1 |
|---|---|
| Efficiency | 80Plus Gold |
| Dimension (DxWxH) | 150 mm x 150 mm x 85 mm |
| PFC | Active PFC (0.9) |
| Fan | 135mm FDB fan |
| Security | AFC (Automatic Fan Speed Control) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short-Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) OCP (Over-Current Protection) |
| Warranty | 5 Years |
