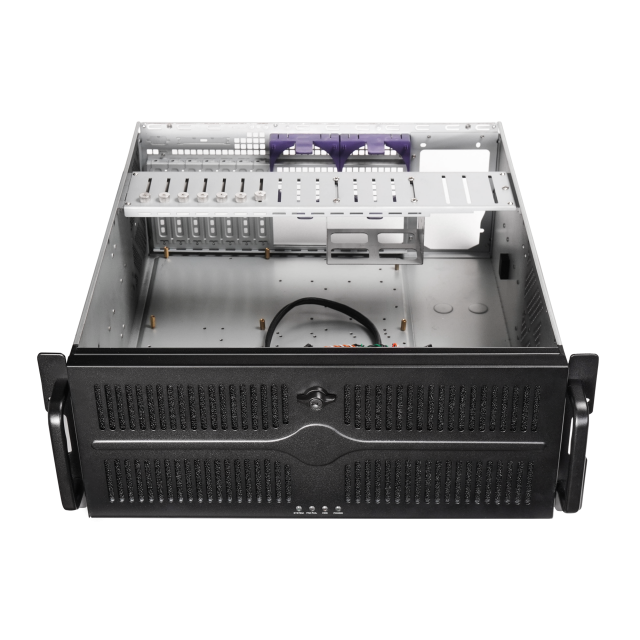

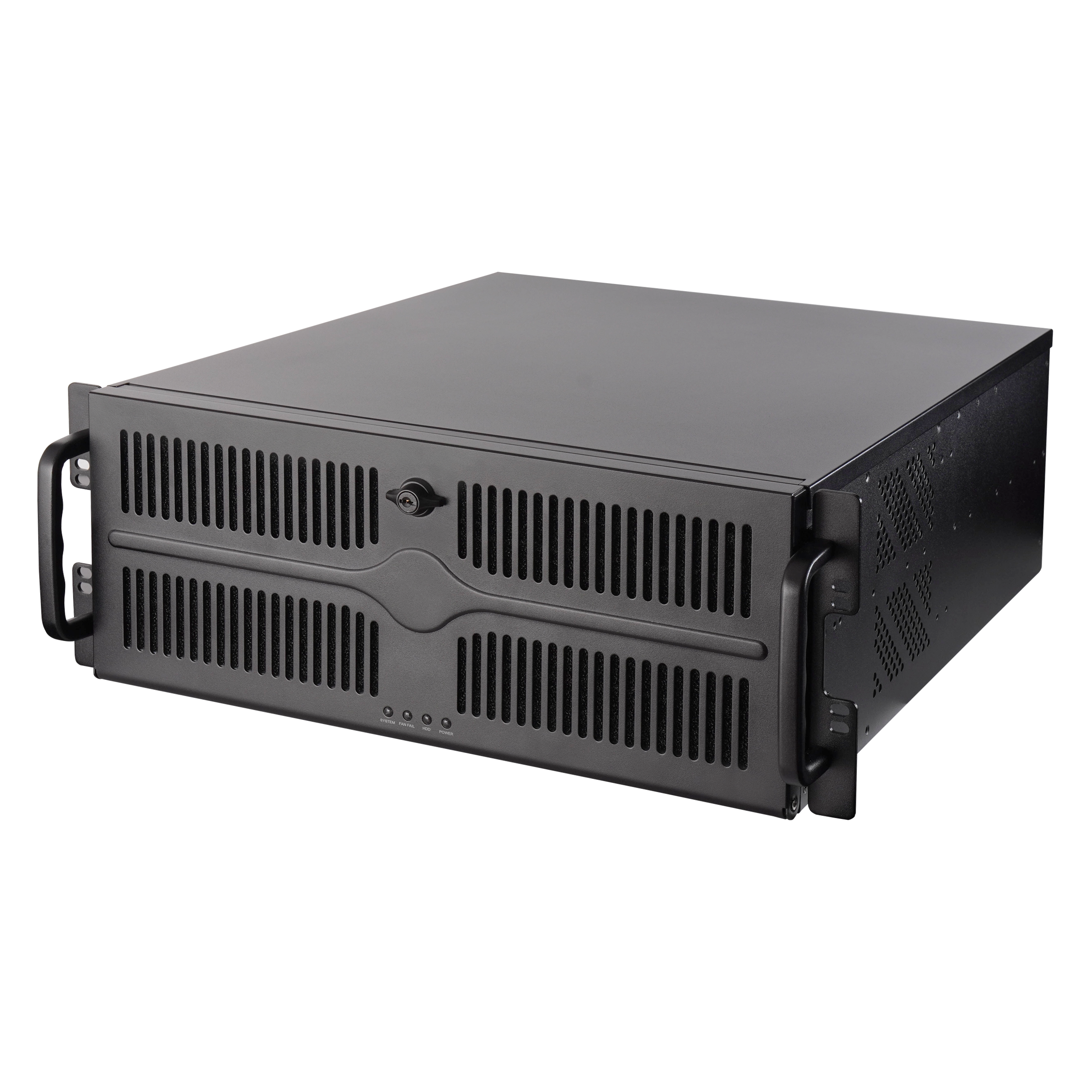

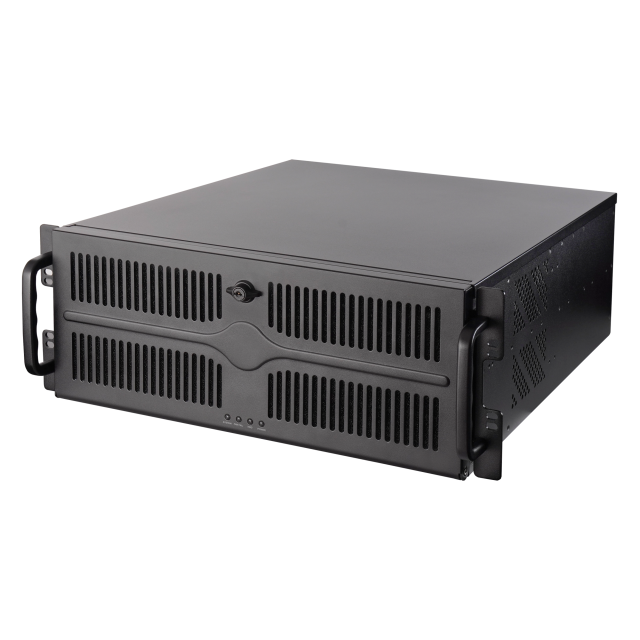

- 4U rack server chassis
- Supports 360mm AIO water cooler
- Compatible with SSI-EEB motherboard
- Supports a ATX PSU or a mini-redundant PSU
UNC-409S-AIO
OVERVIEW

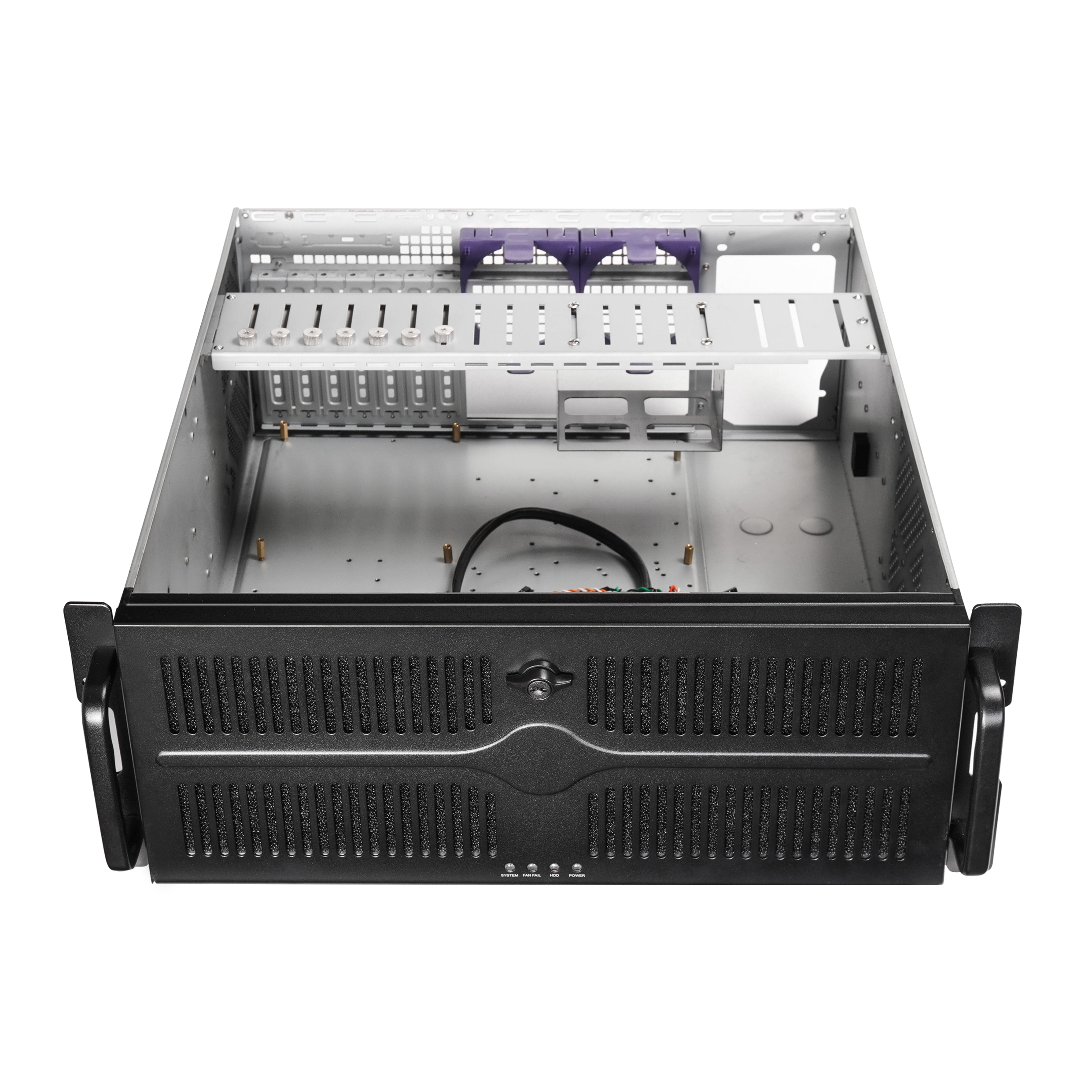

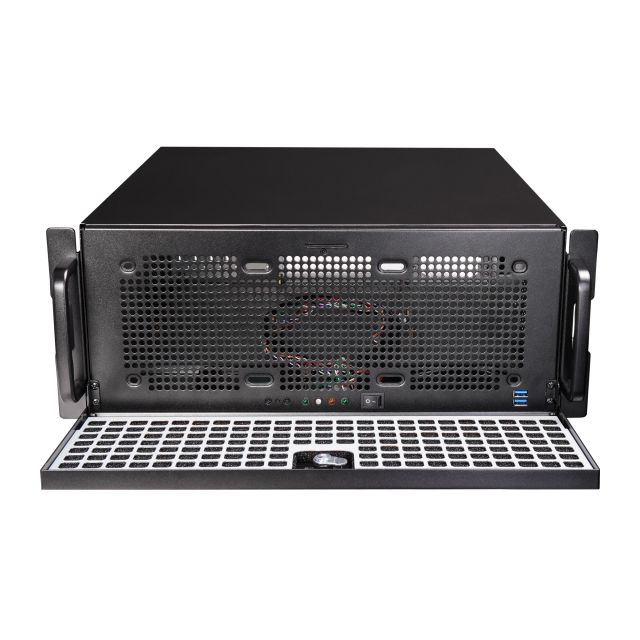

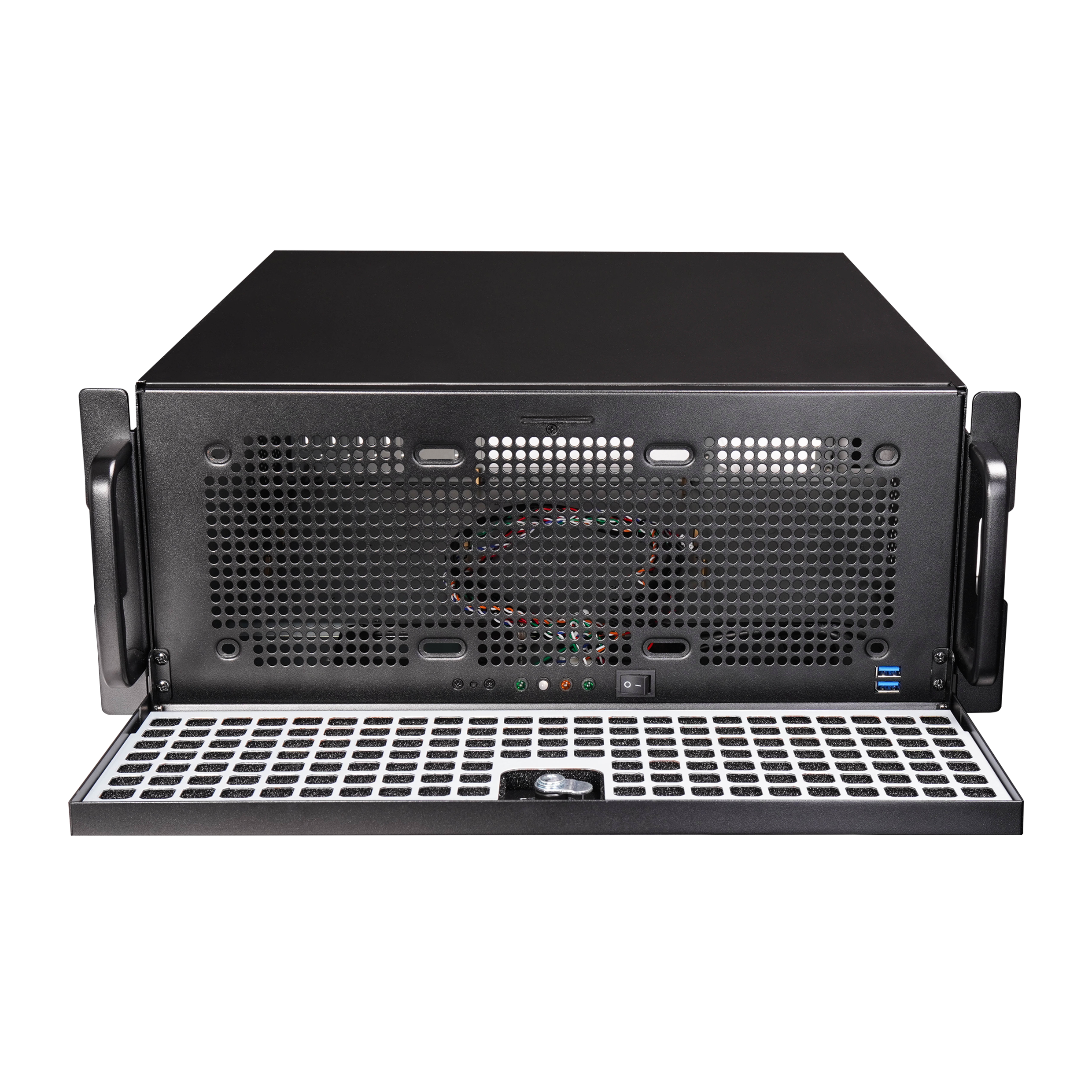

The UNC-409S-AIO 4U rack server chassis is engineered to deliver robust performance and dependable reliability in demanding industrial environments. Constructed from 1.2 mm thick SGCC steel, it offers superior hardware protection and serves as a durable, long-term solution with flexible configuration options.
To enhance thermal efficiency, the chassis supports the installation of a 360 mm all-in-one (AIO) water cooler, enabling effective CPU heat dissipation. It accommodates various motherboard form factors, including SSI-EEB, allowing for high-performance configurations. It supports either a standard ATX PSU or a mini-redundant PSU, ensuring stable power delivery and system redundancy for mission-critical operations.
SPECIFICATIONS
| Article no. | UNC-409S-AIO | UNC-409S-AIO-OP |
| EAN code | 0753263079343 | 0753263079213 |
| Color | Black | Black |
| Material | 1.2mm SGCC steel | 1.2mm SGCC steel |
| Motherboard support | Mini ITX, M-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB | Mini ITX, M-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB |
| Dimension (DxWxH) | 480mm x 427mm x 176.8mm | 480mm x 427mm x 176.8mm |
| Weight (without/with package) | 11.41 kg / 12.79 kg | 9.71 kg / 11.09 kg |
| Drive bay external | - | - |

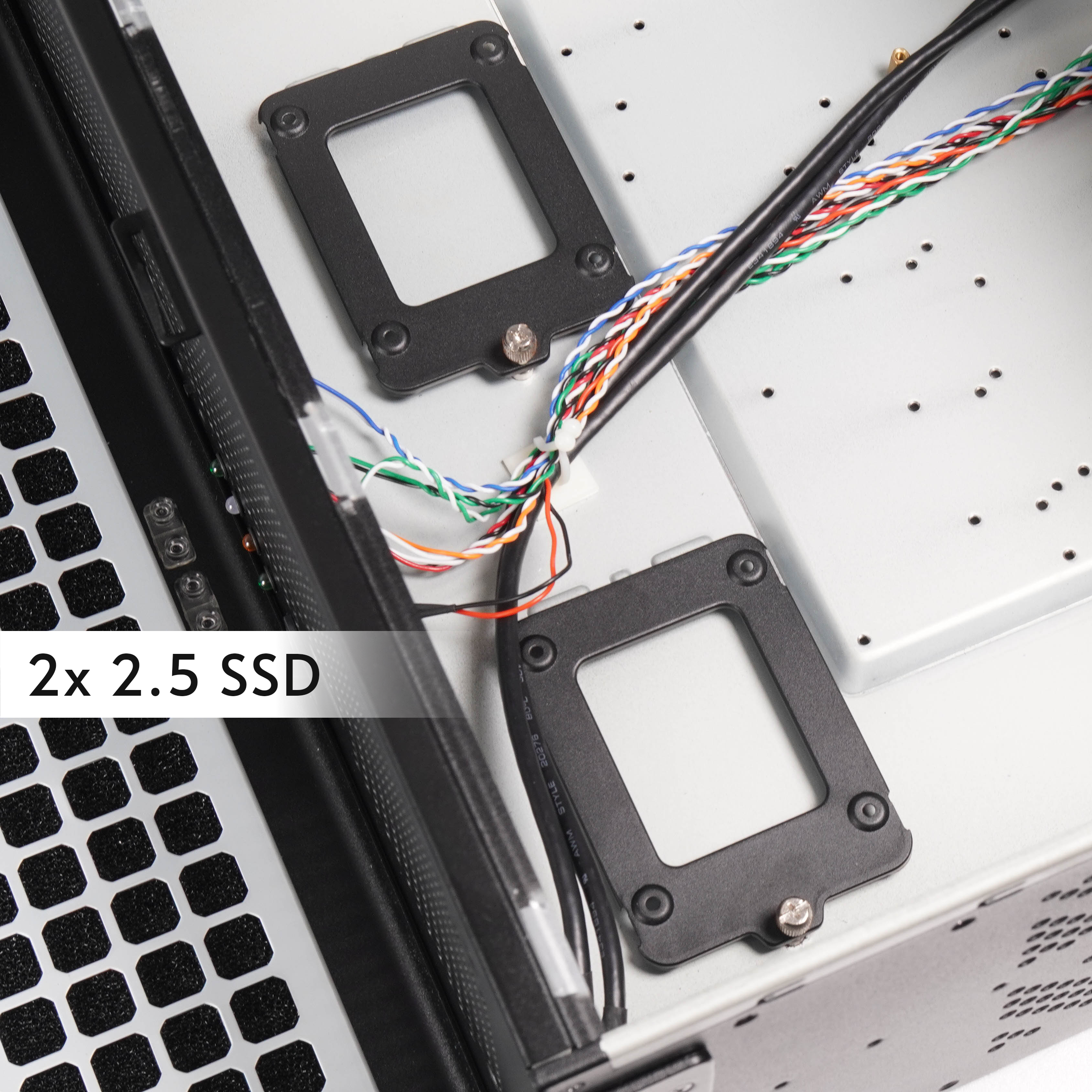

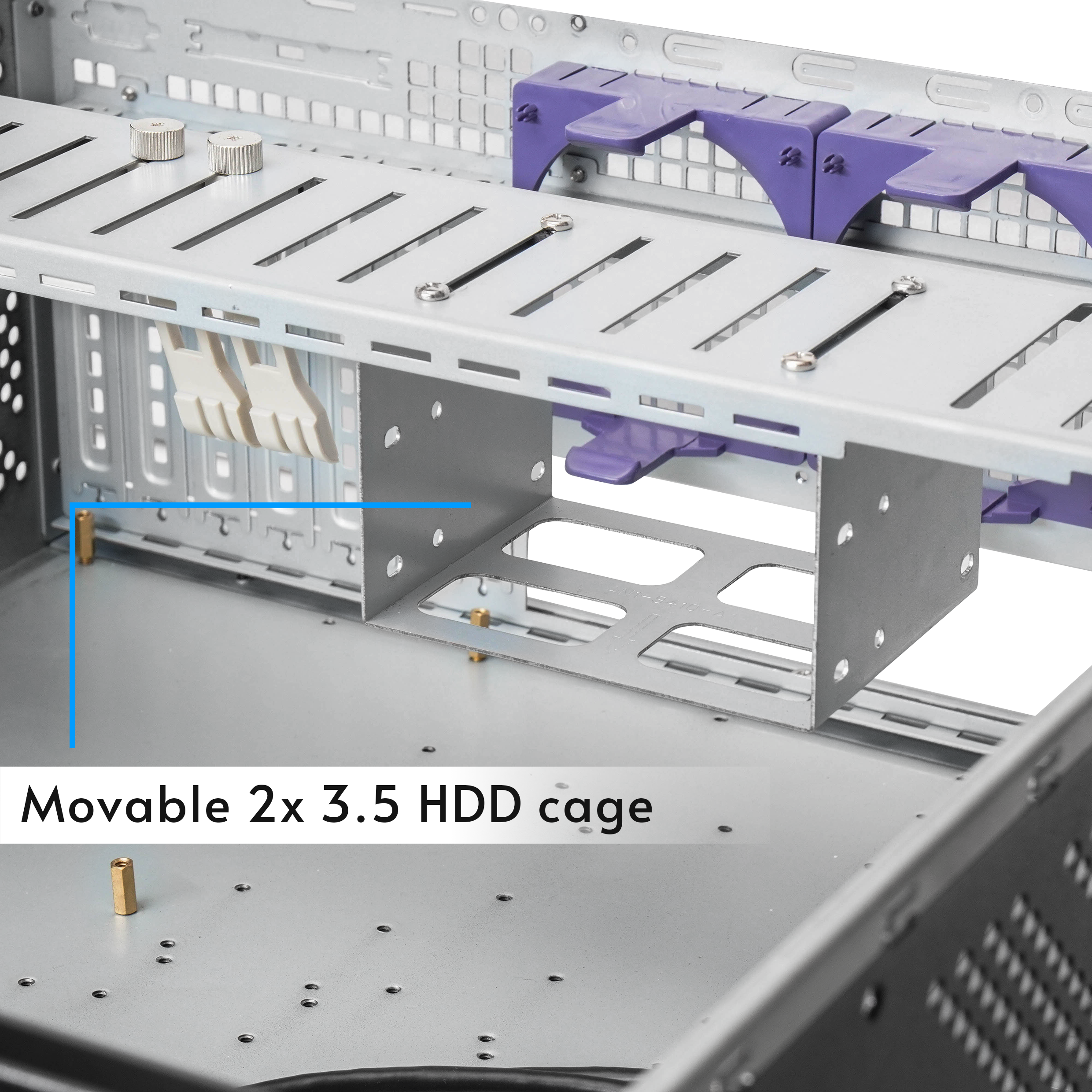

| Drive bay internal | 2x 3.5” and 2x 2.5” | 2x 3.5” and 2x 2.5” |
| Power supply | PSF-400B (400W) Standard ATX PSU or installation of a 1+1 redundant PSU with included mounting kit(not included) | 1x Standard ATX PSU or 1x Mini Redundant PSU (a mounting kit is needed.) |
| Front I/O | 2x USB 3.0 | 2x USB 3.0 |

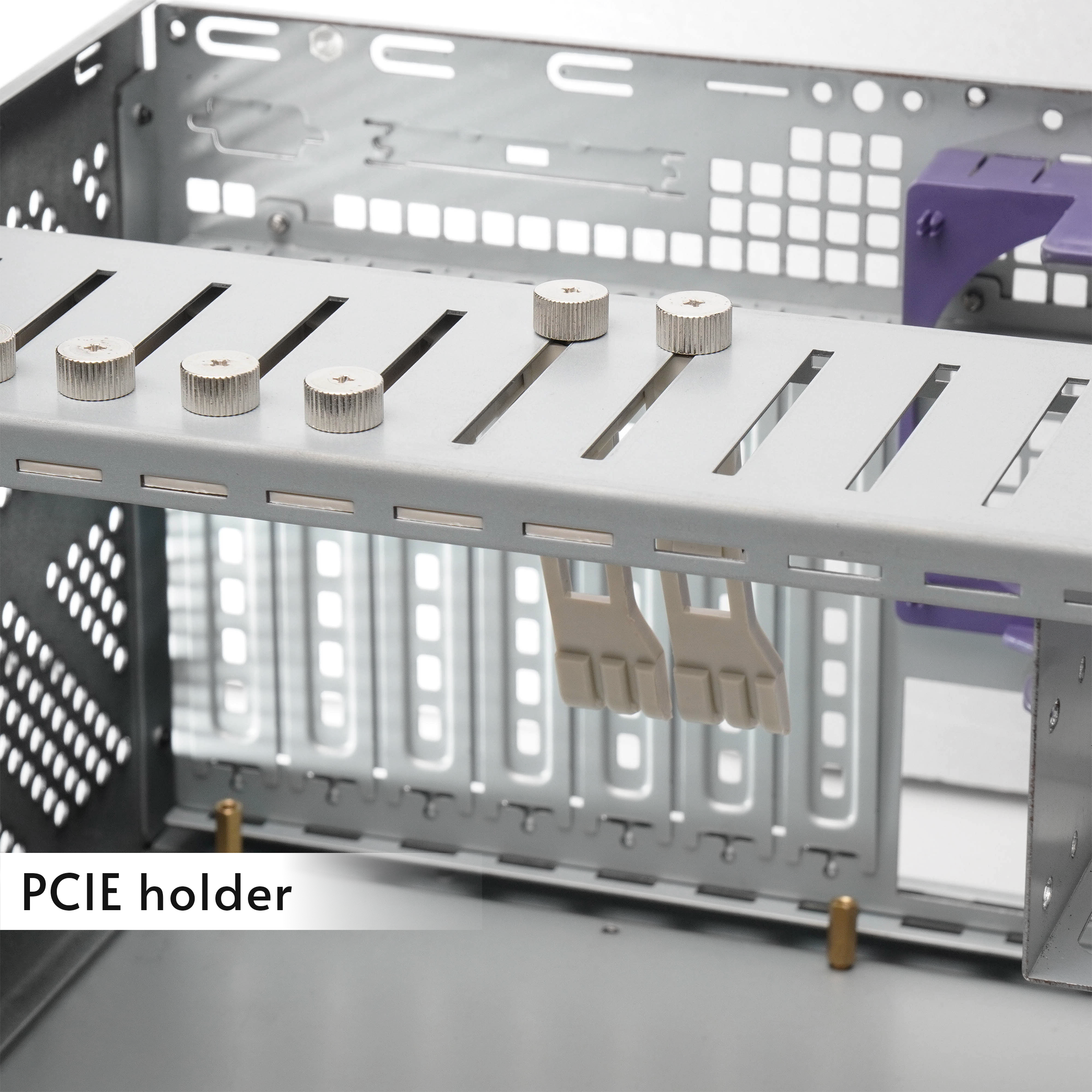

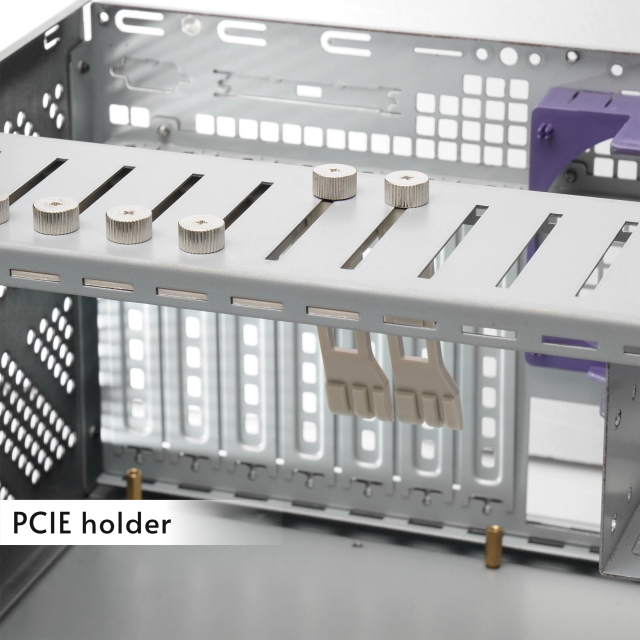

| Scope of delivery | screw set, PCI-E guide x 7 pcs, PCI-E card holder | screw set, PCI-E guide x 7 pcs, PCI-E card holder |
| Expansion slots | 7 | 7 |

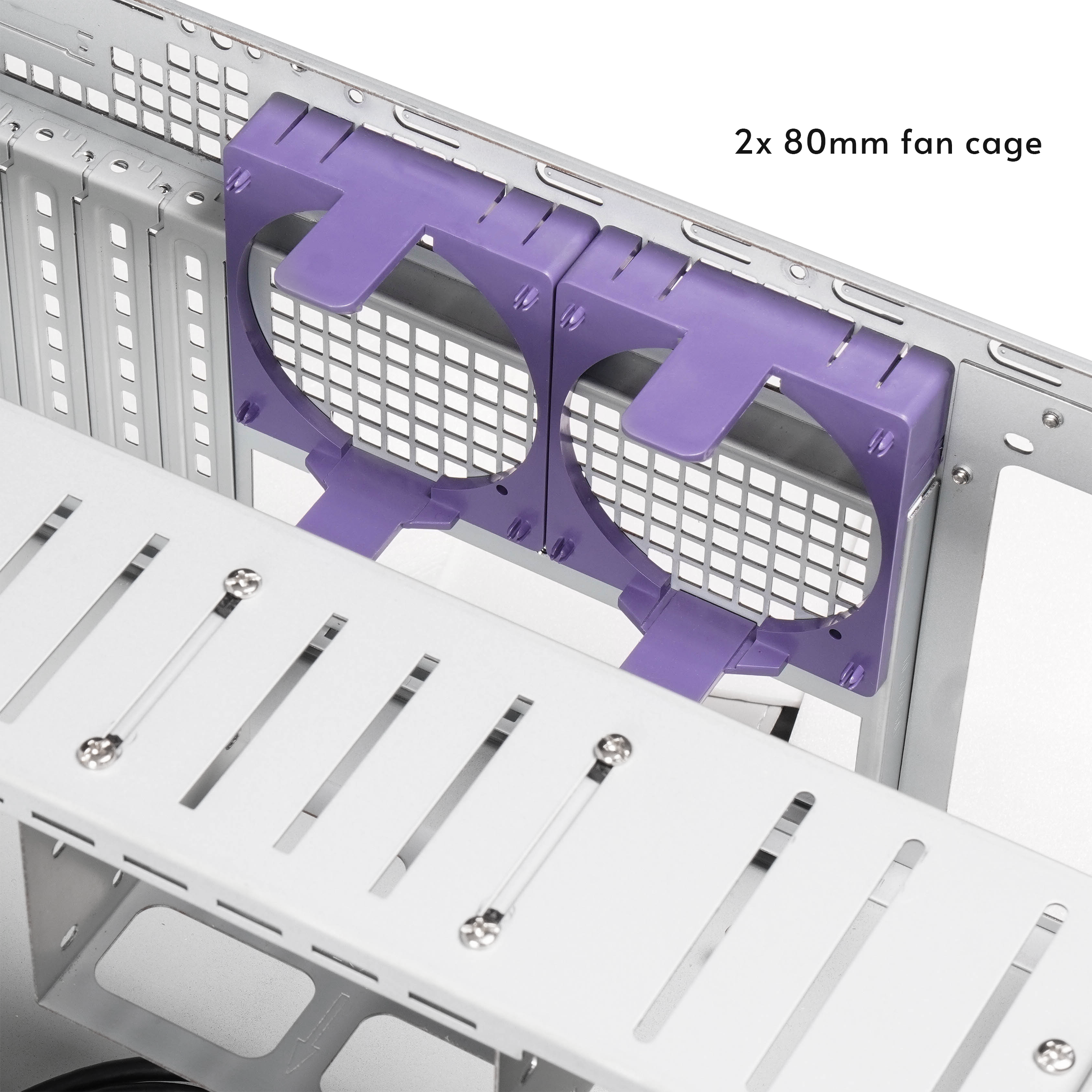

| Cooling Compatibility | Front: 3 x 120mm fans / 240mm radiator / 360mm radiator Rear: 2x 80mm fans |
Front: 3 x 120mm fans / 240mm radiator / 360mm radiator Rear: 2x 80mm fans |
| CPU cooler height (max.) | 70mm with 3.5” cage installed/ 130mm without 3.5” cage | 70mm with 3.5” cage installed/ 130mm without 3.5” cage |
| VGA card length (max.) | 450mm (if a AIO radiator is not installed) | 450mm (if a AIO radiator is not installed) |
| Warranty | 24 Months | 24 Months |
