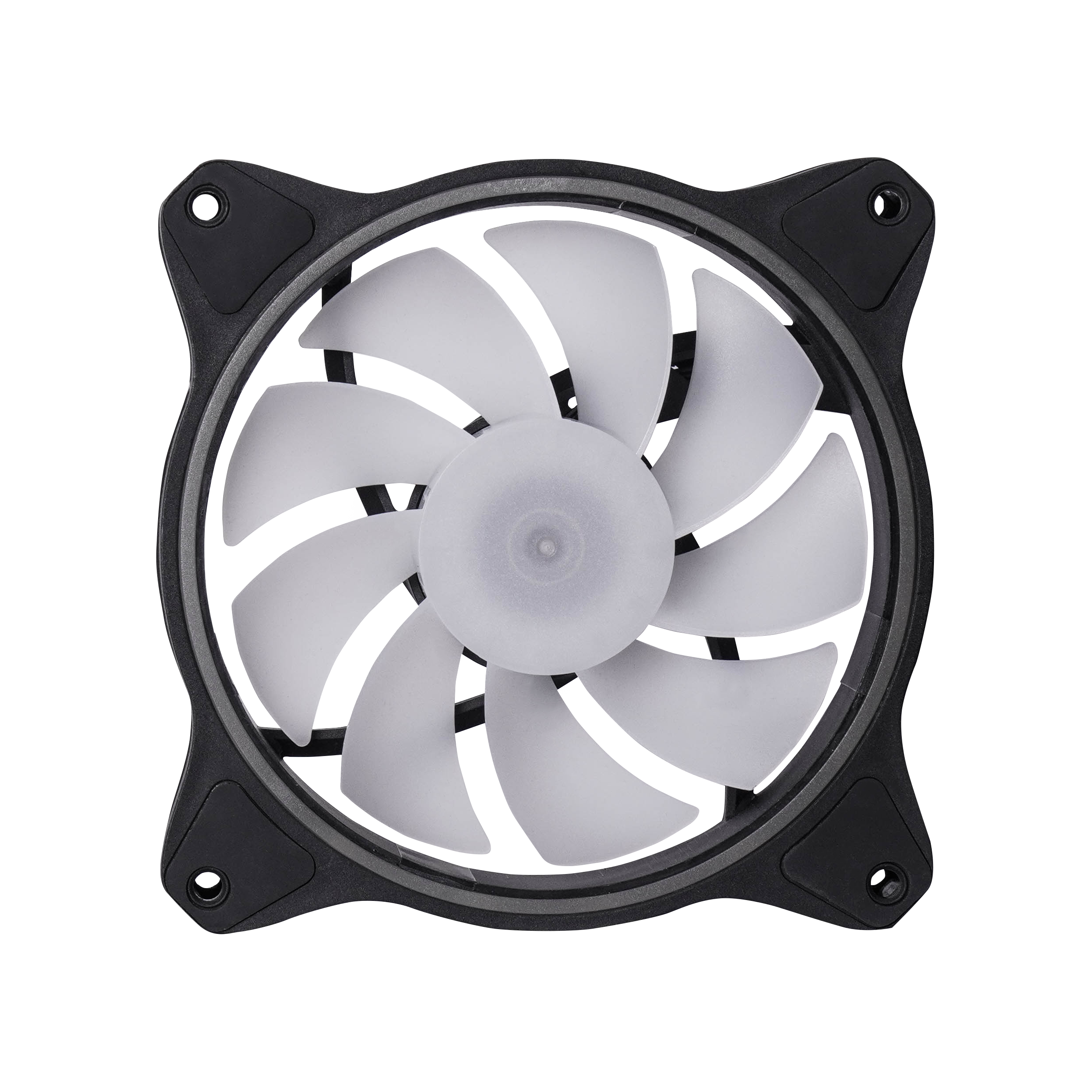

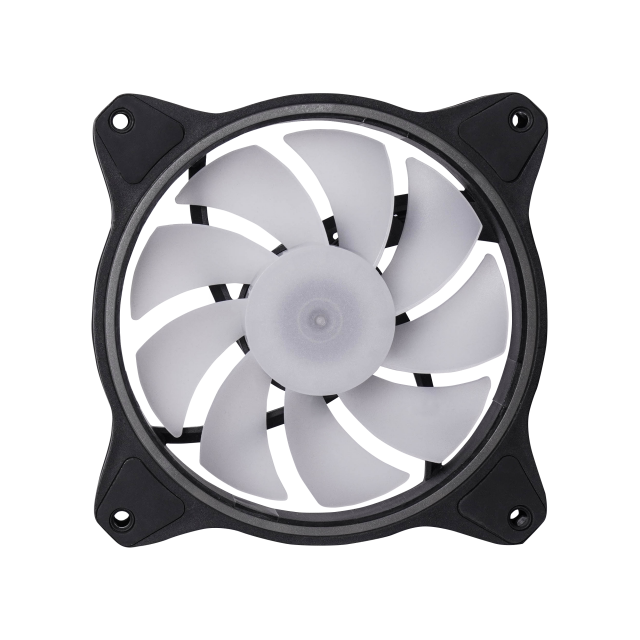

- 9 blade reverse design with enhanced air pressure technology
- Special fan blades designed for maximum airflow, low-noise & optimal illumination
- 4-PIN PWM fan-speed control and 3-PIN +5V A-RGB M/B-Sync Technologies supported
ZF-1225RGB-R
OVERVIEW
Introducing the Chieftec ZF-1225RGB-R, featuring a special 9-blade reverse design engineered with enhanced air pressure technology.
Its specialized blades are crafted to deliver a powerful balance of maximum airflow and minimal acoustic disruption alongside optimal illumination.
Take command of your cooling with integrated 4-PIN PWM fan-speed control and seamless synchronization via 3-PIN +5V A-RGB motherboard Sync technology.
Ready to elevate any setup, the ZF-1225RGB-R is designed for an exceptional user experience.
SPECIFICATIONS
| Model | ZF-1225RGB-R |
| EAN Code | 0753263078711 |
| Connectors | Fan: 4-pin PWM; A-RGB: 3 pins |
| Dimension | 120 x 120 x 25mm |
| Weight (without/with package) | 177g / 188g |
| Bearing Type | Hydraulic |
| LED Type | Addressable RGB |
| LED Lamp | 24 pcs (Inner Ring: 8 pcs ; Outer Ring: 16pcs) |
| Rated Voltage | FAN: DC12V ; LED: DC5V |
| Rated Current | 0.11A |
| Operating Voltage | 10.8V -13.2V |
| Fan Speed (RPM) | 600 - 1600 RPM ± 10% |
| Air Flow (CFM) | 42.5 CFM |
| Air Pressure (mmH2O) | 1.82 mmH2O |
| Noise Level (dBA) | 26.8 dBA |
| Scope of delivery | 1x 120mm A-RGB Reverse PWM fan, 4x Mounting screws |
| RGB Sync Compatibilities | Support and sync the lighting with: ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC, GIGABYTE™ RGB FUSION |
| Warranty | 24 Months |
