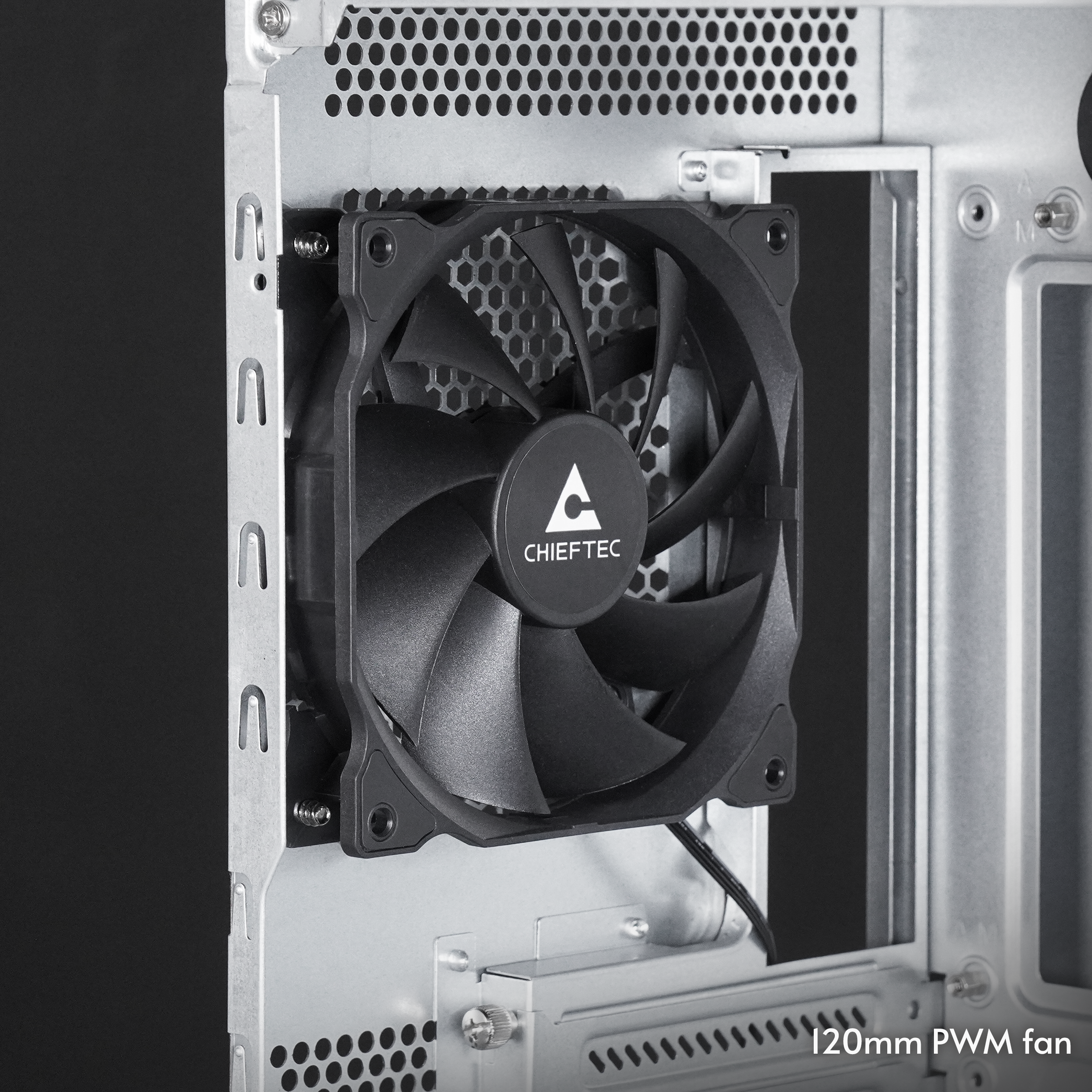

- Modern ATX workstation with a pre-installed 120mm PWM HDB fan

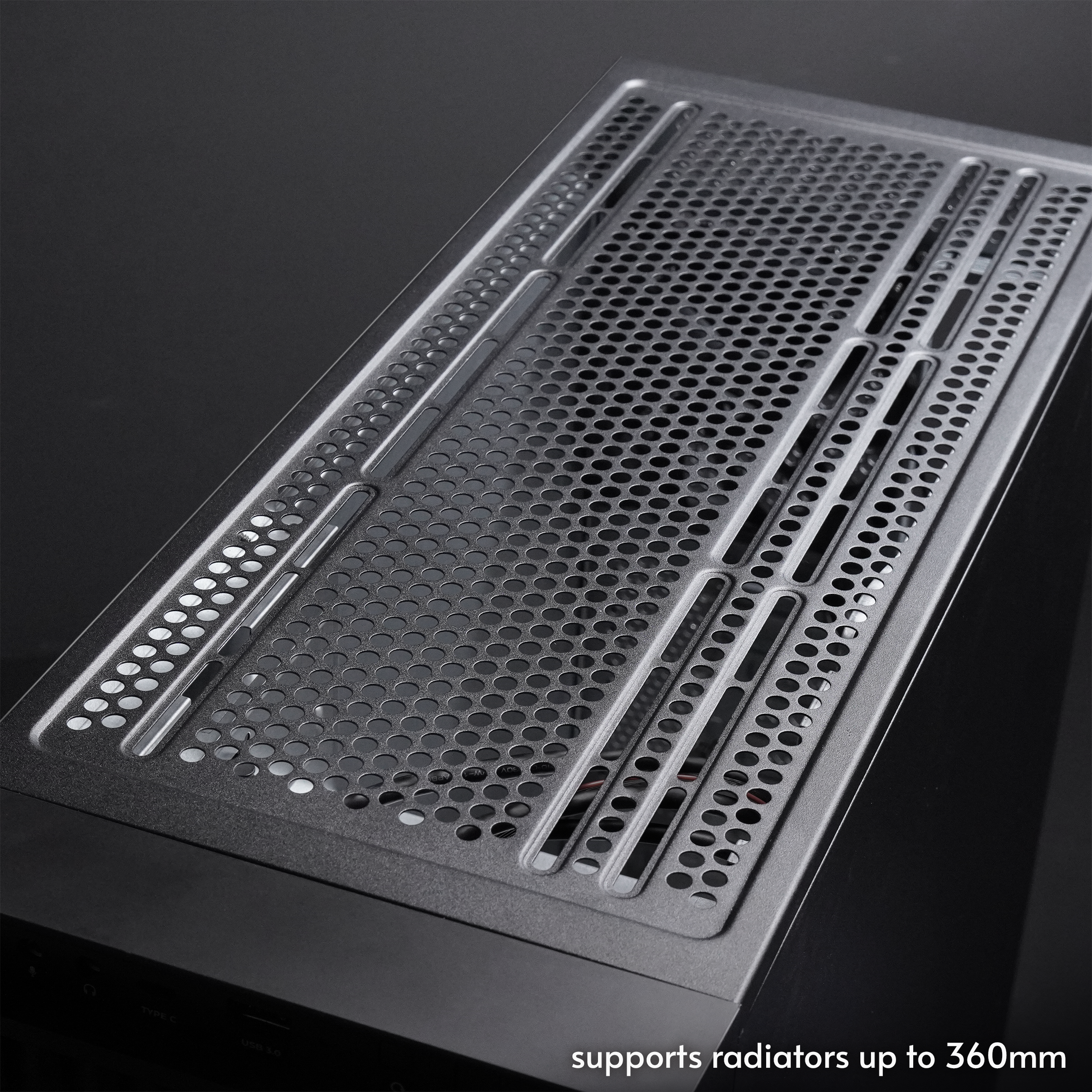

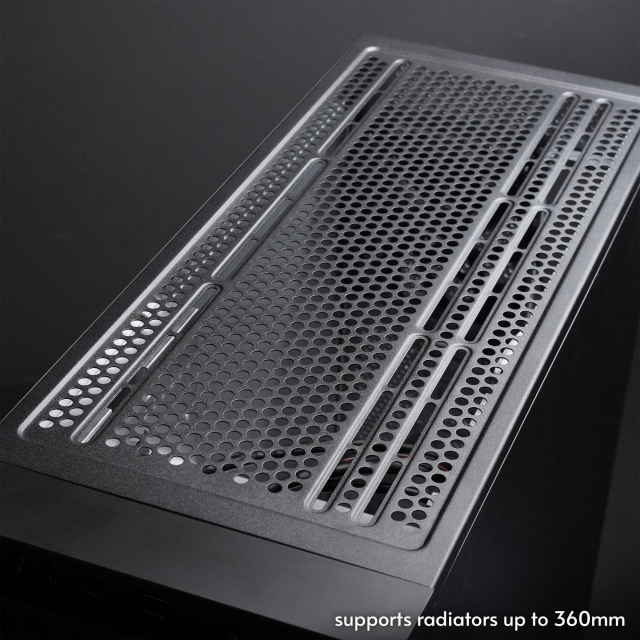

- Supports radiators up to 360mm
- Two tool-less 5.25" drive bays

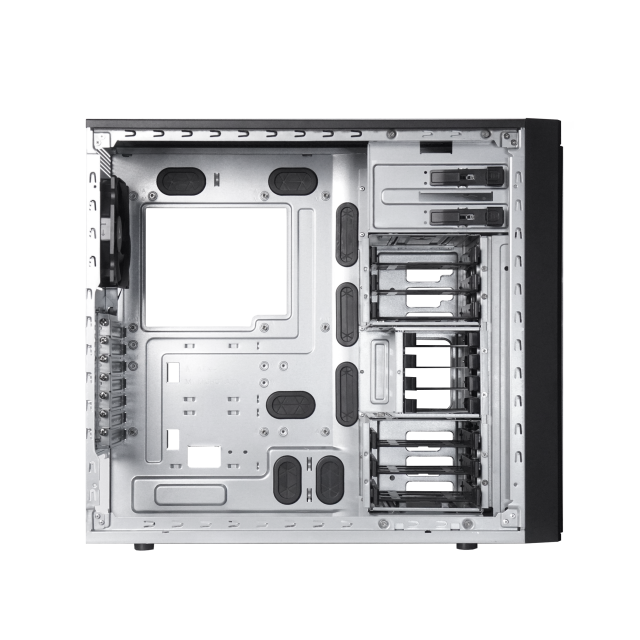

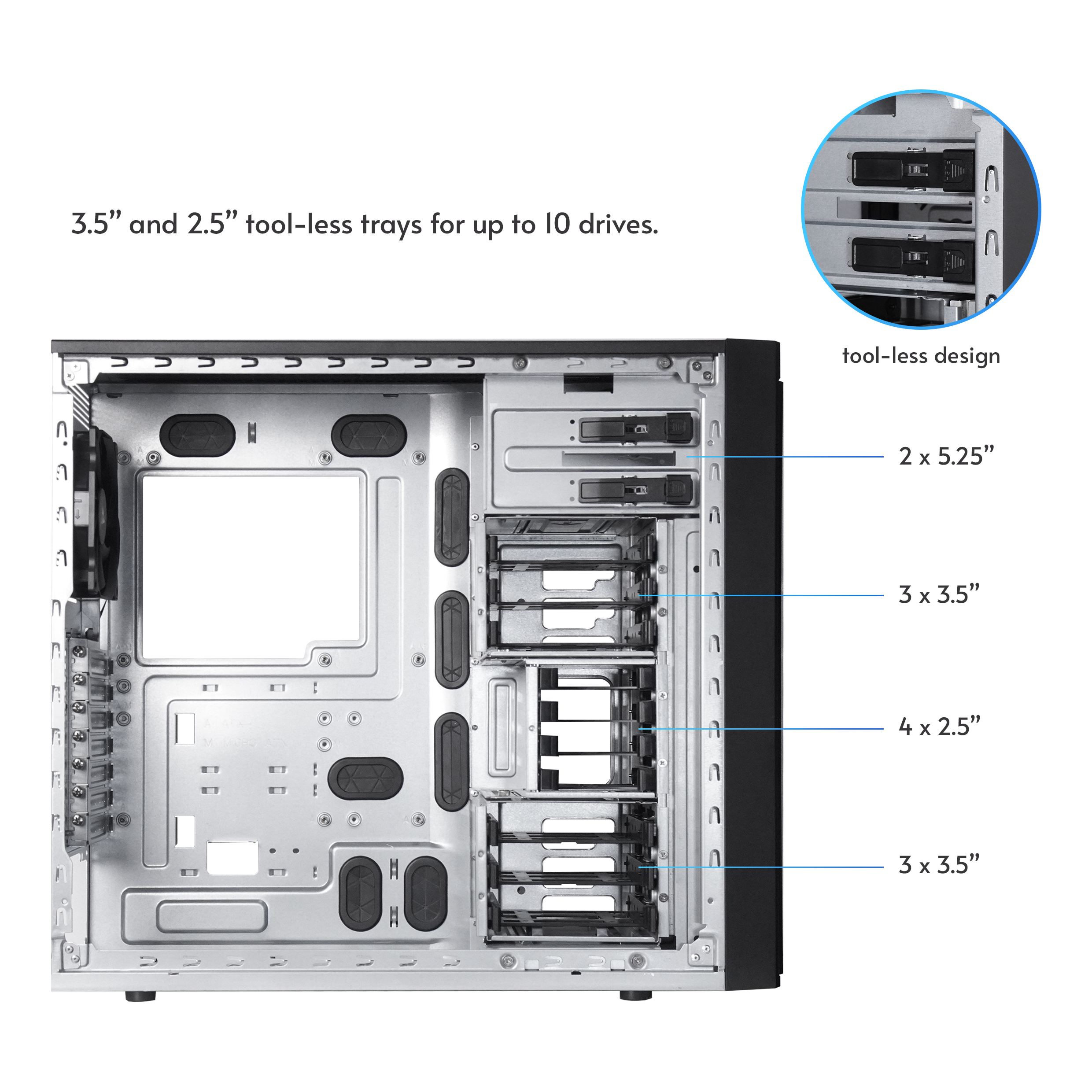

- Features 3.5" and 2.5" tool-less trays for up to 10 SSD/HDD drives

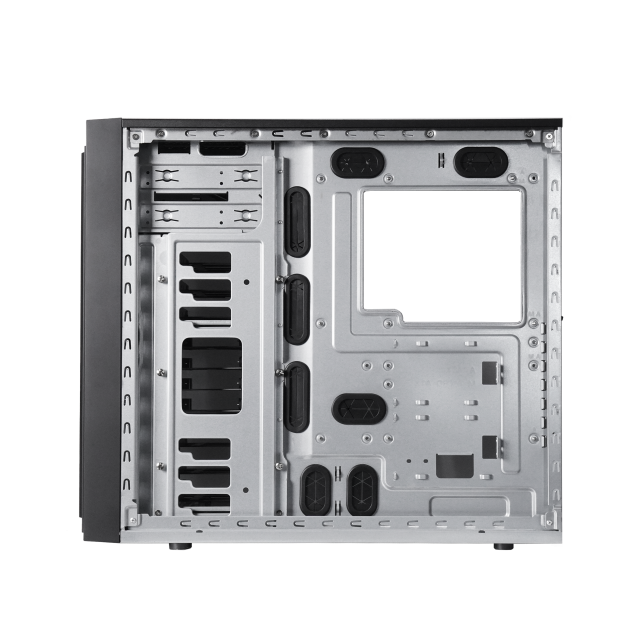

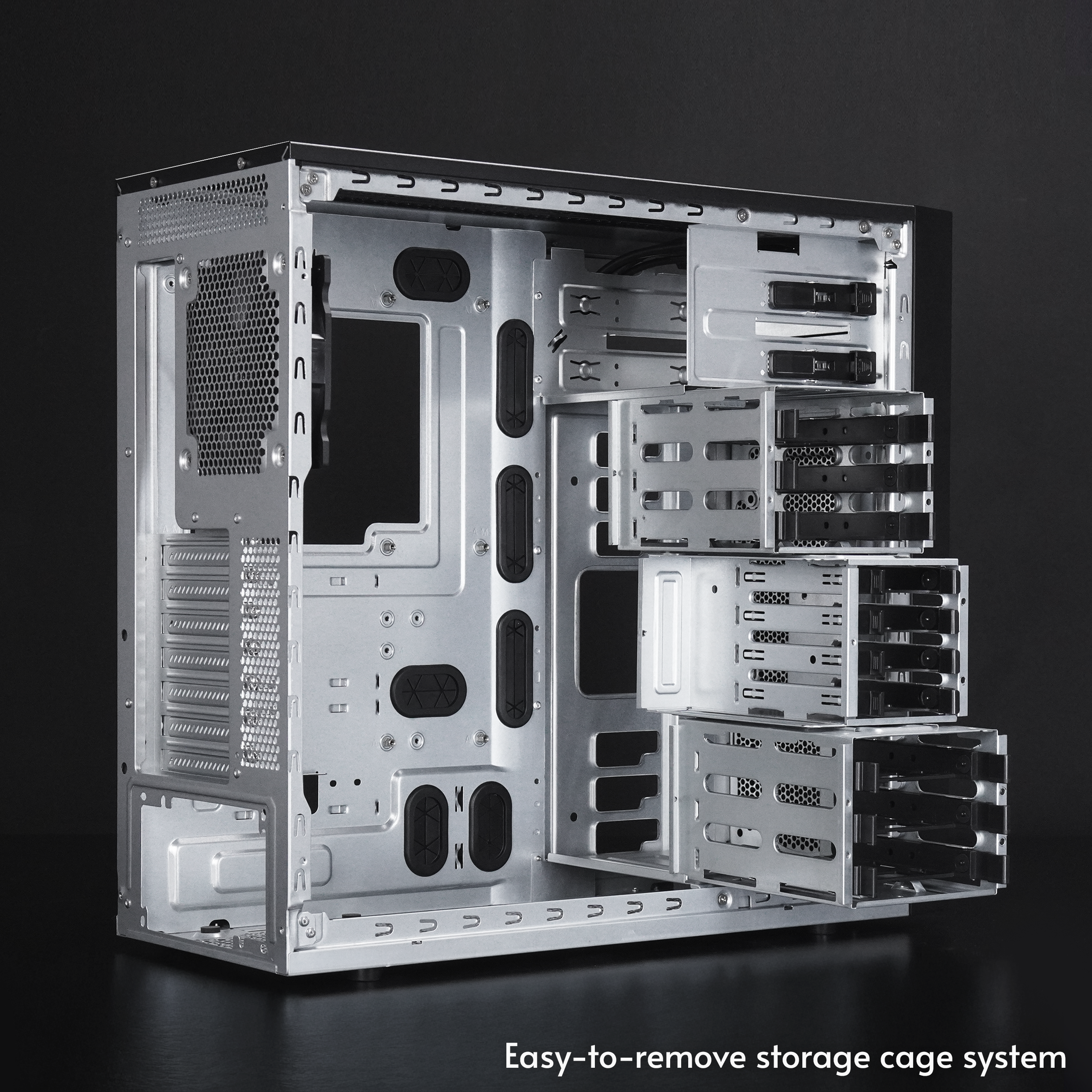

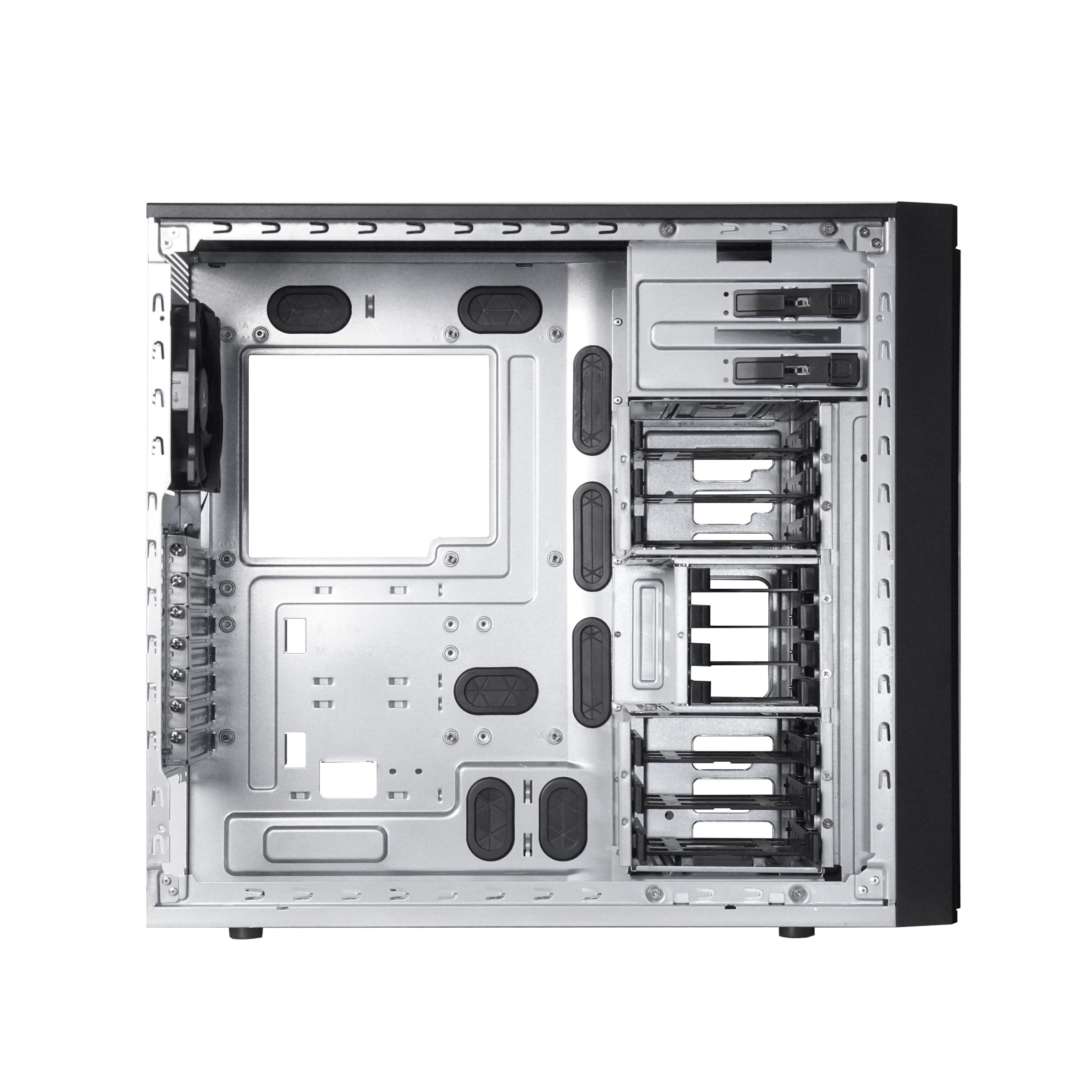

- Easy-to-remove storage cage system
Uni Series
BW-01B-OP
OVERVIEW

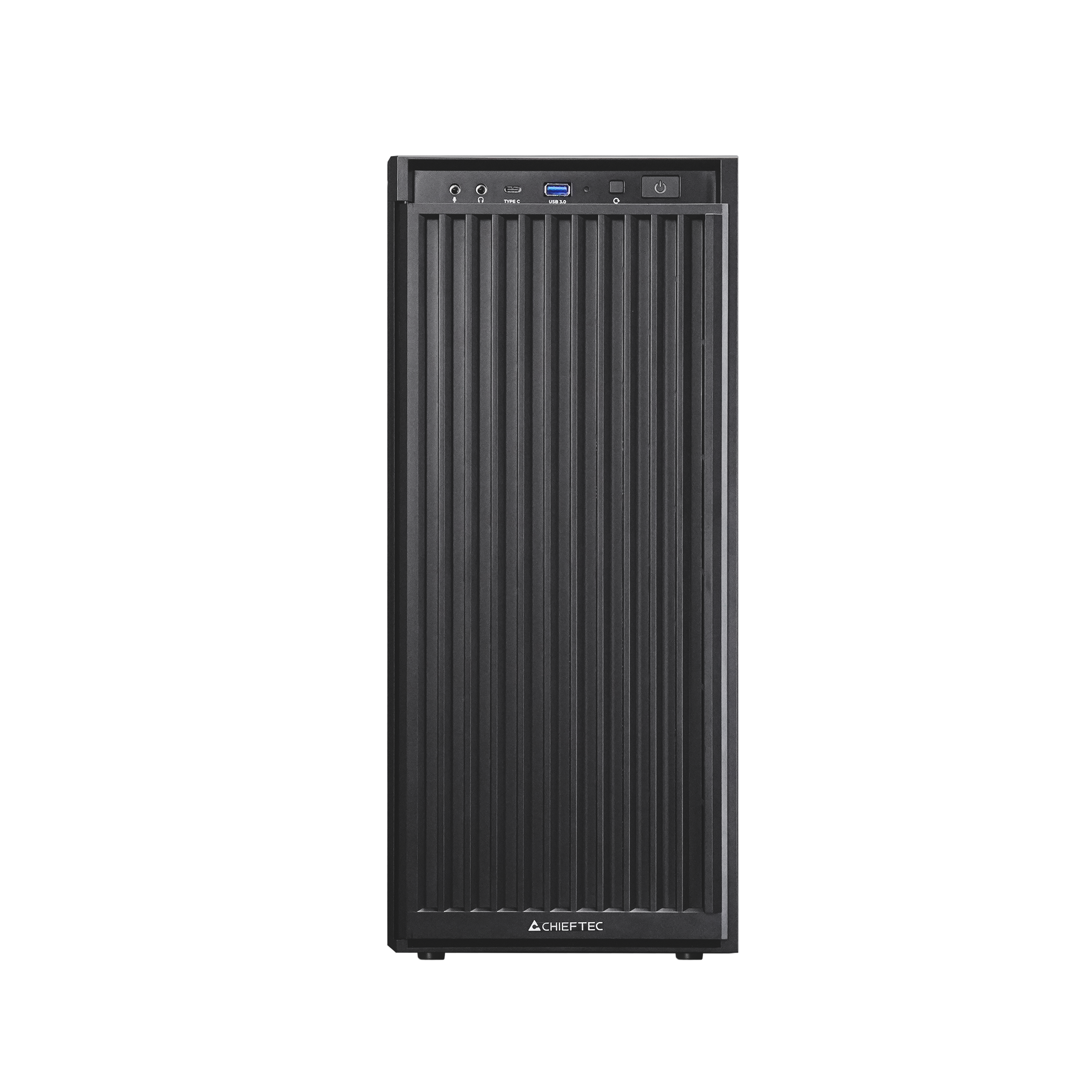

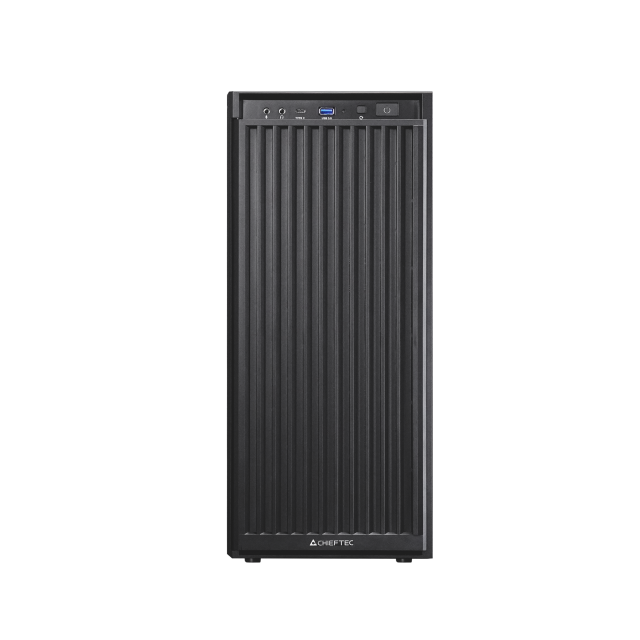

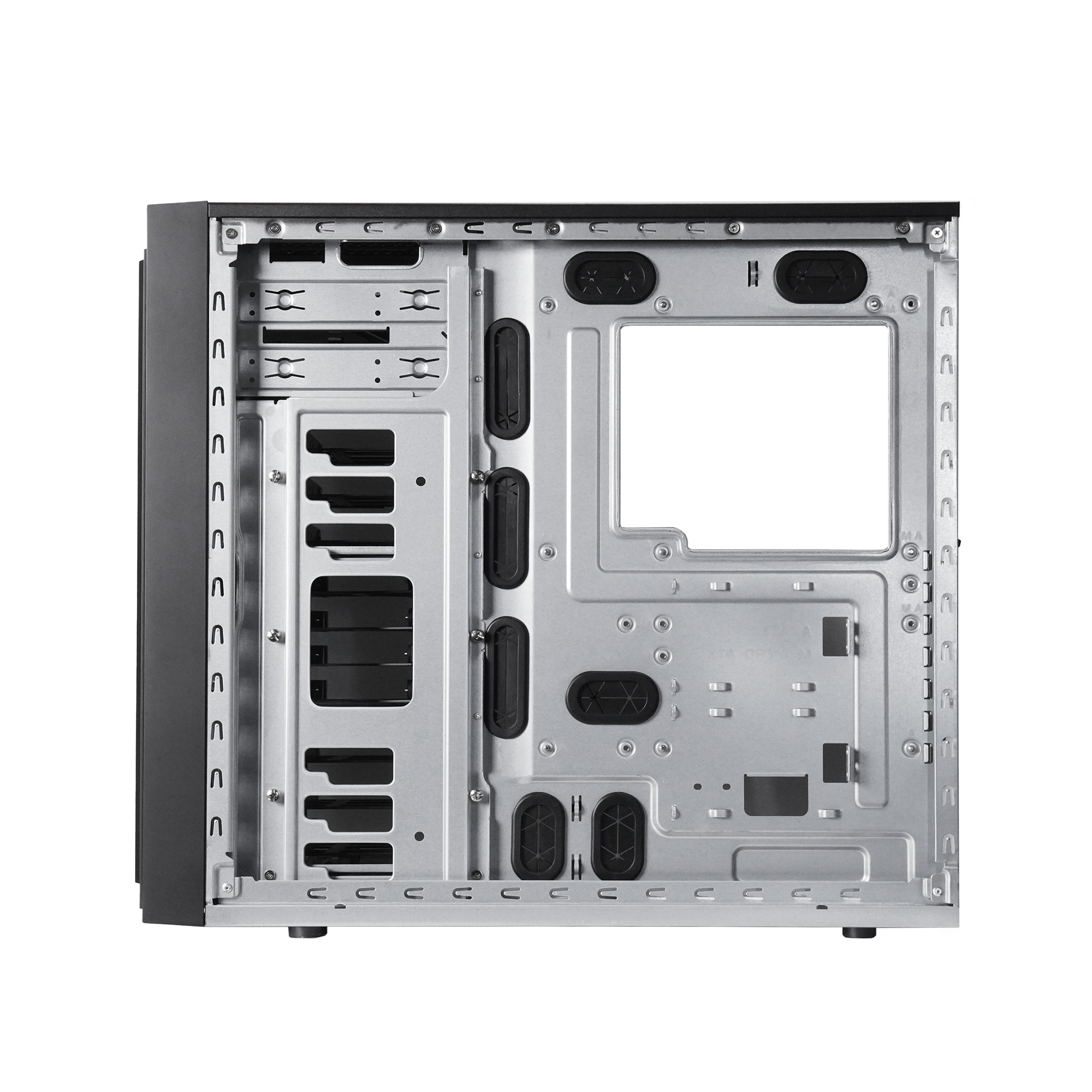

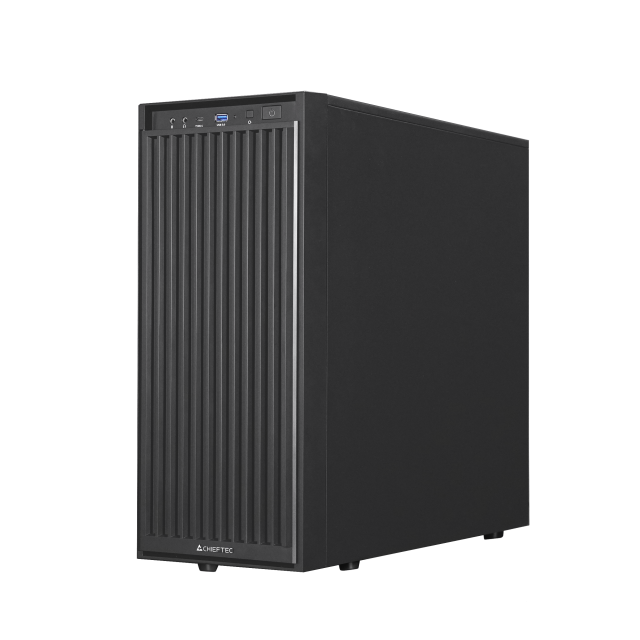

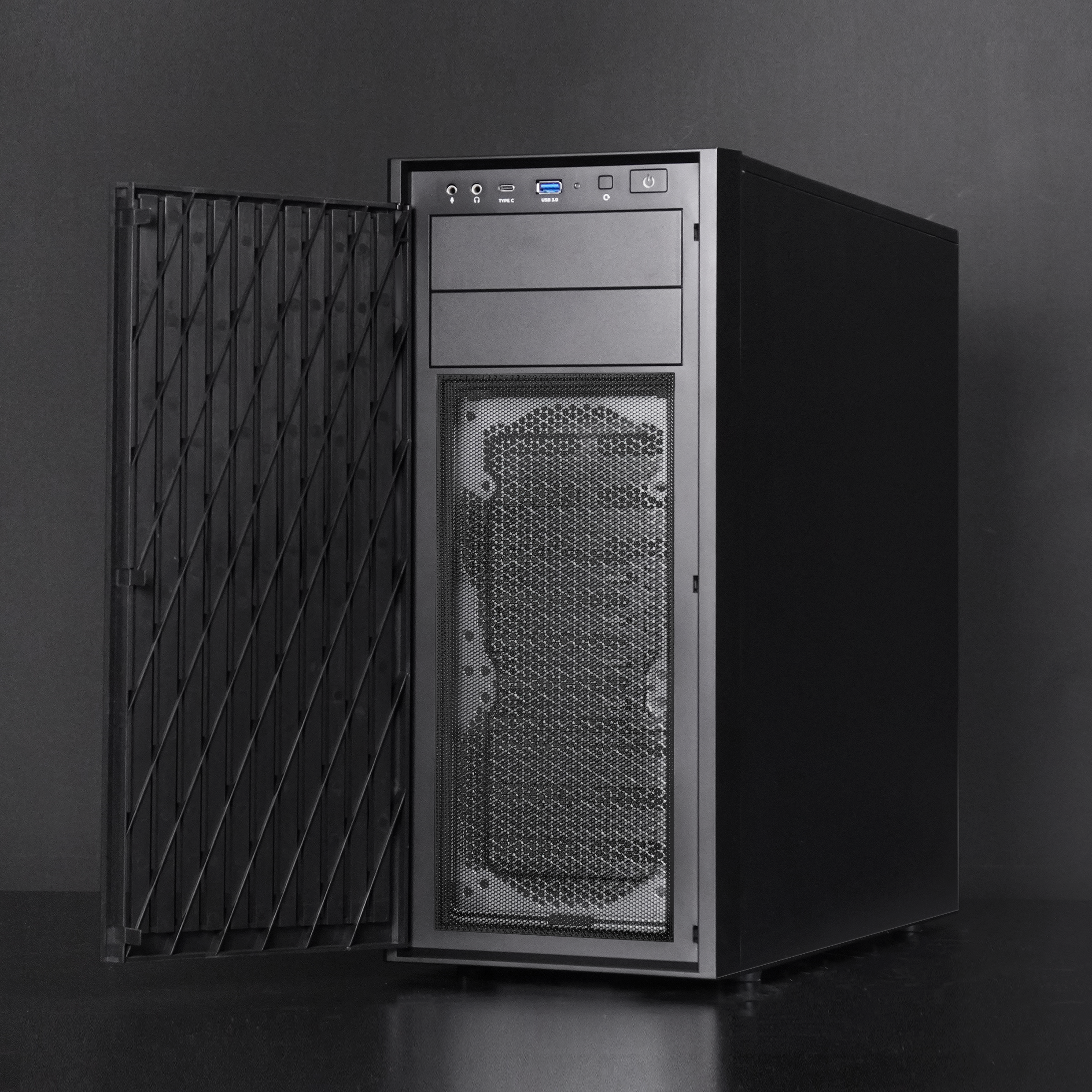

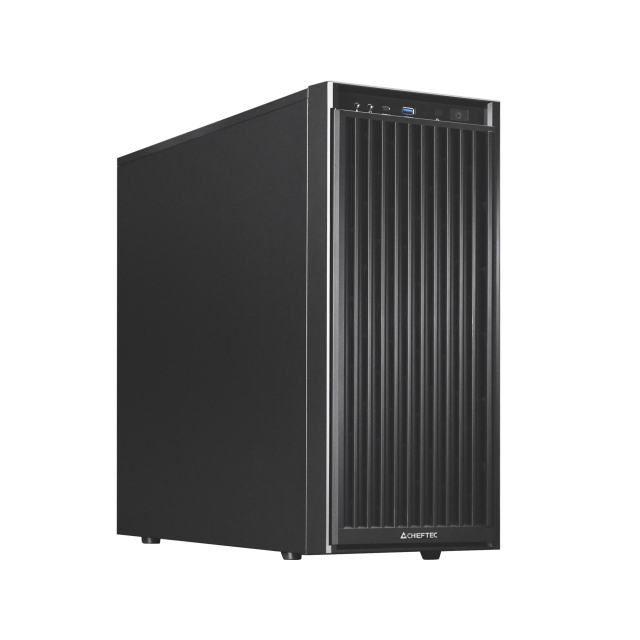

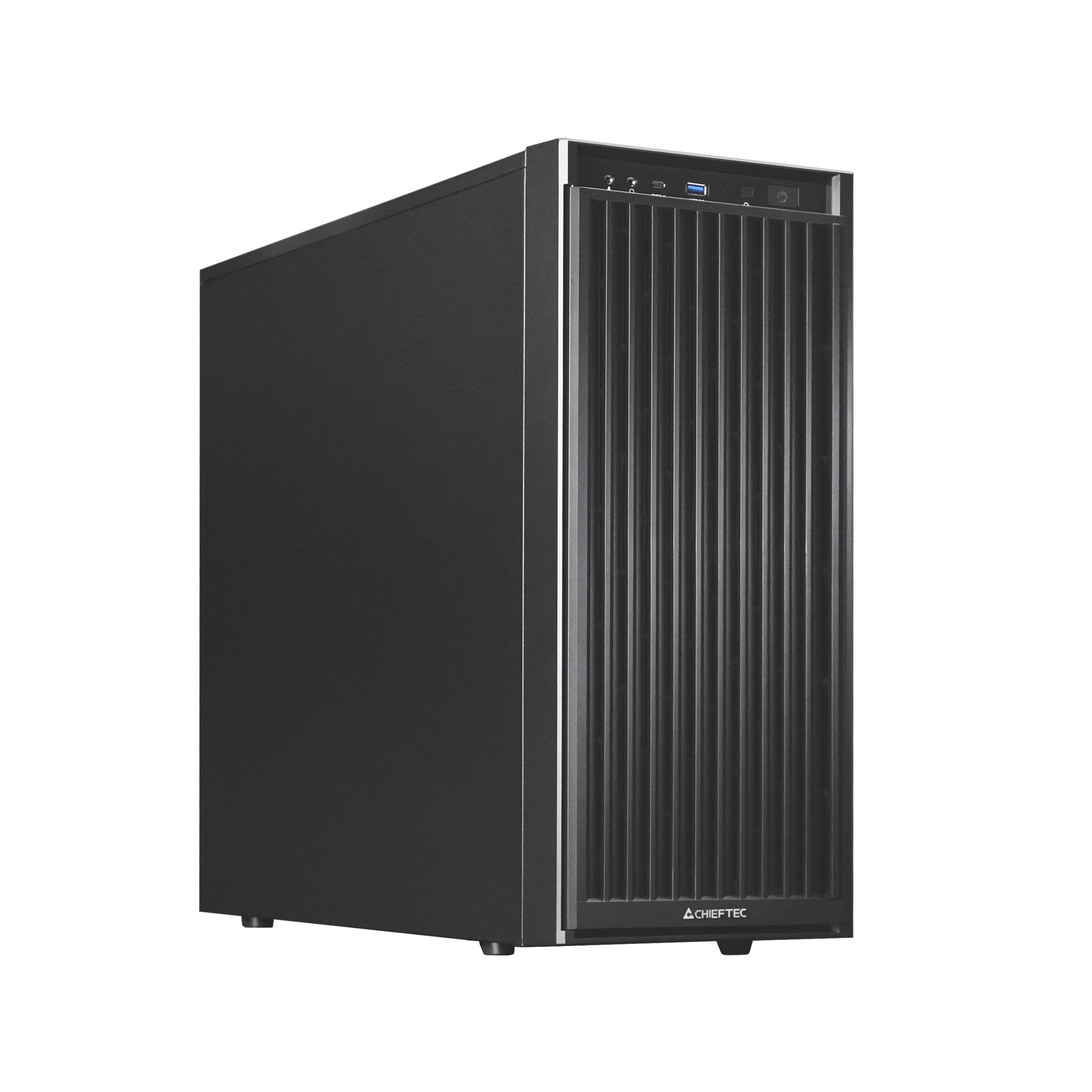

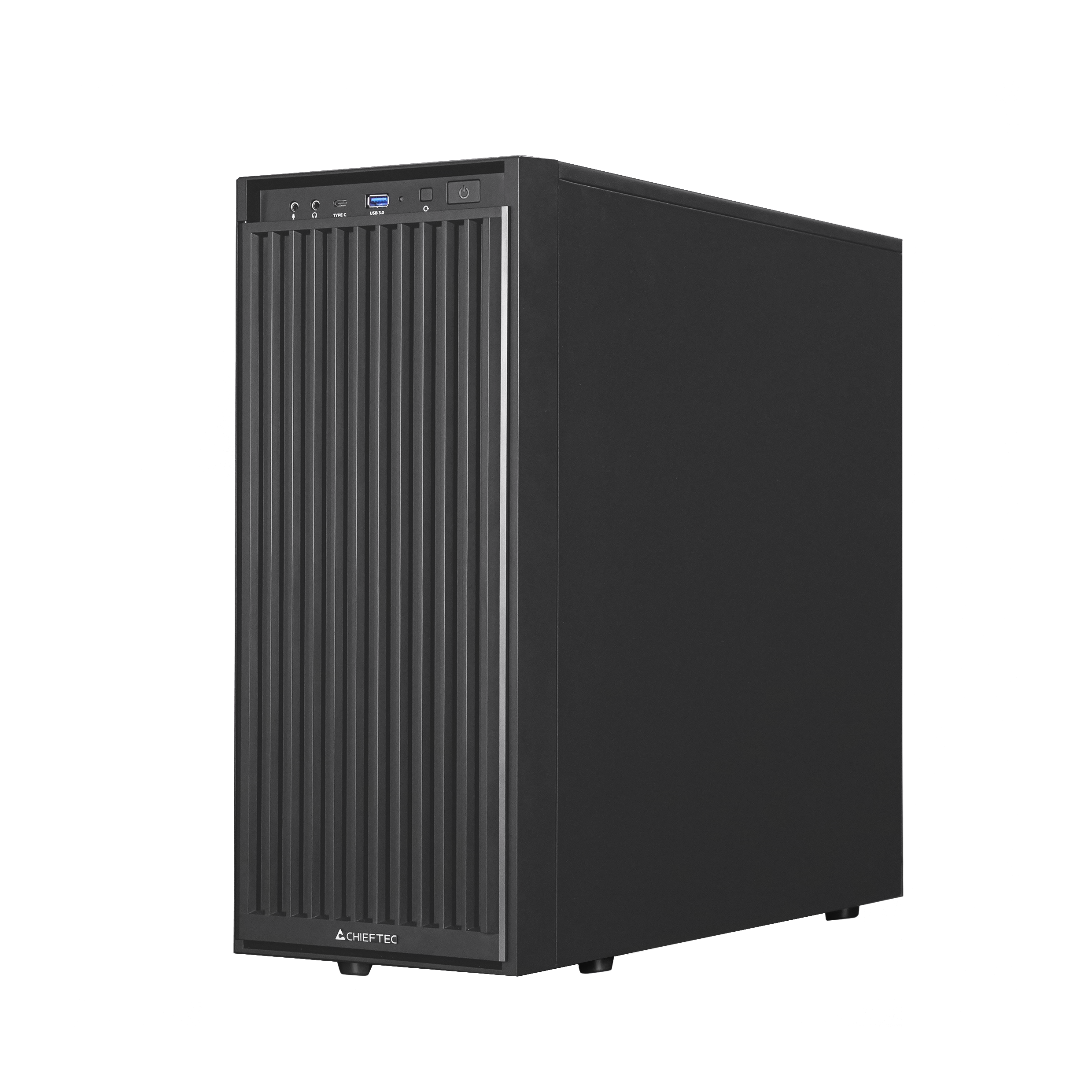

The CHIEFTEC BW-01B-OP is a high-performance ATX workstation chassis that blends a timelessly elegant front panel with a modernly designed door and essential front I/O, including a USB Type-C port. It comes pre-installed with a 120mm PWM HDB fan for quiet and long-lasting operation. It offers an easy-to-remove storage cage system and meets the demands of digital content creators as well as their long-term data storage needs. The chassis features cable management holes with rubber grommets for a clean build and efficient airflow. Built to support modern workstation systems, the BW-01B-OP delivers both performance and style in a refined, professional chassis.
SPECIFICATIONS
| Article no. | BW-01B-OP |
| EAN code | 0753263079312 |
| Color | Black |
| Material | 0.6mm SGCC |
| Motherboard support | Mini ITX, mATX, ATX |
| Dimension (DxWxH) | 510mm x 200mm x 465mm |
| Weight (without/with package) | 8.23 kg / 9.51 kg |
| Drive bay external | 2 x 5.25” |
| Drive bay internal | 6 x 3.5” and 4 x 2.5” |
| Power supply | ATX PSU (optional, up to 160 mm length) |

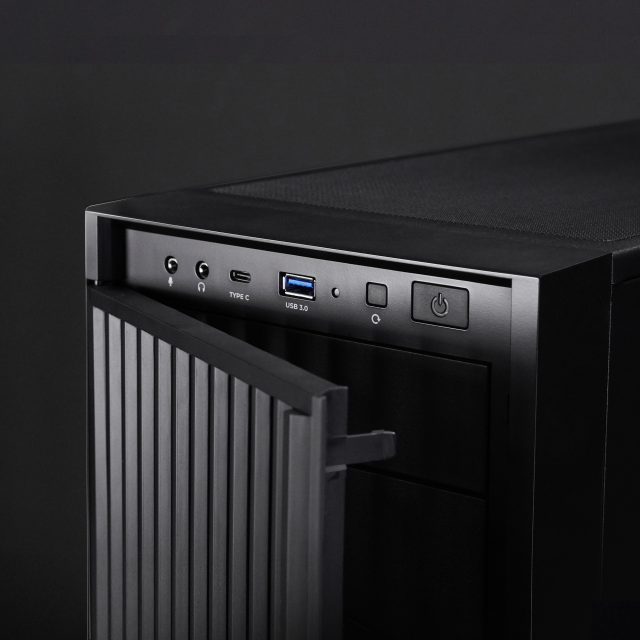

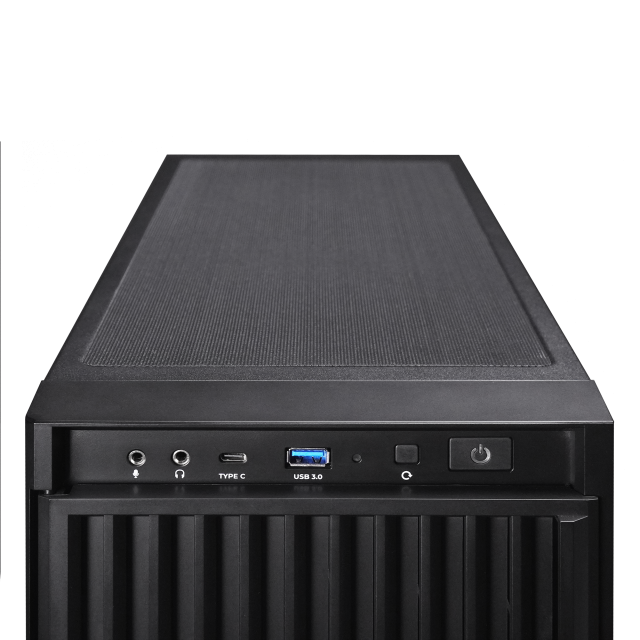

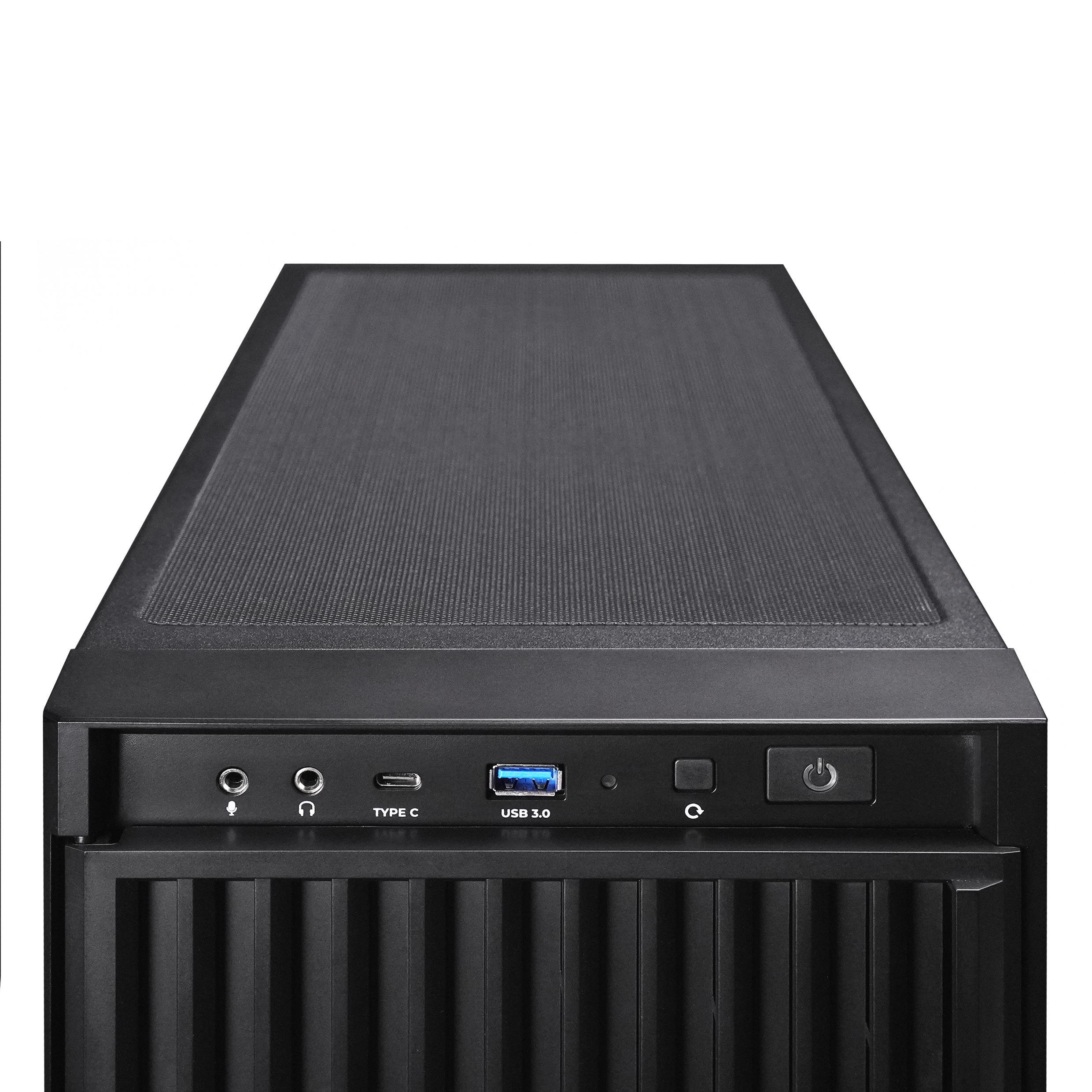

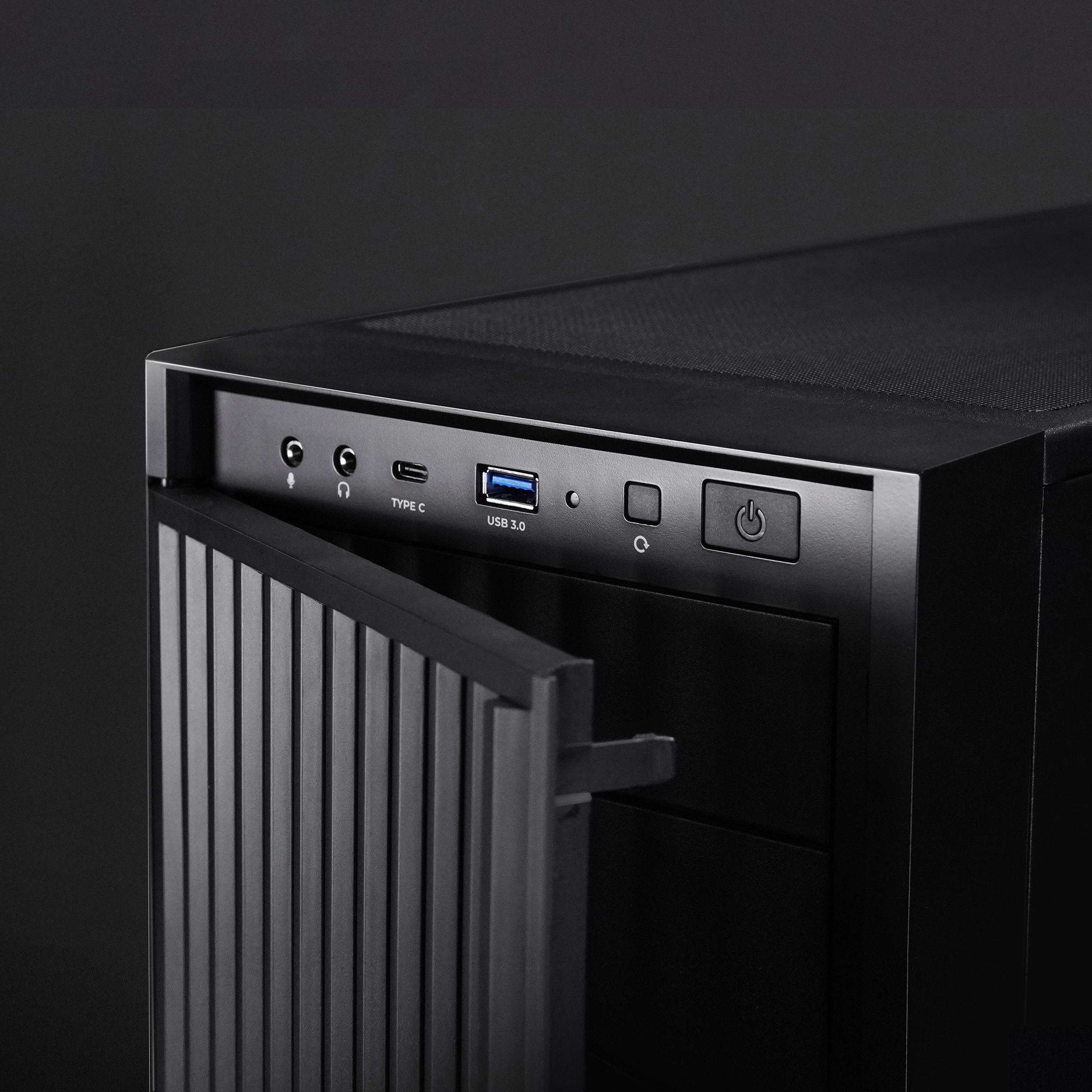

| Front I/O | 1x USB Type C, 1 x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-In |
| Scope of delivery | Screw set, removable dust filter bottom, magnetic dust filter on top |

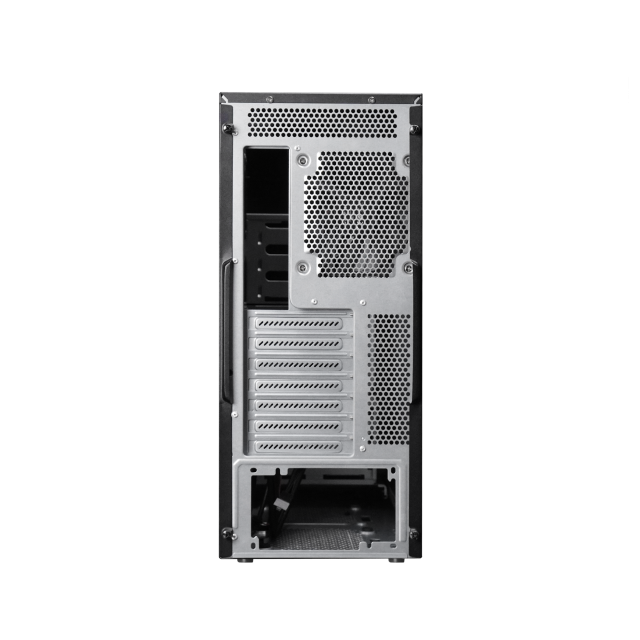

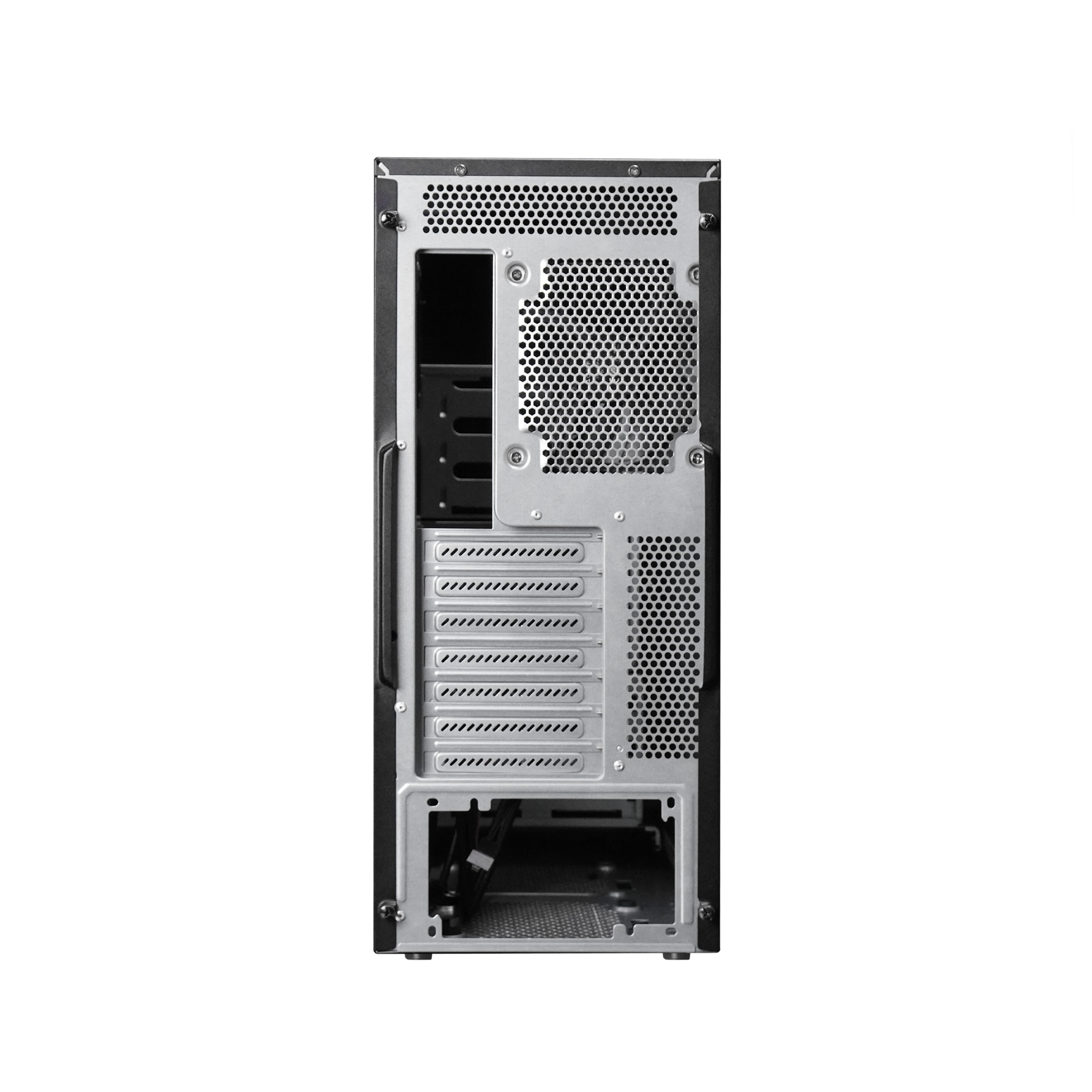

| Expansion slots | 7 |

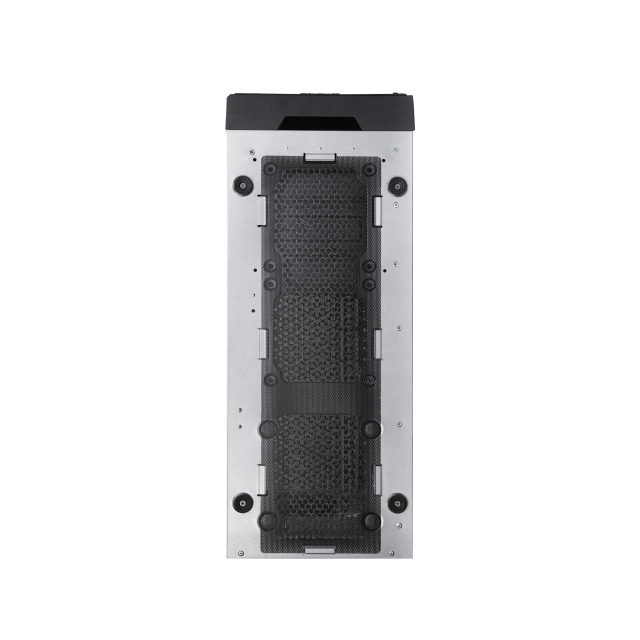

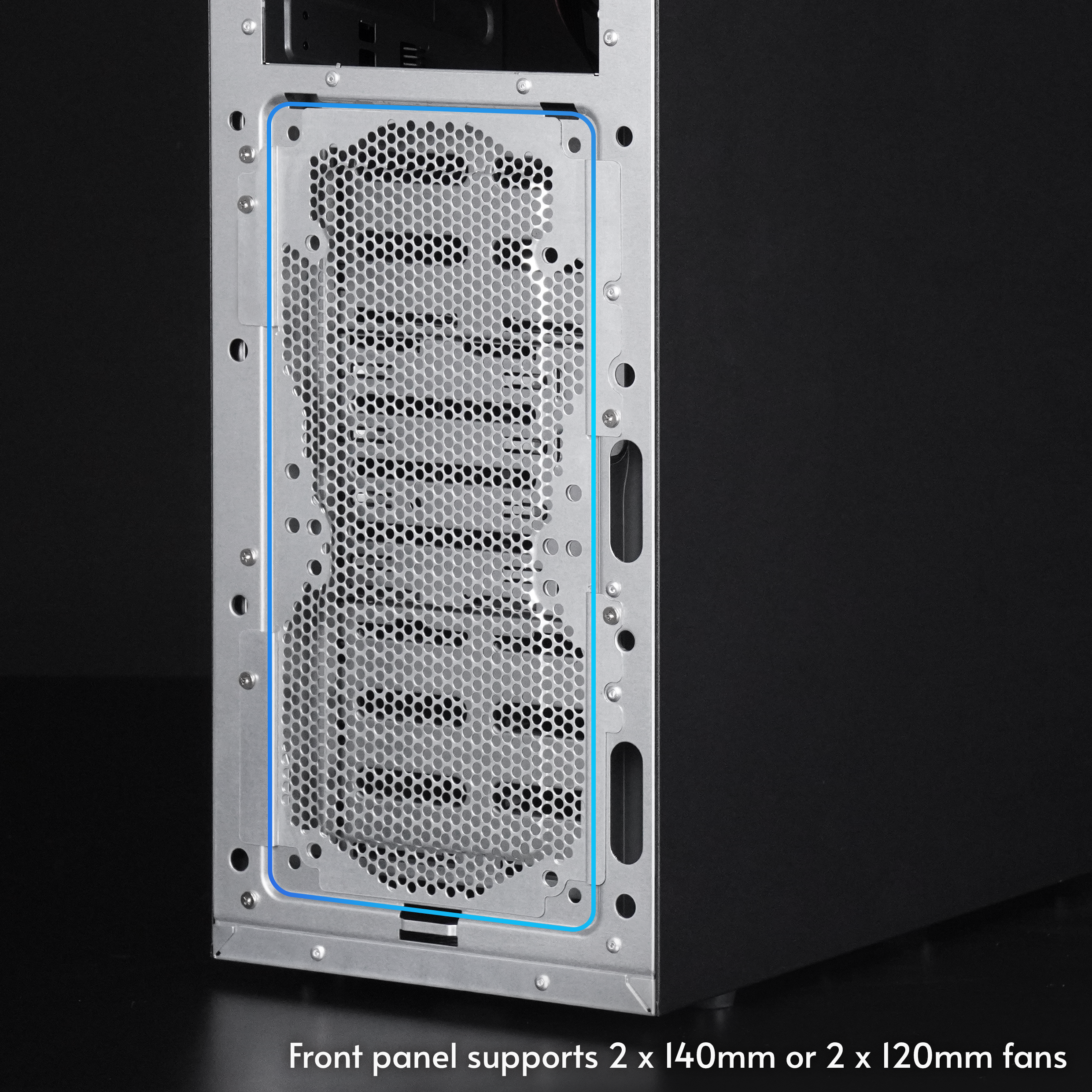

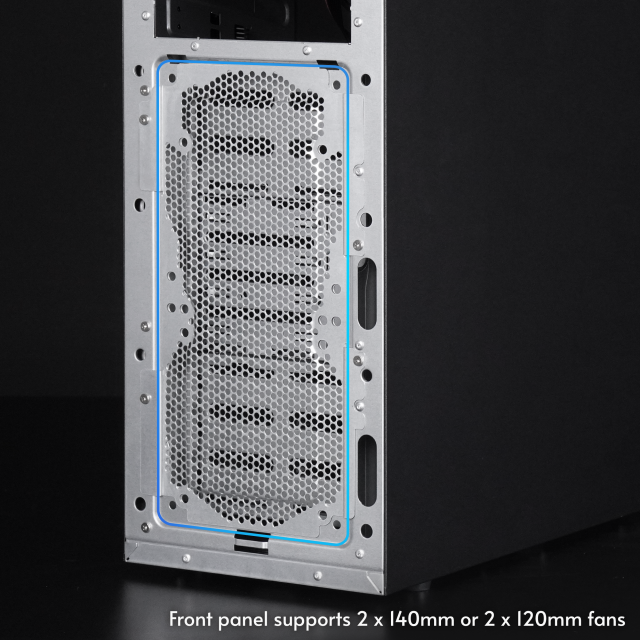

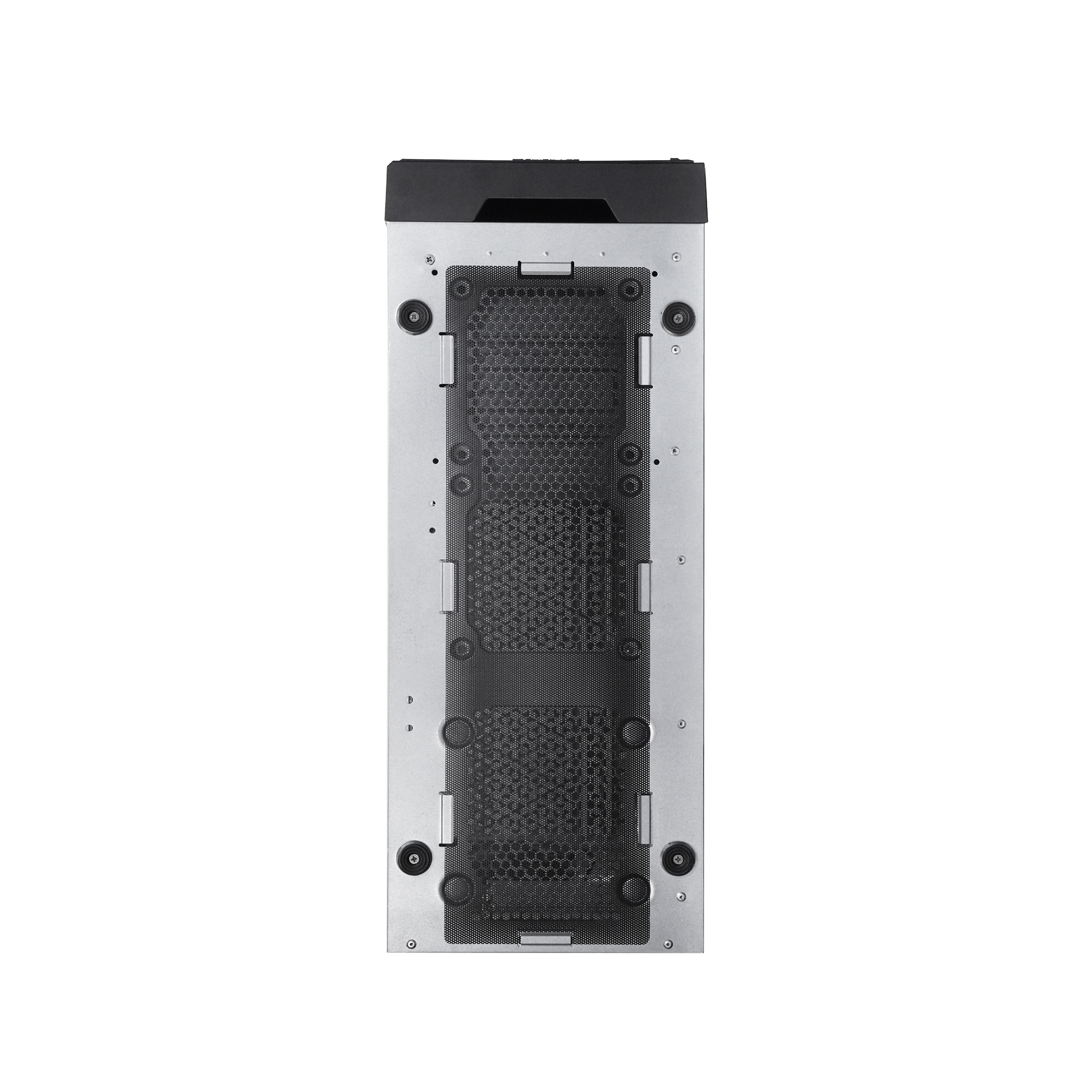

| Cooling Compatibility | Front: 2x 120mm / 2x 140mm fan Rear: 1x 120mm PWM HDB fan (pre-installed) Top: 3x 120mm / 3x 140mm fan / 240mm radiator / 360mm radiator (if the 5.25” tray on the top is left empty) |
| CPU cooler height (max.) | 157mm |
| VGA card length (max.) | 310mm (or 410mm, if 2.5” SSD cage is not installed) |
| Warranty | 24 Months |
