GPF-500G
SMART SERIES
OVERVIEW

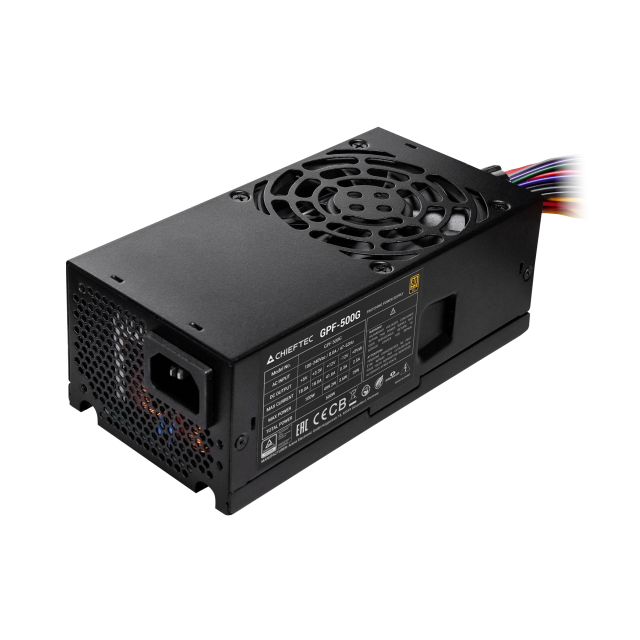

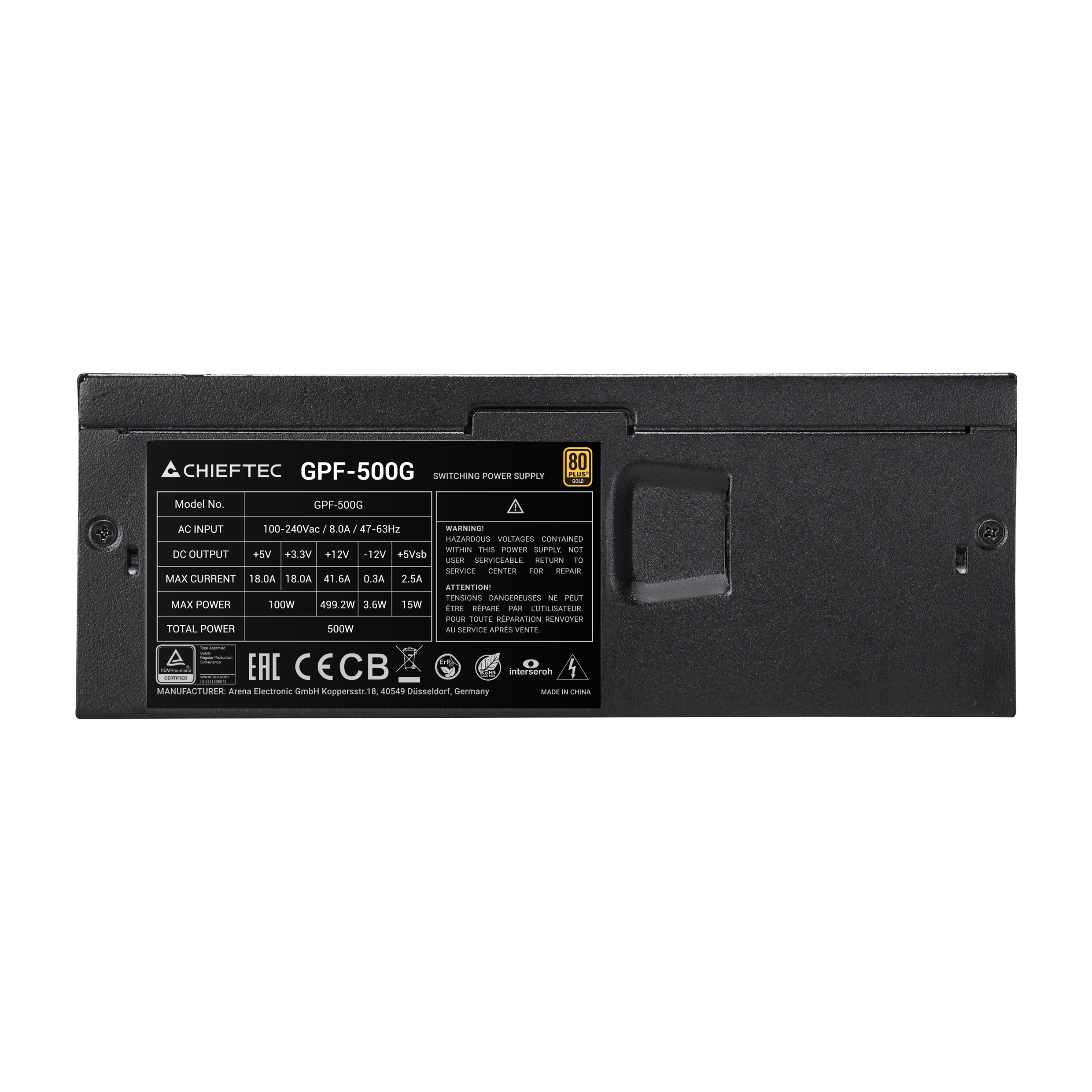

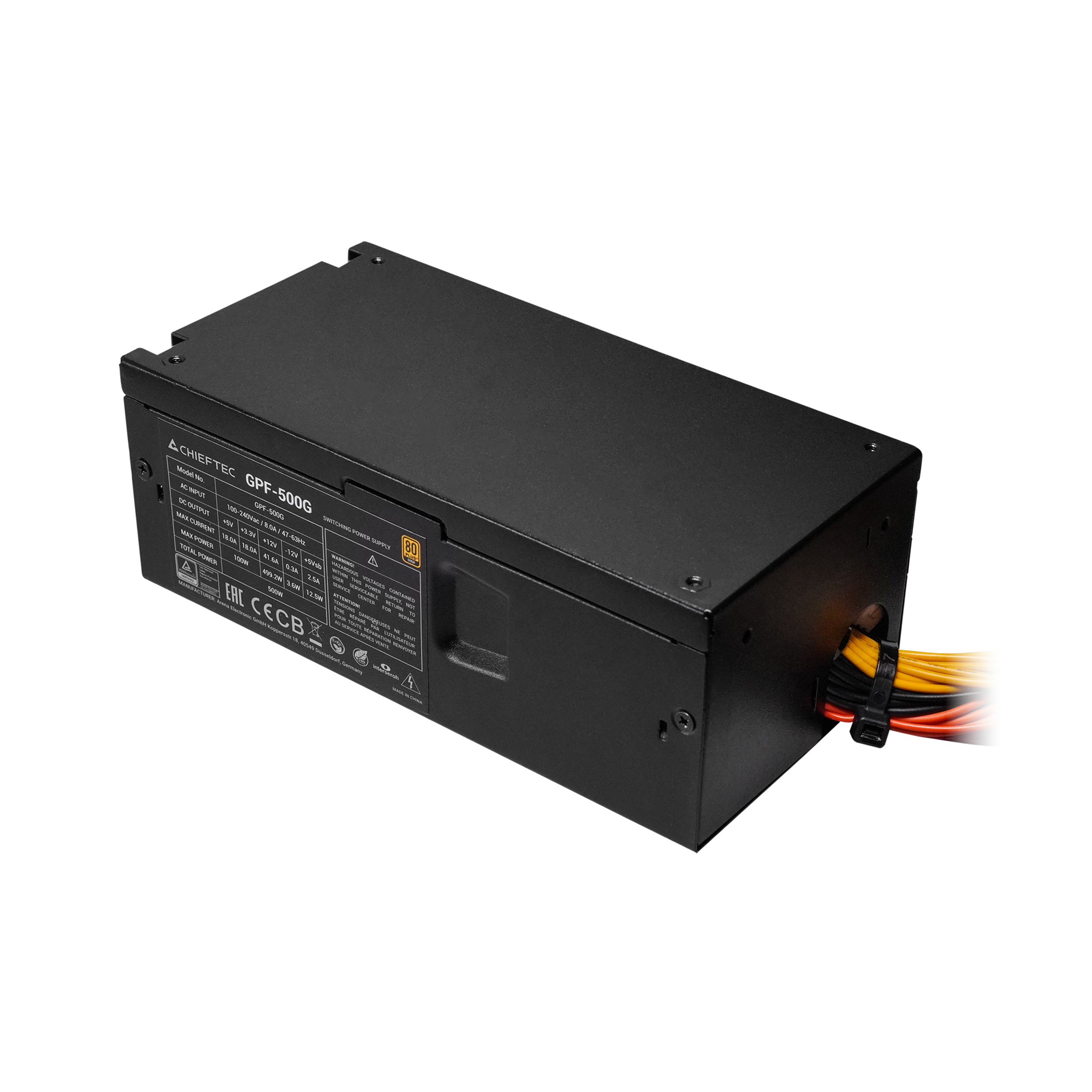

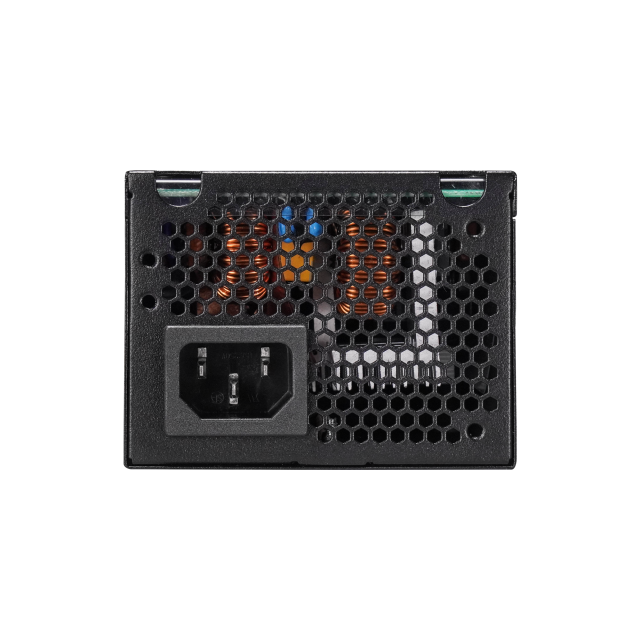

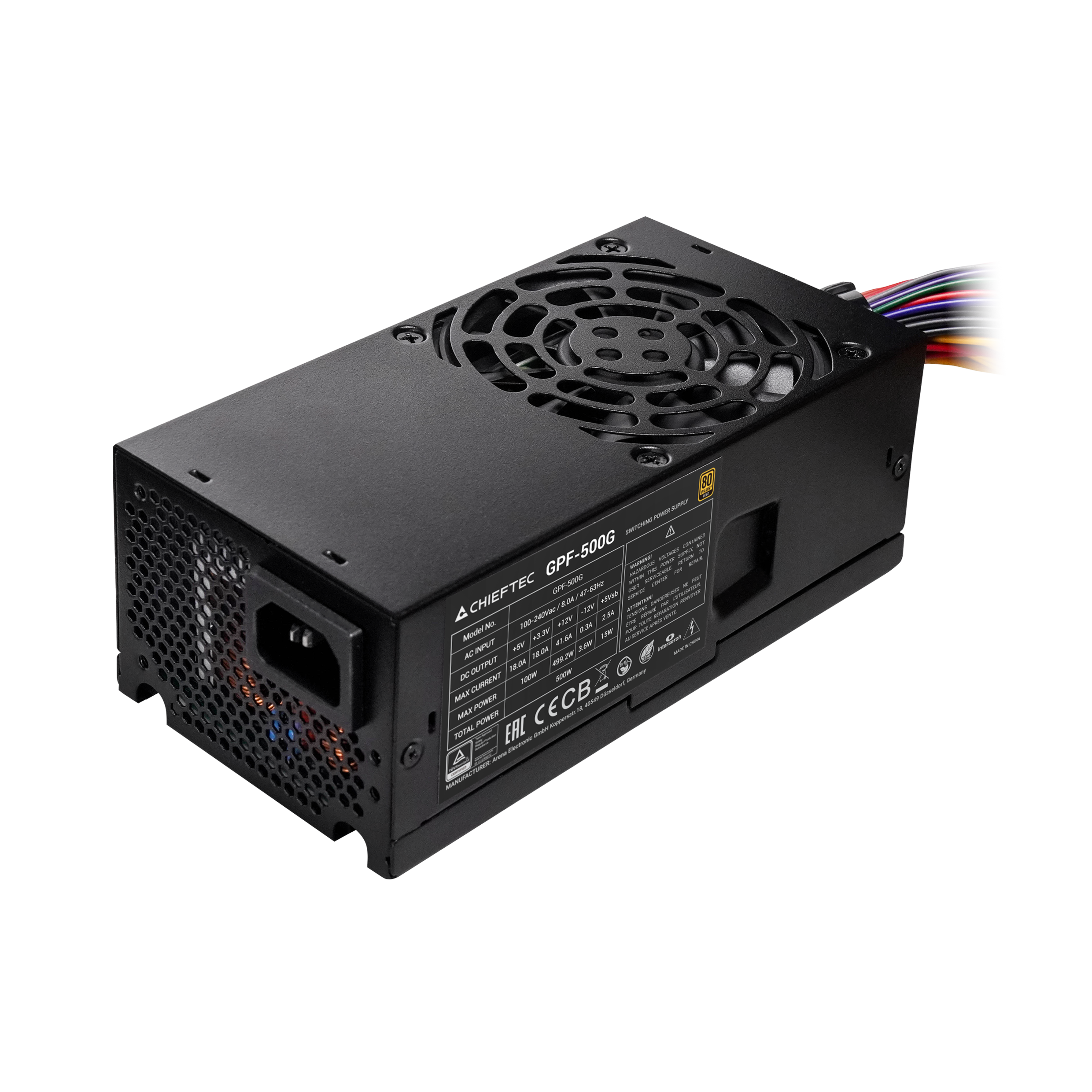

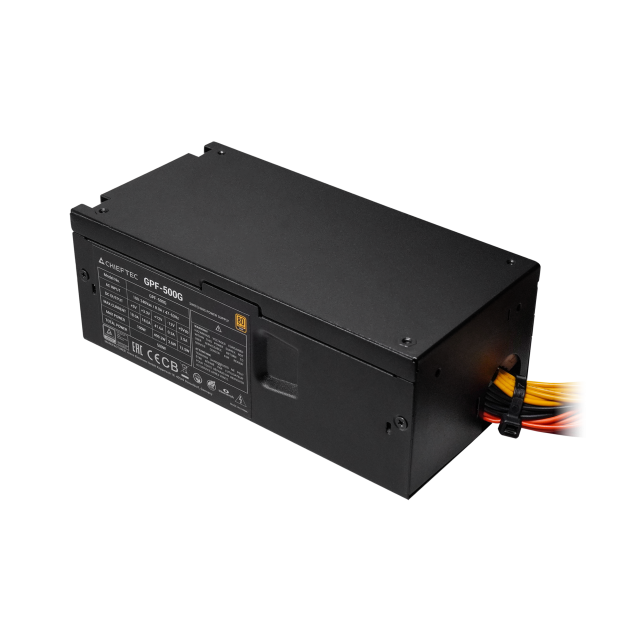

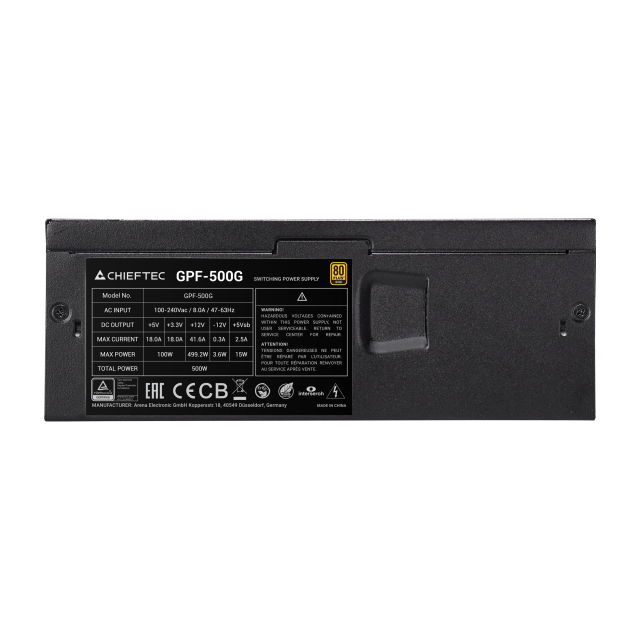

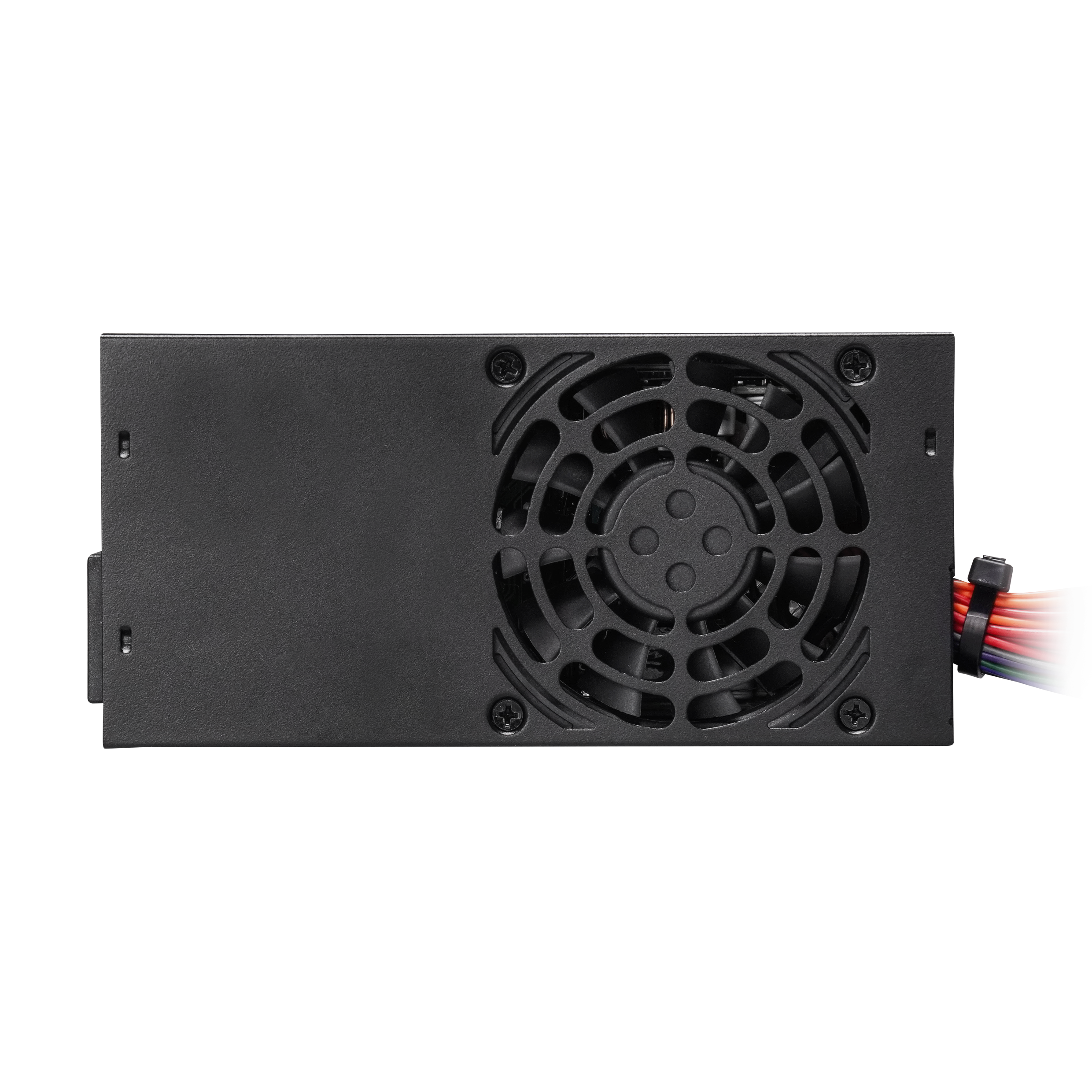

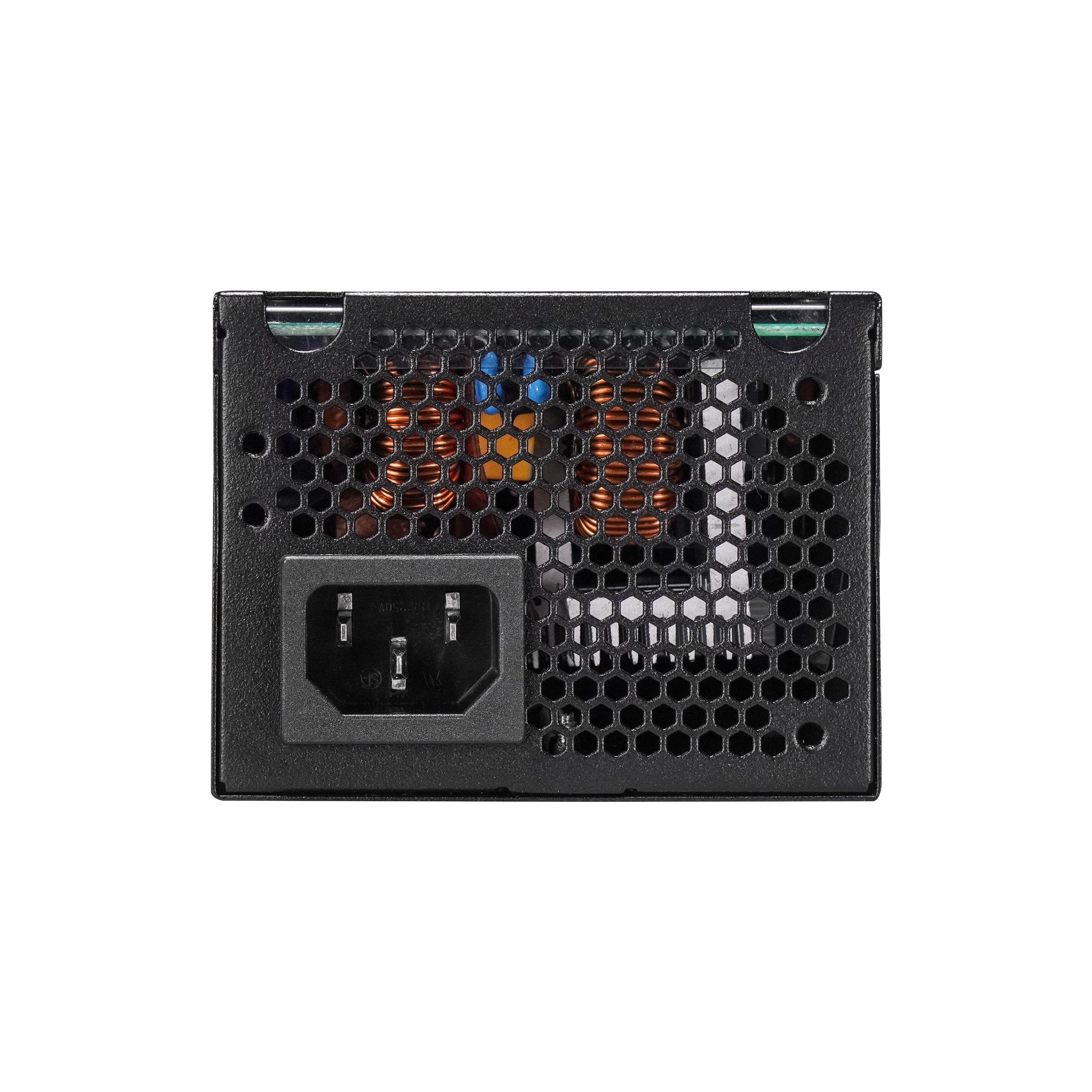

The CHIEFTEC GPF-500G is a 500W TFX power supply with 80 Plus Gold certification, delivering high-efficiency performance for professional office desktops. Its sleek black finish complements any workspace while ensuring reliable and stable power.
SPECIFICATIONS
| Model | Smart 500W |
|---|---|
| Article no. | GPF-500G |
| EAN code | 0753263079459 |
| Weight (without/with package) | 1.42 kg / 1.55 kg |
| AC Input | 100-240V / 8.0A |
| Frequency | 47 - 63Hz |
| +5V | 18A |
| +3,3V | 18A |
| +5V & +3,3V combined | 100W |
| +12V | 41.6A / 499.2W |
| -12V | 0.3A / 3.6W |
| +5VSB | 2.5A / 12.5W |
| P.F. | >0.95 (at full load) |
| Maximum Power | 500W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 4 |
| MOLEX | 2 |
| MOLEX/FLOPPY | 2/1 |
| 20+4 PIN ATX | 400 |
|---|---|
| 8 PIN EPS(4+4) | 450 |
| 8 PIN PCIe (6+2) | 350/150 |
| SATA | 2 x 350/150 |
| MOLEX | 350/150 |
| MOLEX/FLOPPY | 350/150/150 |
| ATX12V Version | ATX 12V 2.4 |
|---|---|
| Form factor | TFX |
| Efficiency | 80Plus Gold |
| Dimension (DxWxH) | 175mm x 85mm x 65mm |
| PFC | Active PFC |

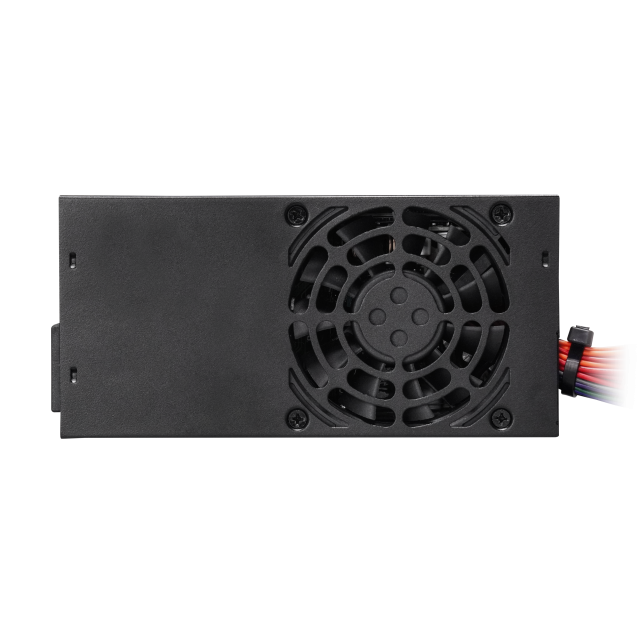

| Fan | 80mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Overload protection) OTP (Over Temperature Protection) OVP (Overvoltage protection) SCP (Short-circuit protection) UVP (Under Voltage protection) OCP (Over-Current Protection) |
| Warranty | 24 Months |
