- Ergonomically positioned front interfaces
- Solid
- Space saving

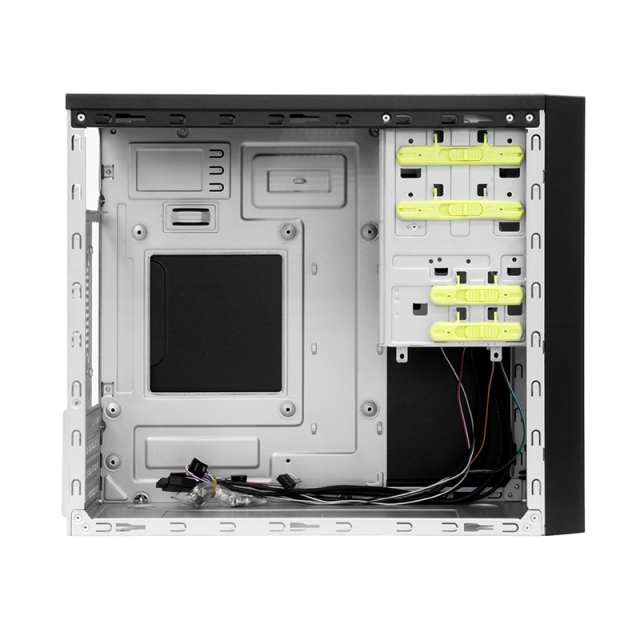

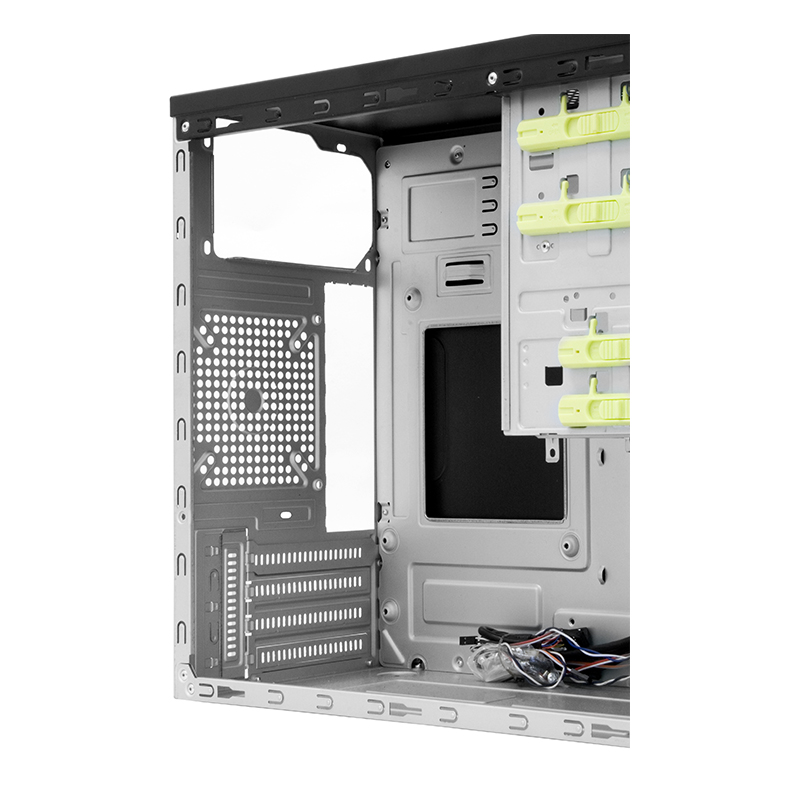

- Toolless installation: HDD, ODD
HT-01B-350GPB
OVERVIEW

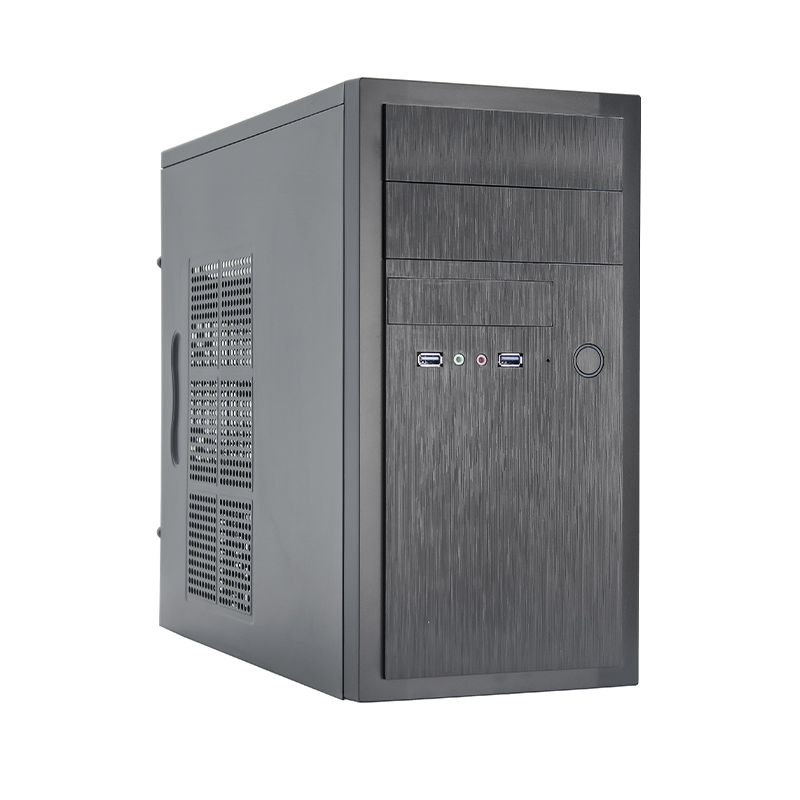

The outstanding and eye-catching hair-line design of the front panel of this brand new mATX chassis, transports a brushed aluminum feeling thereby blending perfectly into both Home and Office environments. Equipped with two USB 3.0 front ports, which allow data transfers of up to 5 GBit/s (USB 3.0 Super-Speed), the tool-free layout makes the integration of components a “Childs play”. Optionally, you can install either a 80mm, 90mm or 120mm fan on the rear side of the chassis.
SPECIFICATIONS
| Article no. | HT-01B-350GPB |
| EAN code | 4710713234246 |
| Color | Black |
| Material | 0.5mm SECC |
| Motherboard support | Mini ITX, mATX |
| Dimension (DxWxH) | 425mm x 180mm x 352mm (Stand +3mm) |
| Weight (without/with package) | 4.72kg / 5.32kg |
| Drive bay external | 2x 5.25” and 1x 3.5” |
| Drive bay internal | 2x 3.5” and 1x 2.5” |

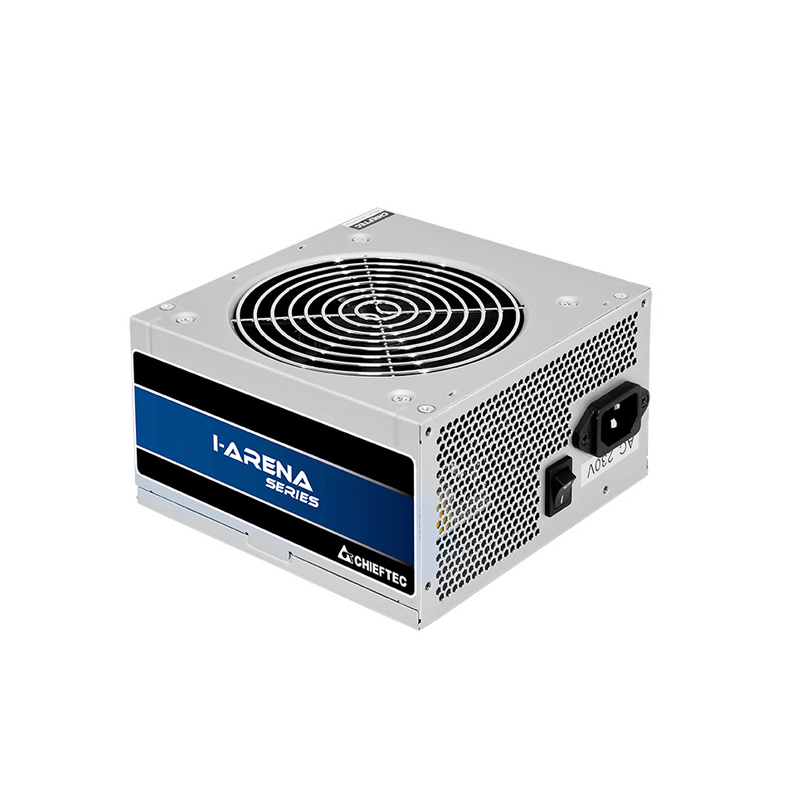

| Power supply | GPB-350S (350W) |
| Front I/O | 2x USB 3.0 (USB 3.1 Gen 1), Audio-out (AZALIA / HD-Audio), Mic-in |
| Scope of delivery | Set of screws, motherboard standoffs, knurled screws |
| Expansion slots | 4 |

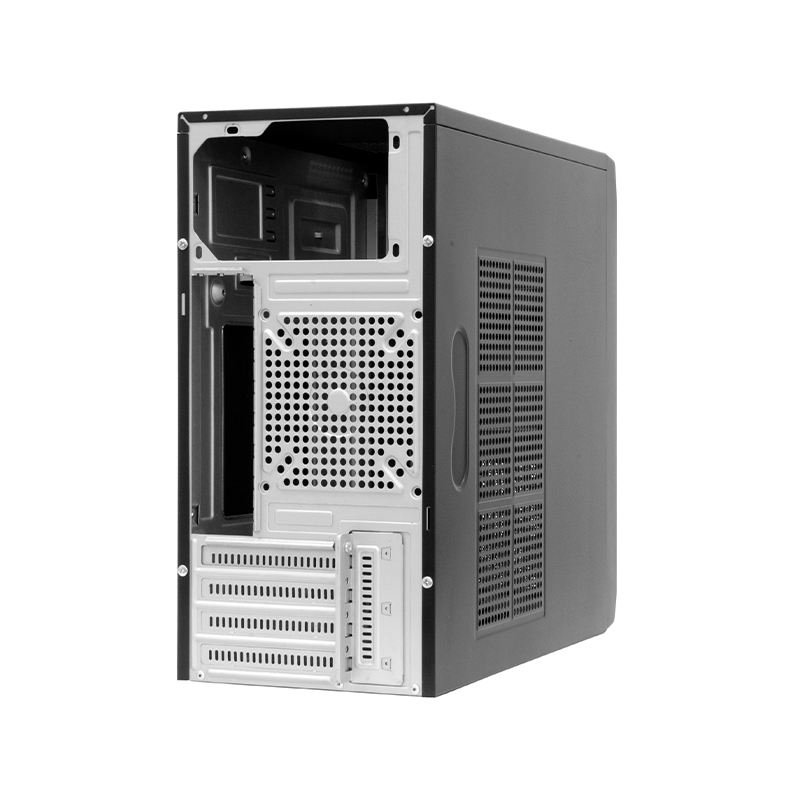

| Cooling Compatibility | Rear: 1x 80mm or 90mm or 120mm |
| CPU cooler height (max.) | 140mm |
| VGA card length (max.) | 340mm |
| Warranty | 24 Months |
