- CPU cooler height: max. 150mm
- Graphic card lenght: max. 320mm
- Ergonomically positioned front interfaces
- Modern design
- Space saving
Gaming Cube
CI-01B-OP
OVERVIEW

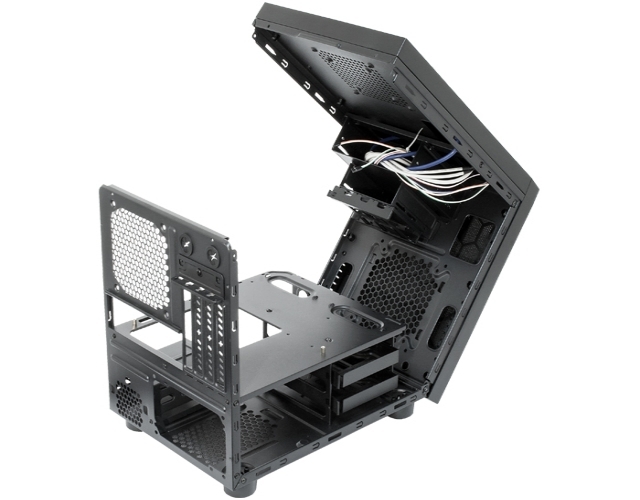

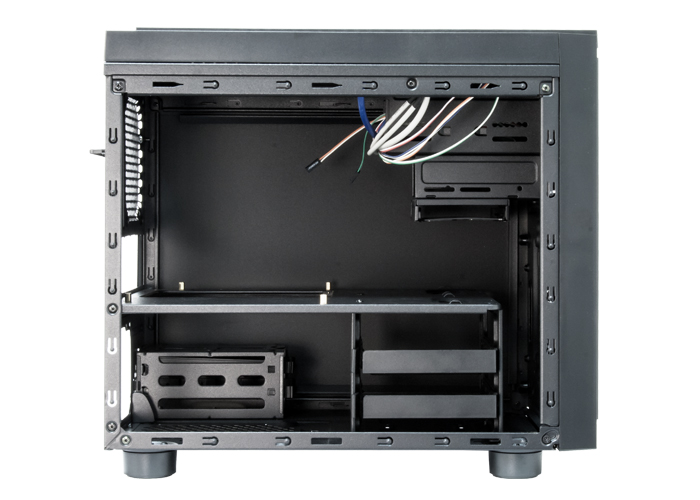

With the CI-01B-OP, CHIEFTEC extends its high-value chassis portfolio by a unique and multi-functional GAMING CUBE. The brand new GAMING CUBE, based on a mATX form factor comprises of a 0,6mm thick metal case with a cute design and enormous capacities for “to-be-installed

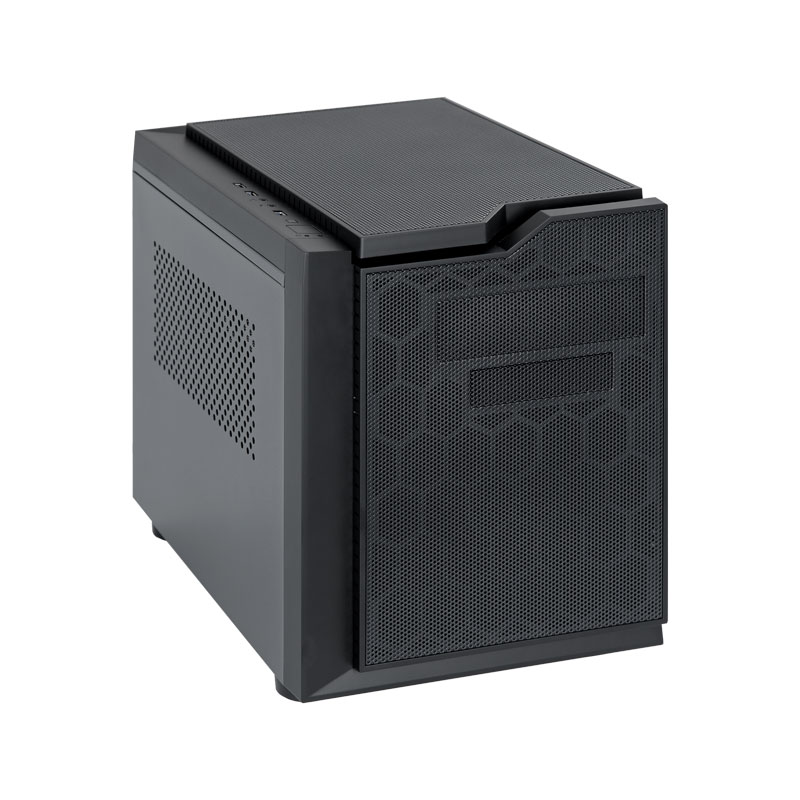

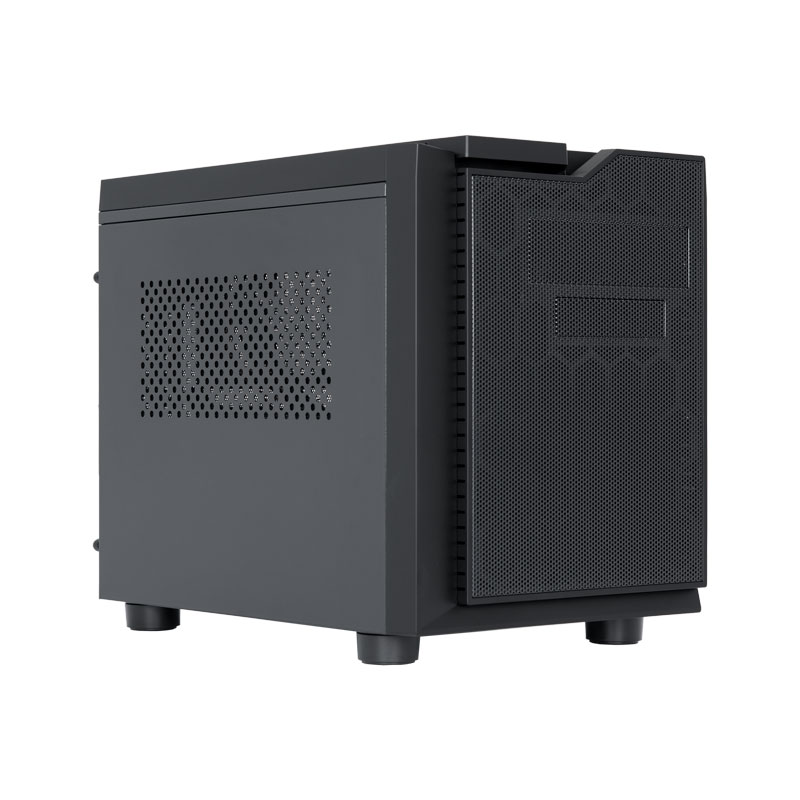

hardware” that leaves no wish open and serves the DIY Gaming market marvelously. Coming in an all-black finish, the CI-01B-OP presents itself with a honey-comb stamped mesh front panel, giving the chassis a descent but high-end look.
SPECIFICATIONS
| Article no. | CI-01B-OP |
| EAN code | 4710713230125 |
| Color | Black |
| Material | 0.6mm SPCC |
| Motherboard support | Mini ITX, mATX |
| Dimension (DxWxH) | 390mm x 265mm x 325mm (Stand +22mm) |
| Weight (without/with package) | 4.95kg / 5.87kg |
| Drive bay external | 1x 5.25” and 1x 3.5” |

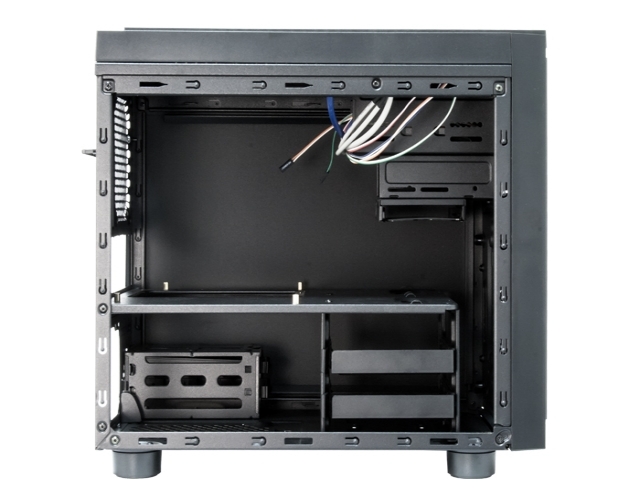

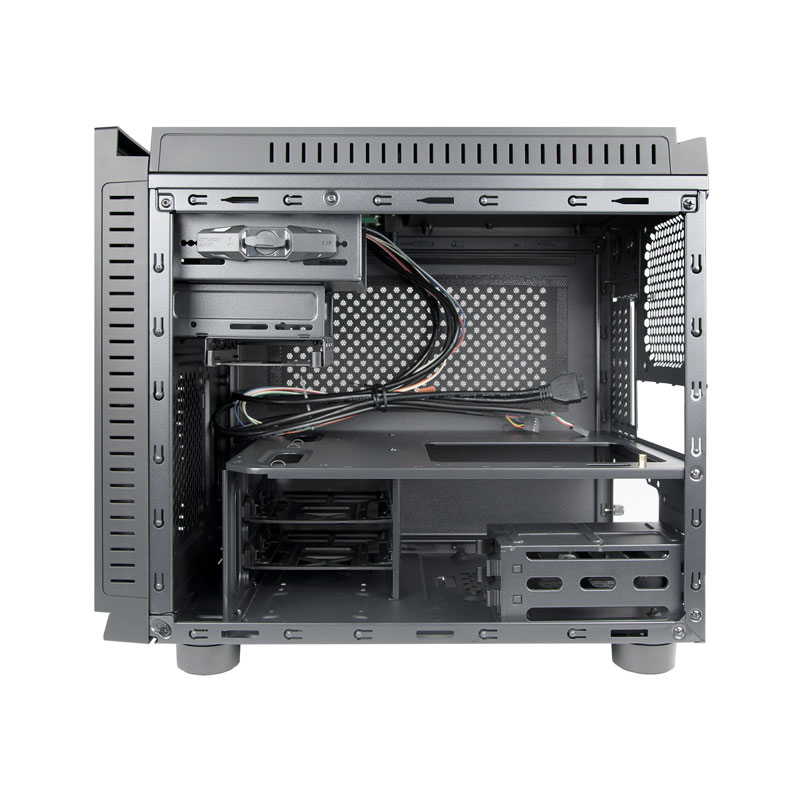

| Drive bay internal | 2x 3.5” and 3x 2.5” |
| Power supply | ATX (optional) |

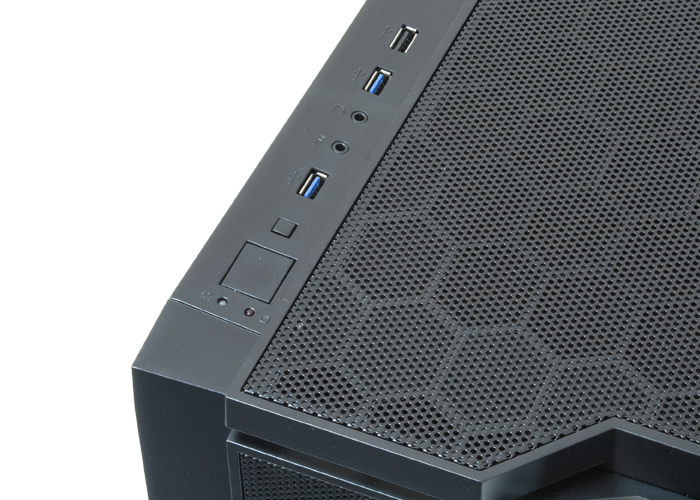

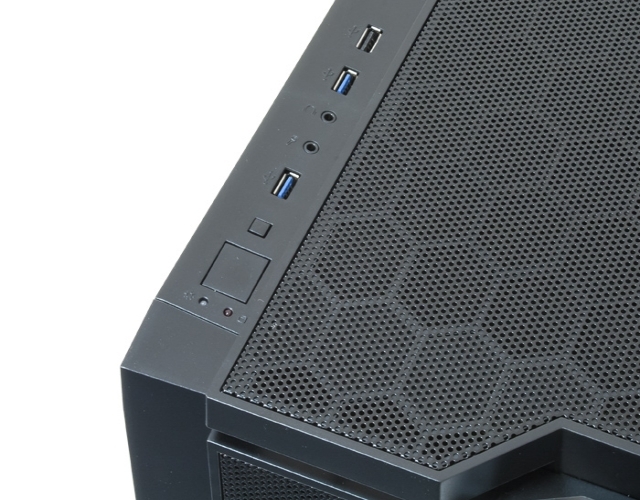

| Front I/O | 2x USB3.0 (USB3.1 Gen 1), 1x USB2.0, Audio-out (AZALIA / HD-Audio), Mic-in |
| Scope of delivery | Screw set |

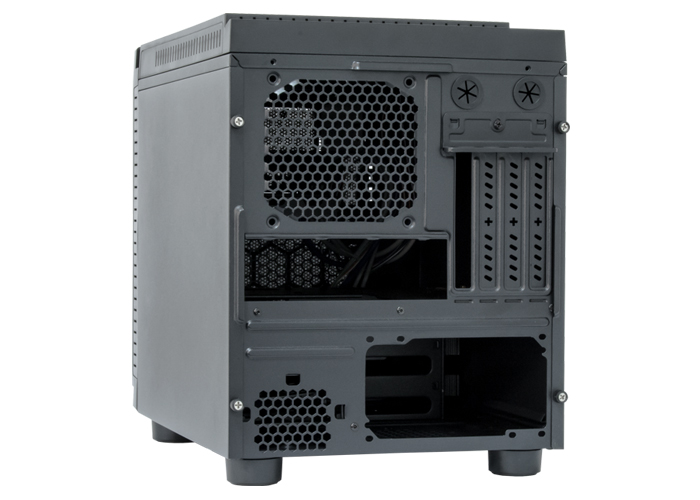

| Expansion slots | 4 |
| Cooling Compatibility | Front: 1x 120mm or 1x 140mm Rear: 1x 120mm Top: 1x 120mm |
| CPU cooler height (max.) | 150mm |
| VGA card length (max.) | 320mm |
| Warranty | 24 Months |
