IX-03B-OP

  • Minimum space requirements
  • Maximum flexibility with a variety of expansion options (3.5'' HDD or Slimline ODD)

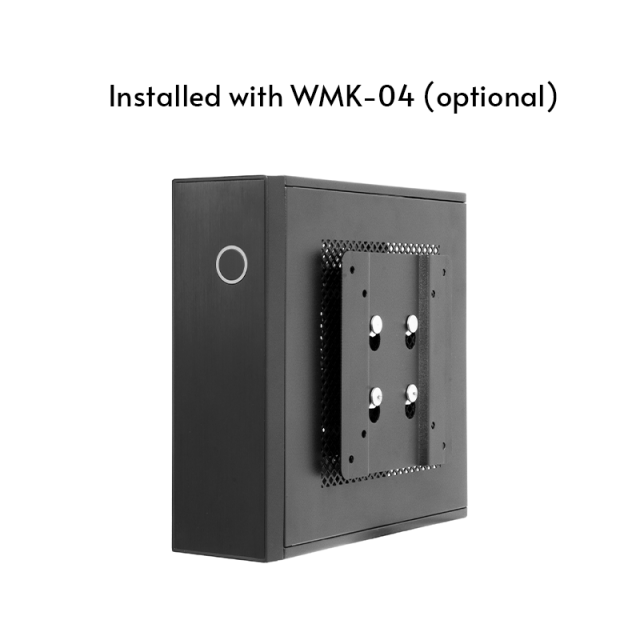

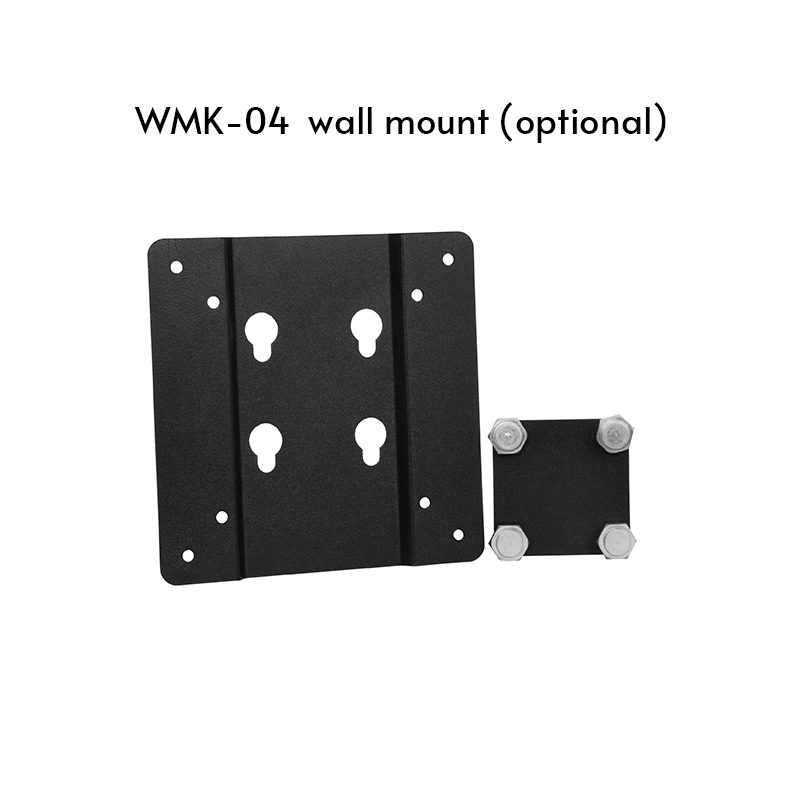

  • VESA wall mount / monitor holder can be obtained optionally

OVERVIEW

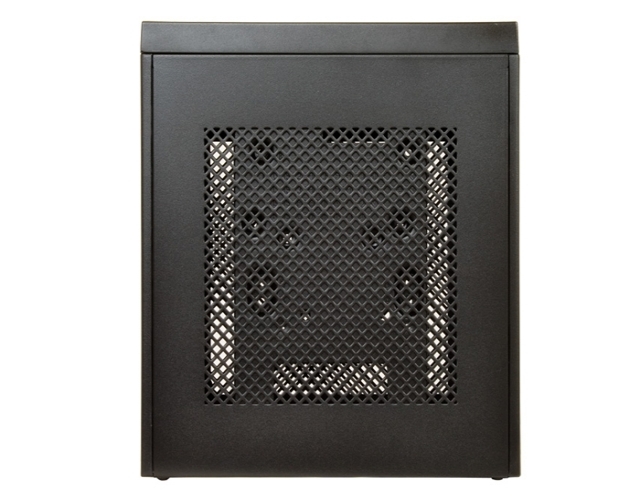

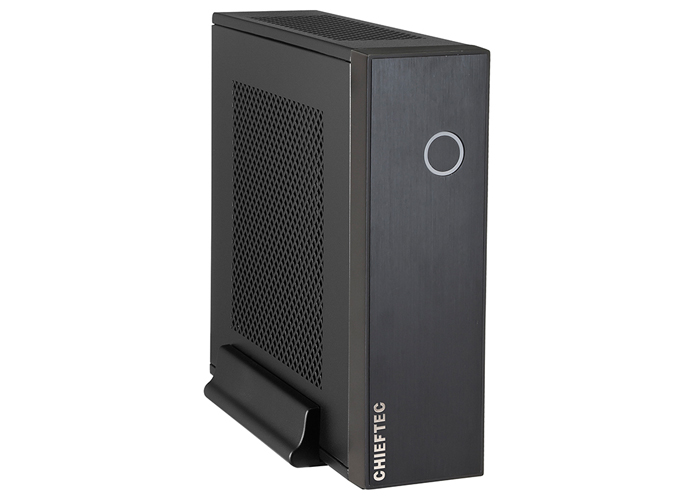

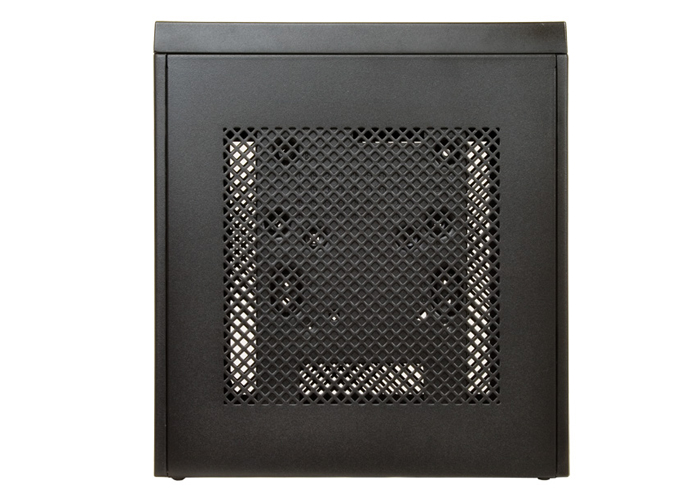

This tiny case can be operated both in a horizontal or vertical position, offering great flexibility and connectivity. It combines the compact dimensions of a Mini-ITX case with the comfort of a fully loaded PC, with many economical and low-priced components being available. It enables you to build a system with any configuration you are aiming to achieve at reasonable pricing. Additionally this case also has two storage bays for two regular size 2.5" HDDSs/SSDs.

SPECIFICATIONS

CE
EAC
interseroh
Recycle
RoHS
WEEE
Article no. IX-03B-OP
EAN code 4710713230576
Color Black
Material 0.8mm SECC
Motherboard support Mini ITX
Dimension (DxWxH) 220mm x 197mm x 63mm
Weight (without/with package) 1.0kg / 1.4kg

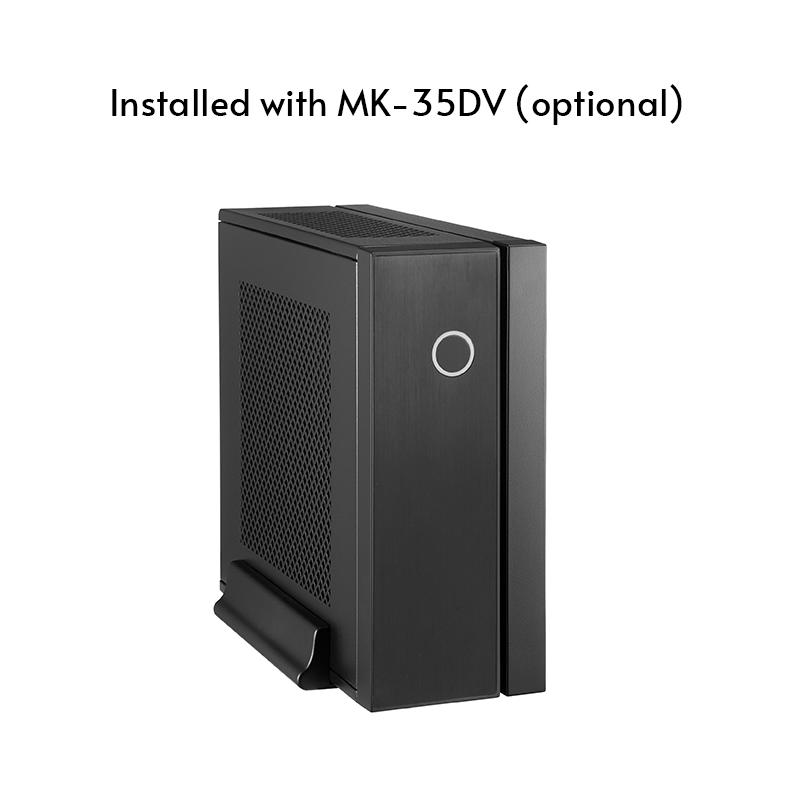

Drive bay external Optional (1x 5.25” Slim Line in MK-35DV included)

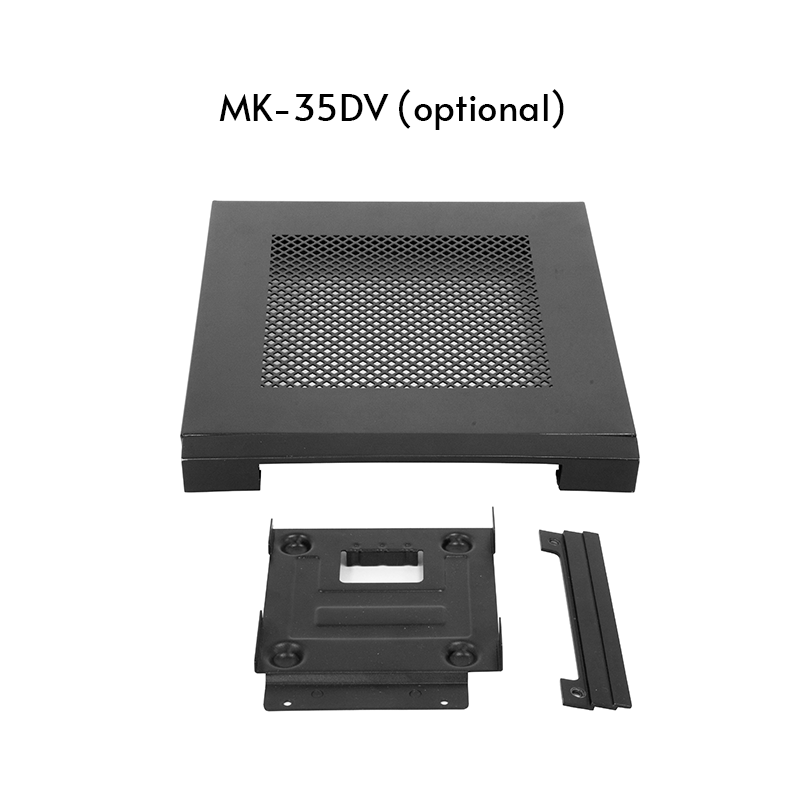

Drive bay internal 2x 2.5” or (1x 3.5” and 1x 2.5”) with optional HDD Kit MK-35DV
Power supply Optional AC-DC adapter with DC-DC transformer (CDP-085ITX)
Front I/O -
Scope of delivery Set of screws, magnetic floor stand (can be used as desktop or tower)
Expansion slots -
Cooling Compatibility 2x 50mm
CPU cooler height (max.) 30mm with 2.5” HDD/SSD
VGA card length (max.) -
Warranty 24 Months
