- Redundancy in gold. The modules of the MRW models are 80plus gold certified. This means, that you’ll get the highest liability & security possible at modest running costs. You can always use the MRW models, whenever you need your data 24/7.
MRW-5600G

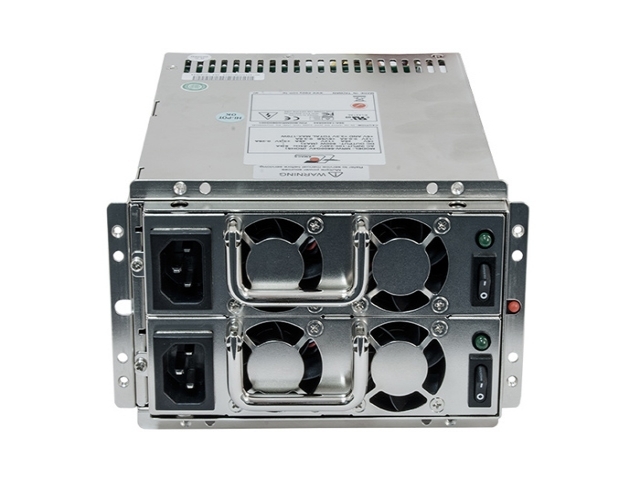

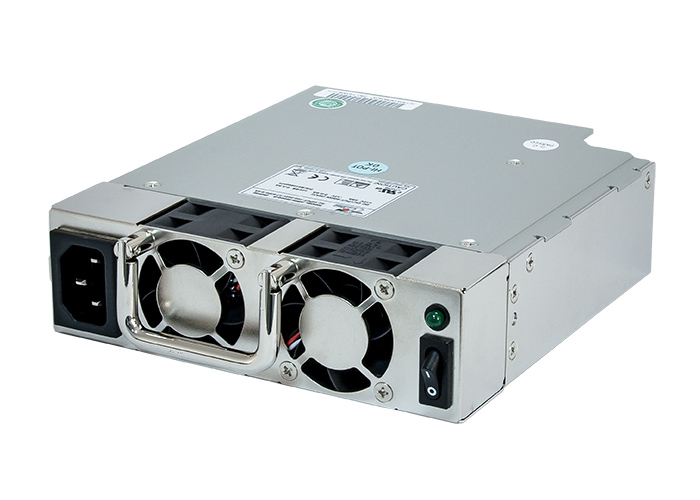

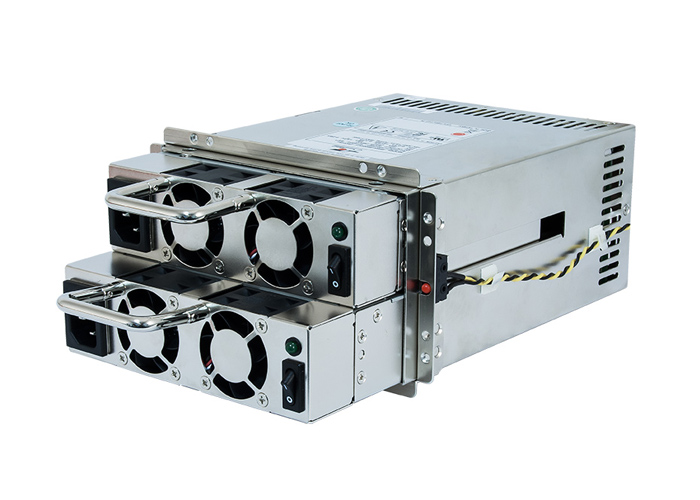

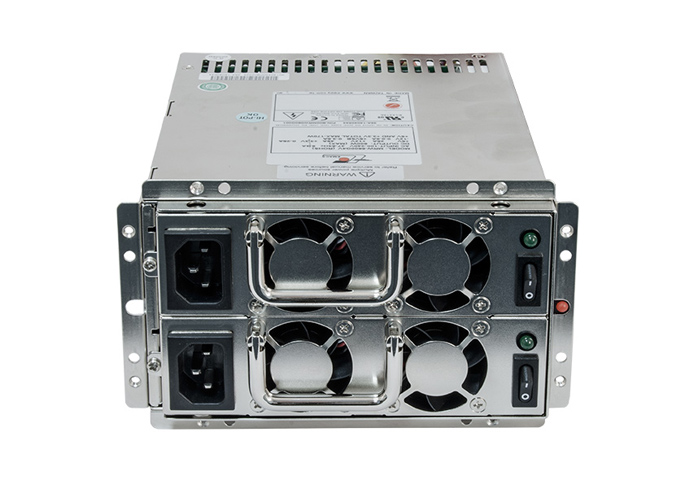

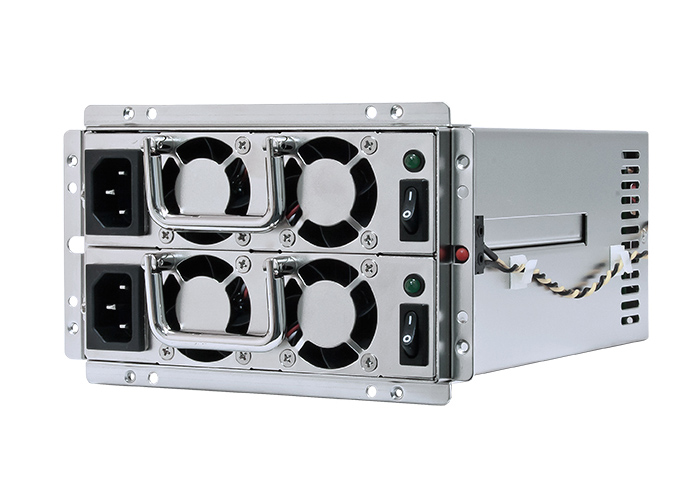

Redundant PSU SERIES MRW-5600G
SPECIFICATIONS
| Model | Redundant PSU 600W |
|---|---|
| Article no. | MRW-5600G |
| EAN code | 4710713233096 |
| Weight (without/with package) | |
| AC Input | 100V / 9A 240V / 4A |
| Frequency | 47 - 63Hz |
| +5V | 25A |
| +3,3V | 25A |
| +5V & +3,3V combined | 170W |
| +12V1 | 49A |
| +12V2 | - |
| +12V1, +12V2 combined | - |
| P.F. | >0,9 |
| -12V | 0,8A |
| +5VSB | 3,5A |
| Maximum Power | 600W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | |
| SATA | 6 |
| MOLEX/FLOPPY | 9/1 |
| 20+4 PIN ATX | |
|---|---|
| 8 PIN EPS(4+4) | |
| 8 PIN PCIe (6+2) | |
| SATA | |
| MOLEX/FLOPPY |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 185 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 40mm fan (2x 40mm per each module) |
| Security | Dual OVP (Overvoltage protection) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
